Description
Product Overview

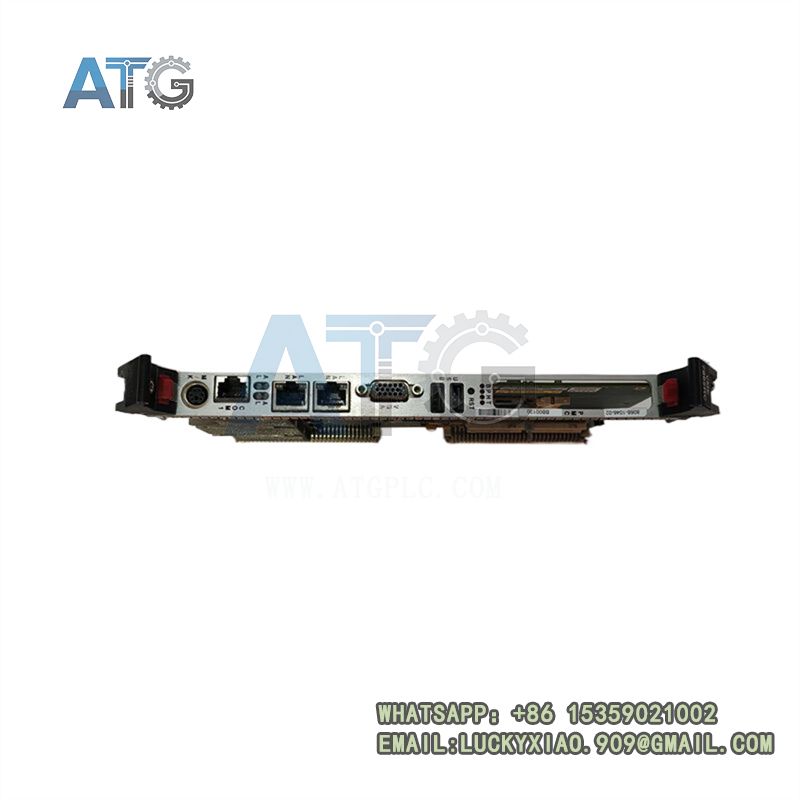

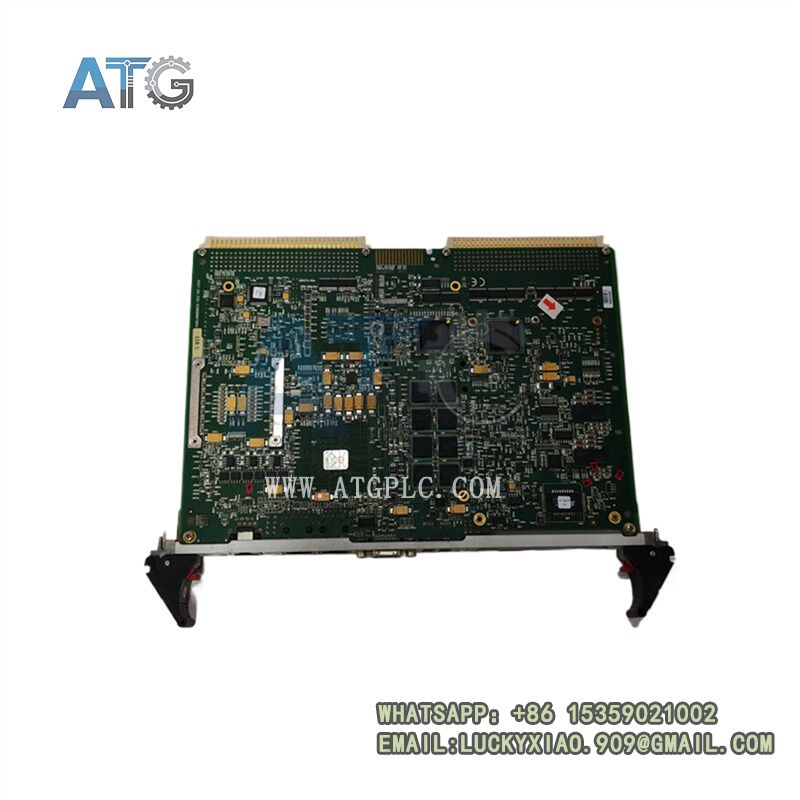

The GE VME7865RC — referenced by board number V7865-23003 and order code 350-9300007865-23003 M — is a ruggedized 6U VMEbus single-board computer (SBC) from GE Intelligent Platforms. It serves as the high-performance core computing node for mission-critical real-time control, data acquisition and embedded computing systems in harsh industrial, energy and aerospace environments.
Built on the Intel Core 2 Duo processor platform with the Intel 945GM Express chipset, this module delivers robust dual-core processing in a single standard VME chassis slot. It features passive cooling, extended temperature ratings and rugged construction, and supports both system controller and peripheral CPU modes on the VMEbus. With rich on-board I/O and expansion capabilities, it provides a flexible, long-life computing platform for demanding embedded control applications.
Core Product Features
- Intel Core 2 Duo processor running at 2.16 GHz with 4 MB L2 cache delivers strong parallel performance for complex control algorithms and data-intensive tasks.
- Fully compliant with ANSI/VITA 1.5-2003 (2eSST) VMEbus standard, supporting up to 320 MB/s backplane bandwidth and VME64x system controller operation.
- 1 GB onboard DDR2 SDRAM expandable to 3 GB via a single SODIMM socket, with ECC support for data integrity in critical applications.
- Bootable CompactFlash slot (up to 4 GB) and dual rear-mounted SATA ports provide solid-state and rotating storage options for OS, application code and data logging.
- Dual Gigabit Ethernet ports on the front panel support redundant network connectivity for control, SCADA and programming access.
- One PCI-X PMC expansion site enables custom I/O, communication or acceleration modules to adapt to specific application requirements.
- Passive heat-sink cooling eliminates fan failure points, enabling maintenance-free 24/7 operation in sealed or dusty environments.
- Built-in watchdog timer, non-volatile SRAM and real-time clock enhance system reliability and support fault-tolerant operation.
- Extended operating temperature range and rugged construction suit deployment in turbine halls, offshore platforms and mobile equipment.
Technical Specifications
| Item | Specification |
|---|---|
| Model Identifiers | VME7865RC (system model); V7865-23003 (board number); 350-9300007865-23003 M (order code) |
| Product Type | Rugged 6U VMEbus Single-Board Computer (SBC) |
| Processor | Intel Core 2 Duo T7400, 2.16 GHz, 4 MB L2 cache |
| Chipset | Intel 945GM Express + ICH7-M, 667 MHz front-side bus |
| Main Memory | 1 GB onboard DDR2 SDRAM; expandable to 3 GB via 1× SODIMM socket; ECC supported |
| Storage | 1× bootable CompactFlash slot (max 4 GB); 2× SATA 1.5 Gb/s ports (rear) |
| VME Bus Interface | VME64x compliant, ANSI/VITA 1.5-2003 2eSST; up to 320 MB/s transfer rate; system controller/peripheral mode |
| Front-Panel I/O | 2× Gigabit Ethernet (RJ-45); 2× USB 2.0; 1× RS-232 serial; 1× SVGA video; reset switch; status LEDs |
| Rear I/O | 2× USB 2.0; 1× RS-422 serial; 1× DVI-D video; 2× SATA |
| Expansion | 1× PCI-X PMC site (3.3 V) |
| Power Input | +5 V DC, +12 V DC from VME backplane |
| Typical Power Consumption | 28 W |
| Operating Temperature | -40°C to +70°C (rugged grade) |
| Storage Temperature | -55°C to +85°C |
| Form Factor | 6U Eurocard, single VME slot; passive heat sink cooling |
| Compliance | CE, UL, RoHS, VMEbus Rev. C.1, industrial EMC standards |
Application Fields
- Gas and steam turbine control and monitoring systems in thermal and combined-cycle power plants
- Industrial process control and DCS computing nodes in oil, gas and petrochemical facilities
- Aerospace ground test platforms, flight line test equipment and defense embedded systems
- Transportation signaling, rail management and mobile vehicle control systems
- Offshore and marine embedded control and data acquisition systems
- Legacy VMEbus system retrofit, performance upgrade and spare part replacement
Related Model Recommendations
- V7865-223003: Commercial-grade V7865 SBC with 0°C to +55°C rating, for standard factory automation and indoor control applications.
- V7768-320000: Higher-performance 6U VME SBC from the same generation, with expanded I/O and memory options for advanced embedded systems.
- VMIVME-7750: Pentium III-based VME SBC for cost-sensitive legacy control system replacement and spare applications.
- PMC237CM1/V: PMC expansion carrier board that adds three additional PMC slots to the VME7865RC via on-board connectors.
