Description
- Model: VMIVME-4150
- Brand: General Electric (GE Fanuc / Abaco Systems)
- Series: VMIVME VMEbus Industrial I/O Module Series
- Core Function: Delivers isolated high-precision analog output for industrial control systems
- Type: Analog Output I/O Module
- Key Specs: 12 fully isolated channels, 12-bit resolution, 1000 Vpk channel isolation
- Supply Status: In stock
- Stock: In stock
- Warranty: 1 year
- Ship From: China

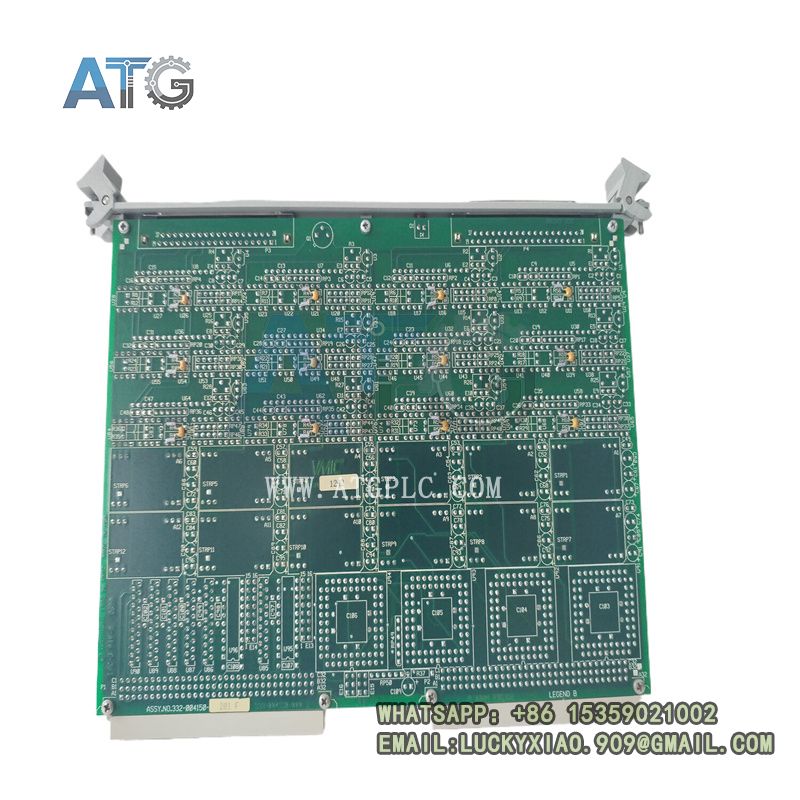

GE VMIVME-4150
Product Overview
The GE VMIVME-4150 is a high-performance 6U VMEbus isolated analog output module designed and manufactured for industrial embedded control and distributed control systems (DCS). Released in the early 2000s as a core upgraded component of the GE industrial VME I/O series, this module has long-term mass production and stable iteration records, serving as a classic universal analog output unit for industrial automation scenarios. Adopting full-channel electrical isolation architecture and high-precision DAC conversion technology, it converts digital control signals from the main control system into standard industrial analog voltage and current signals, realizing precise closed-loop control of field actuators, valves and frequency conversion equipment. With rugged industrial hardware design and ultra-wide temperature adaptability, it supports 24-hour uninterrupted stable operation in harsh industrial environments and is widely matched with GE VMEbus rack control systems.
Core Product Features
The VMIVME-4150 integrates multiple industrial-grade optimized designs to ensure control accuracy and system stability. It supports 12 fully independent isolation channels, with each channel electrically isolated from other channels and the VME backplane bus, effectively eliminating crosstalk, ground loop interference and signal surge damage. Equipped with 12-bit high-resolution digital-to-analog conversion, it achieves ultra-low signal error and linear output, meeting high-precision industrial control requirements. The module supports multiple configurable output ranges, including ±2.5 V, ±5 V, ±10 V voltage signals and 4–20 mA standard current signals, adapting to diverse field equipment access standards. Built-in static readback data registers simplify upper computer program programming and real-time signal monitoring, greatly improving system debugging efficiency and operational controllability.
GE VMIVME-4150
System Compatibility & Technical Advantages
Complying with standard VME64 bus protocol specifications, the VMIVME-4150 supports Master, Slave and System Controller operating modes, realizing seamless data interaction and bus scheduling with mainstream VME industrial main control boards. It features strong system compatibility and can be perfectly matched with GE Fanuc 90-70 PLC systems, VMEbus embedded control systems and various industrial DCS platforms. The module adopts industrial anti-vibration, dust-proof and anti-interference design, with an operating temperature range of -40°C to +85°C, resisting extreme temperature changes and complex electromagnetic interference in industrial sites. The 1000 Vpk high isolation capability effectively protects main control equipment and field instruments from surge impact and common-mode voltage interference, greatly improving the overall safety and stability of the control system.
Industrial Application Scenarios
As a universal high-precision analog output module, the GE VMIVME-4150 is widely deployed in key industrial automatic control scenarios. It is commonly applied in power generation turbine control systems, petrochemical distributed control systems, heavy industrial mechanical equipment control, water treatment automation systems and offshore platform industrial control equipment. It is mainly used for analog signal output and precision adjustment of control valves, hydraulic actuators, fan and pump frequency conversion equipment, providing stable and accurate signal support for equipment closed-loop regulation, process parameter control and industrial process intelligent operation, and is highly recognized in high-reliability industrial control fields.
