Description
- Model: IS220PDIOH1A / 336A4940CSP23
- Brand: General Electric (GE Vernova)
- Series: Mark VIe Turbine Control System Series
- Core Function: Collects and outputs discrete signals for turbine control systems
- Type: Discrete Input/Output I/O Module
- Key Specs: 9–36 VDC operating voltage, 1500 V channel isolation, hardware anti-jitter filter
- Supply Status: In stock
- Stock: In stock
- Warranty: 1 year
- Ship From: China

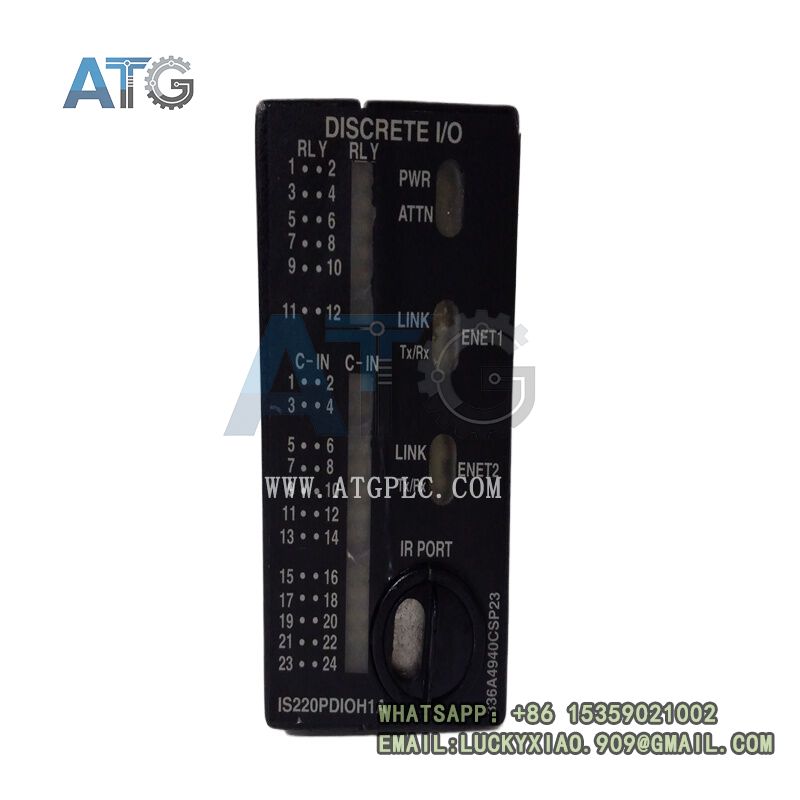

GE 336A4940CSP23 IS220PDIOH1A
Product Overview
The GE IS220PDIOH1A (Part Number: 336A4940CSP23) is a high-reliability discrete input and output module designed for the GE Mark VIe distributed turbine control system, officially launched in the mid-2000s. As a core field signal acquisition and execution component of GE’s flagship power generation control platform, this standard coded module undertakes digital signal interaction between field equipment and the main control system. It adopts industrial-grade optoelectronic isolation circuit and built-in hardware filtering architecture, effectively eliminating signal interference and ensuring accurate and stable transmission of switching state signals. Optimized for long-term stable operation in power plant environments, it supports 24-hour uninterrupted continuous operation and harsh industrial condition adaptation. After years of field verification, it has become a standard matching accessory for Mark VIe system operation, maintenance and renovation projects.
Core Product Features
The IS220PDIOH1A (336A4940CSP23) integrates high-performance discrete signal acquisition and output control functions. It supports a wide DC power supply range of 9–36 VDC, adapting to unstable power supply conditions in industrial power plants without additional voltage conversion devices. The module features 1500 V high-voltage isolation between internal channels and the system bus, which effectively isolates common-mode interference, surge impact and ground loop noise, greatly improving system safety. Equipped with a 4ms high-efficiency hardware filter, it rapidly suppresses high-frequency clutter and signal jitter, ensuring clear and reliable switching signals. It has built-in reverse power connection protection and overcurrent protection functions, avoiding hardware damage caused by field wiring errors. The industrial conformal coating and reinforced circuit design enhance dustproof, moisture-proof and vibration-resistant capabilities for long-term field operation.

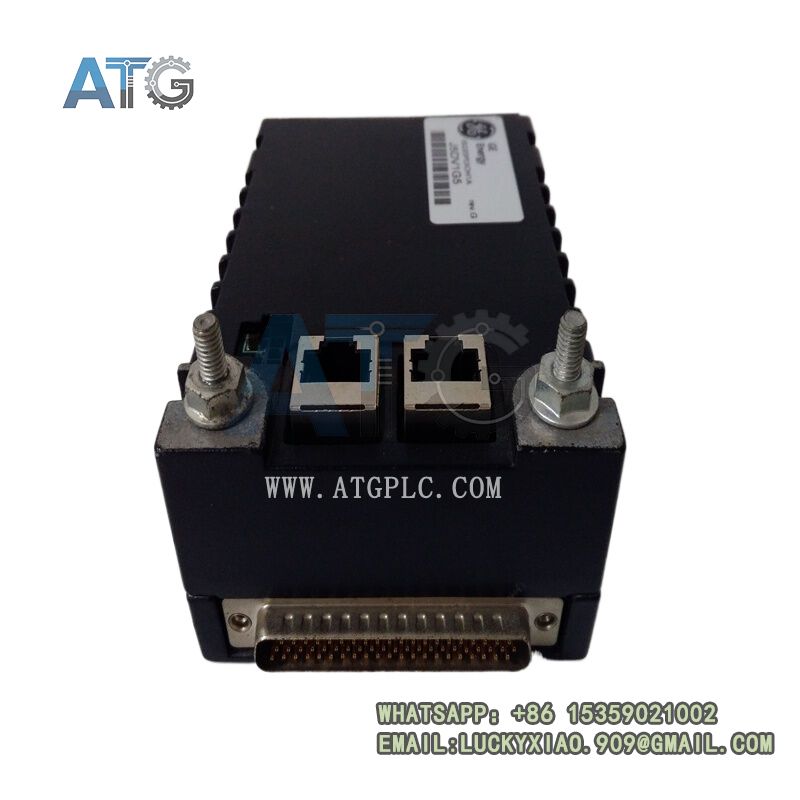

GE 336A4940CSP23 IS220PDIOH1A
System Compatibility & Technical Advantages
This discrete I/O module (IS220PDIOH1A / 336A4940CSP23) is fully compatible with the standard GE Mark VIe turbine control system rack and supporting main control units, achieving seamless hardware docking and protocol matching. It supports real-time data interaction with upper computer monitoring software, industrial SCADA and DCS platforms, realizing remote signal monitoring and logic control. The compact card-type structure supports standard rack installation, simplifying on-site wiring and system layout. With excellent electromagnetic compatibility and anti-interference performance, it can stably operate in complex electromagnetic environments of thermal power plants, gas turbine workshops and substations. As a mature mass-produced coded model, it features stable performance, low failure rate and strong replaceability, serving as the preferred spare part for aging Mark VIe system maintenance and upgrade.
Industrial Application Scenarios
The GE IS220PDIOH1A (336A4940CSP23) module is dedicated to power generation and energy industrial control scenarios. It is widely applied in gas turbine and steam turbine control systems, thermal power plant auxiliary control systems, industrial self-owned power generation units and energy storage power station automation systems. It is mainly responsible for collecting switching state signals of field sensors, limit switches and safety interlock devices, and executing system digital output commands to control field actuators, valve switches and auxiliary equipment. It provides reliable underlying signal support for turbine unit start-stop control, safety interlock protection and normal load operation, ensuring the stable and safe operation of power generation equipment.
