Description
Product Overview

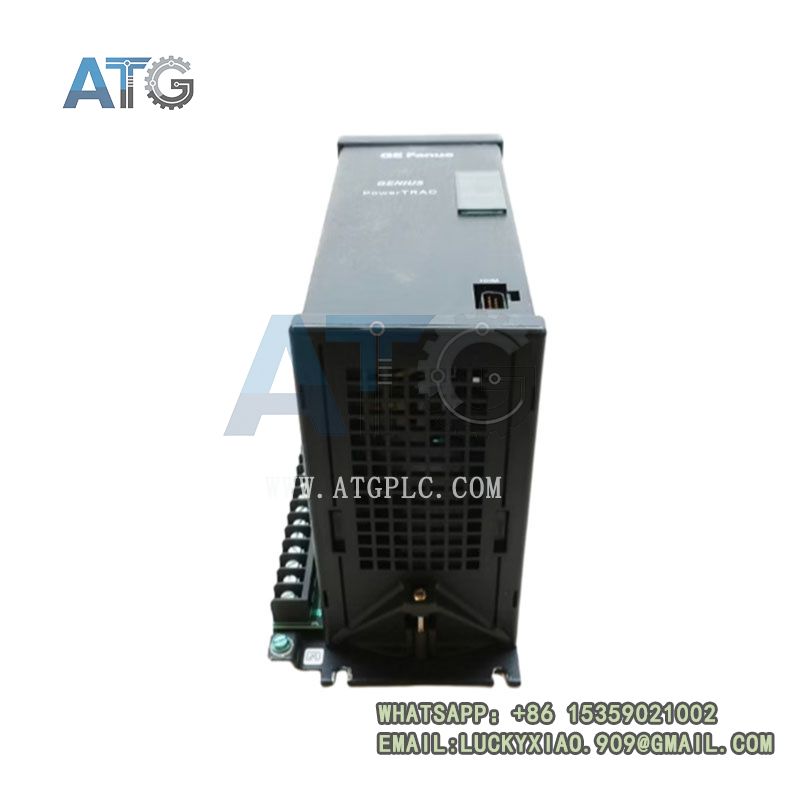

The GE IC660EPM100J is a high-performance PowerTrac power monitoring module from the GE Fanuc Genius I/O product family. It delivers accurate electrical measurement, energy metering and power quality analysis for single-phase and three-phase industrial distribution systems.
This module interfaces with external potential and current transformers to capture voltage and current waveforms. It then calculates key electrical parameters and transmits the data to a host PLC or SCADA system via Genius bus or standard industrial protocols. With dual power supply support and robust isolation design, it ensures reliable, continuous operation in harsh industrial electrical environments. It is widely used for energy management, equipment protection and power quality optimization across manufacturing, energy and infrastructure sectors.
Core Product Features
- Supports 1-phase and 3-phase (wye or delta) systems, matching most industrial distribution network configurations.
- 14-bit high-resolution ADC delivers precise measurement of voltage, current, power, energy and frequency parameters.
- Dual wide-range power input (90–265 VAC / 100–150 VDC) supports redundant power sources for uninterrupted operation.
- Communicates over Genius bus (up to 7500 ft distance) and Modbus TCP/RTU for flexible integration with PLC and DCS platforms.
- 2 calculations per second update rate provides near-real-time monitoring for dynamic load changes.
- 4 built-in relay outputs enable basic load control and alarm action without additional control modules.
- Channel-to-channel electrical isolation suppresses surges and ground loop interference in noisy plant environments.
- Supports local data access via Genius Hand-Held Monitor for on-site commissioning and diagnostics.
Technical Specifications
| Item | Specification |
|---|---|
| Official Model | IC660EPM100J |
| Product Type | Genius PowerTrac Power Monitoring & Control Module |
| Product Family | GE Fanuc Genius I/O |
| Power Supply | 90 – 265 VAC (47 – 63 Hz); 100 – 150 VDC |
| Voltage Input Range | 0 – 690 VAC (via PT); 0 – 1000 VDC |
| Current Input Range | 0 – 5 AAC (direct); 0 – 1000 AAC (via CT); 0 – 10 A DC |
| Measurement Accuracy | Voltage: ±0.2% FS; Current: ±0.3% FS; Power: ±0.5% FS; Frequency: ±0.01 Hz |
| Frequency Range | 45 – 65 Hz |
| Calculated Parameters | RMS voltage/current, active/reactive power, power factor, kWh, line frequency |
| Communication Interfaces | Genius bus, RS-485 (Modbus RTU), Ethernet (Modbus TCP) |
| Digital Outputs | 4-channel relay outputs: 250 VAC / 5 A; 30 VDC / 10 A |
| Data Storage | 16 MB local memory; 128 sampled values per channel |
| Update Rate | 2 calculations per second |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| MTBF | ≥ 200,000 hours |
| Certifications | CE, UL, industrial EMC compliance |
Application Fields
- Energy consumption monitoring and management for industrial plant distribution systems
- Motor, drive and switchgear operation status monitoring and electrical protection
- Grid-connection power quality monitoring for solar and wind renewable generation sites
- Power distribution monitoring for water treatment and municipal infrastructure facilities
- Building automation and commercial facility energy management systems
- Power supply condition monitoring and fault diagnosis for process control equipment
Related Model Recommendations
- IC660BPM100: Base-model PowerTrac monitoring block with 115 VAC input, for standard 3-phase power monitoring applications.
- IC660TBM100: Genius bus terminal base assembly, used with EPM100J for field mounting and wiring termination.
- IC660EPM101: Enhanced PowerTrac module with harmonic analysis capability, for advanced power quality monitoring scenarios.
- IC697CPU731: Series 90-70 PLC CPU that integrates with Genius PowerTrac modules to form complete power monitoring and control systems.
