Description

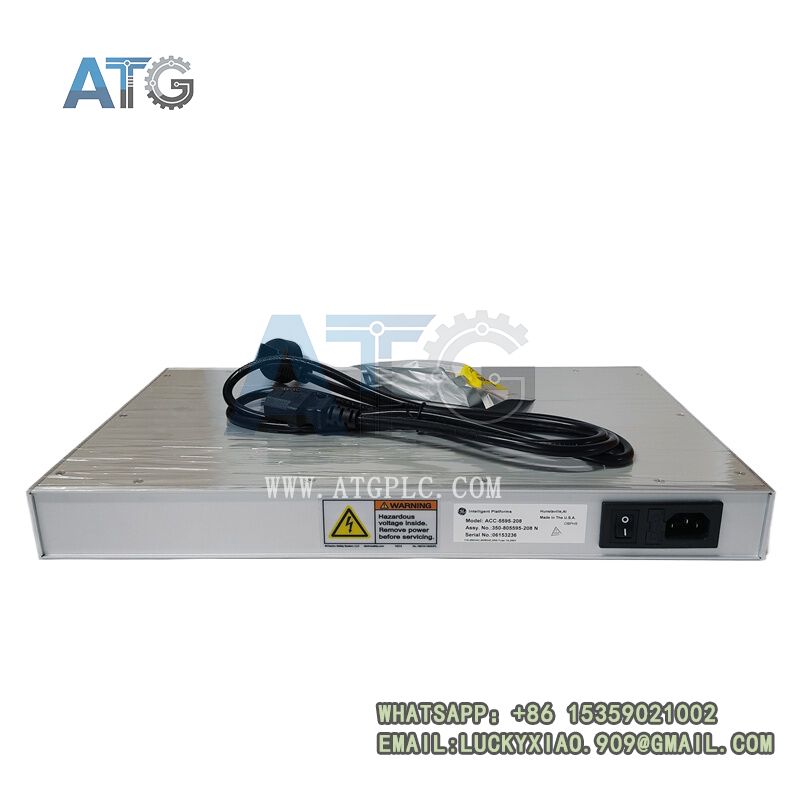

GE ACC-5595-208 (350-805595-208N) Reflective Memory Hub
Product Overview
The GE ACC-5595-208, with part number 350-805595-208N, is a high-performance industrial reflective memory hub manufactured by General Electric. Designed for deterministic real-time data synchronization in distributed control systems, this hub provides ultra-fast data sharing and low-latency interconnection for industrial controllers, simulation systems, and turbine control units. Adopting mature reflective memory technology, the device realizes simultaneous data access among all network nodes without complex protocol parsing. Featuring rugged metal enclosure, compact mechanical structure and excellent anti-interference capability, the ACC-5595-208 is widely deployed in power generation, industrial simulation, aerospace testing and heavy industrial automation fields, ensuring consistent and reliable high-speed data transmission under harsh industrial operating conditions.
GE ACC-5595-208 350-805595-208N
Core Product Features
2.1 Deterministic Real-Time Data Transmission
Equipped with professional reflective memory architecture, this hub supports fixed low-latency data synchronization. It adopts star network topology and realizes zero-delay data mirroring among connected nodes. Unlike conventional Ethernet switches, it eliminates protocol forwarding delay and data packet jitter, meeting the strict real-time control requirements of high-precision industrial simulation and turbine protection systems.
2.2 High-Speed Communication & Stable Bandwidth
The ACC-5595-208 integrates 8 high-speed communication ports, supporting flexible optical and electrical interface configuration. It provides a system exchange bandwidth up to 1.6 Gbps with a built-in 1 Mbits cache memory and a 2K MAC address table. The storage-and-forward transmission mode ensures stable data throughput, avoiding data loss during high-intensity burst transmission.
2.3 Industrial-Grade Rugged Construction
Constructed with high-strength aluminum alloy housing, the hub achieves an IP20 protection rating for industrial indoor cabinet installation. It passes strict industrial vibration and temperature cycling tests, adapting to complex electromagnetic interference environments in power plants and industrial workshops. The reinforced circuit design improves shock resistance and extends service life in continuous uninterrupted operation scenarios.
2.4 Flexible Installation & Easy Expansion
Supporting multiple installation methods including standard 19-inch 1U rack mounting and desktop placement, the device is compact and space-saving. It is highly compatible with GE reflective memory cards and matched control modules, allowing users to freely expand network nodes according to system scale. The simplified rear wiring interface reduces installation difficulty and shortens system debugging cycle.
2.5 Ultra-Wide Environmental Adaptability
Optimized for harsh industrial ambient conditions, the operating temperature ranges from -40°C to +85°C, while the storage temperature covers -55°C to +100°C. It works stably under relative humidity of 5% to 95% (non-condensing), resisting high temperature, low temperature and humid environment interference in unattended industrial control rooms.
GE ACC-5595-208 350-805595-208N
Detailed Technical Specifications
3.1 Communication & Performance Parameters
| Parameter Item | Technical Data |
|---|---|
| Product Model | ACC-5595-208 (Part No. 350-805595-208N) |
| Product Type | Reflective Memory Hub Assembly |
| Network Topology | Star Topology |
| Port Quantity | 8 Communication Ports (Optical/Electric Optional) |
| System Exchange Bandwidth | 1.6 Gbps |
| Built-in Cache | 1 Mbits |
| MAC Address Table | 2K Entries |
| Transmission Mode | Storage and Forwarding |
| Address Range | 64K Words |
| Memory Capacity | 128 MB |
3.2 Power Supply Parameters
| Power Parameter | Specification |
|---|---|
| Input Voltage | 5 V DC (Standard Industrial Power Supply) |
| Rated Power Consumption | ≤ 15 W |
| Power Protection | Overvoltage, Overcurrent and Reverse Polarity Protection |
3.3 Environmental & Mechanical Parameters
| Item | Technical Specification |
|---|---|
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -55°C ~ +100°C |
| Ambient Humidity | 5% – 95% (Non-condensing) |
| Ingress Protection Rating | IP20 |
| Installation Method | 19-inch 1U Rack Mount / Desktop Placement |
| Weight | Approx. 0.95 kg |
| Dimensions (L × W × H) | 255 mm × 145 mm × 45 mm |
Certification Compliance
The GE ACC-5595-208 (350-805595-208N) has obtained multiple international industrial certifications. It complies with CE electromagnetic compatibility directive and UL industrial safety certification, meeting IEC 61010 industrial control equipment safety standards. In addition, the product passes RoHS environmental protection certification and strictly follows GE internal industrial component screening standards. All units undergo high and low temperature aging testing before delivery to ensure stable electrical performance and long-term operational reliability in industrial critical control systems.
GE ACC-5595-208 350-805595-208N
Application Scenarios
- Power Generation Control System: Applied in gas turbines, steam turbines and generator sets to realize deterministic real-time data synchronization among control boards, improving power grid operation stability.
- Industrial Simulation & Testing: Used for hardware-in-the-loop simulation platforms, providing low-latency data interaction for aerospace, energy and mechanical equipment simulation systems.
- Distributed Industrial Control: Deployed in large-scale distributed DCS systems to achieve high-speed data sharing between multiple controllers and industrial hosts.
- Aerospace & Defense Industry: Suitable for precision testing equipment and military simulation systems that require ultra-high real-time data consistency.
- Heavy Industrial Automation: Applied in metallurgy, chemical and mining industries to build stable anti-interference real-time industrial communication networks.
Product Advantages & After-sales Support
The reflective memory hub features deterministic non-jitter data transmission, which is incomparable with conventional Ethernet switches in real-time control scenarios. Its 8-port expandable design meets multi-node networking demands, while the 128 MB large-capacity memory ensures sufficient data caching during high-speed transmission. The rugged wide-temperature design enables normal operation in extreme industrial environments without additional heat dissipation devices. With standardized rack-mounted structure, it is convenient for cabinet integration and daily maintenance.
GE provides a 1-year original manufacturer warranty for the 350-805595-208N hub. Complete official datasheets, user manuals and wiring guidelines are supplied. Global professional technical support covers system compatibility debugging, network topology optimization and fault troubleshooting, guaranteeing long-term stable operation of industrial control systems.
Conclusion
The GE (350-805595-208N) is a professional industrial reflective memory hub tailored for high real-time distributed control systems. Combining deterministic low-latency transmission, high system bandwidth, industrial-grade rugged structure and ultra-wide temperature adaptability, it delivers reliable data synchronization performance for precision industrial control equipment. Featuring simple installation, strong compatibility and excellent anti-interference capability, this hub is widely recognized in power generation, simulation testing and aerospace industries. As a core high-speed communication component, the GE remains an ideal choice for industrial projects requiring high real-time and high-stability data transmission.
