Description
- Model: IC698CPE030-HN
- Brand: General Electric (GE Fanuc / Emerson Automation)
- Series: PACSystems RX7i PLC CPU Series
- Core Function: Executes main logic control and network communication for RX7i systems
- Type: PLC CPU Processor Module
- Key Specs: 600 MHz CPU, 64 MB RAM/Flash, Dual Ethernet Ports
- Supply Status: In stock
- Stock: In stock
- Warranty: 1 year
- Ship From: China

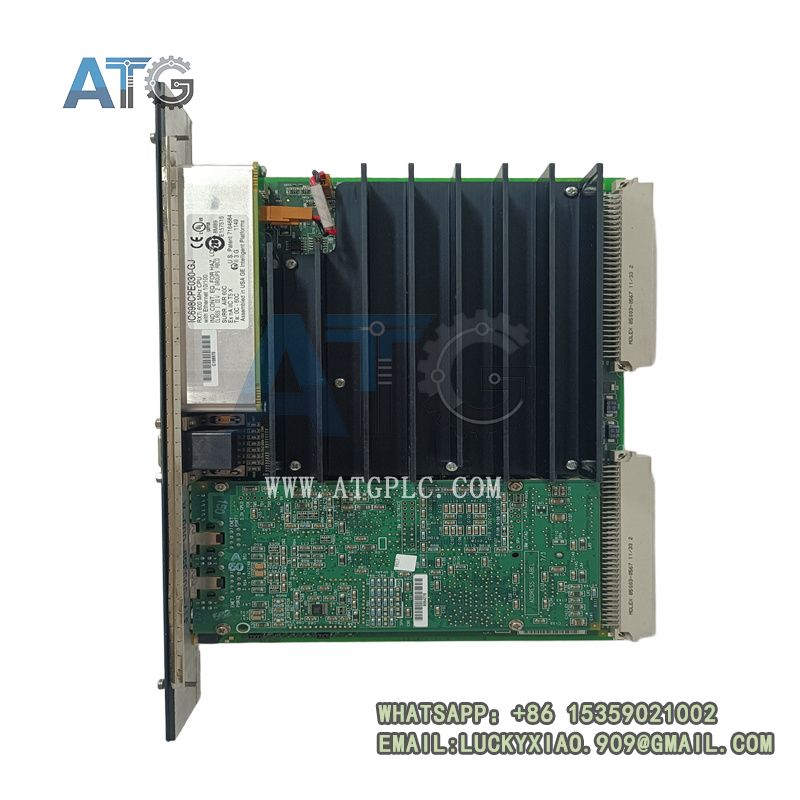

IC698CPE030-HN
Product Overview
The GE IC698CPE030-HN is a high-performance central processing unit module for the GE PACSystems RX7i programmable automation control system. Officially launched in the mid-2000s, it serves as a mainstream upgraded CPU model for industrial and power automation control platforms, featuring long product lifecycle and extremely high operational stability. Powered by an industrial Intel Pentium-M 600 MHz processor, this module acts as the core logic computing and system scheduling unit of the RX7i rack system. It is responsible for user program execution, field I/O data processing, inter-device logic linkage and industrial network communication. Adopting industrial-grade hardware reinforcement design and low-power stable architecture, it supports 24-hour uninterrupted operation in harsh industrial environments. The HN suffix represents a high-reliability enhanced version, optimized for vibration resistance, temperature adaptability and anti-interference performance, specially suitable for key power generation and heavy industrial control scenarios.
Core Product Features
The IC698CPE030-HN integrates powerful industrial computing and multi-functional communication capabilities. It is equipped with 64 MB user memory and 64 MB user flash memory, supporting battery data backup to prevent program and parameter loss during power failure. The module carries dual 10/100 Mbps adaptive Ethernet ports, supporting SRTP, Modbus TCP and EGD Ethernet global data communication protocols, realizing high-speed interconnection and data synchronization between multiple devices. It also provides isolated serial interfaces including RS232 and RS485 ports, compatible with Modbus RTU and SNP serial communication protocols, meeting diversified field communication access requirements. With fast program scanning speed and powerful logic operation capability, it supports large-scale program storage and complex process control logic operation, fully adapting to high-load industrial automatic control tasks.

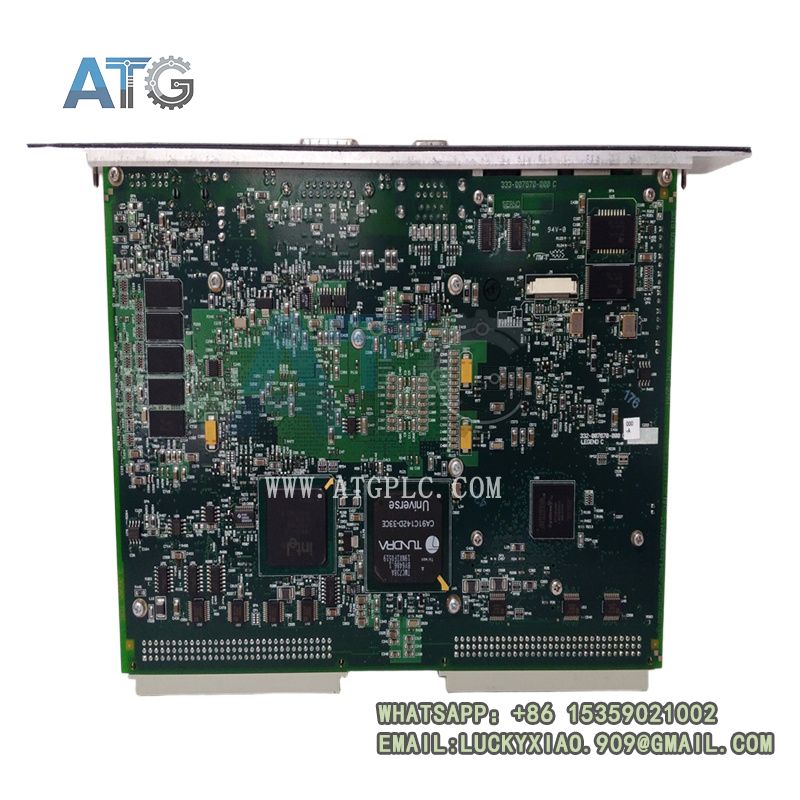

IC698CPE030-HN
System Compatibility & Technical Advantages
As a core CPU of the PACSystems RX7i series, the IC698CPE030-HN is fully compatible with all RX7i series rack backplanes, I/O modules, communication modules and expansion cards. It supports seamless docking with GE 90-70 series system resources and VME bus expansion equipment, with excellent system scalability and backward compatibility. The enhanced industrial hardware design enables an ultra-wide operating temperature range and superior vibration and shock resistance, adapting to complex working conditions such as power plant equipment rooms, chemical workshops and outdoor industrial stations. The built-in multi-stage surge protection and EMI filtering circuits effectively resist industrial electromagnetic interference and power grid fluctuation, ensuring stable program operation and accurate data transmission. It supports remote programming, online debugging and real-time monitoring, greatly improving system operation and maintenance efficiency.
Industrial Application Scenarios
The GE IC698CPE030-HN CPU module is widely deployed in high-reliability industrial automation and power control fields. It is mainly applied in power generation unit control, petrochemical process control, water treatment automation systems, heavy machinery industrial control and intelligent manufacturing production lines. As the core control unit, it undertakes key tasks such as field signal acquisition, automatic process control, equipment safety interlock and network data transmission, providing stable and reliable core computing support for continuous and safe operation of industrial automation systems. It is also the mainstream replacement and maintenance accessory for old GE RX7i system renovation projects.
