Description
Product Overview

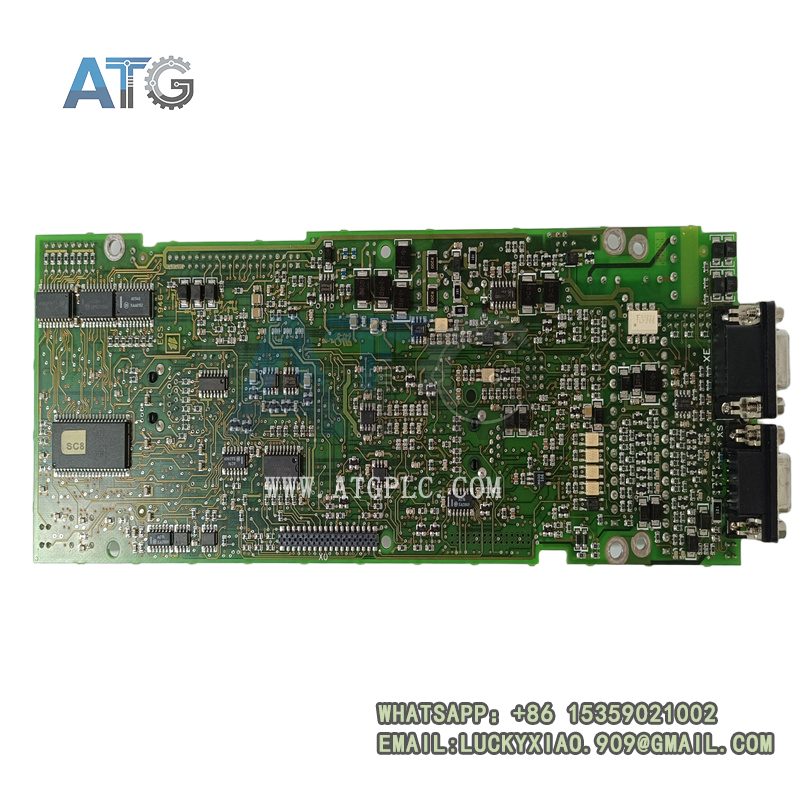

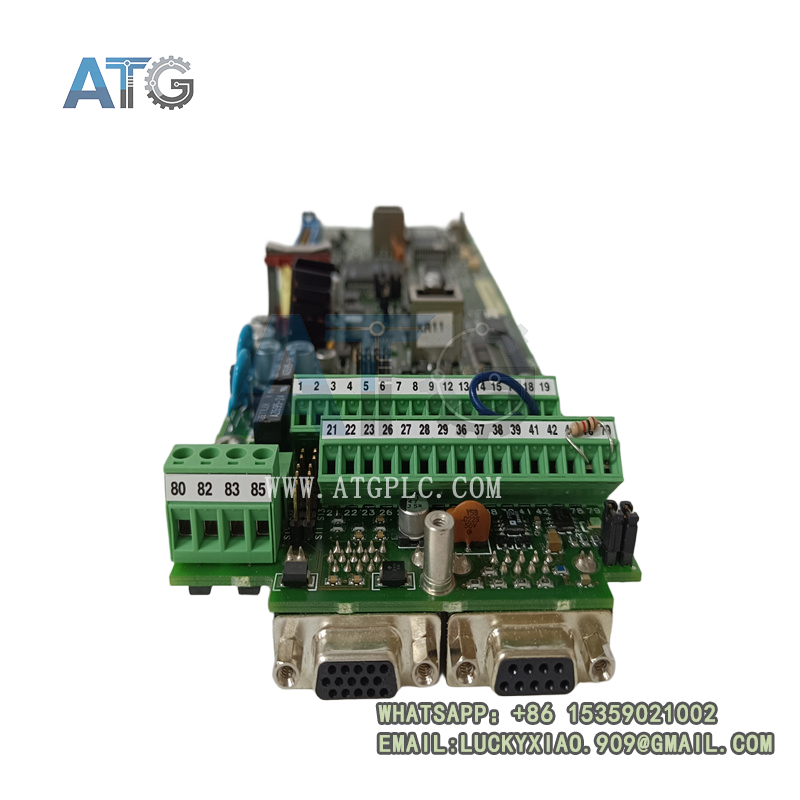

The GE RV33-1 is a dedicated VS drive control and regulation board built for the GE AV-300i series of industrial inverter drives. It acts as the core logic and signal conditioning unit inside the inverter system, managing motor control algorithms, power regulation and peripheral interface functions.
This PCB-based module integrates power conversion, signal processing and communication circuitry into a compact plug-in form factor. It executes real-time control loops for variable-speed motor operation, and provides continuous fault monitoring for the inverter power stage. Engineered for rugged industrial deployment, it delivers stable, precise drive control for manufacturing, energy and building automation systems.
Core Product Features
- Built-in PID control algorithm supports on/off, proportional and closed-loop control modes to match diverse motor and load characteristics.
- Integrated power filtering and surge suppression circuitry suppresses grid noise and electromagnetic interference, ensuring consistent drive performance.
- Onboard fault detection covers overvoltage, overcurrent, short-circuit and over-temperature conditions, protecting both the board and connected drive hardware.
- RS-485 communication interface supports standard industrial protocols including Modbus RTU for seamless integration with PLC and SCADA systems.
- Compact plug-in design fits directly into AV-300i inverter chassis slots, enabling straightforward installation, retrofit and spare part replacement.
- Wide industrial operating temperature range and robust circuitry withstand harsh factory floor and field environments.
- Provides regulated 24 VDC control output to power peripheral sensors, encoders and interface devices.
Technical Specifications
| Item | Specification |
|---|---|
| Official Model | RV33-1 (Revision H) |
| Product Type | VS Drive Control & Regulation Board |
| Compatible System | GE AV-300i Series Inverter Drives |
| Input Voltage | 100 – 240 VAC, 50/60 Hz |
| Control Output | 24 VDC regulated, for peripheral power supply |
| Control Modes | On/off, proportional, PID closed-loop |
| Communication Interface | RS-485 serial, Modbus RTU protocol |
| Protection Features | Overvoltage, overcurrent, short-circuit, over-temperature |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0% – 95% RH, non-condensing |
| Mounting | Internal plug-in board for AV-300i inverter chassis |
| Certifications | CE, UL, RoHS, industrial EMC compliance |
Application Fields
- Variable-speed motor control for conveyor systems, packaging lines and manufacturing production equipment
- Fan and pump speed regulation for HVAC, water treatment and process cooling systems
- Inverter drive retrofit and spare part replacement for installed AV-300i drive fleets
- Material handling equipment drive control for warehouses and logistics facilities
- Energy optimization for industrial motor systems and building automation installations
- Process equipment drive control for chemical, food & beverage and light manufacturing facilities
Related Model Recommendations
- RV33-3: Multi-function drive regulation board from the same RV33 family, with expanded I/O for advanced inverter configurations.
- GE AV-300i Series: Complete industrial inverter drive system that the RV33-1 board is designed to operate within.
- GE AF-300 Series: Compact micro drive family for lower-power motor control and simple speed regulation applications.
- GE DV-300 Vector Drive: High-performance vector drive controller for demanding motion control and high-dynamic motor applications.
