Description
- Model: 369-HI-R-0-0-0
- Brand: General Electric (GE Multilin / GE Vernova)
- Series: Multilin 369 Motor Management Relay Series
- Core Function: Delivers comprehensive protection and monitoring for industrial AC motors
- Type: Motor Management Protection Relay
- Key Specs: 24–240 VAC/DC universal supply, 12 RTD channels, 5A CT compatibility
- Supply Status: In stock
- Stock: In stock
- Warranty: 1 year
- Ship From: China

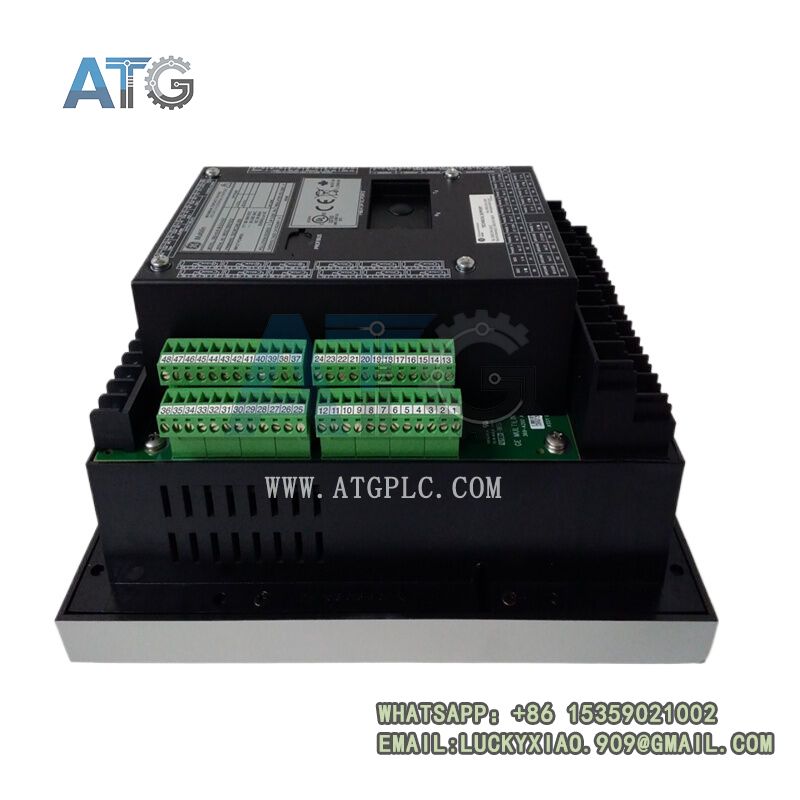

GE 369-HI-R-0-0-0
Product Overview
The GE 369-HI-R-0-0-0 is a high-integrity digital motor management relay launched by GE Multilin in the early 2000s. As a core model of the classic Multilin 369 series, it is specially developed for medium and large industrial AC motor equipment. Adopting advanced 32-bit DSP high-speed processing chip and adaptive thermal protection algorithm, the module integrates motor fault protection, electrical parameter metering, temperature monitoring and fault data recording functions. The HI suffix represents high-reliability industrial enhanced version, and the R suffix supports built-in RTD temperature detection function. With industrial reinforced design and wide-temperature environmental adaptability, it supports long-term 24-hour uninterrupted operation in harsh industrial environments. After decades of global field verification, it has become a mainstream standard equipment for industrial motor safety protection and system maintenance replacement projects.

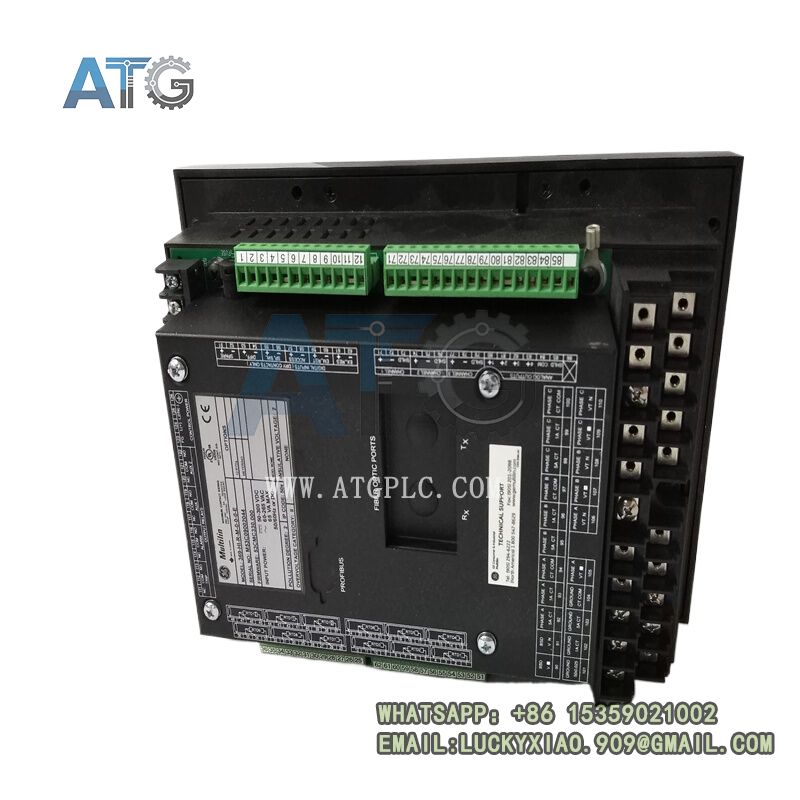

GE 369-HI-R-0-0-0
Core Product Features
This relay supports comprehensive multi-dimensional motor protection functions, including overload thermal protection, phase unbalance protection, locked rotor protection, overcurrent/undercurrent protection, undervoltage/overvoltage protection and reverse power protection, covering almost all common electrical faults of industrial motors. Equipped with 12 built-in RTD temperature detection channels, it can accurately monitor the real-time temperature of motor stator, bearing and ambient environment, effectively avoiding equipment damage caused by overheating. It adopts 24–240 VAC/DC universal wide-range power supply, adapting to complex and unstable industrial power supply conditions without additional voltage conversion equipment. The built-in high-precision metering function and waveform capture module can record real-time operating data and fault waveforms, providing accurate data support for post-fault analysis and equipment maintenance. The whole machine adopts industrial conformal coating and anti-interference design, with strong vibration resistance and electromagnetic interference resistance.

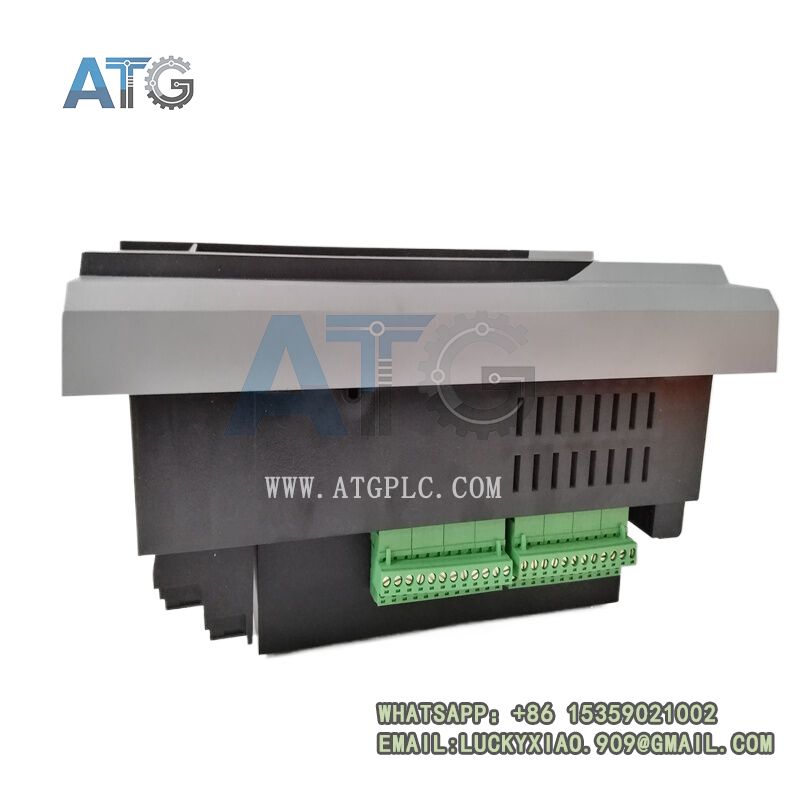

GE 369-HI-R-0-0-0
System Compatibility & Technical Advantages
The GE 369-HI-R-0-0-0 features excellent industrial system compatibility, supporting seamless docking with standard 5A CT/PT sensors. It can be perfectly connected with industrial PLC, DCS and SCADA monitoring systems, realizing remote real-time data transmission, parameter configuration and equipment status monitoring. It supports GE EnerVista professional configuration software, facilitating on-site debugging, program modification and data viewing. The adaptive thermal protection algorithm can automatically identify motor operating characteristics and adjust protection curves, effectively reducing false tripping and missing tripping problems. The compact panel-mounted structure simplifies on-site installation and wiring, reducing engineering construction and later maintenance costs. As a mature and stable classic model, it has ultra-low failure rate and strong replaceability, which is the preferred spare part for aging industrial motor protection system renovation and upgrade.
GE 369-HI-R-0-0-0
Industrial Application Scenarios
The GE 369-HI-R-0-0-0 motor management relay is widely used in high-reliability industrial production and energy power fields. It is mainly applicable to safety protection and operational monitoring of medium and large AC motors in thermal power plants, petrochemical industries, metallurgical and mining industries, water treatment systems and industrial park supporting equipment. It is commonly deployed on key equipment such as large fans, water pumps, compressors and conveyor motors. It undertakes core tasks such as real-time operation monitoring, fault protection and data statistics of motor equipment, ensuring safe, stable and continuous operation of industrial production equipment and avoiding production shutdown losses caused by motor faults.
