Description
Product Overview

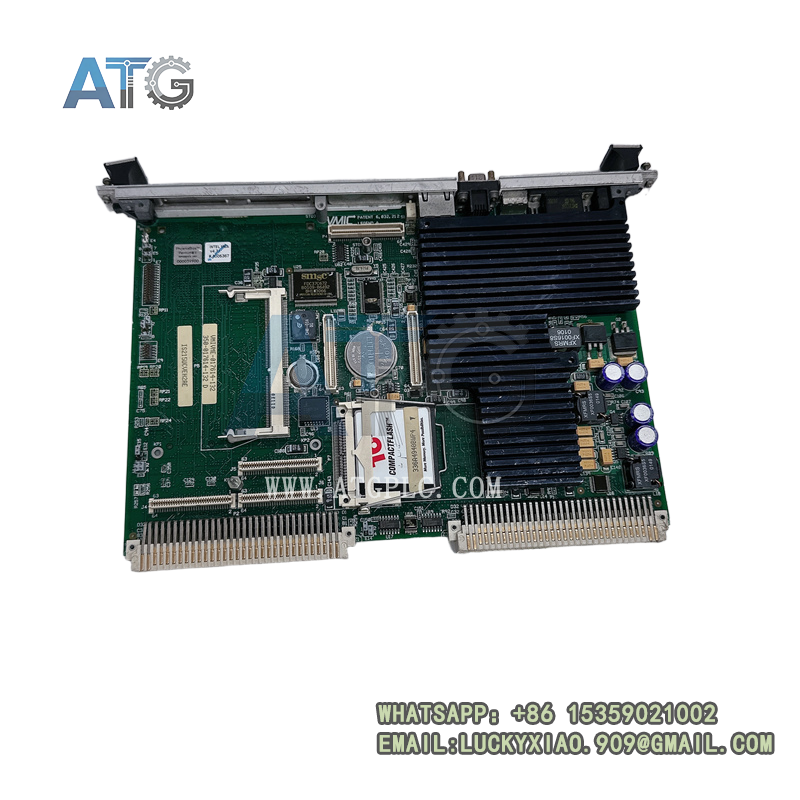

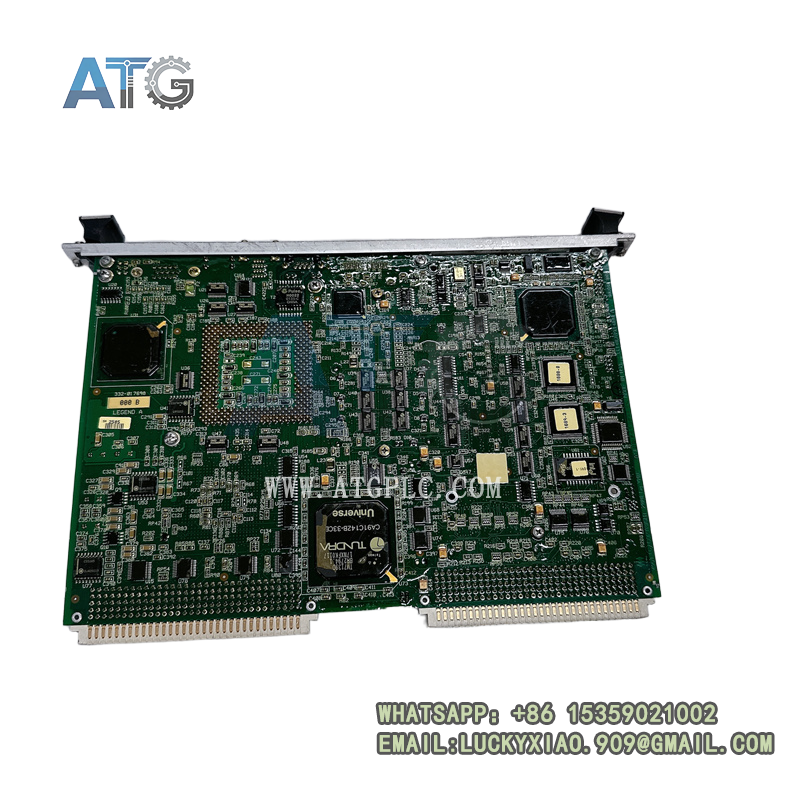

The GE IS215UCVEH2AE is a high-performance VME bus single-board controller. Its corresponding part numbers are VMIVME-017614-132 and 350-017614-132D. It belongs to the GE Speedtronic Mark VI turbine control system family.
This industrial SBC serves as a core real-time processing unit for power generation equipment. It integrates independent computing, logic control and multi-channel communication functions. It handles field data collection, turbine logic operation and system instruction transmission. It adopts standard VME bus structure for fast rack installation. Built with industrial-grade components, it resists harsh power plant conditions. It is widely used for system commissioning, faulty board replacement and strategic spare part stocking.
Core Product Features
The IS215UCVEH2AE adopts optimized turbine control hardware architecture. It improves real-time response and operational stability compared with ordinary control boards. It supports long-term safe operation of gas and steam turbine units.
- Real-Time High-Speed Computing: Equipped with dedicated industrial processor. It executes control logic and data calculation instantly. It meets high-precision turbine regulation and protection demands.
- Standard VME Bus Compatibility: Fully compliant with VME industrial bus standards. It fits standard VME chassis and backplanes without structural modification.
- Plug-and-Play System Matching: It supports direct replacement for old Mark VI system boards. No firmware modification is required after installation.
- Built-In Hardware Self-Diagnosis: It monitors board operating status in real time. It generates accurate fault alarms to simplify daily maintenance.
- Harsh Environment Resistance: Enhanced anti-vibration and anti-interference circuit design. It works stably under electromagnetic interference and temperature fluctuation.
- Multi-Port Communication Capacity: Onboard diversified communication interfaces. It ensures stable data interaction between I/O modules and upper monitoring systems.
- Long Full-Load Service Life: Low-power consumption and heat-resistant layout. It supports 7×24 hours continuous industrial full-load operation.
Detailed Technical Specifications
All technical indicators comply with GE industrial control standards. Each module passes strict function testing, signal calibration and aging screening before delivery. Standard parameters support accurate model selection and batch engineering procurement.
- Official Model: IS215UCVEH2AE
- Alternative Part Number: VMIVME-017614-132
- Factory Part Code: 350-017614-132D
- Product Type: VME Bus Industrial Single-Board Controller (SBC)
- Applicable System: GE Speedtronic Mark VI Turbine Control System
- Core Functions: Real-time logic control, field data processing, system signal interaction, turbine safety interlock protection
- Bus Specification: Standard industrial VME bus architecture
- Installation Method: Standard VME rack plug-in installation
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH, non-condensing environment
- Continuous Operation: Support 7×24 hours full-load uninterrupted operation
- Industrial Certification: CE safety certification, UL industrial certification, EMC electromagnetic compatibility certification
Main Application Fields
This VME controller is customized for high-reliability power control scenarios. It provides stable core computing and logic support for key power generation equipment.
- Thermal Power Plant Turbine Control: It acts as the main control board for gas turbines and steam turbines. It completes unit speed regulation, parameter monitoring and safety interlock protection.
- Combined-Cycle Power Station Operation: It supports coordinated control of multiple power generation units. It improves overall system operating efficiency and stability.
- Old Control System Renovation: It replaces aging and faulty VME control modules. It upgrades real-time control performance of legacy Mark VI systems.
- Industrial Real-Time Simulation Platform: It undertakes high-speed data calculation and synchronous simulation tasks for industrial simulation and debugging systems.
- Power Plant Spare Part Reserve: It serves as key backup spare parts for VME control cabinets. It minimizes production downtime caused by sudden hardware failure.
Related Model Recommendations
The following compatible models match IS215UCVEH2AE perfectly. They meet daily replacement, system expansion and performance upgrading requirements.
- IS215UCVEH2AB: Upgraded version of the UCV control board. It shares full compatibility and supports cross-model replacement in Mark VI systems.
- VMIVME-7614-132: Standard VME controller counterpart. It adapts to routine maintenance and universal system replacement scenarios.
- IS215UCVHM06A: High-performance UCV main control module. It cooperates with this board to build complete high-precision turbine control systems.
- VMIVME-5565: Industrial reflective memory communication module. It improves system real-time data synchronization and transmission efficiency.
