Description
Product Overview

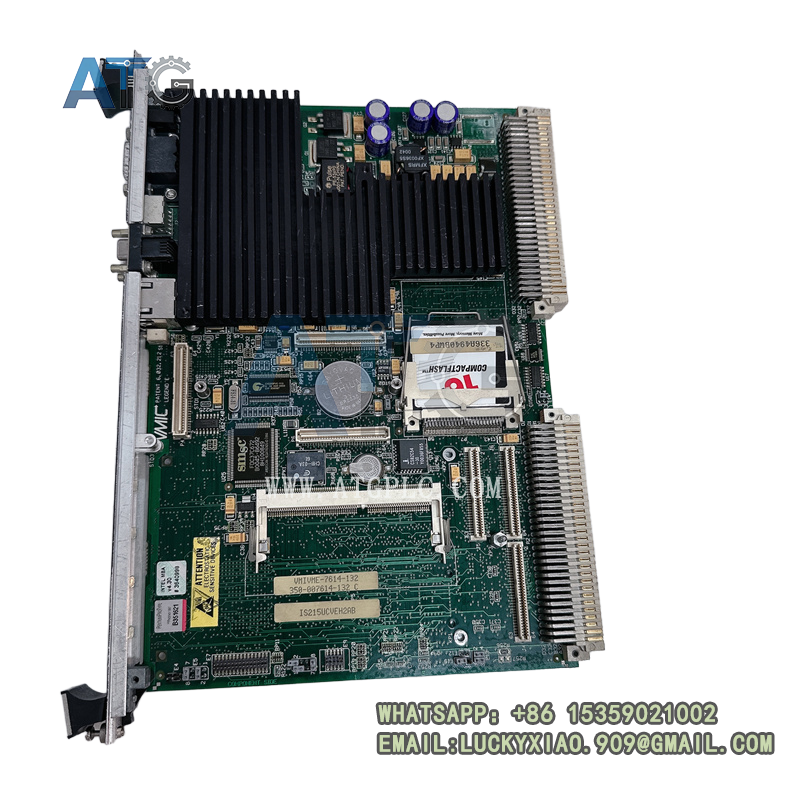

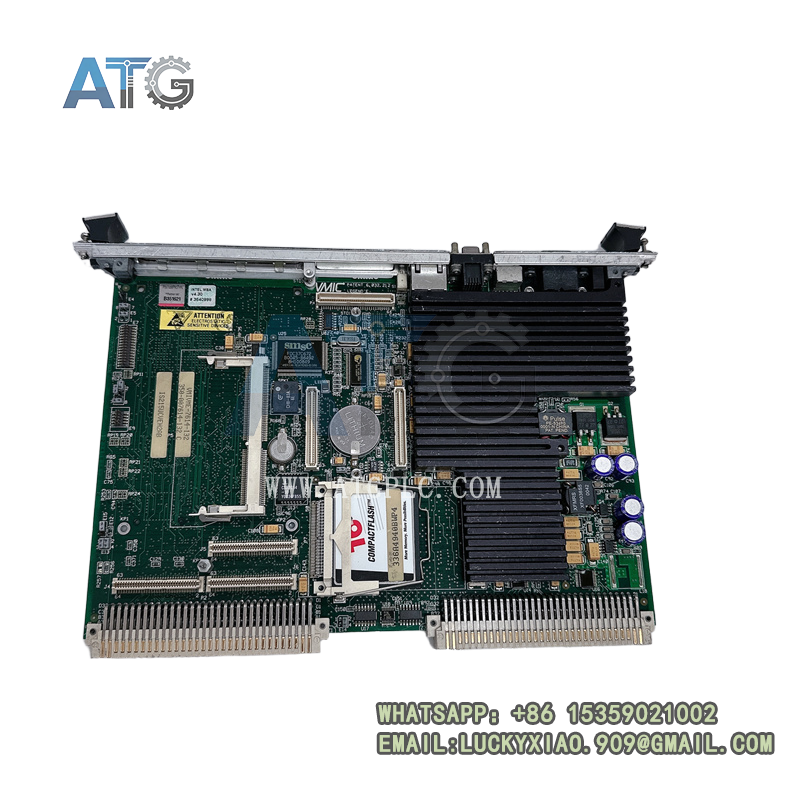

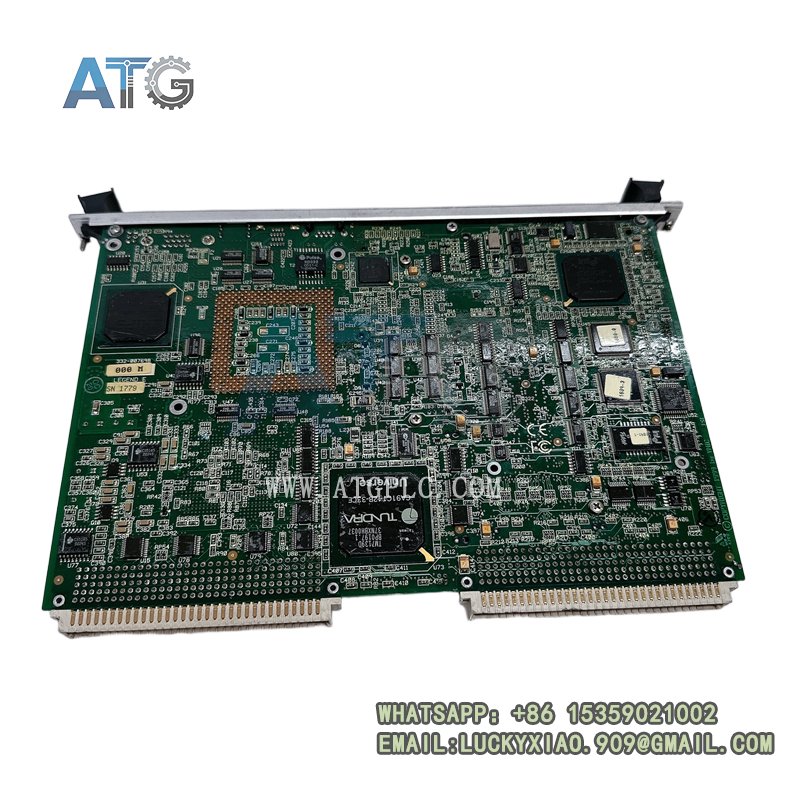

The GE IS215UCVEH2AB, also labeled VMIVME-7614-132 with part number 350-007614-132C, is a high-performance VME-bus single-board controller. It belongs to the GE Speedtronic Mark VI turbine control system series. It acts as a core real-time processing unit for industrial power and automation control systems.
This integrated SBC module combines high-speed computing, logic control and multi-bus communication functions. It executes precise control logic for gas turbines and steam turbines. It collects field operational data and transmits instructions stably. It adopts standard VME bus structure. It supports seamless docking with various VME rack devices. Built with industrial-grade components, it adapts to harsh power plant environments. It is widely used for system construction, module replacement and spare part backup in energy and industrial control fields.
Core Product Features
The IS215UCVEH2AB / VMIVME-7614-132 adopts dedicated turbine control architecture. It fixes low real-time performance and unstable signal processing of ordinary control boards. It ensures long-term reliable operation of power generation units.
- High-Speed Real-Time Computing: Equipped with industrial dedicated processor. It runs control logic and data calculation rapidly. It meets high-precision turbine regulation requirements.
- Standard VME Bus Compatibility: Fully compliant with VME industrial bus standards. It matches all mainstream VME chassis and expansion modules without modification.
- Stable System Docking Ability: Perfectly compatible with GE Mark VI system firmware. It supports plug-and-play replacement for old or faulty boards.
- Built-In Self-Diagnosis Function: Real-time hardware self-inspection monitors working status. It automatically alarms faults to lower maintenance costs.
- Strong Industrial Adaptability: Optimized anti-vibration and anti-interference circuit design. It resists electromagnetic interference and temperature fluctuation on site.
- Integrated Communication Design: Onboard multi-channel communication interfaces. It realizes efficient data interaction between I/O modules and upper monitoring systems.
- 24/7 Continuous Operation: Low-power and heat-resistant layout. It supports long-term full-load operation with ultra-low failure rate.
Detailed Technical Specifications
All technical parameters comply with GE industrial control standards. Each module undergoes strict function testing, signal calibration and aging screening before delivery. Standard parameters support accurate model selection and batch procurement.
- Official Model: IS215UCVEH2AB
- Alternative Part Number: VMIVME-7614-132
- Factory Code: 350-007614-132C
- Product Type: VME Bus Industrial Single-Board Controller
- Applicable System: GE Speedtronic Mark VI Turbine Control System
- Core Function: Real-time logic control, field data processing, system signal interaction, turbine safety interlock
- Bus Standard: Industrial standard VME bus architecture
- Installation Method: Standard VME rack plug-in installation
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH, non-condensing environment
- Continuous Operation: Support 7×24 hours full-load uninterrupted operation
- Industrial Certification: CE safety certification, UL industrial certification, EMC electromagnetic compatibility certification
Main Application Fields
This VME controller is specially designed for high-stability power generation control scenarios. It provides core computing and logic support for key industrial equipment.
- Thermal Power Plant Control: It serves as the main control board for gas turbines and steam turbines. It completes unit speed regulation, parameter monitoring and safety protection.
- Combined-Cycle Power Station: It supports coordinated control of multiple power generation units. It improves overall system operation efficiency and stability.
- Old System Renovation & Upgrade: It replaces aging VME control modules in old Mark VI systems. It upgrades system real-time control performance.
- Industrial Simulation Systems: It undertakes real-time data calculation and synchronous simulation tasks for industrial simulation platforms.
- Power Plant Spare Part Reserve: It acts as a key backup module. It quickly replaces faulty boards and reduces production downtime losses.
Related Model Recommendations
The following series models are fully compatible with IS215UCVEH2AB. They meet system replacement, function expansion and performance upgrading needs.
- IS215UCVEH2AE: Standard version of the UCV controller board. It shares identical performance and compatibility for universal field replacement.
- VMIVME-7614: Basic VME control board model. It matches Mark VI system architecture for routine maintenance replacement.
- IS215UCVHM06A: High-performance UCV main control module. It forms a complete control system with this board for high-precision turbine regulation.
- VMIVME-5565: Reflective memory communication module. It cooperates with this controller to enhance system real-time data transmission capacity.
