Description
Product Overview

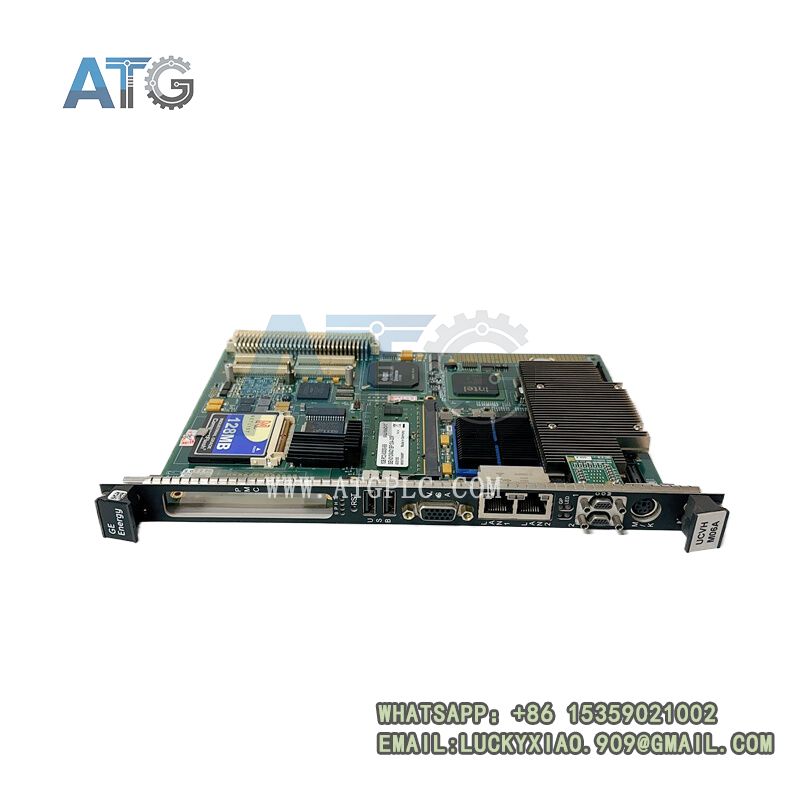

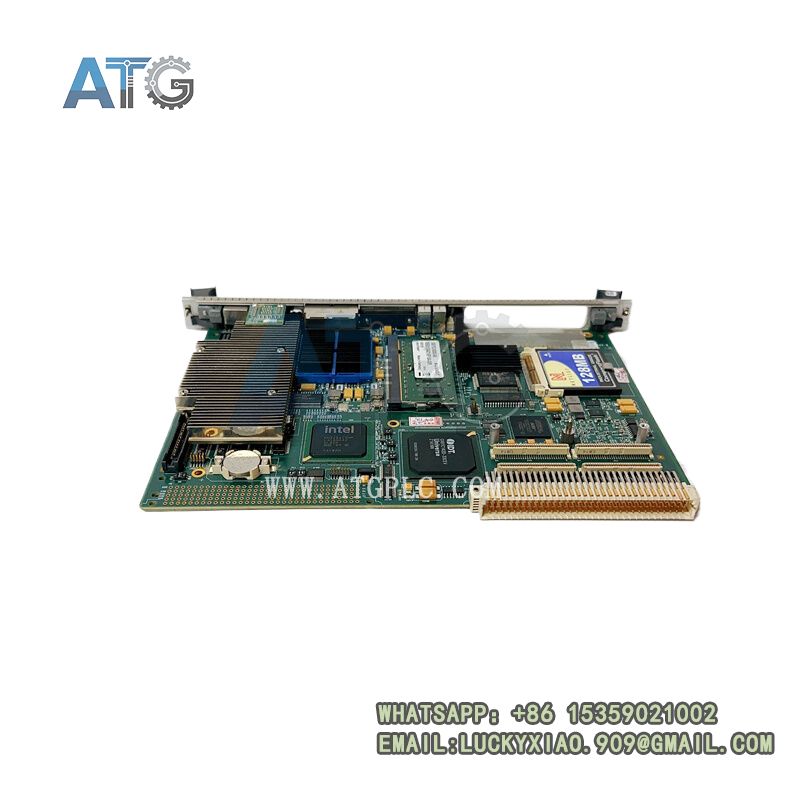

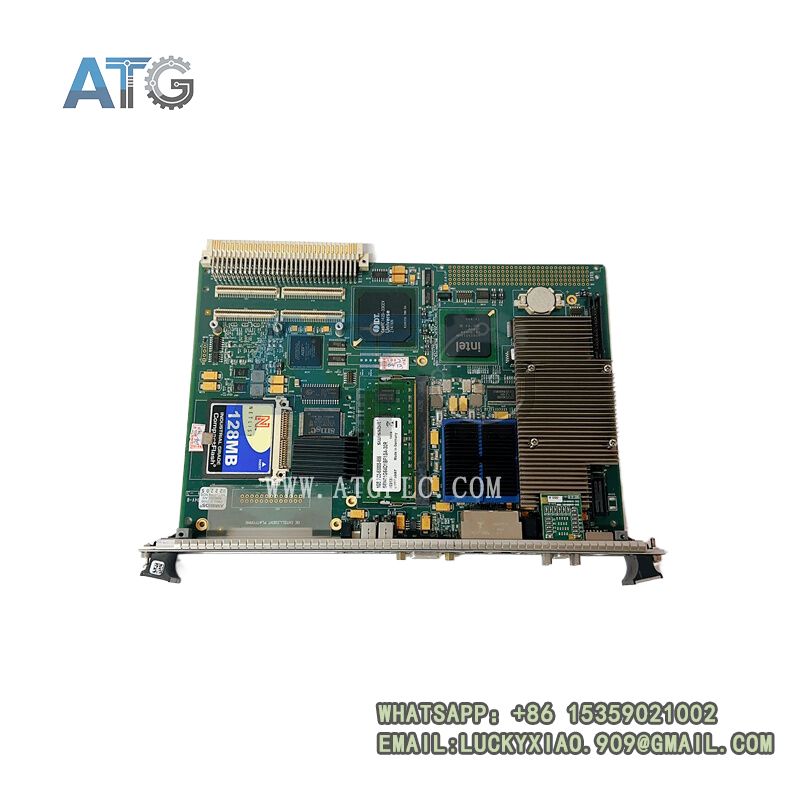

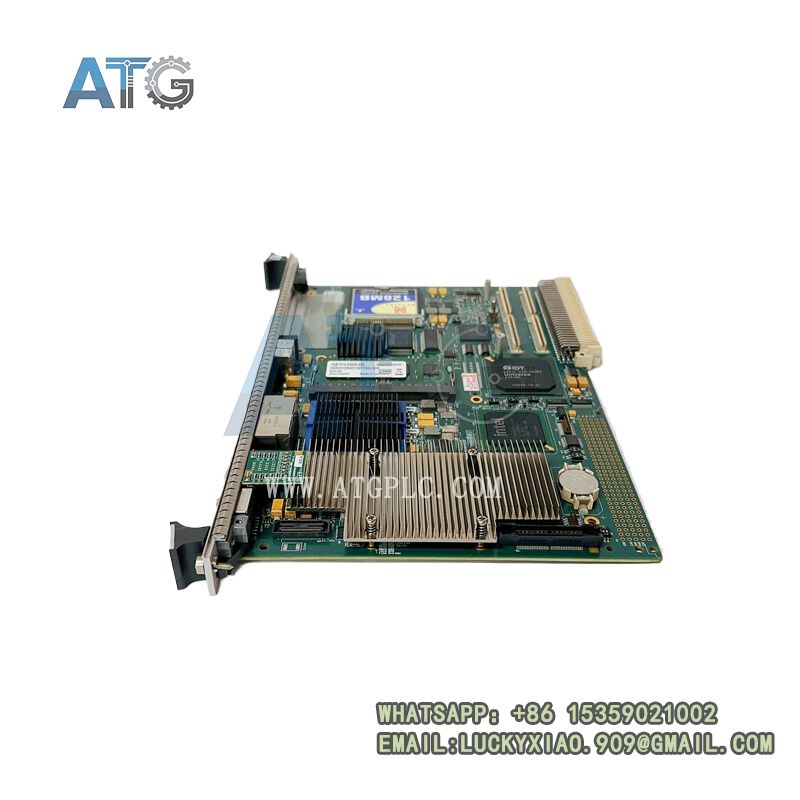

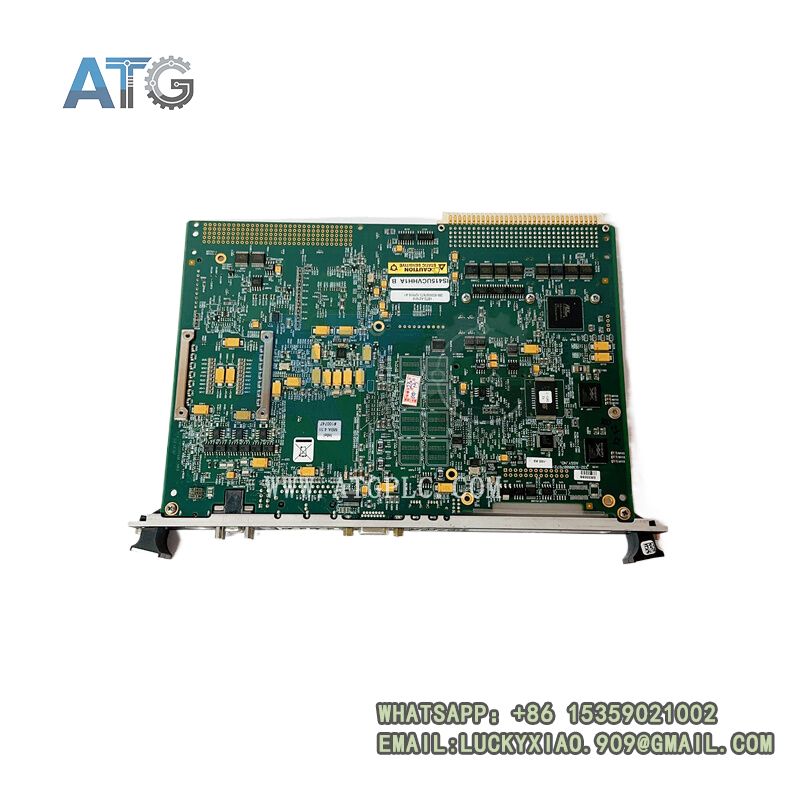

The GE IS215UCVHM06A is a high-performance Universal Control Unit (UCV) module. It belongs to the GE Mark VI turbine control system series. As a core main control board, it undertakes key control and data processing tasks for industrial turbine equipment.
This module integrates independent computing, signal processing and multi-bus communication functions. It serves as the central logic processing unit for gas turbines and steam turbines. It connects on-site I/O modules and upper monitoring systems. It ensures real-time closed-loop regulation, safety interlock and stable operation of turbine units. Manufactured with industrial-grade standards, it supports plug-and-play replacement. It is widely used for system maintenance, renovation and spare part backup of existing Mark VI systems.
Core Product Features
The GE IS215UCVHM06A adopts optimized industrial control architecture. It solves the problems of slow computing speed and poor stability of traditional control modules. It balances high operational efficiency and long-term industrial reliability.
- High-Speed Computing Performance: Equipped with industrial dedicated processor. It supports fast logic operation and real-time turbine regulation. It meets high-precision control requirements of power equipment.
- Multi-Bus Integrated Communication: It adapts to dual ISBUS, Genius bus and Ethernet interfaces. It realizes stable data interaction between multiple system nodes. It improves overall system linkage efficiency.
- Redundant Operation Support: It supports system redundant configuration design. It effectively avoids single-point hardware failures. It greatly improves the safety and stability of turbine operation.
- Strong Industrial Environmental Adaptability: It adopts anti-interference circuit and vibration-resistant structure. It resists on-site electromagnetic interference and temperature changes. It adapts to harsh power plant working conditions.
- Easy Installation and Replacement: Standard rack-mounted structure fits Mark VI system cabinets perfectly. No program modification is required after replacement. It shortens on-site maintenance time.
- Long-Term Stable Operation: Low-power and heat-resistant design supports 7×24 hours full-load continuous operation. It features low failure rate and long service life.
Detailed Technical Specifications
All parameters of the GE IS215UCVHM06A comply with GE industrial control hardware standards. Each module undergoes strict calibration and aging tests before delivery. The standardized parameters support accurate model selection and batch engineering procurement.
- Official Model: IS215UCVHM06A
- Product Type: Universal Control Unit (UCV) Main Control Module
- Applicable System: GE Mark VI Turbine Control System
- Rated Power Supply: 24VDC industrial standard power supply
- Core Processor: Industrial high-speed dedicated computing chip
- Main Communication Interfaces: Dual ISBUS interface, Genius bus interface, Ethernet communication port
- Installation Method: Standard cabinet backplane rack mounting
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH, non-condensing environment
- Continuous Operation: Support 7×24 hours full-load uninterrupted operation
- Industrial Certification: CE safety certification, UL industrial certification, EMC electromagnetic compatibility certification
- Applicable Standards: GE official turbine control hardware specifications
Main Application Fields
The GE IS215UCVHM06A is professionally customized for power generation turbine control scenarios. It focuses on high-precision and high-stability industrial automatic control work.
- Thermal Power Plant Control: It acts as the core control module for gas turbines and steam turbines. It completes speed regulation, parameter monitoring and safety interlock protection.
- Combined-Cycle Power Station System: It supports coordinated control of multiple units. It ensures stable and efficient operation of combined-cycle power generation systems.
- Old System Renovation and Upgrading: It replaces aging and faulty control modules of old Mark VI systems. It improves overall system control accuracy and stability.
- Power Equipment Safety Monitoring: It undertakes real-time data collection and logic judgment of turbine auxiliary systems. It eliminates potential operational risks.
- Enterprise Spare Part Reserve: It serves as key spare parts for power plant control cabinets. It responds to sudden equipment failures and reduces production downtime losses.
Related Model Recommendations
To meet different system matching and upgrading needs, we recommend compatible series models for combination use. These models match the GE IS215UCVHM06A perfectly for integrated system configuration.
- IS215UCVHM06: Basic version of the UCV main control module. It is fully compatible with most standard Mark VI system racks and firmware.
- IS200UCVHH1A: Supporting auxiliary signal board. It cooperates with to expand system signal processing capacity.
- IS215SPLAH2A: Professional signal acquisition module for Mark VI systems. It matches the main control module to improve on-site signal collection accuracy.
- IS415UCVHH1A: Enhanced UCV expansion module. It is suitable for large-scale turbine system upgrading and extended control scenarios.
