Description
Product Overview

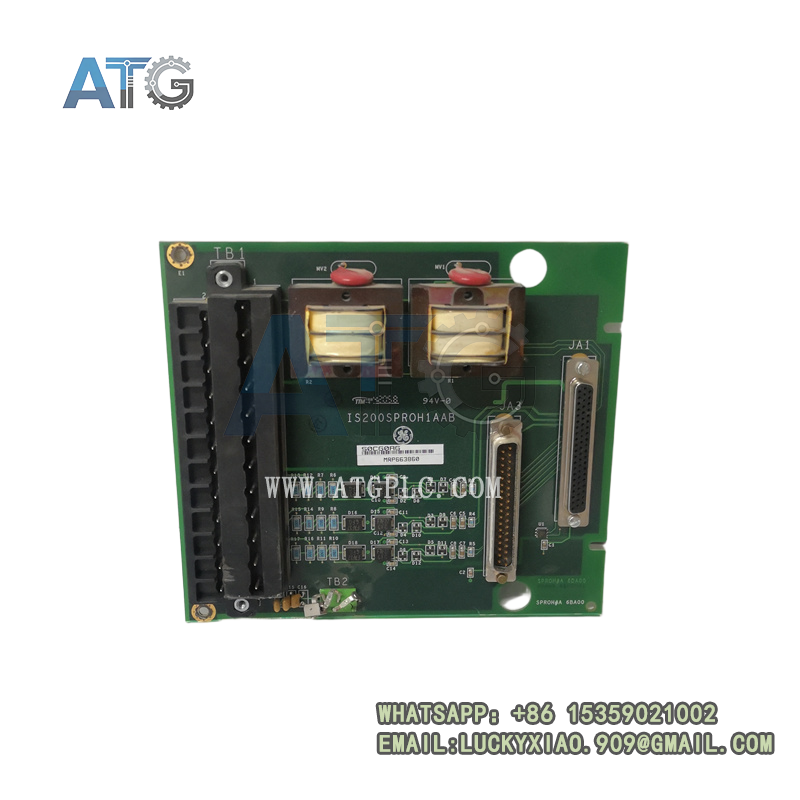

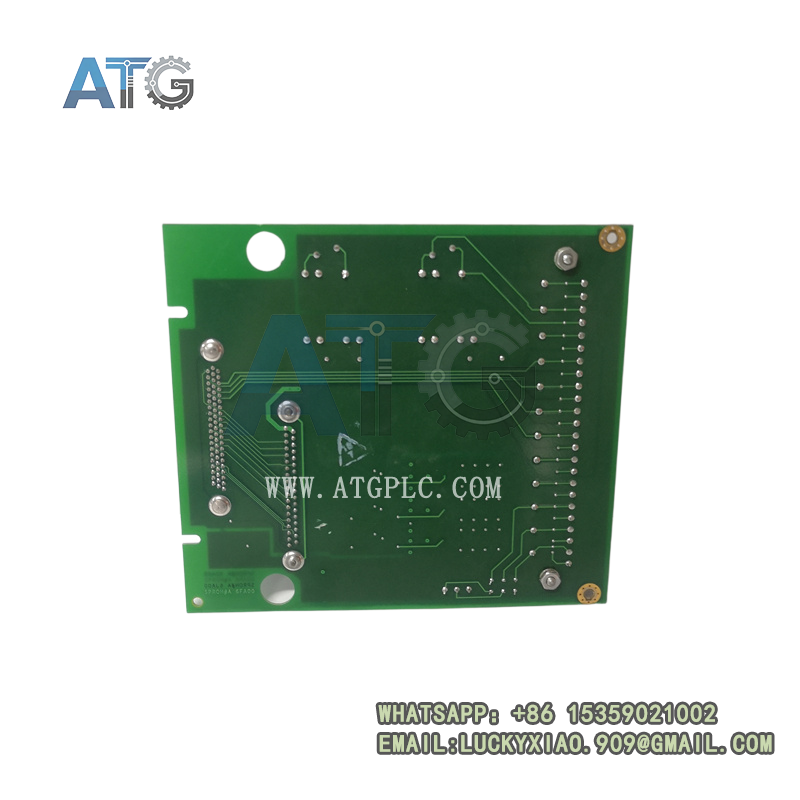

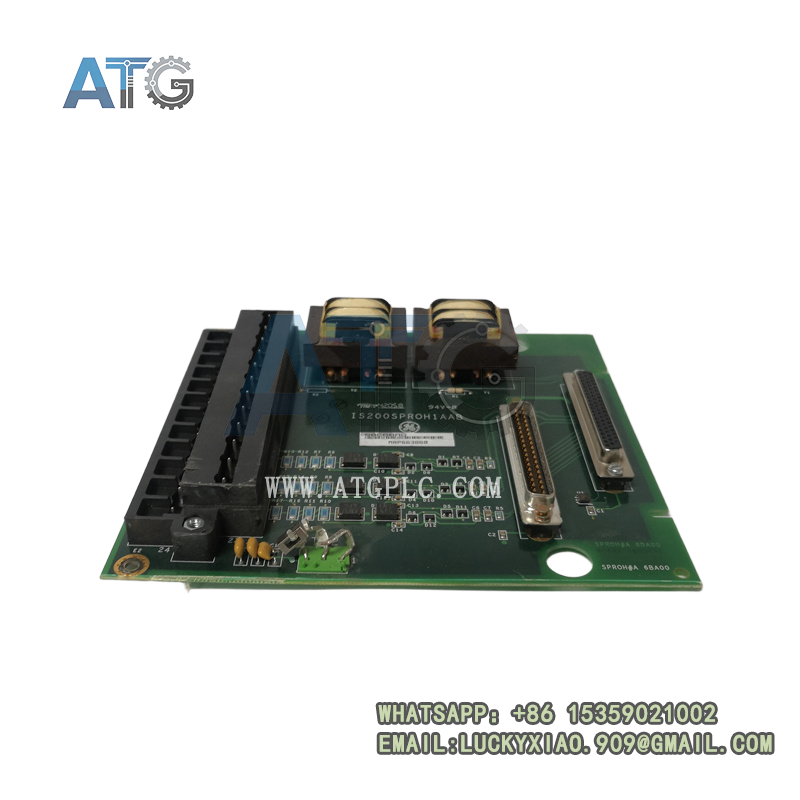

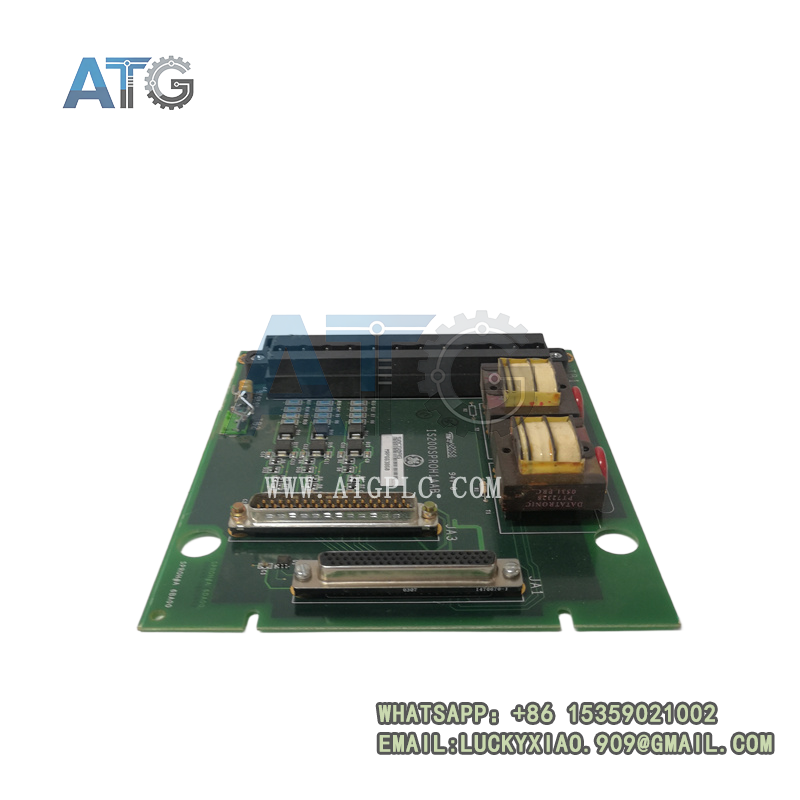

The GE IS200SPROH1AAB, with part number MRP663860, is a backup protection terminal board built for GE Speedtronic Mark VI and Mark VIe turbine control systems. It acts as a critical signal conditioning and relay protection unit for gas and steam turbine safety loops. This board collects speed signals and generator voltage signals from field sensors. It processes these signals and triggers relay protection actions when abnormal operating conditions appear. It forms the last safety barrier to prevent turbine over-speed and other dangerous faults.
Turbine protection systems demand ultra-fast response and high signal reliability. Conventional terminal boards often lack sufficient isolation. They are vulnerable to plant electromagnetic noise and signal surge interference. Such interference may cause false tripping or protection failure. These risks can lead to huge economic losses for power plants. To solve these hidden risks, the GE IS200SPROH1AAB adopts dedicated signal conditioning circuits and independent channel isolation. Every finished board passes strict signal calibration, withstand voltage and vibration testing before delivery. It supports direct rack installation and fits standard industrial e-commerce spare part procurement workflows.
Core Product Features & Competitive Advantages
Safety protection is the highest priority for turbine control hardware. Generic signal boards cannot meet the strict response speed and isolation standards of power generation safety loops. In contrast, the GE IS200SPROH1AAB is tailor-made for Mark VI / Mark VIe turbine protection architecture. It integrates signal conditioning, terminal wiring interface and trip relay output in one compact PCB assembly.
- Dedicated Turbine Protection Design: Optimized for over-speed protection and generator bus voltage monitoring. It processes pulse speed signals and AC voltage inputs for safety trip logic.
- Built-in Signal Conditioning Circuitry: It converts raw sensor signals into stable digital signals for the main controller. It filters high-frequency noise to reduce signal jitter.
- Pluggable Barrier Terminal Block: It comes with 24 barrier terminals. The terminals accept #18 AWG wires and simplify field wiring and maintenance work.
- Independent Channel Galvanic Isolation: Isolation design cuts off crosstalk between different signal channels. It blocks surge interference from heavy industrial environments.
- Fast Relay Trip Response: The on-board relay contacts support trip command output with short reaction time. It can quickly cut off fuel or trigger shutdown under fault conditions.
- Multiple Hardware Connectors: It carries a DC-37 pin connector for backup trip relay links. A dedicated interface connects to the PPRO I/O pack inside the control rack.
- Flexible Mounting Options: Users can mount the board via DIN rail or direct panel mounting. A matching sheet metal carrier is included in the package.
- Full System Compatibility: It directly works with GE Mark VI and Mark VIe racks. Faulty boards can be replaced without major modification of control logic.
- Industrial-Grade Durability: High-quality PCB and electronic components resist shock, vibration and temperature fluctuation in power plant control rooms.
Detailed Segmented Technical Specifications
The GE IS200SPROH1AAB follows GE Speedtronic hardware standards and power generation safety norms. All key indicators pass laboratory verification and long-term field operation tests. The segmented parameters below support accurate model selection, spare part replacement and bulk engineering procurement.
3.1 Basic Product & Application Parameters
This backup protection terminal board belongs to GE IS200 series turbine control hardware. It is widely deployed in safety monitoring and protection loops of gas turbines and steam turbines.
- Official Product Model: IS200SPROH1AAB
- Secondary Part Number: MRP663860
- Product Category: Backup Protection Terminal Board
- Manufacturer: GE Vernova (Former GE Power)
- Core Function: Turbine speed signal conditioning, generator bus voltage monitoring, safety trip relay output, field signal terminal connection
- Fully Compatible System: GE Speedtronic Mark VI / Mark VIe Turbine Control System
- Installation Method: DIN rail mount or panel mount with sheet metal carrier
- Core Application Scenarios: Old board replacement, turbine protection system retrofit, power plant overhaul, safety loop upgrade, strategic spare part stocking
- Implementation Standards: GE turbine control specifications, CE safety certification, UL industrial certification, EMC electromagnetic compatibility standard
3.2 Signal & Relay Parameters
The board handles pulse speed signals and generator voltage inputs. It uses relay contacts to output critical shutdown commands for turbine safety protection.
- Speed Signal Input Range: 2 Hz to 20 kHz pulse signal from speed sensors
- Voltage Input: Generator and bus voltage signal input for power grid monitoring
- Terminal Quantity: 24 pluggable barrier terminals, compatible with #18 AWG wiring
- Relay Contact Rating: 250V AC / 30V DC, 5A resistive load
- Contact Type: SPDT single-pole double-throw, NO / NC selectable
- Signal Protection: Channel-to-channel isolation and built-in surge suppression
- Relay Electrical Life: Over 100,000 operations under rated load conditions
3.3 Electrical Parameters
The board draws power from the control rack backplane. It maintains stable operation within the standard industrial voltage fluctuation range.
- Backplane Supply: +5V DC, 6A
- External Power Input: 24V DC ±10%
- Connector Types: DC-37 pin connector, PPRO I/O pack dedicated interface
- Circuit Protection: Reverse voltage protection for relay coils and arc suppression design for contacts
3.4 Physical & Environmental Adaptability Parameters
The hardware passes vibration and temperature cycle tests. It can work reliably inside power plant control cabinets with changing thermal conditions.
- Dimensions (H × W): 15.9 cm × 17.8 cm
- Net Weight: 0.8 kg
- Full-Load Operating Temperature Range: -30°C to +65°C continuous operation
- Storage Temperature Range: -40°C to +85°C
- Working Humidity Range: 5%–95% RH non-condensing
- Shock & Vibration Resistance: Complies with turbine control cabinet vibration standards
- Continuous Operation Capacity: Support 7×24 hours uninterrupted full-load industrial operation
3.5 Factory Testing & Quality Certification
Each GE IS200SPROH1AAB board follows GE power generation quality control rules. Every unit completes full function testing before shipment.
- Core Factory Test Items: Signal input accuracy test, relay contact test, isolation withstand voltage test, vibration test, EMC interference test, high-low temperature cycle test
- Quality Inspection Standard: 100% full function detection, signal calibration and complete test record filing
- Authoritative Qualification Certification: CE industrial safety certification, UL electrical certification, EMC electromagnetic compatibility certification
- Field Operation Performance: Widely installed on global Mark VI / Mark VIe turbine units, with stable protection response and low failure rate
E-commerce Sales Mode & Complete Procurement Advantages
The GE (MRP663860) is a specialized safety spare part for Mark VI and Mark VIe turbine protection loops. It is sold through standardized global industrial e-commerce channels. It mainly serves power plant maintenance, safety system upgrade and spare part inventory planning. It provides formal procurement and full-cycle technical after-sales support for power generation enterprises and automation integrators.
4.1 Standardized Transparent E-commerce System
All listed boards are genuine GE products with traceable manufacturing and test records. E-commerce product pages display official datasheets and factory test reports. Buyers can check product specifications and quality documents online anytime. This transparent mechanism helps users avoid refurbished or incompatible replacement boards. It protects the safety and reliability of turbine protection loops.
4.2 Diversified Flexible Procurement Modes
Power plant maintenance and renovation projects have different timing and quantity requirements. We offer three flexible procurement options to match different industrial scenarios.
- Emergency Spot Procurement: Suitable for sudden board failure and protection loop fault emergencies. Available spot inventory supports fast delivery. It helps users restore turbine safety protection functions quickly and reduce downtime losses.
- Small-Batch Spare Part Stocking: Ideal for power plants to build Mark VI/VIe spare part libraries. Pre-storing this backup protection board shortens maintenance response time and improves system safety redundancy.
- Large-Batch Engineering Procurement: Custom pricing and long-term framework agreements are available for large overhaul and batch upgrade projects. It reduces overall project procurement costs.
4.3 Full-Cycle After-Sales Service Guarantee
This protection terminal board controls critical turbine safety trip logic. Any board fault may disable protection functions and bring huge risks. Our complete after-sales package helps users eliminate procurement risks.
- 100% Original Genuine Guarantee: Every board is genuine GE original hardware. It ensures full system compatibility and matches factory signal and relay performance.
- Professional Industrial Packaging: Anti-static, shockproof and moisture-proof packaging protects precision PCB circuits during international transport and warehouse storage.
- 24/7 Professional Technical Support: Services cover pre-sales model verification, wiring guidance, rack installation and post-delivery fault diagnosis.
- Long-Term Warranty Service: Unified warranty coverage applies. Free repair or replacement is offered for non-human-caused quality defects to cut plant maintenance costs.
Main Industrial Application Scenarios
With signal conditioning, isolation and fast relay trip functions, this terminal board serves the construction, routine maintenance and safety upgrading of GE power plant turbine control systems.
- Turbine Protection System Construction: Works as core signal terminal and relay protection hardware in newly built Mark VI / Mark VIe racks.
- Faulty Board Direct Replacement: Replace aged or damaged original boards. No major program modification is needed to restore safety protection loops.
- Safety Loop Performance Upgrade: Upgrade older terminal boards to improve signal stability and protection response speed.
- Power Plant Scheduled Overhaul: Used during regular gas and steam turbine maintenance to remove hidden risks of protection failure.
- Enterprise Spare Part Reserve: Stored as critical safety spare parts. It handles sudden hardware faults and keeps turbine units running safely.
Product Value & Market Competitiveness
The GE (MRP663860) solves common weaknesses of generic terminal boards, such as poor isolation, slow response and weak anti-interference performance. It integrates signal conditioning, terminal wiring and trip relay output in one single board. It strengthens the reliability of turbine over-speed and voltage protection loops.
Within the global industrial power spare parts e-commerce market, this backup protection terminal board holds strong comprehensive advantages. It is purpose-built for Mark VI/VIe turbine safety systems, with reliable relay action and excellent environmental tolerance. Supported by genuine product guarantee, complete technical documentation and full-cycle after-sales services, it becomes the preferred safety spare part for global power plant overhaul, maintenance and safety upgrade projects.
