Description
- Model: 3500/33 149986-01
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 High-Precision Machinery Protection System Series
- Core Function: Outputs relay signals for machinery alarm and safety trip interlock
- Type: 16-Channel Relay Output Module
- Key Specs: 16 independent relay channels, configurable voting logic, failsafe operation
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China

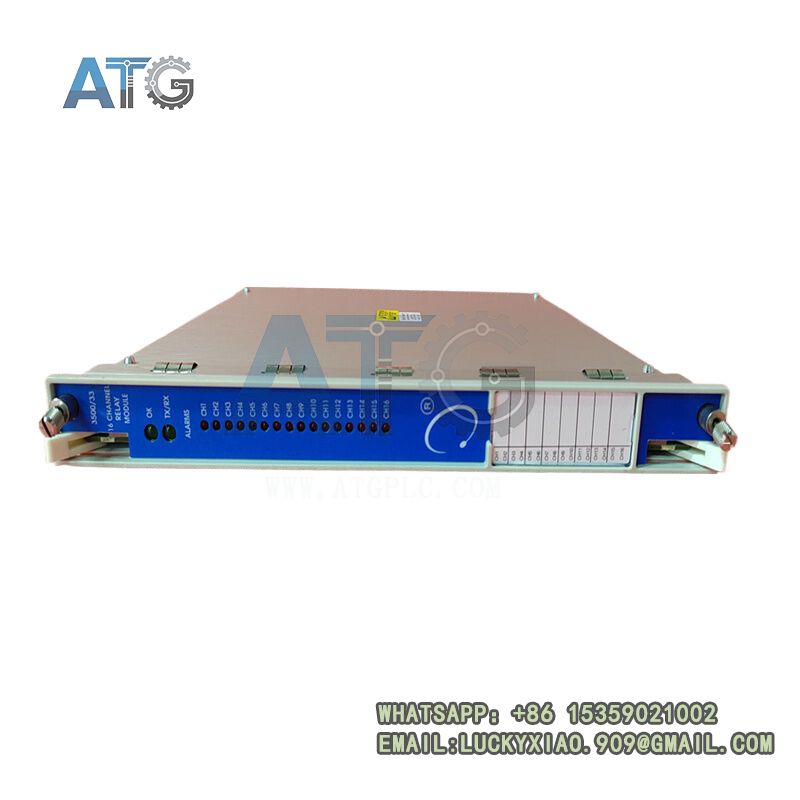

Bently Nevada 3500/33 149986-01
Product System Overview
The Bently Nevada 3500/33 149986-01 is a full-height high-density relay output module designed exclusively for the industry-leading 3500 machinery protection system developed by Baker Hughes. Serving as the core signal output carrier of the TSI turbine supervision instrumentation system, this main relay module works with supporting sub-modules, monitoring cards, power supplies and communication units to build a complete API 670-compliant industrial safety protection system. It undertakes all physical switch output tasks for the entire rack system, converting internal digital logic judgments into standard relay contact signals for external device linkage. Fully compatible with System 1 diagnostic software and mainstream DCS/SCADA industrial control platforms, it supports unified system configuration, real-time status feedback and remote signal management. With long-term global field operation verification, it is widely used for new system deployment, old equipment renovation and faulty module replacement in industrial machinery monitoring projects.

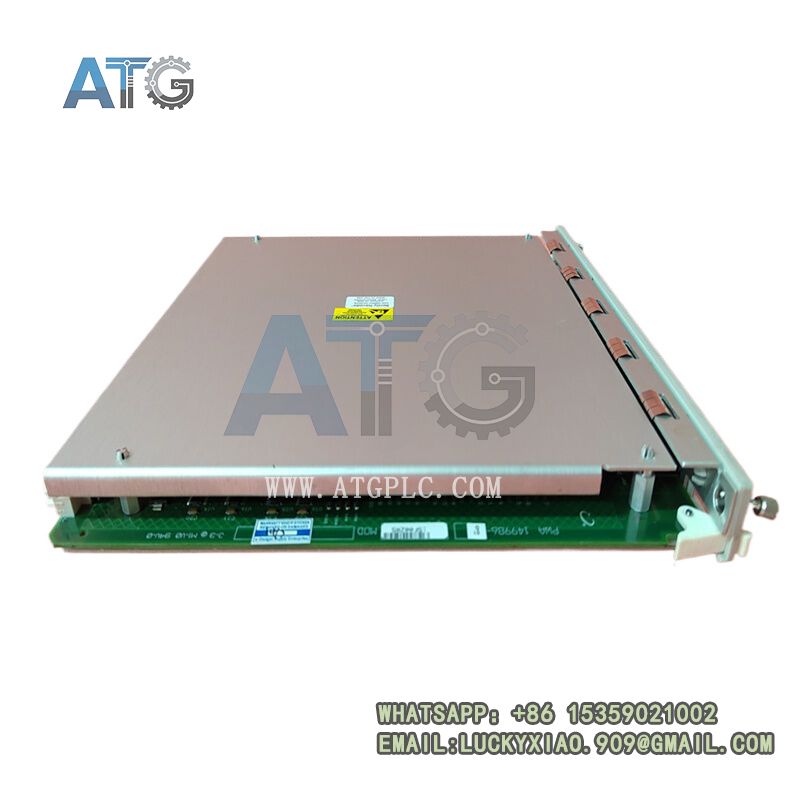

Bently Nevada 3500/33 149986-01
Core Product Functions
This high-performance relay module provides comprehensive safety signal output and intelligent logic control for industrial rotating machinery monitoring systems. Equipped with 16 fully independent programmable relay channels, each channel supports flexible configuration of customized alarm voting logic, including AND, OR and custom combination judgment rules to adapt to diverse on-site safety interlock standards. When the system captures abnormal operating states such as excessive vibration, shaft displacement deviation and equipment overspeed, the module instantly responds and outputs accurate alarm or trip relay signals. It supports hierarchical safety management, distinguishing early warning prompts and dangerous shutdown commands to achieve graded risk control. Furthermore, it feeds back real-time system operating status, channel working conditions and fault records to upper control systems, providing stable and reliable signal output support for equipment fault isolation, safety interlock and production system linkage operation.

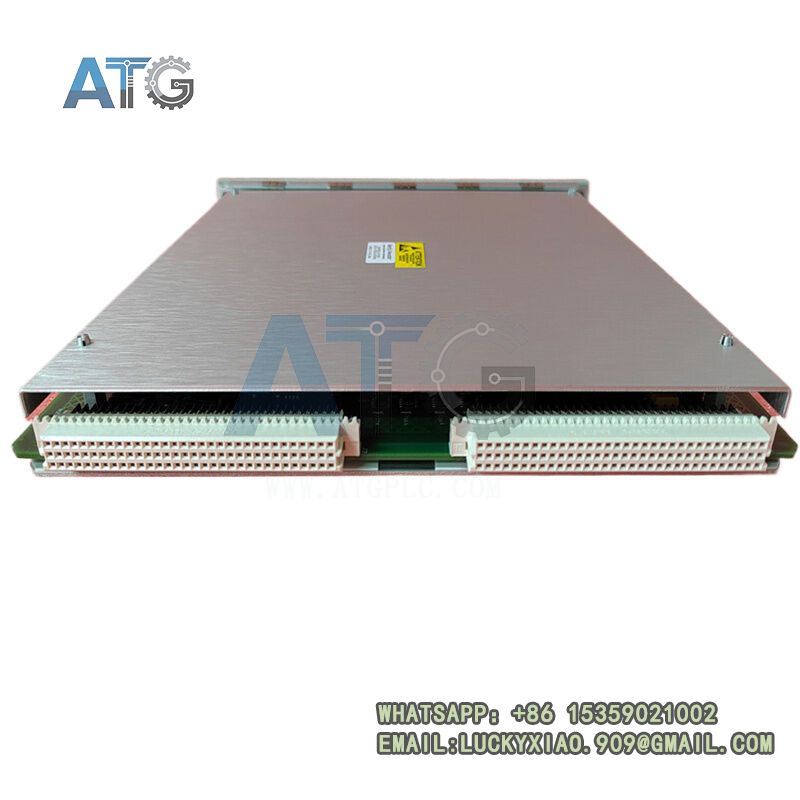

Bently Nevada 3500/33 149986-01
Product Features & Technical Advantages
The 3500/33 149986-01 features superior operational reliability, flexible configurability and strong industrial environmental adaptability, fully meeting high-standard safety monitoring requirements of heavy industrial sites. Adopting professional industrial failsafe design, it automatically switches to a predefined safe state during power failure or system anomalies, effectively preventing equipment misoperation and mechanical risks. All 16 channels operate independently without signal cross-interference, supporting multi-channel free combination logic to meet complex on-site control demands. The industrial-grade relay core delivers stable contact action, long mechanical service life and ultra-low failure rate, ensuring long-term 24-hour uninterrupted safety output. Built-in comprehensive on-board self-diagnosis function automatically detects channel faults, circuit abnormalities and signal anomalies, enabling rapid troubleshooting and reducing hidden monitoring dangers. The standardized rack-mounted plug-and-play design simplifies on-site installation, debugging and replacement, effectively shortening equipment downtime and lowering overall system maintenance costs.
Bently Nevada 3500/33 149986-01
Industrial Application Scenarios
This high-density relay output module is widely applied in critical industrial scenarios equipped with Bently Nevada 3500 machinery protection systems. It mainly serves core production facilities in thermal power plants, combined cycle power stations, petrochemical refining bases, oil and gas compression stations and large metallurgical enterprises. It provides precise alarm indication and safety trip protection for key rotating equipment such as steam turbines, gas turbines, centrifugal compressors and high-speed industrial blowers. As an essential safety output unit of the 3500 TSI system, it guarantees timely fault response and effective risk isolation, helping enterprises avoid unplanned shutdown losses and ensure long-term safe and stable operation of industrial production systems.
