BENTLY 140734-02 Proximitor Seismic Monitor (3500/42M)

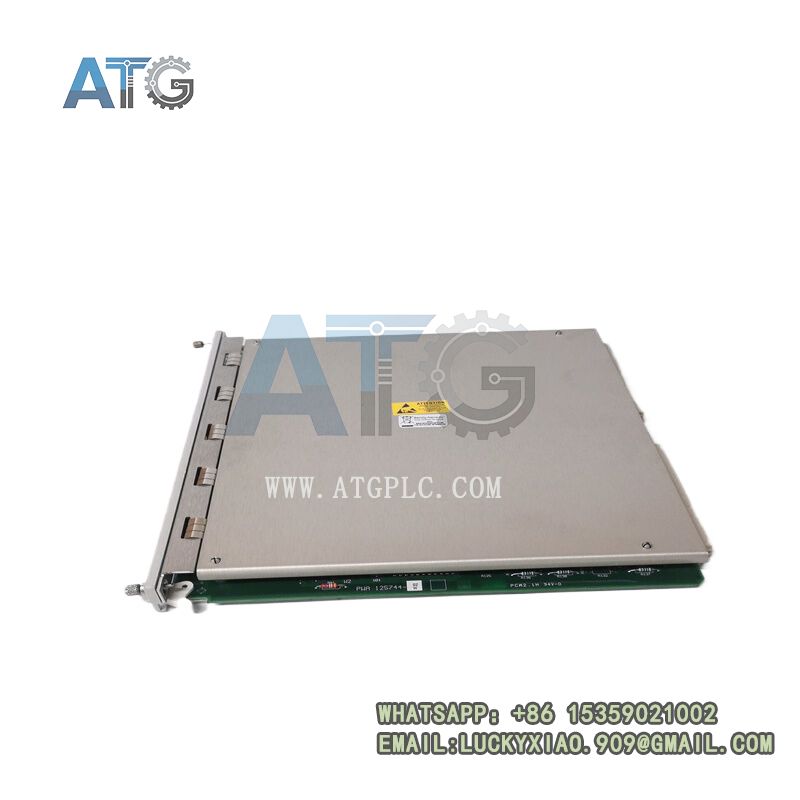

Bently Nevada 3500/42M 140734-02
Product Overview
The BENTLY 140734-02 is a high-performance Proximitor Seismic Monitor module manufactured by Bently Nevada, belonging to the industry-leading 3500 machinery protection system series. As a standard non-intrinsic-safety version of the 3500/42M monitoring card, this module is professionally designed for conventional industrial non-hazardous areas, focusing on high-precision real-time collection and monitoring of shaft vibration, bearing displacement, acceleration and rotational speed of rotating machinery. Adopting mature proximitor detection technology and high-stability signal processing circuit, the 140734-02 supports multi-type sensor signal access and synchronous data analysis. With rugged industrial card structure, metal electromagnetic shielding and strict industrial screening components, it maintains long-term stable operation in strong electromagnetic interference industrial environments. This module is widely installed in steam turbines, gas turbines, compressors, generators and large rotating units, providing reliable mechanical condition monitoring and safety protection for energy, petrochemical and heavy industrial enterprises.
Core Product Features
2.1 Multi-Function Mechanical Condition Monitoring
This 3500/42M monitoring module integrates comprehensive mechanical measurement functions, supporting radial vibration, thrust bearing position, shaft eccentricity, casing acceleration and rotational speed monitoring. It can continuously track the operating state of rotating equipment, capture tiny mechanical abnormalities and vibration fluctuations. The built-in intelligent algorithm realizes real-time data filtering and amplitude analysis, providing accurate raw data for equipment fault diagnosis and trend prediction.
2.2 Four-Channel Universal Sensor Compatibility
Equipped with four independent high-precision signal channels, the 140734-02 is compatible with commonly used industrial sensors including proximity probes, piezoelectric accelerometers and seismic velocity sensors. Each channel adopts independent signal conditioning circuit to avoid mutual crosstalk and interference. It supports synchronous acquisition of multi-point equipment status signals, meeting the multi-directional monitoring requirements of large rotating machinery.
2.3 Excellent Industrial Anti-Interference Performance
The module adopts an all-metal shielding shell and internal multi-stage filtering circuit, which effectively suppresses common-mode interference and high-frequency electromagnetic radiation in industrial sites. Optimized EMC electromagnetic compatibility design enables stable signal transmission in power plants, chemical workshops and other complex electromagnetic environments. The reinforced circuit board structure improves shock resistance and ensures monitoring accuracy under long-term continuous operation.
2.4 Hot-Swappable Rack Installation Structure
Following the unified mechanical standard of the Bently Nevada 3500 rack system, the card-type structure supports hot-swap installation and replacement. Maintenance and module replacement can be completed without shutting down the monitoring rack, effectively improving system continuous operation rate. The backplane bus direct docking design simplifies wiring, and the built-in locking structure prevents poor contact caused by mechanical vibration of equipment.
2.5 Harsh Environmental Adaptability
Designed for conventional industrial harsh working conditions, the operating temperature ranges from -40°C to +85°C, adapting to high-temperature equipment rooms and low-temperature indoor cabinets. The non-condensing relative humidity ranges from 0% to 95%, resisting dust, moisture and industrial air pollution. All electronic components undergo strict high and low temperature aging screening to ensure long service life and low failure rate in industrial continuous working scenarios.
Bently Nevada 3500/42M 140734-02
Detailed Technical Specifications
3.1 Basic Performance & Monitoring Parameters
| Parameter Item | Technical Data |
| Product Model | 140734-02 (3500/42M Proximitor Seismic Monitor) |
| Product Type | Four-Channel Vibration & Position Monitoring Card |
| Channel Quantity | 4 Independent Isolated Monitoring Channels |
| Compatible Sensors | Proximity Probe, Accelerometer, Seismic Velocity Sensor |
| Monitoring Items | Shaft Vibration, Bearing Position, Acceleration, Rotation Speed |
| Signal Processing | High-resolution Filtering & Amplitude Analysis |
| Explosion-proof Grade | Standard Type for Non-Hazardous Area |
| System Compatibility | Fully Compatible with Bently Nevada 3500 Rack System |
3.2 Power Supply Parameters
| Power Parameter | Specification |
| Power Supply Mode | Backplane Bus Power Supply (3500 Rack Internal Power) |
| Internal Bus Voltage | 5 V DC / 12 V DC |
| Rated Power Consumption | ≤ 6.8 W |
| Power Protection | Overcurrent, Overvoltage, Reverse Connection Protection |
3.3 Environmental & Mechanical Parameters
| Item | Technical Specification |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -55°C ~ +100°C |
| Ambient Humidity | 0% – 95% (Non-condensing) |
| Ingress Protection Rating | IP20 (Industrial Cabinet Protection Level) |
| Vibration Resistance | Compliant with ISO 10816 Machinery Vibration Standard |
| Installation Method | 3500 Standard Rack Card Slot Mounting |
| Weight | Approx. 0.42 kg (0.93 lbs) |
| Dimensions (L × W × H) | 241.3 mm × 24.4 mm × 99.1 mm |
Certification Compliance
The BENTLY 140734-02 module complies with multiple international industrial safety and electromagnetic compatibility certifications. It has obtained CE EMC certification, UL safety certification and CSA industrial electrical certification. The product strictly adheres to API petroleum industry equipment specifications and ISO 10816 mechanical vibration monitoring standards. Each module undergoes rigorous temperature cycling testing, mechanical vibration impact testing and signal accuracy calibration before factory delivery. All testing procedures ensure stable and reliable performance in long-term continuous industrial monitoring systems.
Application Scenarios
- Thermal & Gas Power Plants: Installed in turbine monitoring racks to collect shaft vibration, thrust position and speed signals of steam turbines and gas turbines for unit safety protection.
- Petrochemical Industry: Applied in oil refineries and chemical plants for condition monitoring of compressors, pumping units and rotating machinery in non-explosive areas.
- Metallurgy & Heavy Industry: Deployed in large rolling mills, blowers and industrial rotating equipment to realize real-time vibration data acquisition and abnormal alarm.
- Water Conservancy & Energy Storage: Used for generator sets and water pump units to monitor mechanical vibration and bearing operating status.
- Industrial Predictive Maintenance: Transmits high-precision vibration and displacement data to upper monitoring software for equipment trend analysis and fault early warning.
Product Advantages & After-sales Support
As a standard monitoring version of the 3500/42M series, the 140734-02 features cost-effective and stable multi-physical quantity monitoring capability, suitable for conventional non-hazardous industrial sites. The four-channel independent collection design realizes simultaneous monitoring of multiple mechanical parameters without signal interference. Adopting industrial-grade components and metal shielding structure, the module has strong anti-interference ability and long service life. The hot-swap rack structure minimizes system downtime risk and simplifies daily maintenance work. Compact card size saves cabinet space and improves integration efficiency of monitoring system.
Bently Nevada provides a 1-year original manufacturer warranty for the 140734-02 module. Complete official datasheets, user manuals and wiring diagrams are provided for engineering debugging. Global professional technical support covers rack compatibility testing, sensor matching guidance and signal fault troubleshooting, ensuring long-term stable operation of machinery protection systems.
Conclusion
The BENTLY 140734-02 is a cost-effective four-channel proximitor seismic monitoring module designed for the 3500 machinery protection system. Integrating multi-function mechanical monitoring, high-precision signal acquisition, industrial anti-interference structure and wide temperature adaptability, it provides stable and reliable data monitoring for conventional industrial rotating equipment. Featuring standardized rack installation, simple maintenance and excellent environmental durability, this module is widely applied in power generation, petrochemical and heavy machinery industries. As a mainstream standard monitoring component of Bently Nevada 3500 series, the 140734-02 is the preferred solution for mechanical vibration protection projects in non-explosive industrial areas.
