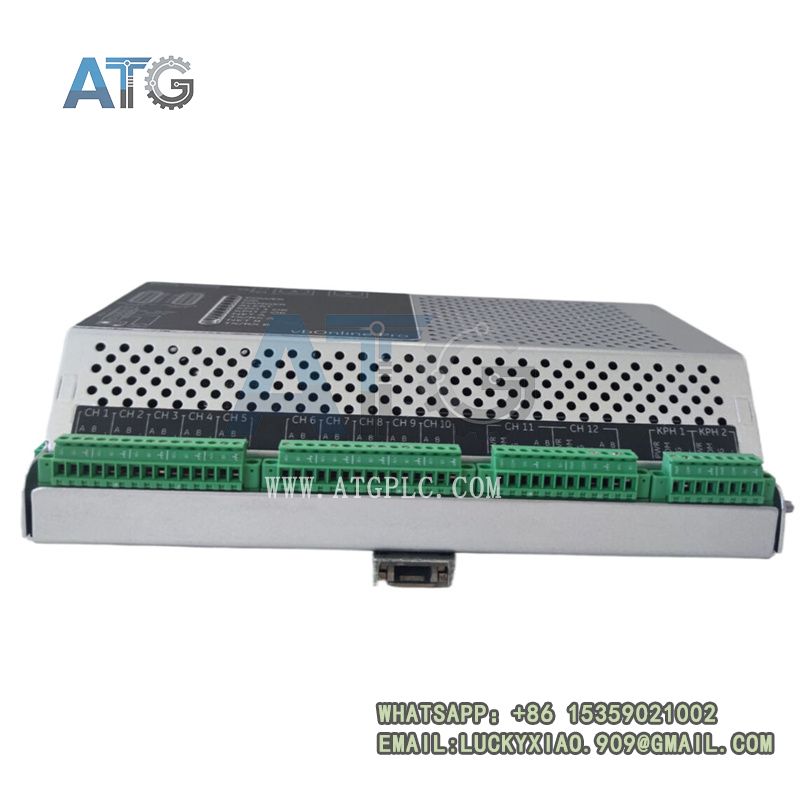

Bently Nevada 60M500-05-00 High-Precision Vibration Transducer
Product Overview
The Bently Nevada 60M500-05-00 is a high-performance industrial vibration transducer belonging to the premium 60M series of precision sensing solutions. Engineered for critical rotating machinery condition monitoring, this rugged transducer converts mechanical vibration displacement into standardized differential electrical signals, serving as a core front-end sensing component for Bently Nevada 3500 machinery protection systems and third-party industrial monitoring platforms. Adopting high-stability mechanical sensing structure and low-noise signal conversion technology, the 60M500-05-00 delivers ultra-accurate vibration measurement with excellent linearity and frequency response. Constructed with 316L stainless steel fully sealed housing, it features extreme temperature resistance, corrosion resistance and pressure resistance, adapting to harsh industrial environments such as high-temperature turbine cabins, offshore platforms and chemical workshops. Widely deployed in power generation, petrochemical, metallurgy and energy industries, it provides reliable original vibration data for real-time equipment condition monitoring, fault early warning and predictive maintenance of steam turbines, gas turbines, compressors, generators and other large rotating units.

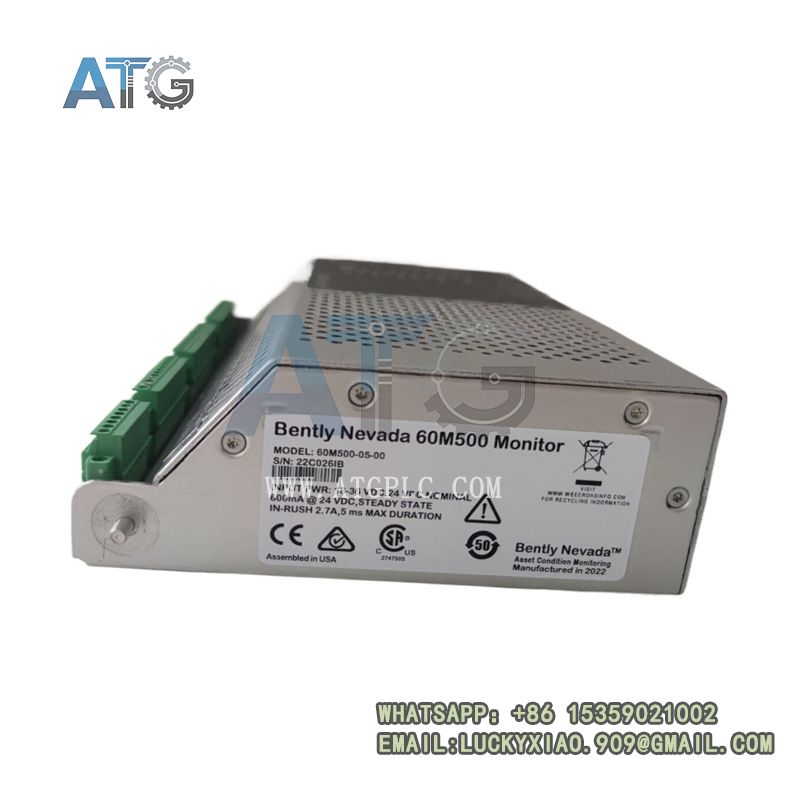

Bently Nevada 60M500-05-00
Core Product Features
2.1 High-Precision Vibration Measurement Performance
The 60M500-05-00 achieves industry-leading measurement accuracy with a fixed sensitivity of 9.8 mV/μm and full-scale linearity error controlled within ±1%. It supports precise collection of tiny vibration displacement changes of rotating machinery, effectively capturing early mechanical faults such as rotor unbalance, shaft misalignment and slight bearing wear. The ultra-wide frequency response range covers low-frequency structural vibration and high-frequency bearing defect vibration, realizing full-band comprehensive monitoring of equipment operating status.
2.2 Ultra-Wide Environmental Adaptability
Designed for extreme industrial working conditions, the transducer supports an ultra-wide operating temperature range from -54°C to +121°C, capable of stable operation in high-temperature equipment cabins and low-temperature outdoor environments. The 316L stainless steel housing provides excellent corrosion resistance, salt spray resistance and chemical erosion resistance, perfectly adapting to humid offshore platforms and corrosive chemical plant environments. It withstands up to 1034 kPa industrial pressure, meeting the sealing and pressure-bearing requirements of closed mechanical equipment housings.
2.3 High Anti-Interference Differential Signal Output
Equipped with differential voltage output technology, the product effectively suppresses on-site electromagnetic interference and common-mode noise, avoiding signal distortion and attenuation during long-distance transmission. Compared with single-ended output sensors, it delivers cleaner and more stable signal quality, ensuring long-distance high-fidelity data transmission in complex industrial electromagnetic environments. The standardized signal output is highly compatible with Bently Nevada 3500 series monitoring modules and mainstream industrial acquisition equipment.
2.4 Rugged Sealed Industrial Structure
Adopting fully integrated sealed structural design and precision mechanical assembly technology, the transducer has excellent vibration and shock resistance, resisting frequent mechanical vibration impact of rotating equipment. The built-in high-reliability sensing chip undergoes strict industrial aging screening, with stable performance and low zero drift. The integrated 5-meter high-flexibility shielded cable and reliable MS-series circular connector ensure firm and anti-loose connection, avoiding signal interruption caused by equipment operation vibration.
2.5 Simple & Flexible Field Installation
Featuring lightweight compact design and standardized industrial mounting structure, the transducer supports flexible installation on bearing housings, equipment shells and mechanical support points. The reserved standard connector and matched cable length eliminate on-site wiring cutting and welding, greatly simplifying construction and debugging procedures. It can be quickly deployed for new equipment monitoring and old system renovation projects, with strong on-site adaptability.
Bently Nevada 60M500-05-00
Detailed Technical Specifications
3.1 Core Sensing & Measurement Parameters
| Parameter Item | Technical Data |
|---|---|
| Product Model | 60M500-05-00 High-Precision Vibration Transducer |
| Product Type | Industrial Displacement Vibration Monitoring Sensor |
| Measurement Range | ±500 μm (Peak-to-Peak) |
| Fixed Sensitivity | 9.8 mV/μm |
| Full-Scale Linearity | ±1% Maximum Error |
| Frequency Response Range | 0.5 Hz ~ 10 kHz |
| Output Mode | Differential Voltage Anti-Interference Output |
| System Compatibility | Fully Compatible with Bently Nevada 3500 Series System |
3.2 Power & Interface Parameters
| Parameter Item | Specification |
|---|---|
| Power Supply Mode | 4–20 mA Constant Current Power Supply |
| Built-in Cable Length | 5.0 Meters High-Flexibility Shielded Cable |
| Connector Type | MS-Series Industrial Circular Connector |
| Signal Transmission | Long-Distance Low-Distortion Signal Transmission |
3.3 Environmental & Mechanical Parameters
| Item | Technical Specification |
|---|---|
| Operating Temperature | -54°C ~ +121°C |
| Storage Temperature | -54°C ~ +121°C |
| Withstand Pressure | Max 1034 kPa (150 psi) |
| Housing Material | 316L Stainless Steel (Corrosion Resistant) |
| Ambient Humidity | 0% – 95% (Non-condensing) |
| Vibration Resistance | Compliant with ISO 10816 Industrial Standard |
| Installation Method | Surface Mounting on Mechanical Equipment Shell |
| Weight | Approx. 0.225 kg |
| Dimensions | Compact Cylindrical Industrial Standard Size |
Certification Compliance
The Bently Nevada 60M500-05-00 vibration transducer complies with multiple international industrial safety and environmental certifications. It has passed CE electromagnetic compatibility certification and UL industrial safety certification, fully meeting API petroleum industry specifications and ISO 10816 mechanical vibration monitoring standards. All products undergo strict high-low temperature cycling testing, pressure resistance testing, vibration impact testing and signal accuracy calibration before factory delivery. The 316L stainless steel structure meets industrial corrosion resistance standards, ensuring stable and reliable long-term operation in harsh industrial environments.
Bently Nevada 60M500-05-00
Application Scenarios
- Thermal & Gas Power Generation: Mounted on steam turbines, gas turbines and generator bearing housings to continuously monitor equipment vibration displacement, realizing early warning of rotor unbalance and bearing fatigue failure.
- Petrochemical & Offshore Platforms: Applied in refineries, chemical plants and offshore oil and gas platforms, adapting to corrosive, high-pressure and high-temperature working environments for compressor and pump unit condition monitoring.
- Metallurgy & Heavy Industry: Deployed on large rolling mills, blowers and industrial rotating equipment to collect real-time vibration data, assisting equipment status analysis and abnormal fault alarm.
- Mining & Building Materials Industry: Used for vibration monitoring of crushers, fans and conveying equipment, resisting dust, high vibration and extreme temperature field conditions.
- Industrial Predictive Maintenance System: As a front-end precision sensing device, it provides high-fidelity original vibration data for industrial equipment intelligent operation and maintenance, supporting equipment life prediction and fault trend analysis.
Product Advantages & After-sales Support
The 60M500-05-00 transducer features fixed high-precision sensitivity and excellent full-scale linearity, effectively avoiding measurement deviation caused by parameter drift. The ultra-wide temperature and pressure resistance range far exceeds ordinary industrial sensors, adapting to extreme working conditions that conventional products cannot withstand. The differential anti-interference output design ensures stable signal transmission in high-electromagnetic-interference industrial workshops. The 316L stainless steel fully sealed structure delivers superior corrosion and salt spray resistance, greatly extending service life in offshore and chemical industries. The lightweight and standardized installation design reduces on-site construction difficulty and maintenance costs.
Bently Nevada provides a 1-year original manufacturer warranty for the 60M500-05-00 vibration transducer. Complete official datasheets, installation manuals and wiring guidelines are provided. Global professional technical support covers sensor installation debugging, signal matching calibration and fault troubleshooting, ensuring long-term stable sensing and monitoring performance of industrial machinery protection systems.
Conclusion
The Bently Nevada 60M500-05-00 is a rugged high-precision industrial vibration transducer customized for harsh industrial machinery monitoring scenarios. Integrating high linearity measurement performance, ultra-wide environmental adaptability, anti-corrosion sealed structure and anti-interference signal transmission capability, it provides accurate and reliable front-end vibration data collection for large rotating equipment. Featuring stable performance, convenient installation and excellent environmental durability, this transducer is widely applied in power generation, petrochemical, offshore engineering and heavy machinery industries. As a core precision sensing component of the Bently Nevada machinery monitoring system, the 60M500-05-00 is the optimal choice for high-reliability industrial equipment condition monitoring and safety protection projects.
