BENTLY 146031-01 Transient Data Interface Module (3500/22)
Product Overview
The BENTLY 146031-01 is a high-precision Transient Data Interface I/O Module officially produced by Bently Nevada, belonging to the renowned 3500 machinery monitoring system series. This module is also universally recognized as the 3500/22 interface card, specially designed for critical rotating machinery condition monitoring and vibration data acquisition. Serving as the core communication gateway of the 3500 rack system, it realizes high-speed transient data transmission, system configuration and remote diagnostic communication between monitoring racks and upper computers. Adopting industrial-grade reinforced circuit design, metal shielding structure and redundant signal processing architecture, the 146031-01 maintains ultra-high stability in strong electromagnetic interference industrial environments. It is widely installed in gas turbines, steam turbines, compressors, generators and petrochemical rotating equipment, providing accurate vibration, displacement and temperature data transmission for machinery protection systems.

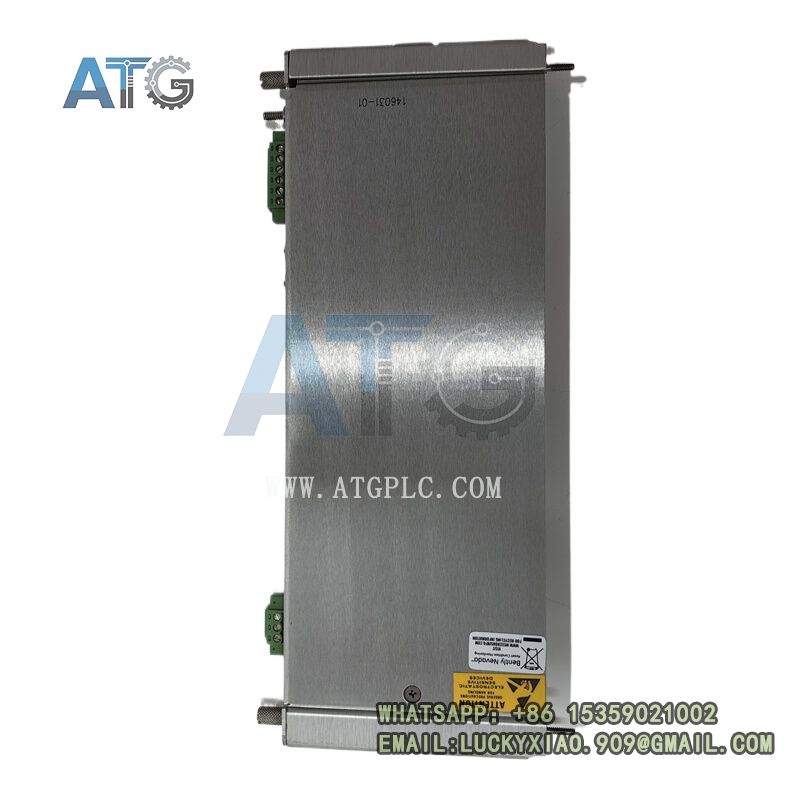

BENTLY 146031-01
Core Product Features
2.1 High-Speed Transient Data Transmission
As a dedicated transient data interface module, the 146031-01 supports high-resolution vibration waveform capture and fast data uploading. It can synchronously collect transient pulse signals and steady-state operating parameters of rotating machinery, realizing real-time data analysis and fault waveform recording. The high-speed data sampling mechanism ensures no signal loss during equipment shock and fluctuation, providing reliable original data for mechanical fault diagnosis and predictive maintenance.
2.2 Diversified Industrial Communication Interfaces
Equipped with multiple universal communication ports, this module integrates electrical Ethernet, optical fiber network and USB debugging interfaces. It supports 10/100 Base-TX electrical network and 100 Base-FX optical fiber adaptive transmission, meeting short-distance cabinet connection and long-distance anti-interference communication requirements. The reserved USB-B front debugging port simplifies on-site firmware upgrading, parameter configuration and equipment daily debugging without disassembling the rack structure.
2.3 Industrial Anti-Interference & Shielding Design
The module adopts an all-metal enclosed shielding shell to effectively isolate external electromagnetic interference in power plants and chemical workshops. The internal circuit applies lightning surge protection and signal filtering technology, which can resist voltage surge and high-frequency electromagnetic radiation. Strict industrial EMC testing ensures that the module maintains signal accuracy and operational stability in complex industrial power supply environments.
2.4 Standard Rack-Mount Modular Structure
Designed according to the 3500 series unified rack standard, the card-type structure supports hot-swappable installation and fixed slot docking. It can be seamlessly matched with other monitoring cards such as vibration monitoring cards and displacement acquisition cards in the rack. The standardized backplane bus connection reduces wiring complexity, and the embedded locking structure prevents poor contact caused by mechanical vibration.
2.5 Ultra-Wide Temperature Environmental Adaptability
Optimized for heavy industrial harsh conditions, the operating temperature ranges from -40°C to +85°C, adapting to high-temperature boiler rooms and low-temperature unattended equipment rooms. The non-condensing working humidity covers 0% to 95%, resisting humid, dusty and corrosive industrial air environments. It can run continuously for a long time without frequent shutdown maintenance.

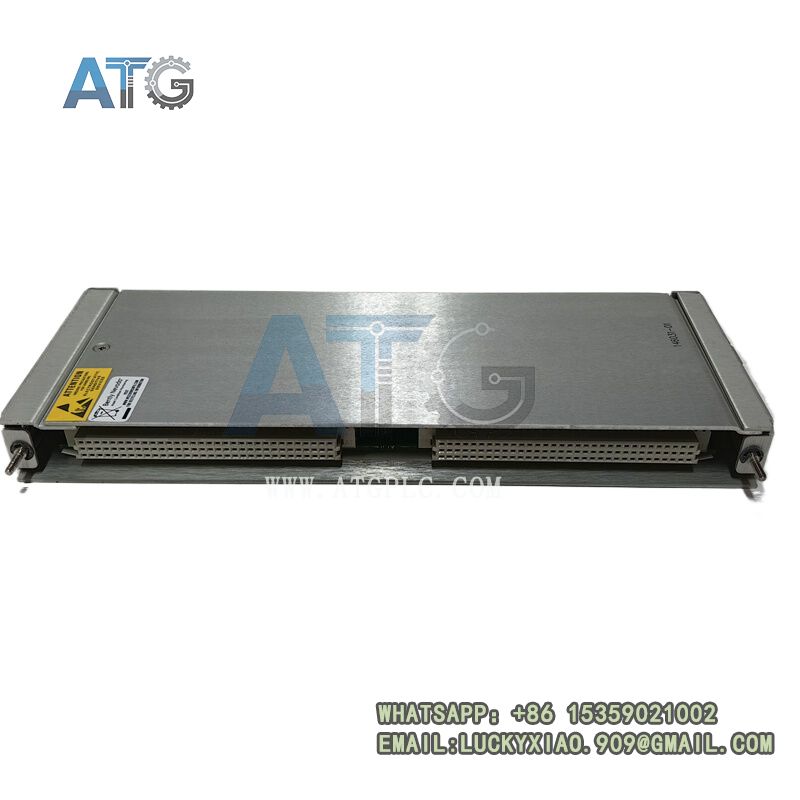

BENTLY 146031-01
Detailed Technical Specifications
3.1 Basic Performance & Communication Parameters
| Parameter Item | Technical Data |
|---|---|
| Product Model | 146031-01 (3500/22 Transient Data Interface Module) |
| Product Type | Industrial Machinery Monitoring I/O Module |
| Ethernet Communication | 10 Base-T / 100 Base-TX Auto-sensing |
| Fiber Optic Interface | 100 Base-FX Optical Fiber Transmission |
| Debugging Interface | Front Panel USB-B Service Port |
| Data Sampling Rate | High-Speed Transient Sampling for Vibration Waveform |
| Communication Protocol | Bently Nevada Proprietary Monitoring Protocol, TCP/IP |
| System Compatibility | Fully Compatible with Bently Nevada 3500 Rack System |
3.2 Power Supply Parameters
| Power Parameter | Specification |
|---|---|
| Power Supply Mode | Backplane Power Supply (3500 Rack Internal Power) |
| Rated Operating Voltage | 5 V DC / 12 V DC Rack Bus Power |
| Power Consumption | ≤ 6.5 W |
| Power Protection | Overcurrent, Overvoltage, Reverse Connection Protection |
3.3 Environmental & Mechanical Parameters
| Item | Technical Specification |
|---|---|
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -55°C ~ +100°C |
| Ambient Humidity | 0% – 95% (Non-condensing) |
| Ingress Protection Rating | IP20 (Industrial Cabinet Grade) |
| Vibration Resistance | Compliant with ISO 10816 Mechanical Vibration Standard |
| Installation Method | 3500 Standard Rack Card Slot Installation |
| Weight | Approx. 0.40 kg (0.88 lbs) |
| Dimensions (L × W × H) | 254 mm × 25 mm × 205 mm |
Certification Compliance
The BENTLY 146031-01 module complies with multiple international industrial safety and machinery monitoring certifications. It has passed CE electromagnetic compatibility certification, UL industrial safety certification and CSA industrial electrical certification. The product strictly adheres to ISO 10816 mechanical vibration monitoring standards and API industrial petrochemical equipment specifications. All modules undergo high-low temperature aging, vibration impact and signal stability testing before leaving the factory, ensuring long-term reliable operation in critical industrial monitoring systems.

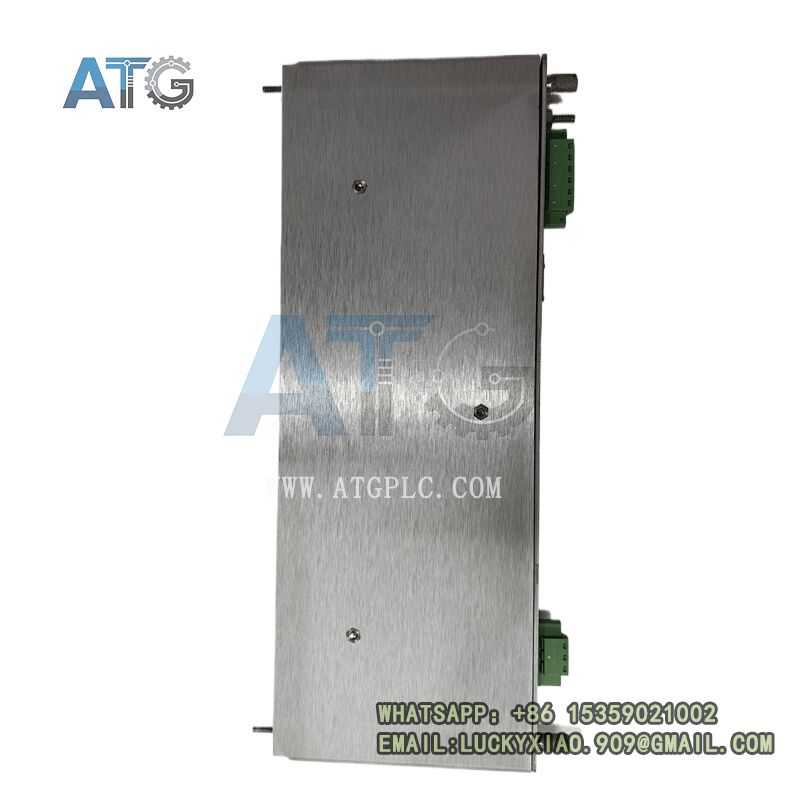

BENTLY 146031-01
Application Scenarios
- Thermal Power Generation: Installed in steam turbine and generator monitoring racks to collect high-speed vibration transient data and realize unit safety protection.
- Petrochemical Industry: Applied in high-speed compressors, pumps and rotating equipment to monitor mechanical fluctuation and avoid equipment failure.
- Natural Gas & Energy Industry: Deployed in gas turbine units to record transient impact signals during startup, shutdown and load switching.
- Metallurgy & Heavy Industry: Used for large rolling mills and rotating machinery to realize real-time data upload and remote diagnosis.
- Industrial Predictive Maintenance: As a data transmission gateway, it provides complete waveform data for equipment life prediction and fault analysis.
Product Advantages & After-sales Support
The 146031-01 module adopts optical and electrical dual-network redundant communication design, which greatly improves the stability of industrial data transmission. Its high-speed transient sampling capability can capture microsecond-level vibration mutation signals, which is irreplaceable for mechanical fault early warning. The compact card-type structure saves cabinet space and supports hot plugging for convenient replacement without system shutdown. With metal shielding and wide-temperature resistance, it can adapt to extreme industrial environments where ordinary electronic modules cannot work normally.
Bently Nevada provides a 1-year original manufacturer warranty for the 146031-01 module. Complete official datasheets, wiring diagrams and firmware upgrade packages are provided. Professional global technical support covers rack compatibility debugging, network configuration and signal troubleshooting, ensuring long-term stable operation of machinery monitoring systems.
Conclusion
The BENTLY 146031-01 is a professional transient data interface module customized for the 3500 machinery monitoring system. Combining high-speed data acquisition, dual redundant communication ports, industrial anti-interference structure and ultra-wide temperature adaptability, it acts as an indispensable data transmission gateway for rotating machinery monitoring equipment. Featuring mature industrial design, simple rack installation and high signal accuracy, this module is widely recognized in power generation, petrochemical and heavy industrial fields. As a core accessory of Bently Nevada monitoring system, the 146031-01 remains the preferred component for high-precision mechanical condition monitoring and industrial equipment safety protection projects.
