Description
ABB PFTL101B 2.0KN 3BSE004185R1 Tension Sensor
Brand: ABB | Model: PFTL101B 2.0KN | Part Number: 3BSE004185R1
A high-performance industrial tension sensor engineered by ABB, the PFTL101B 2.0KN (3BSE004185R1) is designed to deliver precise, reliable tension and compression force measurement in demanding industrial environments. Leveraging ABB’s proprietary Pressductor® magneto-elastic technology, this sensor combines exceptional accuracy, robust durability, and wide adaptability, making it an indispensable component for automated production lines across multiple industries.
Product Highlights
- High Precision Measurement: Adopts magneto-elastic (piezomagnetic) principle, with a measurement accuracy of up to ±0.25% FSO (at 220V AC power supply) and a comprehensive error of ≤0.03% F.S., ensuring accurate capture of even micro-force fluctuations as small as 0.5N.
- Robust & Durable Construction: Features 316L stainless steel housing with laser-welded sealing, offering IP67/IP68 protection rating to resist dust, moisture, and corrosive gases in harsh industrial settings. The design ensures a long service life of up to 15 years, reducing equipment replacement frequency by 60%.
- Excellent Environmental Adaptability: Operates stably in a wide temperature range of -20℃ to +70℃ (storage temperature: -30℃ to +85℃) and has strong anti-interference ability with built-in RF interference filters, suitable for high-electromagnetic environments such as steel plants and chemical factories.
- Superior Overload Tolerance: Unique design separates sensitivity from overload resistance, with an overload capacity of 150% of the rated load, avoiding damage caused by sudden force surges during operation.
- Easy Integration: Outputs a standard 4-20mA analog signal, compatible with mainstream industrial control systems (PLC, HMI) and seamlessly integrable with existing ABB automation systems, minimizing deployment disruption.

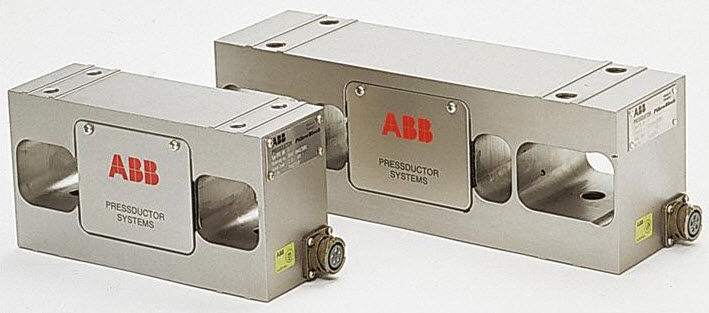

ABB PFTL101B 2.0KN 3BSE004185R1
Technical Specifications
| Parameter | Details |
|---|---|
| Model | ABB PFTL101B 2.0KN |
| Part Number | 3BSE004185R1 |
| Rated Load | 2.0KN (approximately 2000N) |
| Measurement Principle | Magneto-elastic Effect (Pressductor® Technology) |
| Measurement Accuracy | ±0.25% FSO (AC 220V); Comprehensive error ≤0.03% F.S. |
| Output Signal | 4-20mA Standard Analog Signal |
| Power Supply | 12-24V DC |
| Protection Rating | IP67/IP68 |
| Operating Temperature | -20℃ to +70℃ |
| Response Time | 125μs (dynamic high-speed calculation loop) |
| Housing Material | 316L Stainless Steel |
| Dimensions | 100 × 45 × 40 mm |
| Weight | 20 kg |
| Certifications | CE, RoHS, EN 45501 Compliant |
Application Scenarios
This versatile tension sensor is widely used in various industrial fields that require precise force measurement and control, effectively improving production quality and efficiency:
- Metallurgical Industry: Suitable for high-tension control in hot rolling, cold rolling, annealing, and pickling lines, ensuring uniform processing of strips and reducing defect rates.
- Paper & Pulp Industry: Ideal for tension measurement and control in paper machine dryer sections, calenders, coaters, and winders, preventing web breaks and ensuring consistent product quality.
- Metal Processing: Used in metal wire processing lines to monitor tension, ensuring stable operation and product consistency.
- Rubber & Plastic Processing: Measures and controls material tension during extrusion and calendering processes, guaranteeing uniform product size and performance.
- Other Fields: Also applicable to packaging machinery, textile industry, automated production lines, robot control systems, and material handling, meeting the precise tension control needs of various scenarios.
ABB PRESSDUCTOR SYSTEMS
Why Choose ABB PFTL101B 2.0KN 3BSE004185R1?
As a world-leading provider of industrial automation solutions, ABB’s PFTL101B series sensors are renowned for their reliability and performance. The 2.0KN (3BSE004185R1) inherits ABB’s decades of experience in tension measurement, featuring stable performance, easy installation, and low maintenance costs. It not only ensures accurate data support for your production process but also helps reduce operational costs and improve overall productivity.
Packaging & Shipping
- Package Included: 1 × ABB 2.0KN Tension Sensor (3BSE004185R1), 1 × User Manual, 1 × Calibration Certificate
- Packaging: Industrial-grade shockproof packaging to avoid damage during transportation
- Shipping: Global delivery, with tracking number provided after shipment
Note: For detailed installation guidelines, calibration methods, or customization needs, please contact our technical support team. We provide professional after-sales service to ensure your equipment operates stably.
