Description

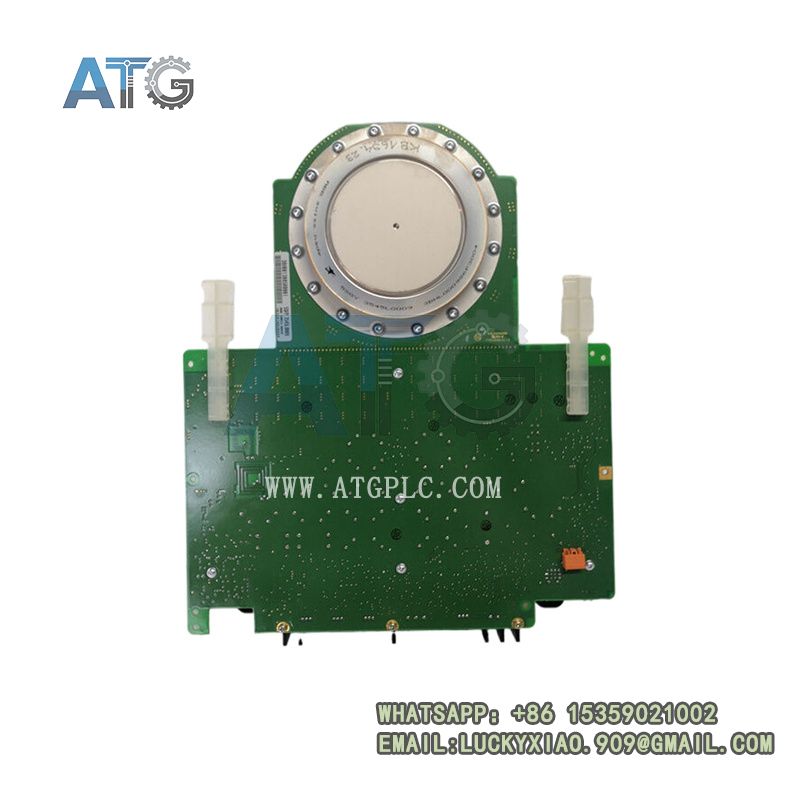

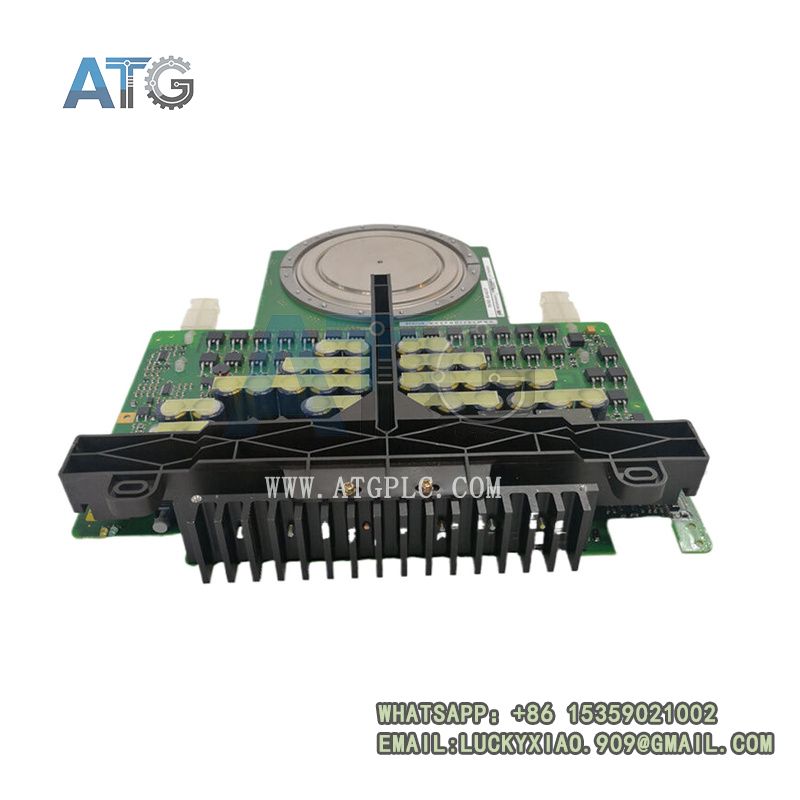

The ABB 5SHY3545L0009 3BHB013085R0001 is a high-reliability thyristor module belonging to ABB’s power electronic product lineup, which combines high-voltage resistance, large current bearing capacity, and precise control performance. It is a key component in industrial motor control systems and high-voltage frequency converters, capable of realizing high-precision, high-speed control of motor operation, and effectively improving the efficiency and stability of the entire control system. This module adopts a modular design, which is perfectly compatible with ABB standard frequency converter systems and mainstream industrial control platforms, facilitating quick installation, debugging, and later maintenance.
Product Highlights
- Excellent Power Control Performance: Adopts advanced thyristor technology and digital signal processor, realizing high-precision and high-speed power control performance. It can accurately regulate voltage and current, support multiple control modes such as voltage control and current control, and meet the diverse control needs of different industrial scenarios.
- High Reliability & Durability: Made of high-quality industrial-grade materials and advanced manufacturing processes, it can stably operate under high-voltage and high-current working conditions, with strong anti-electromagnetic interference capabilities. The module has a long service life, effectively reducing the failure rate and maintenance costs of the system.
- Comprehensive Protection Functions: Equipped with complete protection mechanisms, including overcurrent, overvoltage, undervoltage, and over-temperature protection. It can automatically detect various abnormal working conditions and trigger protection measures in a timely manner, effectively safeguarding the module itself and the connected equipment, ensuring the safe and stable operation of the entire system.
- Flexible Control & Easy Integration: Supports multiple programming languages and communication protocols, facilitating user programming and system integration. It provides a simple and easy-to-use user interface and operation mode, which is convenient for users to configure parameters, operate, and troubleshoot faults.
- Easy Installation & Maintenance: Adopts a standardized modular design, with a compact structure and lightweight, which is convenient for installation in industrial control cabinets. The module is equipped with clear status indicators and self-diagnostic functions, enabling real-time monitoring of working status and quick fault location, reducing maintenance time and costs.
- Wide Application Adaptability: Designed for harsh industrial environments, it can stably operate in a wide temperature range and humid conditions, adapting to the working needs of various industrial fields such as metallurgy, power, and papermaking. It is especially suitable for high-voltage motor drive and energy-saving transformation projects.
5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101
Technical Specifications
| Parameter | Details |
| Model | ABB 5SHY3545L0009 |
| Part Number | 3BHB013085R0001 |
| Product Type | Thyristor Module (SCR Module) |
| Core Function | Motor start/stop control, speed regulation, high-voltage frequency conversion power conversion |
| Control Modes | Voltage control, current control |
| Rated Voltage | 1200V DC / 690V AC |
| Rated Current | 350A (Max 400A) |
| Operating Frequency | 50/60 Hz |
| Communication Protocols | Modbus, Profibus, Ethernet |
| Protection Functions | Overcurrent, overvoltage, undervoltage, over-temperature protection |
| Protection Rating | IP20 (suitable for cabinet installation) |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -25℃ to +70℃ |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 150mm × 120mm × 40mm (compact modular design) |
| Net Weight | Approx. 1.2 kg |
| Certifications | CE, RoHS, UL |
Application Scenarios
The ABB 5SHY3545L0009 3BHB013085R0001 thyristor module is widely used in various industrial fields that require high-efficiency power control and stable motor operation, especially suitable for high-voltage motor drive and power conversion scenarios:
- Metallurgical Industry: Applied in steel mills and non-ferrous metal smelting plants, used to control the operation of smelting furnaces, rolling mills, and other equipment, realizing precise control of motor speed and power, and adapting to harsh industrial environments with strong electromagnetic interference.
- Power Industry: Suitable for power plants and power distribution systems, used in power conversion, reactive power compensation, and active filtering, ensuring the stable operation of the power grid and improving power supply quality.
- Papermaking Industry: Used in papermaking production lines, controlling the operation of pulp mixing, papermaking, and winding equipment, realizing stable speed regulation and improving production efficiency and product quality.
- Heavy Machinery Manufacturing: Applied in heavy machinery such as cranes and conveyors, used to control motor start and stop, speed regulation, and torque control, ensuring the safe and stable operation of machinery.
- Energy-Saving Transformation Projects: Widely used in high-voltage motor energy-saving transformation projects, optimizing motor operation efficiency, reducing energy consumption, and bringing considerable energy-saving benefits to enterprises.
5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101
Why Choose ABB 5SHY3545L0009 3BHB013085R0001?
As a world-leading provider of industrial automation and power solutions, ABB has decades of experience in the research and development of power electronic components. The 5SHY3545L0009 3BHB013085R0001 thyristor module inherits ABB’s strict quality control standards and advanced technology, with the advantages of high reliability, precise control, and strong adaptability. Compared with ordinary thyristor modules, it has better power bearing capacity, more comprehensive protection functions, and higher compatibility, which can be seamlessly integrated with ABB and third-party control systems. With a long product lifecycle, professional after-sales support, and compliance with global industrial standards, it provides a reliable guarantee for the stable operation of your industrial power control system, becoming the preferred choice for industrial motor control and high-voltage frequency conversion projects.
Packaging & Shipping
- Package Included: 1 × ABB 5SHY3545L0009 Thyristor Module (3BHB013085R0001), 1 × User Manual, 1 × Calibration Certificate (Software license not included, available for separate purchase).
- Packaging: Industrial-grade shockproof and moisture-proof packaging, with independent foam cushioning to avoid damage during transportation, ensuring the product arrives in perfect condition.
- Shipping: Global delivery, with tracking number provided after shipment; professional logistics team ensures safe and fast delivery, complying with international transportation standards for industrial electronic components.
Note: For detailed installation guidelines, debugging methods, parameter configuration, or customization needs, please contact our technical support team. We provide professional after-sales service and technical guidance to ensure the stable operation of your equipment. The product comes with a 12-month warranty for quality assurance. When installing, please follow ABB standard installation specifications to ensure reliable grounding and good ventilation; avoid direct contact with high-voltage components to prevent safety hazards.
