Description
Brand: ABB | Model: GFD233A | Part Number: 3BHE022294R0103 | Product Category: Excitation Control Module
A high-performance excitation control module developed by ABB, the GFD233A (3BHE022294R0103) is specifically designed for generator excitation systems and industrial automation control scenarios. It integrates core excitation control, signal processing, and comprehensive protection functions, leveraging advanced control algorithms to ensure precise voltage and current regulation for generators. With a robust industrial-grade design, flexible configuration, and seamless system compatibility, this module serves as a core component in power generation, process industry, and heavy-duty automation systems, delivering stable, reliable performance in harsh industrial environments.
Product Overview
The ABB GFD233A 3BHE022294R0103 is a high-reliability excitation control module belonging to ABB’s industrial control product lineup, primarily used to regulate generator excitation systems, optimize power factor, and ensure stable operation of power generation equipment. It integrates voltage regulation, current control, power factor management, and multi-level protection functions into a compact modular design, supporting multiple control modes to adapt to diverse application needs. This module is perfectly compatible with ABB Unitrol PCD235 systems and other mainstream industrial control platforms, enabling seamless integration with existing automation systems and simplifying deployment and debugging processes.

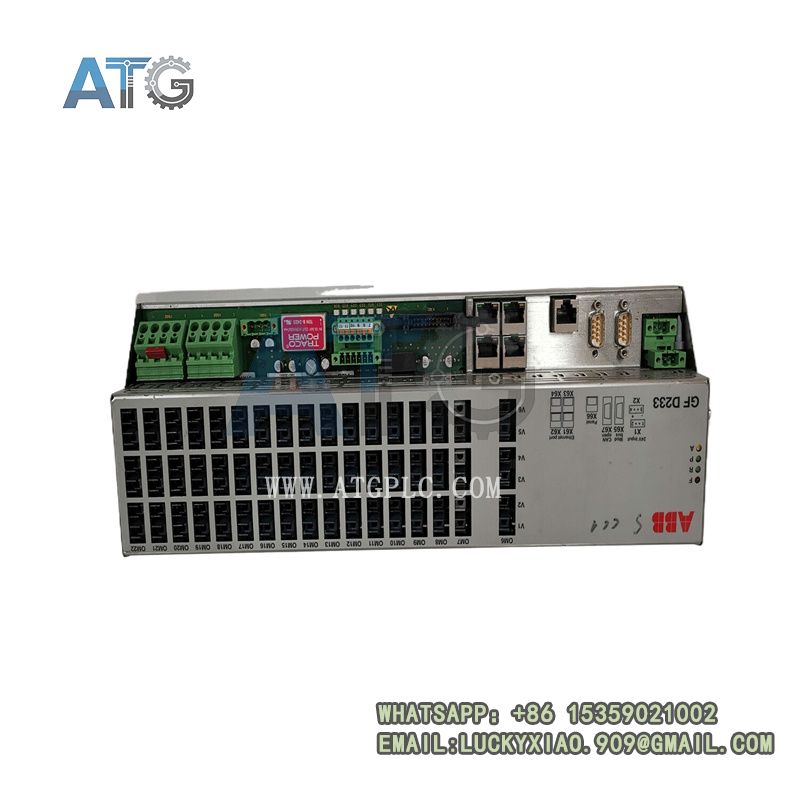

GFD233A 3BHE022294R0103
Product Highlights
- High Integration & Comprehensive Functions: Integrates core excitation control functions, including precise voltage and current regulation, power factor control, and multi-level protection mechanisms, eliminating the need for additional auxiliary modules and reducing system complexity.
- Advanced Control Algorithms: Adopts sophisticated control algorithms to optimize generator performance, ensuring stable operation under various working conditions and precise response to load changes, effectively improving power supply quality and system stability.
- Flexible Configuration & Adaptability: Supports flexible parameter adjustment and protection setting customization, adapting to different generator models and application scenarios. It offers multiple control modes, including constant voltage, constant current, and constant power factor control, meeting diverse industrial control needs.
- Strong Protection Capabilities: Incorporates comprehensive protection features, such as overcurrent, undervoltage, over-temperature, and short-circuit protection, effectively safeguarding the generator and the module itself from damage caused by electrical anomalies, extending equipment service life.
- Seamless Integration & Connectivity: Equipped with standard communication interfaces, including Ethernet, RS-232, Modbus, Profibus, and CANopen, enabling seamless data exchange with monitoring systems, energy management solutions, and other ABB control modules for centralized monitoring and control.
- Robust & Durable Design: Adopts industrial-grade components and a compact, sealed housing with IP20 protection rating, suitable for installation in industrial control cabinets. It operates stably in a wide temperature range and humid environments, with strong anti-electromagnetic interference capabilities, ensuring 24/7 reliable operation in harsh industrial settings.
- Easy Installation & Maintenance: Features a standardized DIN rail mounting design, compact size, and lightweight structure, facilitating quick installation and disassembly. The module is equipped with status indicators and self-diagnostic functions, enabling real-time monitoring of working status and quick fault troubleshooting, reducing maintenance time and costs.
Technical Specifications
| Parameter | Details |
| Model | ABB GFD233A |
| Part Number | 3BHE022294R0103 |
| Product Type | Excitation Control Module |
| Applicable System | ABB Unitrol PCD235 Excitation System, Industrial Automation Control Systems |
| Control Modes | Constant Voltage, Constant Current, Constant Power Factor |
| Input Voltage | 24V DC or 220V AC (depending on application) |
| Output Voltage Range | 0 – 400V AC |
| Output Current | 2.3A or 5A (depending on application) |
| Operating Frequency | 50/60 Hz |
| Communication Protocols | Ethernet, RS-232, CANopen, Modbus, Profibus |
| Protection Rating | IP20 |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -25℃ to +70℃ |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 23 mm × 25 mm × 28 mm (compact design) |
| Net Weight | Approx. 1.48 kg |
| Certifications | CE, RoHS, UL, ISO 9001 |
GFD233A 3BHE022294R0103
Application Scenarios
The ABB GFD233A 3BHE022294R0103 excitation control module is widely used in various industrial fields that require precise excitation control and stable power supply, especially suitable for power generation and heavy-duty automation scenarios:
- Power Generation Industry: Ideal for nuclear power, thermal power, wind power, and solar power plants, used to control generator excitation systems, ensure stable voltage regulation, optimize power factor, and improve the efficiency and reliability of power generation equipment.
- Process Industry: Applied in oil & gas, chemical, and metallurgical industries, used to control the excitation of auxiliary generators, ensure stable power supply for on-site equipment, and adapt to harsh industrial environments with strong electromagnetic interference.
- Manufacturing Industry: Suitable for heavy machinery manufacturing, automotive, and food & beverage production lines, used to regulate the power supply of production equipment, ensure stable operation of the production line, and improve production efficiency.
- Infrastructure & Energy Management: Applicable to power distribution systems, water treatment plants, and rail transit power systems, providing precise excitation control and data monitoring capabilities to ensure the stable operation of infrastructure systems.
- Automation Testing: Used in automatic test equipment (ATE) to build flexible test platforms, realize complex test tasks, and ensure the accuracy and stability of test data through precise signal processing and control.
Why Choose ABB 3BHE022294R0103?
As a world-leading provider of industrial automation and power solutions, ABB has decades of experience in the research and development of excitation control and industrial control equipment. The 3BHE022294R0103 inherits ABB’s strict quality control standards and advanced technology, with the advantages of high integration, strong stability, and flexible adaptability. Compared with ordinary excitation control modules, it offers more comprehensive functions, better compatibility, and higher reliability, supporting seamless integration with ABB and third-party automation systems. With a long product lifecycle, professional after-sales support, and compliance with global industrial standards, it provides a reliable guarantee for the stable operation of your power generation and automation systems, becoming the preferred choice for industrial excitation control projects.
Packaging & Shipping
- Package Included: 1 × ABB Excitation Control Module (3BHE022294R0103), 1 × User Manual, 1 × Calibration Certificate (Software license not included, available for separate purchase).
- Packaging: Industrial-grade shockproof and moisture-proof packaging, with independent foam cushioning to avoid damage during transportation, ensuring the product arrives in perfect condition.
- Shipping: Global delivery, with tracking number provided after shipment; professional logistics team ensures safe and fast delivery, complying with international transportation standards for industrial electronic components.
Note: For detailed installation guidelines, debugging methods, parameter configuration, or customization needs, please contact our technical support team. We provide professional after-sales service and technical guidance to ensure the stable operation of your equipment. The product comes with a 12-month warranty for quality assurance.
