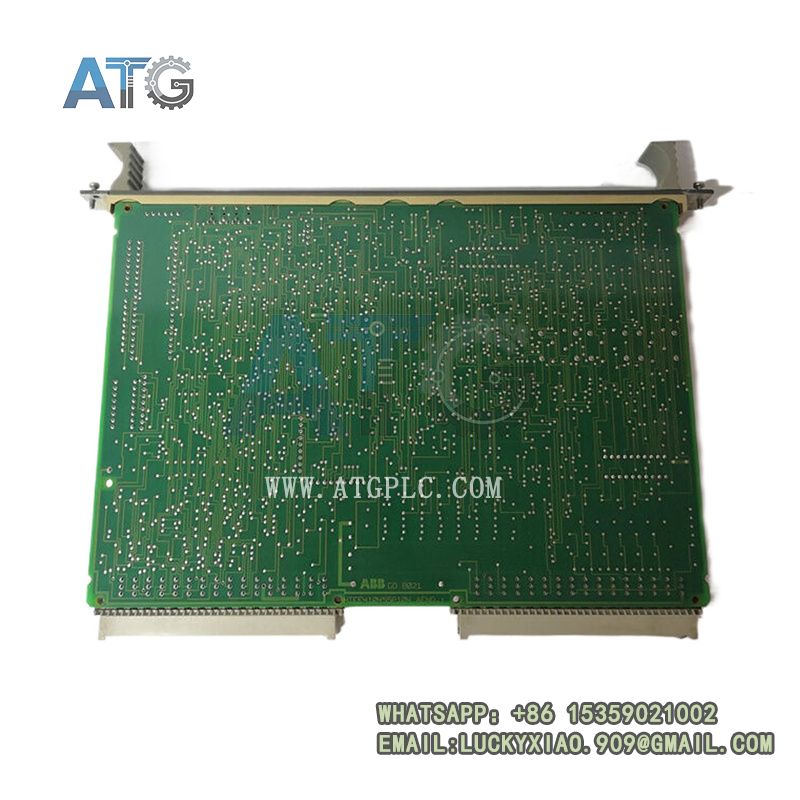

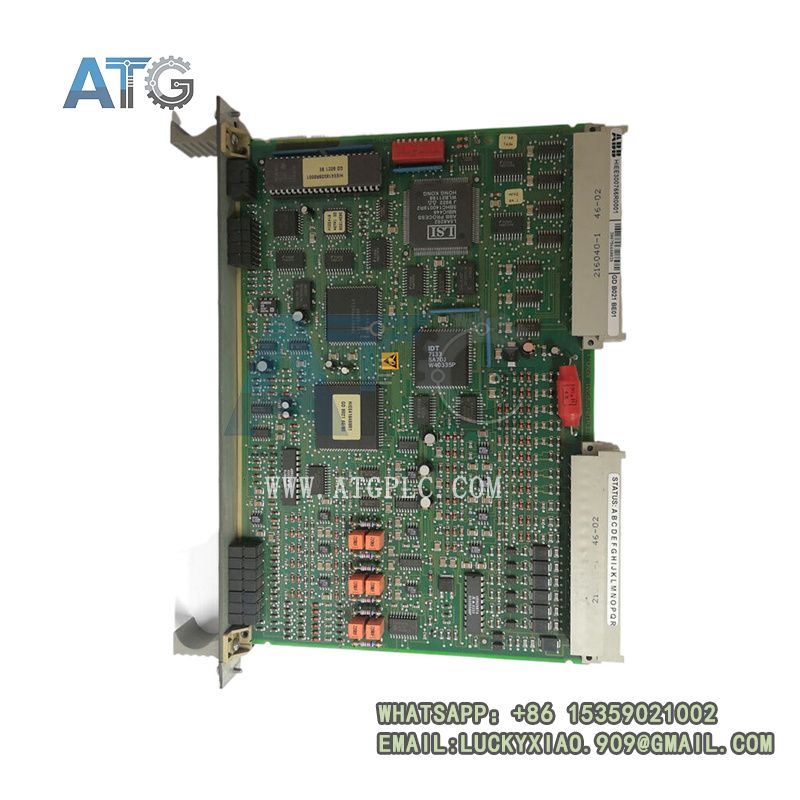

ABB GDB021BE01 HIEE300766R0001 dedicated gate drive board

Description

ABB GDB021BE01 HIEE300766R0001 is a dedicated gate drive board, a critical component designed for ABB’s high-power converter systems. To put it simply, it’s the “nerve ending and bodyguard” connecting the control system and the main power circuit—responsible for amplifying weak control signals into high-current drive pulses that can operate large power semiconductor devices like IGBTs and IGCTs, while also providing real-time protection to prevent costly equipment damage. If you work in power electronics, medium-voltage drives, or industrial transmission, you know how vital a reliable gate drive board is, right? This model isn’t just a simple circuit board; it’s engineered to handle harsh industrial electromagnetic environments while delivering fast response and stable protection that safeguards your entire power system.

Core Features & Practical Advantages

Let me break down what makes this gate drive board stand out, because honestly, its combination of speed, reliability, and protection capability is hard to beat. It’s designed specifically for ABB’s medium-voltage drives, DC drives, and solar inverters—so it’s not a generic one-size-fits-all part. Unlike some cheap gate drive boards that only focus on signal amplification and ignore protection, this one takes both performance and safety seriously, acting as the first and most important line of defense for your expensive power modules.

• Fast Signal Amplification & Isolation: It receives weak PWM control signals from the system controller and amplifies them into high-current drive pulses (with +15V for turn-on and -8V to -15V for turn-off) that can reliably drive high-power IGBTs. It uses optical fiber or transformer isolation to ensure safe electrical separation between the low-voltage control side and the high-voltage power circuit, preventing high-voltage leakage from damaging the control system.
• Comprehensive Protection Functions: It monitors the operating status of IGBTs in real time, including short-circuit protection (via DESAT voltage detection), overcurrent protection, undervoltage protection (UVLO) for the drive power supply, and IGBT overheating protection (via NTC temperature sensor signals). It can shut down the IGBT in microseconds when a fault occurs, avoiding catastrophic damage.
• High Reliability & EMC Performance: Made with industrial-grade components and a robust design, it can withstand high dv/dt and di/dt electromagnetic interference common in power electronic systems. The circuit board is coated with a nano-level three-proof paint (waterproof, dustproof, anti-corrosive) to adapt to harsh on-site environments.
• Easy Maintenance & Compatibility: It adopts a modular design that fits perfectly with ABB’s specific IGBT modules, making installation and replacement simple—you don’t need specialized tools to swap it out. It also feeds back specific fault types to the controller, helping you quickly locate and resolve issues.

Q: Why is this gate drive board so important for power systems? A: Great question. Think about it—IGBT modules are expensive, and a single failure can cost tens of thousands of dollars. This board ensures that the IGBT is driven accurately and protected in real time; without it, even a small signal error or overload could blow up the entire power unit, leading to unplanned downtime and huge losses.

GDB021BE01 HIEE300766R0001

Technical Specifications (Key Details You Need)

Let’s cut to the chase—here are the specs that actually matter for your daily operation, no unnecessary jargon or fluff. I’ve organized them into a clear table so you can find what you need at a glance.

Application Scenarios & Real-World Use

This gate drive board isn’t just a small circuit board—it’s a critical component that keeps your power systems running safely. Let me give you a concrete example. In a steel mill’s rolling mill main drive system, it’s installed in each IGBT power unit of the medium-voltage drive, driving the IGBTs to switch on and off accurately, while monitoring their status in real time. If an overcurrent or short circuit occurs, it shuts down the IGBT in microseconds, preventing the power unit from being damaged and avoiding costly production interruptions.

One thing to note: it’s designed specifically for ABB’s power conversion equipment, but its versatility means it’s widely used in various industries. Here are some common use cases:

• Medium-Voltage Drives: Used in ABB ACS 6000, ACS 6080 and other medium-voltage frequency converters, driving IGBTs in multi-level inverter H-bridge units.
• Industrial Transmission: Applied in large DC drive systems for rolling mills, mines, and large mills, driving thyristors or IGBT rectifier/inverter bridges.
• Power & Energy: Used in static frequency converters (SFC) for synchronous motor starting, as well as high-power solar inverters and energy storage converters (PCS).
• Process Industry: Used in large compressor drives in the chemical and oil and gas fields, ensuring stable and safe operation of power units.

GDB021BE01 HIEE300766R0001

Why Choose This Model? (A Quick Comparison)

Let’s be real—there are plenty of gate drive boards on the market. But what makes this ABB model worth your investment? It’s all about compatibility and reliability. Unlike generic gate drive boards that often don’t match ABB’s IGBT modules and may cause signal interference or protection failure, this one is purpose-built for ABB’s power equipment—so it fits perfectly in terms of electrical parameters, mechanical interface, and thermal design.

And unlike low-quality boards that fail easily in harsh electromagnetic environments, this one is built to last. Its ultra-fast protection response (microsecond level) can save your expensive IGBT modules from damage, while its self-diagnostic function helps you quickly troubleshoot issues… no more wasting time on complicated fault finding or frequent replacements that eat into your profits.

Final Notes for Users

If you’re maintaining or upgrading ABB’s medium-voltage drives, DC drives, or power converters, this gate drive board is a must-have. It’s fully compatible with ABB’s specific power modules, so you can replace old or faulty boards seamlessly without modifying the system. Plus, it’s backed by ABB’s global after-sales support—if you run into any installation or operation issues, help is just a call away.

At the end of the day, this isn’t just a gate drive board—it’s the protector of your power system’s core components. Isn’t that exactly what you need to keep your industrial operations running smoothly and safely?
