Description
Model: DSDP170K02 3BSE019925R1
Brand: ABB
Series: ABB S800 I/O Distributed Measurement Series
Core Function: Precisely counts pulses and measures position and speed signals
Type: High-Speed Pulse & Position Measurement Module
Key Specs: 2.5MHz max pulse frequency, 24VDC supply, high-resolution signal acquisition
Supply Status: In stock
Stock: Available
Warranty: 1 year
Ship From: China

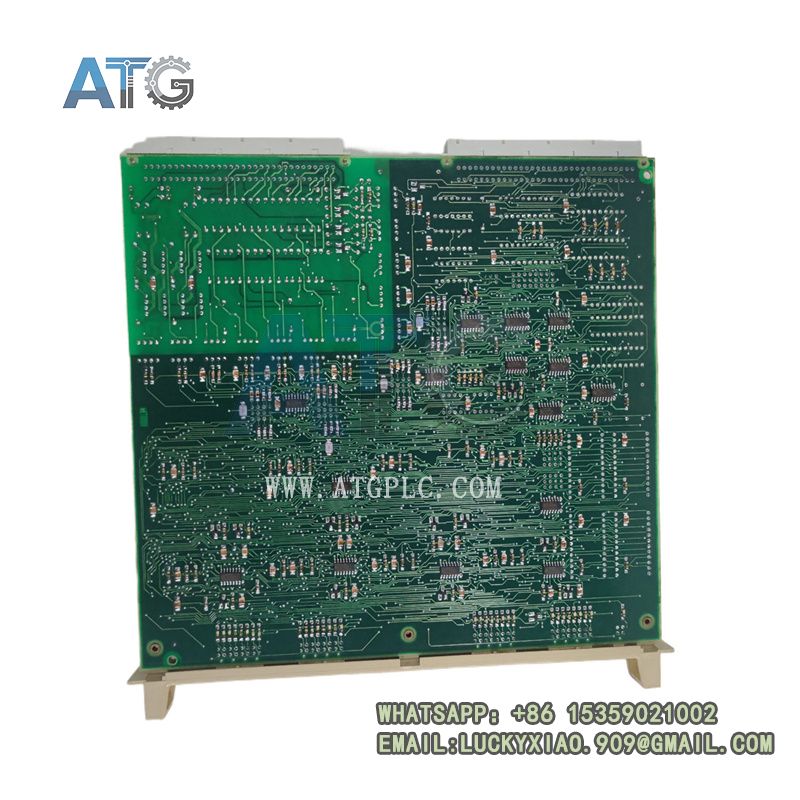

ABB DSDP170K02 3BSE019925R1
Product System Integration Overview
The ABB DSDP170K02 3BSE019925R1 is a professional high-speed pulse measurement module tailored for ABB S800 I/O distributed control systems. As a dedicated signal acquisition unit for motion and position monitoring, it seamlessly integrates with ABB AC800M and Freelance DCS platforms to build high-precision industrial motion control architectures. This module serves as a key bridge between field encoders, motion sensors and upper control systems, capturing real-time pulse signals generated by automated moving equipment. Featuring standardized modular design, it supports quick rack mounting and flexible configuration, adapting to various industrial motion control topology layouts. It is widely deployed in new automated positioning system construction, old motion detection system upgrading and industrial precision measurement equipment replacement projects.
Detailed Product Functionalities
This high-performance pulse measurement module integrates high-speed pulse counting, precise position calculation, real-time speed monitoring and signal data processing to support refined industrial motion control. It supports a maximum pulse frequency of 2.5MHz, efficiently capturing high-frequency pulse signals from rotary encoders and linear displacement sensors without signal loss or distortion. The module accurately calculates equipment operating position, moving distance and real-time operating speed based on collected pulse data, providing core data basis for automatic positioning and speed regulation. It features stable signal filtering processing, which automatically filters interference pulse signals generated by equipment vibration and electromagnetic clutter to ensure measurement accuracy. Additionally, it supports real-time data upload and parameter configuration linkage with upper controllers, realizing closed-loop automatic adjustment of industrial motion processes.
ABB DSDP170K02 3BSE019925R1
Product Features & Technical Strengths
The ABB DSDP170K02 pulse measurement module boasts ultra-high measurement accuracy, excellent dynamic response capability and strong industrial anti-interference performance, meeting high-precision motion control demands. Its 2.5MHz ultra-high frequency sampling capability perfectly adapts to high-speed operating industrial equipment, solving the sampling lag problem of ordinary low-frequency pulse modules. The built-in intelligent filtering algorithm effectively eliminates on-site interference signals, ensuring long-term stable and consistent measurement data. Adopting industrial-grade circuit design and component screening, it tolerates complex industrial temperature changes and electromagnetic environments, supporting 24/7 continuous stable operation. The compact modular structure simplifies on-site installation, wiring and program debugging, while perfect compatibility with S800 I/O systems reduces equipment matching and upgrading costs.
Industrial Application Scenarios
This high-precision pulse and position measurement module is widely applicable to industrial automation scenarios requiring accurate motion monitoring and positioning control. It is mainly used in automated mechanical positioning systems, production line speed tracking equipment, material length measurement devices, robotic arm motion control systems and logistics intelligent transmission equipment. As a core precision measurement component of the ABB S800 I/O series, it provides reliable high-frequency signal acquisition and accurate data calculation support for industrial motion control links, effectively improving the positioning precision and operating stability of automated equipment, and optimizing the overall production accuracy of industrial intelligent manufacturing lines.
