Description
Brand: ABB | Model: 3BHE032025R0101 (PCD235A101) | Origin: Switzerland | Condition: New & In Stock | Warranty: 1 Year
Product Overview
The ABB 3BHE032025R0101 (PCD235A101) is a high-precision industrial control module, specially designed by ABB—a global leader in industrial automation and power technologies—to deliver reliable control and monitoring capabilities for complex industrial systems. As a core component in ABB’s process control product line, this module integrates advanced microprocessor technology to ensure stable operation, precise signal processing, and seamless integration with various industrial control systems. It is widely recognized for its durability, flexibility, and high compatibility, making it an ideal solution for power generation, petrochemical, metallurgical, and other heavy industrial applications that demand high-performance control components.

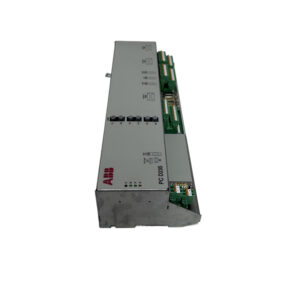

ABB 3BHE032025R0101 PCD235A101
Key Features & Benefits
- Advanced Load & Process Control: Utilizes motor slip rate detection as a monitoring parameter for output load, replacing traditional mechanical torque adjustment devices and torque switches. The built-in microprocessor allows flexible adjustment of torque protection values according to on-site working conditions, eliminating the need for manual mechanical adjustments and improving control accuracy .
- Wide Compatibility & Flexible Integration: Seamlessly compatible with ABB’s industrial control systems (such as AC800M, AC500) and works with most mainstream DCS/PLC systems. It supports multiple communication protocols including Modbus RTU, Profibus, and Ethernet/IP, enabling easy integration into existing industrial automation networks without extensive system modifications .
- Precise Signal Processing & Adjustment: Equipped with high-precision analog input/output channels, supporting 4-20mA standard signals for accurate data collection and control signal output. The damping time constant of the amplifier component is adjustable in the range of 0.2~64 seconds, allowing fine-tuning according to different application requirements to ensure stable and responsive control .
- Robust Environmental Adaptability: Designed to withstand harsh industrial environments, with an operating temperature range of -40°C to 85°C (-40°F to 185°F) and humidity resistance of 5~100% RH @ 40°C (104°F). The housing is made of polyurethane-painted low-copper cast aluminum with IP67/NEMA4X waterproof rating, effectively preventing dust, moisture, and electromagnetic interference (EMI/RFI) .
- Comprehensive Protection & Self-Diagnosis: Integrates multiple protective functions including over-voltage, over-current, under-voltage, and over-temperature protection to safeguard the module and connected equipment from damage. Built-in self-diagnostic function continuously monitors operating status, promptly identifies faults, and outputs alarm signals, reducing downtime and maintenance costs.
- Easy Installation & Configuration: Compact and lightweight design (weight: 1.6kg without gauge, mounting bracket and process connector) facilitates easy installation in limited spaces . Supports on-site configuration and remote parameter adjustment via software, simplifying installation and maintenance processes and improving work efficiency.

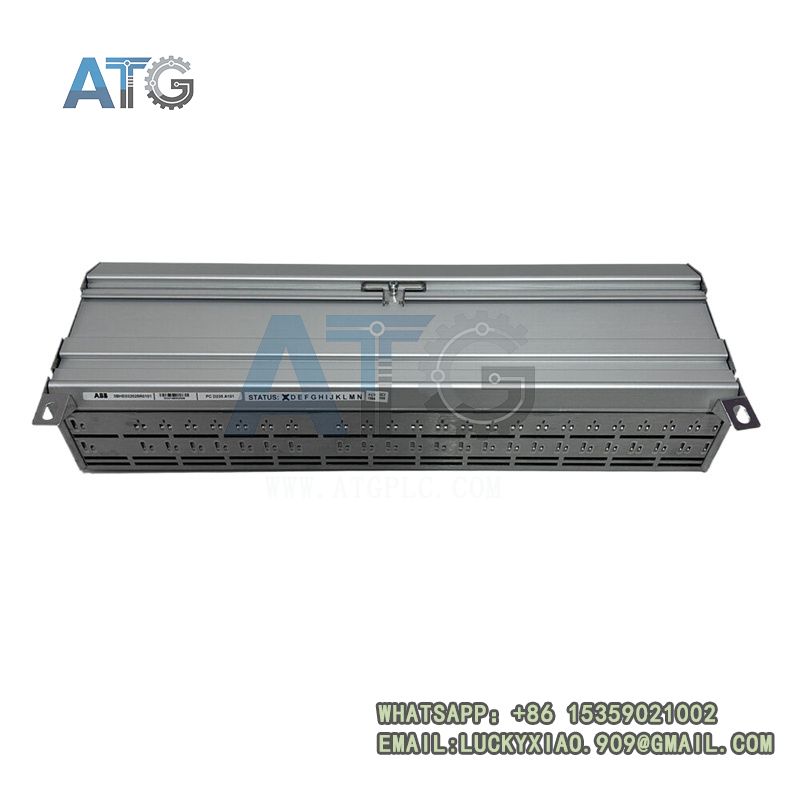

ABB 3BHE032025R0101 PCD235A101
Technical Specifications
| Specification | Details |
| Model Number | 3BHE032025R0101 (PCD235A101) |
| Product Type | Industrial Control Module |
| Manufacturer | ABB (Switzerland) |
| Power Supply | 24 VDC (nominal), maximum load 570Ω |
| Analog Input/Output | 4-20mA standard signals |
| Damping Time Constant | 0.2~64 seconds (adjustable) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Resistance | 5~100% RH @ 40°C (104°F) |
| Housing Material | Polyurethane-painted low-copper cast aluminum |
| Protection Rating | IP67, NEMA4X, JISC0920 |
| Weight | 1.6kg (without gauge, mounting bracket and process connector) |
| Communication Protocols | Modbus RTU, Profibus, Ethernet/IP |
| Certifications | Complies with IEC 61131-2, UL 508, and EN 50178 standards |
Application Scenarios
The ABB 3BHE032025R0101 (PCD235A101) control module is widely applied in various industrial automation systems, including but not limited to:
- Thermal power plants, hydropower stations, and nuclear power plants (control and monitoring systems)
- Petrochemical, oil and gas, and chemical processing industries (process control and safety systems)
- Metallurgical, mining, and cement industries (production line automation and equipment control)
- Data centers, industrial parks, and large-scale commercial buildings (backup power and energy management systems)
- Mechanical tools, fans, pumps, and conveyor systems (speed and load control)

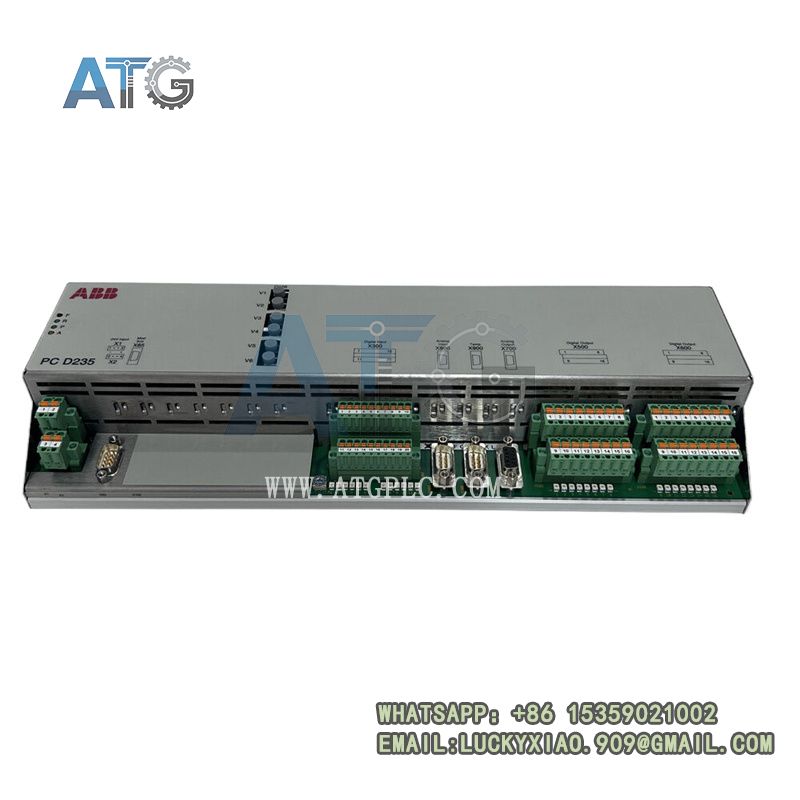

ABB 3BHE032025R0101 PCD235A101
Packaging & Shipping
- Packaging: New and original factory-sealed inner box, packed in wear-resistant cartons to ensure product safety during transportation. We will take photos for your confirmation before sealing the package.
- Shipping Time: 1–3 working days after payment confirmation (in stock now).
- Courier Partners: DHL, UPS, TNT, FedEx, and EMS—we cooperate closely with global express companies to ensure safe and fast delivery worldwide.
Why Choose Us?
- 100% Authentic Product: Direct supply from ABB authorized channels, ensuring genuine 3BHE032025R0101 (PCD235A101) modules with original packaging and serial numbers.
- 1-Year Warranty: Free repair or replacement within 1 year from the delivery date, providing worry-free after-sales service.
- 7×24 Customer Service: Professional technical support and consultation available anytime via email, WhatsApp, and WeChat.
- Flexible Payment: Accept T/T, PayPal, and Western Union for convenient and secure transactions.
Contact Us
If you have any questions about the ABB 3BHE032025R0101 () control module, such as technical parameters, pricing, or customization needs, please feel free to contact us:
• Email: luckyxiao.909@gmail.com
• WhatsApp: +8615359021002
• WeChat: 15359021002
We will reply to you within 2 hours during working hours and within 12 hours after working hours!
