Description
ABB GFD233A103 3BHE022294R0103 Industrial Control Module
Brand: ABB |Model: GFD233A103 | Part Number: 3BHE022294R0103 | Product Category: Industrial Control Module
A high-performance industrial control module developed by ABB, the GFD233A103 (3BHE022294R0103) is a core component designed for complex industrial automation scenarios, belonging to ABB Advant OCS and Symphony Plus control system families. It integrates data acquisition, logic operation, process control, safety interlocking, and communication interaction functions, based on a modular hardware architecture and real-time operating system, providing centralized and high-precision control solutions for large industrial devices. With excellent computing performance, flexible configuration, and robust durability, this module is widely used in power, metallurgy, chemical, and other industries that require high reliability and integration of control systems.
Product Overview
The ABB GFD233A103 3BHE022294R0103 is a high-reliability multi-functional industrial control module, which breaks through the functional boundaries of traditional single-function controllers. It can simultaneously undertake control tasks of multiple subsystems, realize centralized management and coordinated operation of control logic, effectively simplify the system architecture, reduce communication delay between devices, and improve the overall control efficiency and stability of industrial processes. This module is perfectly compatible with ABB standard I/O modules and mainstream industrial control platforms, supporting flexible expansion and seamless integration with existing automation systems, greatly simplifying deployment and debugging processes.

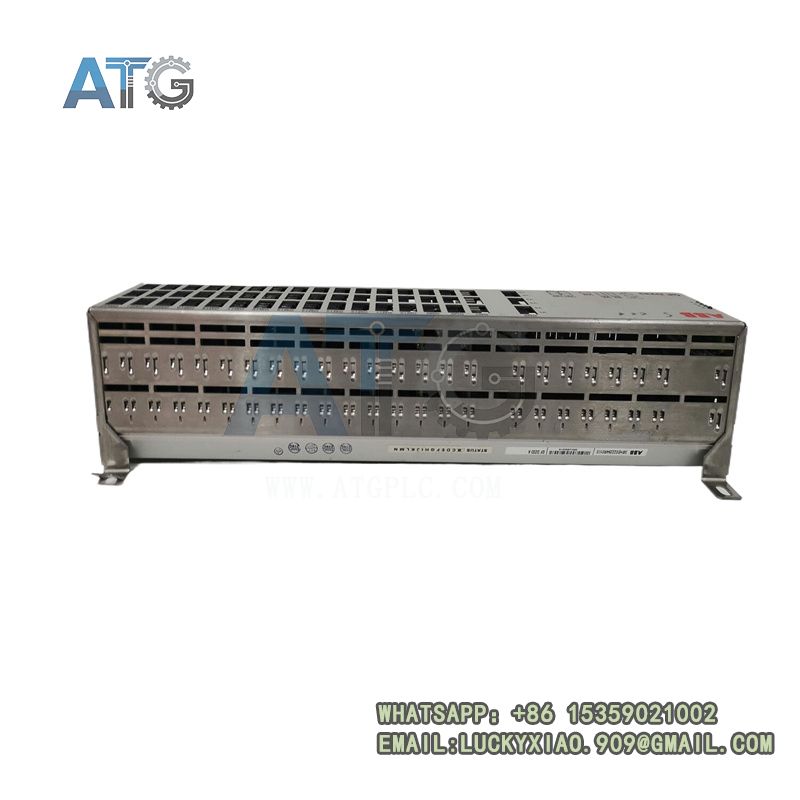

GFD233A103 3BHE022294R0103
Product Highlights
- Superior Computing Performance: Adopts a multi-core heterogeneous processor architecture with a main core operating frequency of up to 1GHz and a dedicated signal processing core for real-time signal acquisition and computing acceleration. Equipped with 2GB high-speed DDR4 memory and 32GB industrial-grade flash memory, it can parallel process thousands of points of I/O signal acquisition, complex PID control loop operations, and multi-protocol communication data interaction tasks, with a task scheduling cycle as low as 1ms.
- Comprehensive Integration & Versatile Control: Integrates multiple control capabilities, including process control, logic control, safety control, and data processing. It supports standard PID, cascade PID, feedforward control, and fuzzy control algorithms, can configure up to 512 independent control loops, and is compatible with IEC 61131-3 standards, supporting programming methods such as ladder diagram (LD) and function block diagram (FBD).
- Flexible Expansion & Connectivity: Equipped with rich interface resources, including 4 gigabit industrial Ethernet ports, 2 RS485 serial ports, and 1 CANopen interface. It supports PROFINET, Modbus TCP, EtherNet/IP, and ABB proprietary S908 protocols, and can connect to ABB standard I/O modules, with a maximum expandable access of 2048 points of I/O signals, realizing seamless communication with on-site instruments, frequency converters, and upper monitoring systems.
- High Reliability & Redundancy Design: Supports 1:1 controller hot redundancy configuration, with a fault switching time ≤10ms, ensuring uninterrupted control processes. It is equipped with dual independent power input interfaces, supporting a wide voltage range of 24V DC±15%, avoiding equipment shutdown caused by a single power failure. It meets IEC 61000-4 series EMC standards, with strong anti-electromagnetic interference capabilities.
- Strong Safety Performance: Has SIL 2 level safety certification, built-in safety logic operation unit, which can realize emergency shutdown of equipment and safety loop monitoring functions, ensuring the safety of personnel and equipment under abnormal working conditions.
- Easy Configuration & Maintenance: Supports visual programming, parameter configuration, and system debugging through ABB Control Builder or Symphony Plus Engineering configuration software, with rich industry application templates to shorten the system development cycle. It has a complete self-diagnostic function, which can real-time monitor the operation status and report fault information in a timely manner, supporting remote firmware upgrade and fault diagnosis.
- Harsh Environment Adaptability: Adopts industrial-grade components and a compact sealed housing with IP20 protection rating, suitable for installation in industrial control cabinets. It can operate stably in an operating temperature range of -20℃ to +65℃ and a relative humidity of 5% to 95% (non-condensing), adapting to high-temperature, low-temperature, and humid industrial sites.
Technical Specifications
| Parameter | Details |
| Model | ABB GFD233A103 |
| Part Number | 3BHE022294R0103 |
| Product Type | Industrial Control Module |
| Applicable System | ABB Advant OCS, Symphony Plus Control Systems |
| Processor | Multi-core heterogeneous processor, main core 1GHz |
| Memory Configuration | 2GB DDR4 RAM, 32GB Industrial-grade Flash |
| Control Loop Capacity | Max 512 PID control loops |
| I/O Expansion Capacity | Max 2048 points, compatible with ABB standard I/O modules |
| Communication Interfaces | 4 Gigabit Industrial Ethernet ports, 2 RS485, 1 CANopen |
| Supported Protocols | PROFINET, Modbus TCP, EtherNet/IP, S908, OPC UA |
| Redundancy Configuration | 1:1 Controller hot redundancy, dual power redundancy |
| Power Supply | 24V DC±15%, dual independent input |
| Protection Rating | IP20 |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -25℃ to +70℃ |
| Humidity Range | 5% to 95% non-condensing |
| Safety Certification | SIL 2 Level |
| Programming Standard | IEC 61131-3 |
| Certifications | CE, RoHS, UL, ISO 9001 |
GFD233A103 3BHE022294R0103
Application Scenarios
The ABB GFD233A103 3BHE022294R0103 industrial control module is widely used in various complex industrial automation scenarios, especially suitable for large-scale industrial devices that require high reliability, high integration, and high real-time control:
- Power Generation Industry: Ideal for nuclear power, thermal power, wind power, and solar power plants, used to control boiler combustion, steam turbine operation, and power conversion processes, ensuring stable operation of power generation equipment and improving power supply quality.
- Metallurgical Industry: Applied in steel mills, non-ferrous metal smelting plants, used to control smelting furnaces, rolling mills, and pickling lines, adapting to harsh industrial environments with strong electromagnetic interference and high temperature.
- Chemical Industry: Suitable for chemical reaction kettles, distillation towers, and other equipment, realizing precise control of temperature, pressure, flow, and liquid level parameters, ensuring the safety and stability of chemical production processes.
- Manufacturing Industry: Used in heavy machinery manufacturing, automotive production lines, and automated assembly lines, undertaking multi-subsystem control tasks, improving production efficiency and product quality.
- Infrastructure & Energy Management: Applicable to power distribution systems, water treatment plants, and rail transit power systems, providing centralized control and data monitoring capabilities to ensure the stable operation of infrastructure systems.
Why Choose ABB 3BHE022294R0103?
As a world-leading provider of industrial automation and power solutions, ABB has decades of experience in the research and development of industrial control equipment. The 3BHE022294R0103 inherits ABB’s strict quality control standards and advanced technology, with the advantages of high integration, strong computing performance, and flexible adaptability. Compared with ordinary industrial control modules, it can undertake more complex control tasks, support flexible expansion and redundancy configuration, and effectively reduce system construction and maintenance costs. With a long product lifecycle, professional after-sales support, and compliance with global industrial standards, it provides a reliable guarantee for the stable operation of your industrial automation system, becoming the preferred choice for large-scale industrial control projects.
Packaging & Shipping
- Package Included: 1 × ABB Industrial Control Module (3BHE022294R0103), 1 × User Manual, 1 × Calibration Certificate (Software license not included, available for separate purchase).
- Packaging: Industrial-grade shockproof and moisture-proof packaging, with independent foam cushioning to avoid damage during transportation, ensuring the product arrives in perfect condition.
- Shipping: Global delivery, with tracking number provided after shipment; professional logistics team ensures safe and fast delivery, complying with international transportation standards for industrial electronic components.
Note: For detailed installation guidelines, debugging methods, parameter configuration, or customization needs, please contact our technical support team. We provide professional after-sales service and technical guidance to ensure the stable operation of your equipment. The product comes with a 12-month warranty for quality assurance. When installing, please follow ABB standard control cabinet installation specifications to ensure reliable grounding and good ventilation; when configuring redundancy, ensure that the hardware model and firmware version of the main and standby controllers are consistent.
