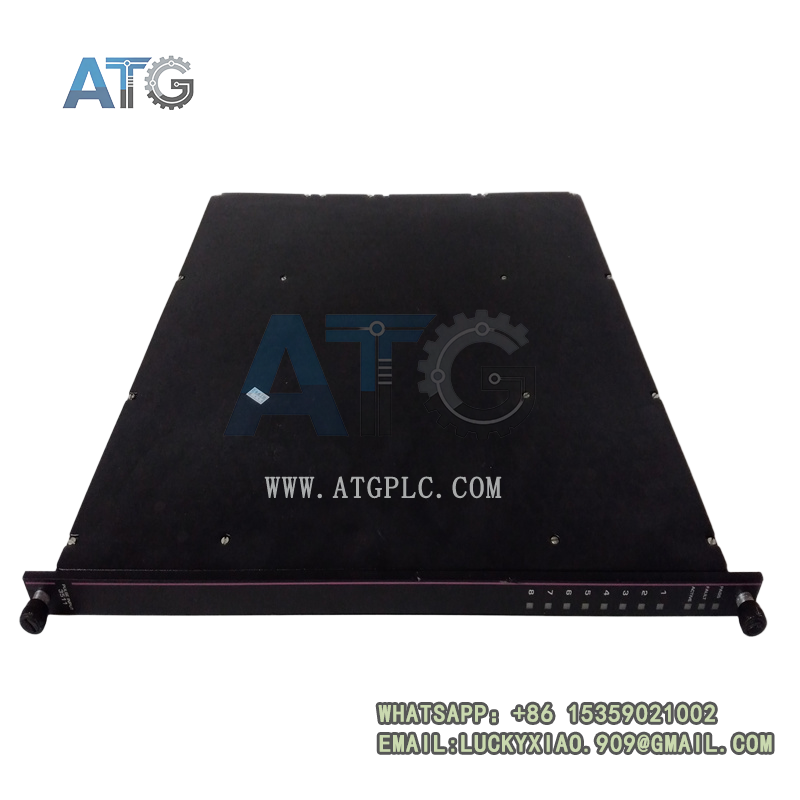

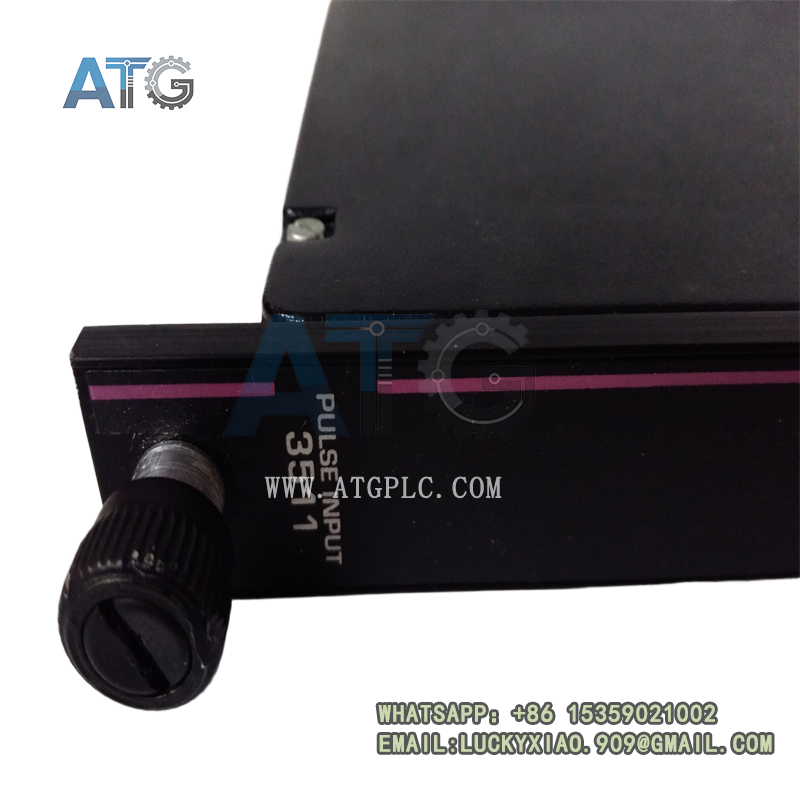

TRICONEX 3511 Pulse Input module

Description

Product Overview

The TRICONEX 3511 is a high-precision TMR (Triple Modular Redundancy) Pulse Input module designed exclusively for Tricon Trident Safety Instrumented Systems (SIS). As a professional field signal acquisition unit, it focuses on high-accuracy pulse and frequency signal collection. It converts on-site mechanical pulse signals into digital data that the safety controller can recognize and process. It mainly monitors rotating equipment speed, flow pulse signals and frequency parameters. It provides reliable data support for safety interlock, overspeed protection and process flow control.

Traditional pulse input modules have obvious limitations in high-risk industrial safety scenarios. Most adopt single-channel non-redundant design with low sampling accuracy and narrow frequency adaptation range. They lack complete fault diagnosis and anti-interference mechanisms. On-site electromagnetic interference, signal attenuation and line faults easily cause data deviation, signal loss and frequency misjudgment. These issues lead to incorrect equipment speed monitoring and potential safety accidents. In addition, ordinary modules cannot meet IEC 61508 SIL3 international safety standards for process industries. The TRICONEX 3511 fully solves these industry pain points. It adopts standard TMR triple redundant synchronous acquisition architecture, 16-bit high-resolution sampling and full-channel intelligent diagnosis technology. Every module undergoes strict factory calibration, full-load aging testing and harsh environment screening. It perfectly adapts to global industrial e-commerce procurement, safety pulse monitoring loop upgrading and long-term 7×24-hour uninterrupted stable operation.

Core Product Features & Competitive Advantages

Conventional pulse input modules only complete basic frequency signal collection. They feature low precision, slow response and single signal adaptation capability. They cannot support high-precision speed monitoring and stable frequency data acquisition in complex industrial environments. In contrast, the TRICONEX 3511 is customized for high-standard industrial safety systems. It integrates TMR hardware fault tolerance, ultra-high sampling accuracy, wide frequency range adaptation and full-link fault diagnosis. It greatly improves the accuracy, stability and reliability of industrial pulse signal monitoring loops.

• Standard TMR Triple Modular Redundancy Architecture: Equipped with three independent synchronous acquisition circuits and hardware 2oo3 voting logic. Single-channel circuit failure or signal abnormality will not affect overall data collection. It completely eliminates single-point failure risks and ensures ultra-high safety loop availability.
• 16-Bit Ultra-High Resolution Sampling: Adopts high-precision 16-bit signal conversion chip. It supports ultra-fine frequency signal identification. It achieves accurate capture of tiny pulse changes to guarantee precise process parameter monitoring.
• Wide Frequency Range Adaptation: Covers 0.5Hz to 20000Hz full-range frequency acquisition. It adapts to low-speed and high-speed pulse signals of various rotating equipment and flow meters. It meets diverse industrial monitoring demands.
• Industry-Leading Acquisition Accuracy: Achieves ±0.01% high precision within 1000Hz–20000Hz mainstream working range. It effectively avoids data drift and monitoring deviation during long-term operation.
• IEC 61508 SIL3 Authoritative Safety Certification: Passes professional TÜV safety verification. It complies with IEC 61511 international process safety specifications. It is fully applicable to equipment overspeed protection, flow safety monitoring and other high-risk safety scenarios.
• Independent Isolated 8-Channel Design: Features 8 non-commoned isolated pulse input channels. Each channel operates independently without signal crosstalk. It supports multi-point synchronous pulse signal acquisition for different field equipment.
• Differential Balanced Signal Input: Adopts AC-coupled balanced differential input mode. It strongly resists on-site common-mode interference and signal attenuation. It ensures pure and reliable pulse signal acquisition in complex electromagnetic environments.
• Fast Response & Stable Data Update: Supports 25ms fast data update cycle. It quickly captures real-time changes of equipment speed and flow pulse. It ensures timely response of safety protection logic.
• Full-Channel Real-Time Fault Diagnosis: Continuously monitors line open circuit, short circuit, signal overload and abnormal frequency signals. It uploads fault alarm information to the upper controller in real time. It supports rapid fault location and reduces unplanned system downtime.
• Online Hot-Swap Maintenance Support: Supports non-stop online module replacement. It does not require system or production shutdown during fault replacement and loop upgrading. It effectively avoids production losses caused by safety system maintenance.
• Enhanced Harsh Environment Adaptability: Undergoes strict industrial component screening and structural reinforcement. It resists high temperature, low temperature, humidity and mechanical vibration. It stably operates in petrochemical, power, oil and gas and offshore platform harsh scenarios.
• Seamless Trident System Compatibility: Perfectly matches Tricon Trident series safety chassis and TMR controllers. It supports plug-and-play installation and adaptive firmware matching without secondary debugging.

TRICONEX 3511

Detailed Technical Specifications (Key Highlight Parameters)

The TRICONEX 3511 strictly follows original Triconex safety design specifications and international industrial safety standards. All sampling accuracy, frequency range, electrical performance and environmental resistance parameters pass authoritative factory testing and field verification. Its core advantages lie in TMR fault tolerance, 16-bit high resolution and ultra-high acquisition accuracy. The sorted detailed parameters below support accurate engineering selection, safety monitoring loop design and standardized batch procurement.

3.1 Basic Product Identification & System Matching

• Official Full Model: 3511
• Manufacturer: TRICONEX (Schneider Electric / Invensys)
• Product Series: Tricon Trident TMR Safety System Pulse Input Module Series
• Product Type: SIL3-Grade TMR Fault-Tolerant High-Precision Pulse Input Module
• Core Functions: Field pulse/frequency signal acquisition, rotating speed monitoring, flow pulse collection, full-channel fault diagnosis, high-precision data conversion
• Compatible Systems: Tricon Trident TMR SIS Safety Instrumented System, Tricon v10.5+, Tricon CX Platform, ESD Emergency Shutdown System
• Applicable Scenarios: Petrochemical, chemical, electric power, oil and gas, offshore platform equipment overspeed protection, flow safety monitoring, old pulse loop upgrading and safety spare parts strategic reserve
• Executive Standards: IEC 61508 SIL3 safety standard, IEC 61511 process safety specification, industrial EMC electromagnetic compatibility standard

3.2 Core Electrical & Acquisition Performance Parameters

This module adopts triple redundant synchronous sampling architecture and differential balanced input technology. It features wide frequency coverage, ultra-high precision and strong anti-interference ability. It fully meets high-reliability pulse signal monitoring requirements of industrial safety loops.

• Input Channel Configuration: 8-channel independent non-commoned isolated pulse input
• Frequency Acquisition Range: 0.5Hz ~ 20000Hz full wide-range adaptation
• Sampling Resolution: 16-bit ultra-high precision signal conversion
• Core Acquisition Accuracy: ±0.01% FS (1000Hz–20000Hz standard range)
• Input Mode: AC-coupled balanced differential signal input
• Typical Data Update Cycle: 25ms fast real-time data refresh
• Input Impedance: ≥8KΩ high-impedance stable acquisition
• Rated Working Voltage: 24VDC industrial power supply (20–28VDC adaptive range)
• System Architecture: Triple Modular Redundancy (TMR) synchronous hardware voting
• Safety Level: IEC 61508 SIL3 certified with official TÜV safety qualification
• Diagnostic Function: Real-time monitoring of open circuit, short circuit and signal abnormality
• Maintenance Mode: Support online hot-swap replacement without system shutdown

3.3 Structural & Installation Parameters

The product adopts compact single-slot integrated modular structure. It matches dedicated Tricon Trident chassis for centralized card slot installation. It features compact layout, independent channel isolation and intuitive status display, suitable for intensive standardized layout of safety instrumented cabinets.

• Installation Method: Dedicated Tricon Trident standard chassis card slot fixed mounting
• Structural Feature: Single-slot 8-channel high-density isolated design, saving cabinet space effectively
• Status Display: Onboard LED indicators for power operation, running status and channel faults
• Wiring Interface: Standard industrial anti-loose terminal block for stable and anti-oxidation connection
• Operation Mode: Plug-and-play system docking, no complex program debugging required
• Shell Material: High-strength flame-retardant industrial shell with anti-aging and anti-corrosion performance

3.4 Environmental & Mechanical Resistance Parameters

The TRICONEX 3511 passes strict industrial extreme environment simulation tests. It maintains high-precision pulse acquisition performance and complete diagnosis functions under harsh temperature, humidity and vibration working conditions.

• Operating Temperature Range: -40°C ~ +70°C full-load stable continuous operation
• Storage Temperature Range: -40°C ~ +85°C high and low temperature resistant storage
• Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
• Environmental Adaptability: Dust-proof, moisture-proof, vibration-resistant and strong electromagnetic interference resistance
• Continuous Operation: Support 7×24-hour uninterrupted long-term pulse signal monitoring

3.5 Factory Testing & Quality Certification Standards

All modules are manufactured in accordance with Triconex original industrial safety quality control system. Each product completes full-function precision testing and safety verification before delivery to meet global high-precision process safety monitoring requirements.

• Core Certifications: IEC 61508 SIL3 safety certification, TÜV safety approval, CE EMC electromagnetic compatibility certification, UL industrial safety certification
• Factory Testing Items: TMR voting function test, full-range frequency precision calibration, differential signal stability test, temperature cycle durability test and long-term full-load aging test
• Field Reliability: Widely deployed in global high-risk industrial Trident safety systems, with long-term stable operation verification and ultra-low field failure rate

TRICONEX 3511

E-commerce Sales Mode & Complete Procurement Advantages

As a core high-precision pulse input spare part for Tricon Trident SIS safety systems, the TRICONEX 3511 adopts standardized and transparent global industrial e-commerce sales mode. It focuses on safety pulse monitoring loop maintenance, old module precision upgrading and enterprise high-precision safety spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for industrial enterprises and engineering integrators.

4.1 Standardized Transparent E-commerce Sales System

All TRICONEX 3511 products implement unified original factory production and precision testing standards. The whole production, full-range calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, SIL safety certification documents and factory precision test reports. Customers can verify product authenticity, acquisition accuracy and system matching accuracy online. This transparent mechanism effectively avoids refurbished, modified and low-precision incompatible modules. It ensures long-term accurate and stable operation of industrial safety monitoring systems.

4.2 Diversified Flexible Procurement Modes

Industrial safety system maintenance, precision upgrading and new project construction have differentiated demands for delivery speed and procurement quantity. We provide flexible and targeted procurement solutions to cover emergency maintenance, daily spare stock and large-scale engineering deployment.

• Single Unit Emergency Spot Procurement: Support single spot orders for module aging failure, pulse signal deviation and monitoring loop abnormality. Sufficient global spot inventory supports fast delivery. It enables rapid module replacement and quickly restores high-precision pulse monitoring function of safety loops.
• Small-Batch Spare Parts Stocking: Suitable for enterprises to build high-precision safety spare parts inventory. Pre-storing 3511 modules improves on-site fault emergency response efficiency. It guarantees continuous and accurate monitoring of key equipment speed and flow parameters.
• Large-Batch Engineering Procurement: Provide hierarchical preferential pricing and long-term framework cooperation services for new safety system construction and old pulse monitoring loop precision upgrading. It reduces overall project procurement costs and shortens system commissioning and calibration cycle.

4.3 Full-Cycle Value-Added Services & After-Sales Guarantee

The pulse input module is the core data acquisition unit of safety equipment speed and flow monitoring. Its acquisition accuracy and operational stability directly affect the judgment accuracy of safety interlock logic and production equipment operation safety. We deliver full-cycle technical support and quality assurance to eliminate all procurement risks for industrial customers.

• 100% Original Genuine Quality Guarantee: All products are brand-new original TRICONEX 3511 high-precision pulse input modules with complete factory test reports and certification files. It ensures perfect matching and consistent safety performance with original Trident TMR safety systems.
• Professional Industrial-Grade Logistics Protection: Adopt multi-layer shockproof, moisture-proof and dust-proof professional packaging. It protects internal precision sampling chips and differential circuits from damage during long-distance transportation and storage.
• 24/7 Professional Technical Support: Provide pre-sales system matching consultation, in-sales loop wiring and parameter calibration guidance, and after-sales signal debugging and fault diagnosis services.
• Official Long-Term Warranty Service: Enjoy unified official after-sales warranty. Free replacement and maintenance services are available for non-human-induced quality faults to reduce enterprise safety operation and maintenance costs.

Main Industrial Application Scenarios

Benefiting from TMR hardware fault tolerance, high safety level, 16-bit ultra-high precision and strong anti-interference capability, the TRICONEX 3511 is widely used in high-precision safety monitoring links of various high-risk process industries.

• Industrial SIS Safety Instrumented System: Serve as core pulse signal acquisition unit for Trident SIS systems. It collects on-site frequency and pulse data to support real-time monitoring and safety logic judgment of process parameters.
• Equipment Overspeed Protection System: Precisely monitor rotating equipment speed such as turbines, pumps and compressors. It triggers interlock protection in case of overspeed to avoid equipment damage and safety accidents.
• Process Flow Safety Monitoring: Collect pulse signals from flow meters. It realizes high-precision flow statistics and safety monitoring. It ensures stable and safe operation of material transmission processes.
• Petrochemical Process Safety Control: Adapt to complex high-interference petrochemical production environments. Its differential anti-interference design ensures stable signal acquisition. It provides accurate data support for refining and chemical safety monitoring.
• Power Plant Safety Monitoring System: Applied to power generation unit speed monitoring and auxiliary equipment operation monitoring. It meets high-precision and high-reliability safety monitoring requirements of power industry.
• Offshore Oil & Gas Platform Safety System: Adapt to offshore high-humidity, high-corrosion and strong-interference working conditions. It provides durable and accurate pulse monitoring support for offshore platform safety systems.
• Old Safety System Precision Upgrading: Replace low-precision aging pulse modules. It improves system signal acquisition accuracy and anti-interference ability without overall system reconstruction, lowering renovation costs.

TRICONEX 3511

Product Value & Market Competitiveness

The TRICONEX 3511 fills the market gap of high-precision -grade TMR pulse input modules for Tricon Trident safety systems. Compared with ordinary pulse input modules, it integrates TMR triple redundant fault tolerance, 16-bit ultra-high resolution, ±0.01% super-high accuracy and differential balanced anti-interference design. It solves core industry pain points such as low monitoring precision, poor anti-interference ability and single-point failure risk of traditional safety pulse acquisition modules.

In the global industrial safety spare parts e-commerce market, the TRICONEX 3511 has prominent differentiated competitive advantages. It features zero single-point failure risk, full-range high-precision acquisition, fast data response and convenient non-stop hot-swap maintenance. Combined with standardized genuine procurement, complete safety certification documents and full-cycle professional technical services, it is the preferred high-precision pulse monitoring module for modern Trident safety system construction and old equipment upgrading projects.
