Description
Product Overview
The TRICONEX 4210 is a high-reliability Primary Remote Extender Module (RXM) developed exclusively for Triconex TMR (Triple Modular Redundancy) Safety Instrumented Systems. It serves as a core bus extension unit for industrial safety control platforms. Its core function is to extend the internal I/O bus from the main controller chassis to remote expansion chassis. It breaks the physical distance limitation of traditional SIS system cabinet layout, realizing long-distance signal interaction between main controllers and distributed remote I/O modules.
Traditional SIS systems rely on short-distance cabinet wiring integration. They cannot adapt to large-scale factory distributed layout and long-span equipment arrangement. Copper cable transmission is prone to electromagnetic interference, signal attenuation and safety risks. The TRICONEX 4210 completely solves these layout and transmission pain points. It adopts professional optical fiber isolation transmission design and deterministic bus communication mechanism. It supports ultra-long-distance stable extension of safety system I/O signals. Every module undergoes strict factory aging testing, communication calibration and anti-interference verification. It fully adapts to global industrial e-commerce procurement, large-scale safety system reconstruction and long-term 7×24-hour stable operation in complex industrial scenarios.
Core Product Features & Competitive Advantages
Most conventional bus extension modules use electrical signal transmission. They have limited transmission distance and poor anti-interference ability. They are easy to generate signal delay and data loss in high-electromagnetic-interference industrial environments. They also cannot match the TMR fault-tolerant logic of high-level safety systems. Different from ordinary extension modules, the TRICONEX 4210 combines optical fiber isolation transmission, deterministic high-speed communication and multi-node expansion capability. It greatly improves the layout flexibility, transmission stability and coverage of industrial SIS safety systems.
- Professional Optical Fiber Isolation Transmission Technology: Adopts single-mode fiber optical isolation design. It achieves 2500 VAC high-voltage isolation between main chassis and remote chassis. It completely eliminates common-mode interference and electrical crosstalk, ensuring pure and stable safety signal transmission.
- Ultra-Long-Distance Transmission Capability: Supports maximum 12-kilometer point-to-point long-distance transmission without repeaters. It meets the distributed layout demands of large chemical plants, oil and gas fields and offshore comprehensive industrial zones.
- High-Speed Deterministic Communication Performance: Features 375 kbps fixed deterministic communication rate with ultra-low jitter less than 1 μs. It ensures real-time and synchronous data interaction of safety loops without random delay or data deviation.
- Multi-Node Cascaded Expansion Function: One primary 4210 module can stably drive up to 3 remote expansion nodes. It effectively expands the I/O carrying capacity of the main safety system and reduces overall construction cost.
- Perfect TMR System Compatibility: Fully matches all Triconex TMR safety controllers and various I/O modules. It is compatible with multiple versions of Tricon system platforms. No program modification or logic adjustment is required after installation.
- Strong Electromagnetic Interference Resistance: Optical fiber transmission produces no EMI radiation and is not affected by external electromagnetic fields. It adapts to harsh industrial environments with strong interference and ensures long-term stable communication.
- Comprehensive Online Fault Diagnosis: Built-in intelligent communication monitoring logic. It real-timely diagnoses fiber disconnection, communication interruption and node abnormal faults. It uploads alarm information to the upper system for rapid troubleshooting.
- Industrial-Grade Extreme Environmental Adaptability: Adopts high-strength industrial hardware design. It maintains full-performance stable operation in wide temperature and humidity ranges. It adapts to harsh working conditions of petrochemical, power and offshore industries.
- Low Latency & High Synchronization: Optimized bus transmission mechanism ensures synchronous data update of remote I/O and local I/O. It guarantees consistent safety judgment logic of the whole system.
- Plug-and-Play Convenient Deployment: Standard chassis card installation mode with simple wiring. It supports rapid system expansion and on-site maintenance replacement, reducing project construction cycle.

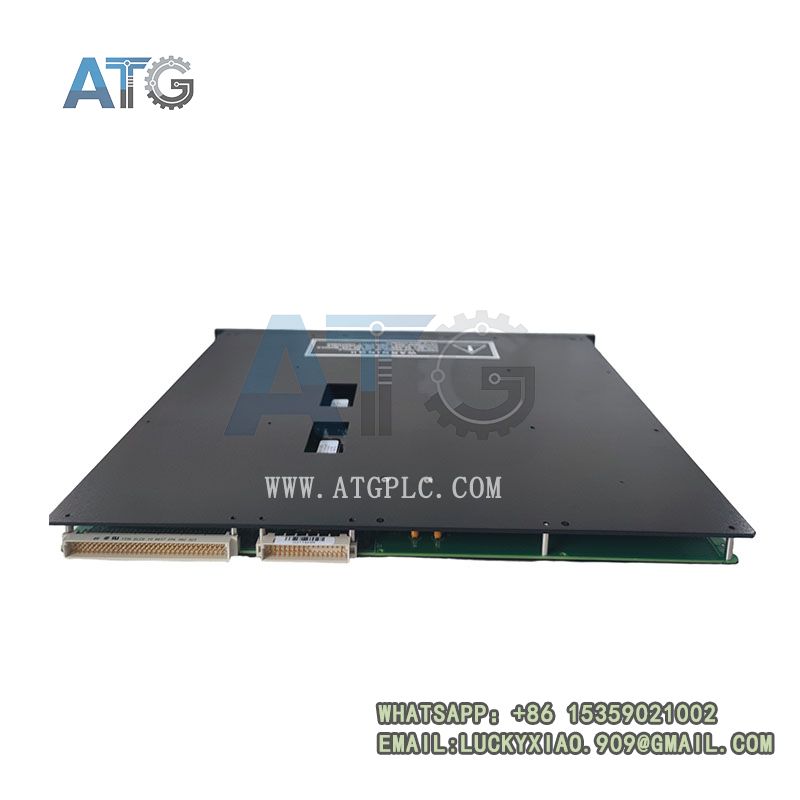

TRICONEX 4210
Detailed Technical Specifications (Key Highlight Parameters)
The TRICONEX 4210 strictly follows Triconex original safety system specifications and international industrial communication safety standards. All communication indicators, isolation performance and environmental resistance parameters pass authoritative factory testing and long-term field verification. Its core advantages focus on long-distance fiber transmission, high-isolation anti-interference and multi-node stable expansion. The sorted detailed parameters below support accurate engineering layout design, safety system expansion and standardized batch procurement.
3.1 Basic Product Identification & System Matching
- Official Full Model: 4210
- Manufacturer: TRICONEX (Schneider Electric)
- Product Series: Tricon TMR Safety System Extension Module Series
- Product Type: Primary Remote Extender Module (RXM) for Safety I/O Bus
- Core Functions: SIS system I/O bus long-distance extension, remote chassis signal transmission, multi-node equipment expansion, communication fault monitoring and data synchronization
- Compatible Systems: All Triconex TMR SIS Safety Instrumented Systems, ESD Emergency Shutdown Systems, Fire and Gas Protection Systems
- Applicable Scenarios: Large-scale industrial safety system distributed layout, long-distance I/O signal extension, old safety system capacity expansion, offshore platform safety system deployment and spare parts reserve
- Executive Standards: Industrial safety communication standard, EMC electromagnetic compatibility standard, Triconex original TMR system matching specification
3.2 Core Communication & Transmission Performance Parameters
This module adopts exclusive fiber deterministic communication technology and high-isolation design. It features long transmission distance, ultra-low delay and strong stability. It fully meets the long-span layout and high-reliability communication requirements of large industrial safety systems.
- Transmission Medium: Single-mode optical fiber, EMI-free transmission
- Max Transmission Distance: 12 kilometers point-to-point transmission without repeaters
- Communication Rate: 375 kbps deterministic fixed rate
- Transmission Jitter: Ultra-low jitter less than 1 μs, ensuring system synchronization
- Isolation Voltage: 2500 VAC high-voltage electrical isolation between master and slave chassis
- Expansion Capacity: Single primary module supports up to 3 remote expansion nodes
- Data Synchronization: Real-time synchronous update of remote and local I/O data
- Diagnostic Function: Real-time monitoring of fiber link status, communication failure and node abnormality
- Anti-Interference Capability: Zero electromagnetic radiation, immune to external industrial EMI interference
3.3 Structural & Installation Parameters
The product adopts standardized industrial chassis modular structure. It features compact layout and stable structure, which is convenient for integrated installation and daily maintenance of safety cabinets.
- Installation Method: Dedicated Triconex chassis integrated card installation
- Structural Feature: Compact industrial integrated design, saving cabinet layout space
- Interface Mode: Professional single-mode fiber interface, stable and durable connection
- Operation Mode: Plug-and-play system docking, no complex program debugging required
- Shell Material: High-strength flame-retardant industrial shell, anti-aging and anti-vibration
- Overall Weight: Approximately 2.75 kg, lightweight for flexible installation
3.4 Environmental & Mechanical Resistance Parameters
The TRICONEX 4210 passes strict industrial extreme environment simulation tests. It maintains stable high-precision communication performance in harsh temperature, humidity and strong interference scenarios.
- Operating Temperature Range: -40°C ~ +70°C full-load stable operation
- Storage Temperature Range: -40°C ~ +85°C high and low temperature resistant storage
- Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
- Environmental Adaptability: Dust-proof, moisture-proof, vibration-resistant and strong electromagnetic interference resistance
- Continuous Operation: Support 7×24-hour uninterrupted long-term safety system communication extension
3.5 Factory Testing & Quality Certification Standards
All modules are manufactured in accordance with Triconex original industrial safety quality system. Each product completes comprehensive communication calibration and reliability testing to ensure stable matching with TMR safety systems.
- Core Certifications: CE electromagnetic compatibility certification, RoHS environmental protection certification, industrial safety compliance certification
- Factory Testing Items: Fiber communication stability test, long-distance transmission calibration, full-load aging test, temperature cycle test and multi-node expansion test
- Field Reliability: Widely deployed in large-scale global industrial safety systems, with long-term stable operation verification and ultra-low failure rate

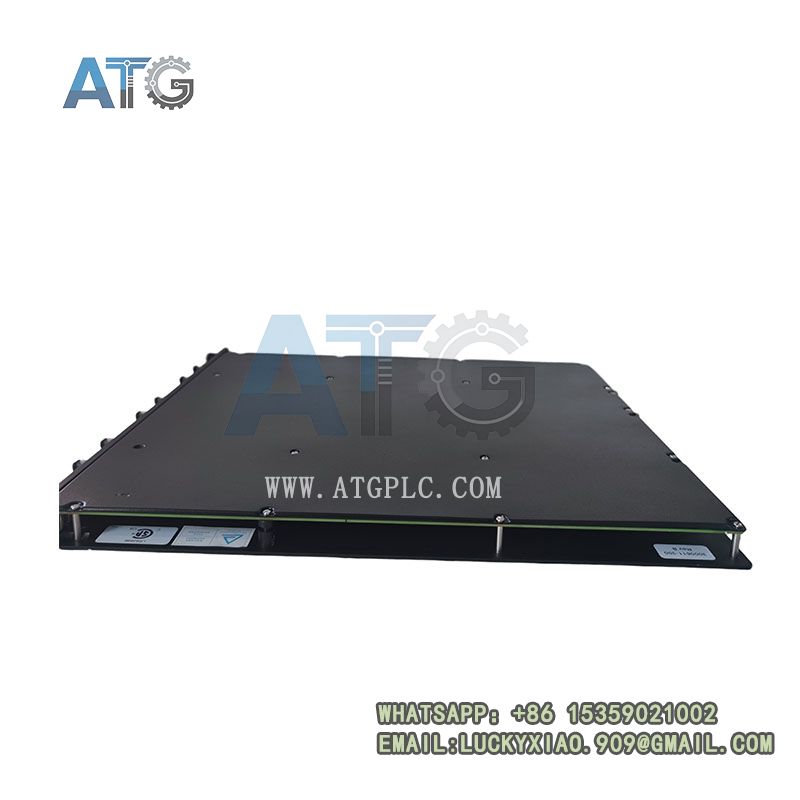

TRICONEX 4210
E-commerce Sales Mode & Complete Procurement Advantages
As a core bus extension spare part for Triconex SIS safety systems, the TRICONEX 4210 adopts standardized and transparent global industrial e-commerce sales mode. It focuses on large-scale safety system expansion, distributed layout reconstruction and enterprise safety spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for petrochemical enterprises, power plants and industrial engineering integrators.
4.1 Standardized Transparent E-commerce Sales System
All TRICONEX 4210 products implement unified original factory production and communication calibration standards. The whole production, testing and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, parameter manuals and factory test reports. Customers can verify product authenticity and system matching accuracy online. This transparent mechanism effectively avoids refurbished and incompatible modules. It ensures long-term stable communication extension of industrial safety instrumented systems.
4.2 Diversified Flexible Procurement Modes
Industrial safety system expansion and maintenance have diverse procurement cycle demands. We provide flexible and targeted procurement solutions to meet emergency maintenance, daily spare parts reserve and large-scale engineering construction needs.
- Single Unit Emergency Spot Procurement: Support single spot orders for sudden communication module failure. Sufficient global spot inventory supports fast delivery. It enables rapid replacement of faulty modules and restores long-distance communication functions of safety systems, avoiding system paralysis and production safety risks.
- Small-Batch Spare Parts Stocking: Support small-batch customized procurement for industrial enterprises. Pre-storing 4210 modules improves the response speed of daily safety system maintenance and guarantees stable operation of distributed I/O loops.
- Large-Batch Engineering Procurement: Provide hierarchical preferential pricing and long-term framework cooperation services for large-scale factory safety system expansion, new distributed safety project construction and overall system layout optimization. It effectively reduces project procurement costs and shortens engineering construction cycle.
4.3 Full-Cycle Value-Added Services & After-Sales Guarantee
Remote extension modules are key links for cross-region signal transmission of safety systems. Their stability directly affects the overall operation of safety protection loops. We provide full-cycle technical support and quality assurance to eliminate all procurement risks for industrial customers.
- 100% Original Genuine Quality Guarantee: All products are original TRICONEX genuine new modules with official communication calibration data. Complete factory test reports are provided to ensure perfect matching and stable communication with original Triconex TMR systems.
- Professional Industrial-Grade Logistics Protection: Adopt multi-layer shockproof, moisture-proof and dust-proof professional packaging. It protects precision optical communication components and avoids performance attenuation during long-distance transportation and warehousing.
- 24/7 Professional Technical Support: Provide pre-sales system layout matching consultation, in-sales fiber wiring and installation guidance, and after-sales communication fault diagnosis and system debugging services.
- Official Long-Term Warranty Service: Enjoy unified official after-sales warranty. Free replacement and maintenance services are available for non-human-induced quality and communication faults to reduce enterprise safety operation risks.
Main Industrial Application Scenarios
Benefiting from 12km ultra-long-distance transmission, high-voltage isolation anti-interference and multi-node expansion capability, the TRICONEX 4210 is widely used in distributed layout and long-span extension scenarios of various high-risk industrial safety systems.
- Large-Scale SIS System Distributed Layout: Realize long-distance separation of main control cabinet and field I/O cabinet. It solves the space limitation of centralized cabinet layout and optimizes factory safety system wiring design.
- ESD System Cross-Region Signal Extension: Apply to large chemical and oilfield ESD emergency shutdown systems. It supports long-distance transmission of emergency linkage signals to ensure timely and effective safety protection.
- Fire & Gas Wide-Area Monitoring System: Extend fire and gas detection I/O signals in wide-range industrial zones. It realizes unified monitoring and linkage protection of distributed detection points.
- Power Plant Safety System Expansion: Adapt to large power plant span layout. It realizes stable communication extension of boiler safety monitoring and power equipment protection systems.
- Offshore Platform Remote Safety Control: Adapt to offshore complex electromagnetic environment and long-distance equipment layout. It provides high-stability communication guarantee for offshore safety systems.
- Old Safety System Capacity Expansion & Renovation: Expand I/O communication coverage of old systems without replacing main controllers. It improves system layout flexibility and service life at low cost.
TRICONEX 4210
Product Value & Market Competitiveness
The TRICONEX 4210 fills the market gap of long-distance high-isolation fiber extension modules for Triconex TMR safety systems. Compared with traditional electrical extension modules, it achieves 12-kilometer ultra-long transmission, 2500V high-voltage isolation and deterministic low-jitter communication. It solves core industry pain points such as short transmission distance, poor anti-interference ability and easy signal attenuation of traditional safety system extension equipment.
In the global industrial safety spare parts e-commerce market, the TRICONEX 4210 has obvious differentiated competitive advantages. It features ultra-long-distance stable transmission, zero electromagnetic interference, multi-node flexible expansion and perfect TMR system compatibility. Combined with standardized genuine procurement, complete technical certification documents and full-cycle professional technical services, it is the preferred core extension module for large-scale distributed industrial safety system construction and upgrading projects.
