Description
The Honeywell CC-PCNT01 is a high-performance core process controller module serving Honeywell Experion PKS C300 Distributed Control System (DCS). As the central computing and logic control unit of the Series C control platform, this module undertakes core tasks including industrial process logic operation, closed-loop PID regulation, I/O data processing and system communication scheduling. Adopting advanced industrial dedicated processor and dual I/O link redundant design, it integrates powerful arithmetic operation capability, high-speed data processing and reliable system scheduling functions. With compact modular structure, ultra-high operational stability and perfect system compatibility, it supports 7×24-hour uninterrupted industrial automatic control operation, serving as the brain core of Honeywell PKS industrial process control systems.

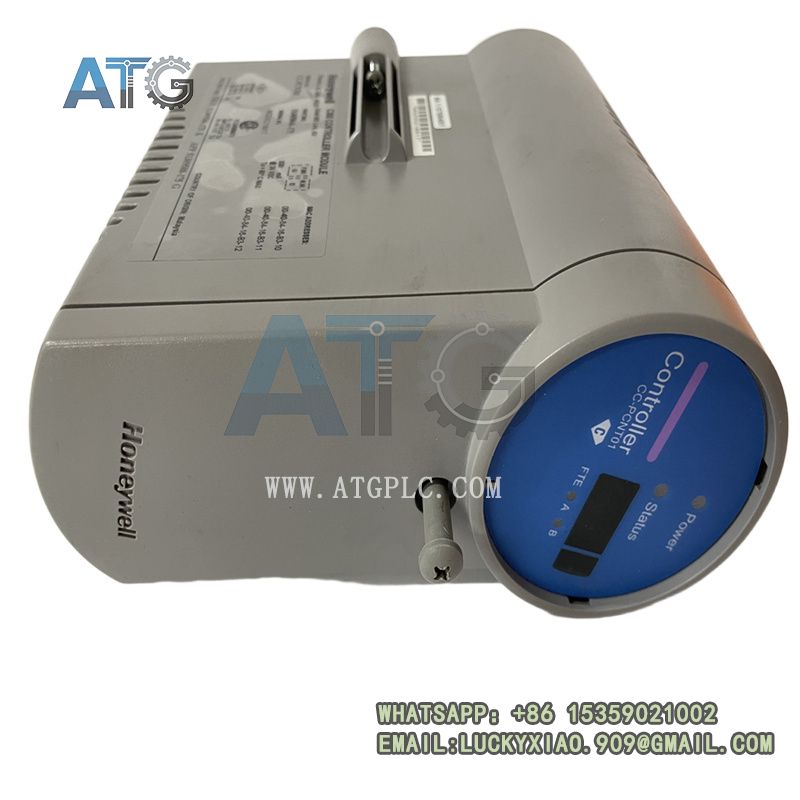

HONEYWELL CC-PCNT01
Core System Functions & Technical Mechanism
The CC-PCNT01 controller module is responsible for the overall logic control and data calculation of the C300 control cabinet. It supports multi-loop PID control, sequence logic control, batch process control and custom algorithm operation, which can accurately analyze and calculate real-time collected field process parameters such as temperature, pressure, flow and liquid level, and output precise adjustment commands to field actuators to realize fully automatic closed-loop process control. Equipped with dual redundant I/O link channels, it can establish stable communication connection with various I/O modules in the cabinet, realizing synchronous interaction of massive process data and ensuring zero-delay control response.
In terms of system safety and operation management, the module integrates comprehensive self-diagnosis and fault tolerance mechanisms. It automatically completes power-on self-test and real-time running status diagnosis, actively monitors communication link abnormalities, program operation faults and hardware exceptions, and feeds back fault codes and status information to the upper Experion PKS host in real time. Meanwhile, it supports industrial control firewall security protection function, which can effectively isolate external illegal access and data interference, protect core control programs and process data security. It supports seamless docking with Honeywell configuration software, realizing online parameter modification, program downloading, data monitoring and remote system maintenance, greatly improving the flexibility and maintainability of industrial control systems.
Detailed Technical Specifications
Manufactured in strict accordance with Honeywell global industrial manufacturing standards and international IEC industrial control safety specifications, the Honeywell CC-PCNT01 has standardized and rigorous industrial technical parameters, fully adapting to long-term stable operation of heavy-duty industrial process control systems. The core technical indicators are listed below:
- Product Model: CC-PCNT01, dedicated core controller module for Honeywell Experion PKS C300 DCS system
- Core Configuration: High-speed industrial dedicated processor, supporting multi-loop PID operation and complex logic algorithm processing
- Communication Design: Dual redundant I/O link interfaces, supporting high-speed stable data interaction with cabinet I/O modules
- Power Supply Specification: Standard industrial 24VDC power supply, wide voltage adaptation range 18–30VDC, tolerating on-site power fluctuation
- Control Capacity: Supports multi-channel loop control and batch process sequence control, meeting complex industrial production process requirements
- Operating Temperature: Working temperature: -20°C to +70°C; Storage temperature: -40°C to +85°C, adapting to harsh industrial cabinet environments
- Environmental Performance: 0%–90% RH non-condensing humidity resistance, dust-proof, vibration-resistant and anti-electromagnetic interference industrial design
- Safety Certification: Compliant with CE, UL, FCC international industrial safety and electromagnetic compatibility certifications
- Installation Mode: Standard Series C modular card slot installation, matched with dedicated IOTA terminal assembly, plug-and-play replacement
- Operational Stability: Supports 7×24-hour continuous uninterrupted operation, with ultra-low program drift and hardware failure rate
- System Compatibility: 100% compatible with Honeywell Experion PKS C300 series systems and supporting I/O modules

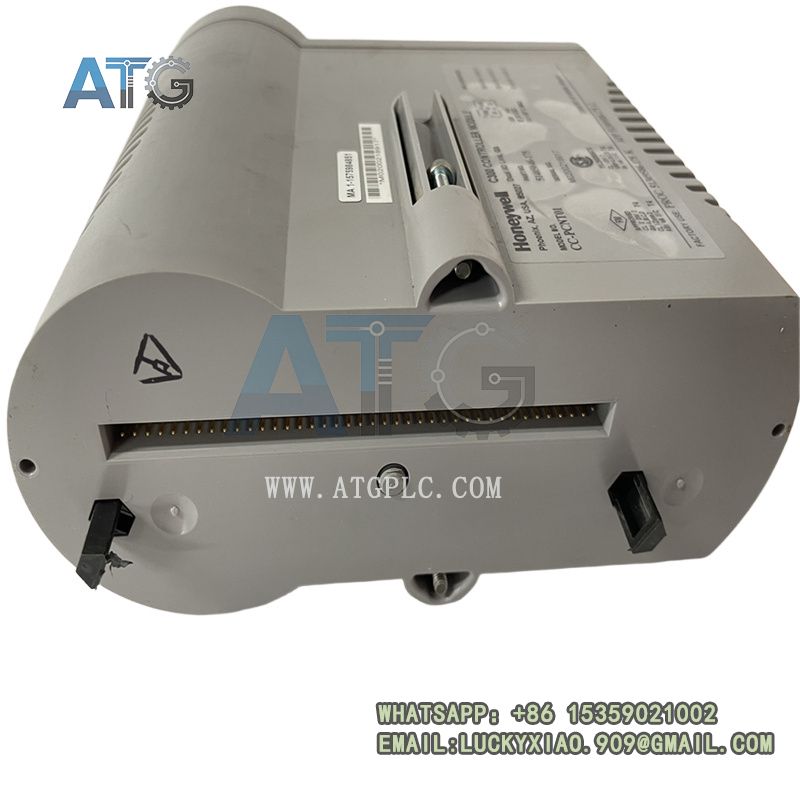

HONEYWELL CC-PCNT01
Origin & Official Warranty Policy
The Honeywell CC-PCNT01 is an original authentic industrial core control module produced under Honeywell’s strict global quality management system. Each product undergoes rigorous factory tests including program operation stability test, communication link calibration, high and low temperature cycle aging test, long-term load operation test and electromagnetic compatibility verification, ensuring industrial-grade high precision and long-term durability.
This product provides an official 12-month global warranty service starting from the formal delivery date. During the warranty period, any functional failure, performance attenuation or quality problems caused by non-human damage, non-equipment misoperation and non-external destructive factors are eligible for free official maintenance, component replacement or overall product replacement services. Meanwhile, full-life-cycle professional technical support including system installation guidance, program configuration, loop debugging and fault troubleshooting is provided to ensure stable and efficient operation of user control systems.
Core Technical Advantages
Compared with ordinary industrial controller modules, the Honeywell CC- has prominent advantages in control accuracy, operational stability and system safety. Its dual redundant I/O link design effectively avoids single-point communication failure, greatly improving the fault tolerance and continuity of industrial process control. The high-efficiency processor and optimized control algorithm ensure fast response and high-precision adjustment of process parameters, effectively reducing production parameter deviation and improving product qualification rate.
In addition, the built-in multi-dimensional safety protection and complete self-diagnosis mechanism realize full-cycle monitoring of system operation, which can quickly locate hidden faults and avoid system downtime caused by abnormal operation. The industrial-grade anti-interference and environmental resistance design enables the module to operate stably in high-temperature, humid and strong electromagnetic interference industrial sites. The standardized modular design simplifies system installation, upgrade and daily maintenance, effectively reducing industrial operation and maintenance costs and improving the overall automation operation efficiency of enterprises.

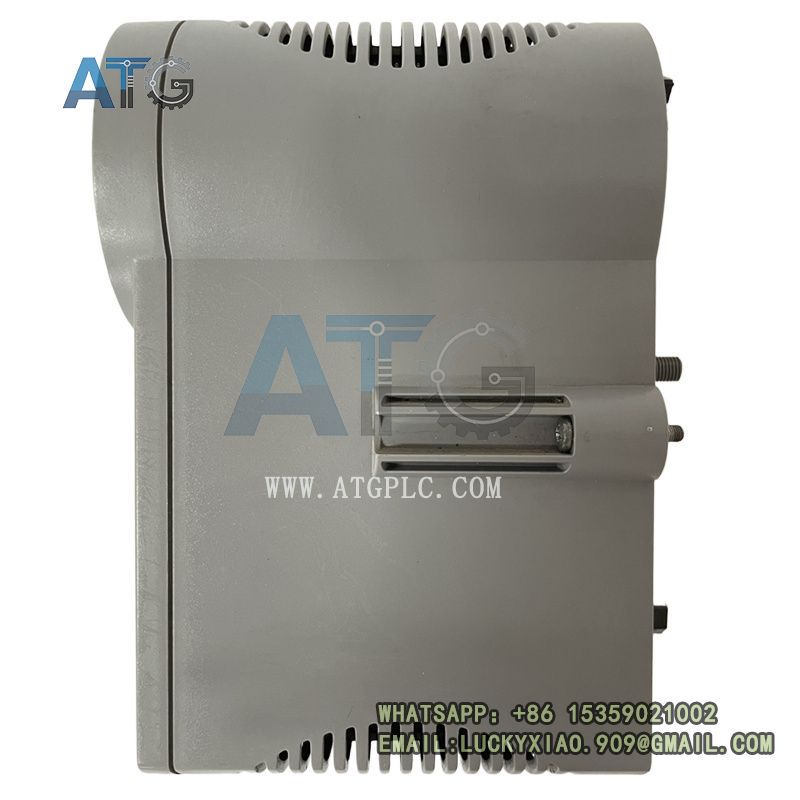

HONEYWELL CC-PCNT01
Wide Application Fields
Relying on its powerful control operation capability, high operational reliability and perfect DCS system compatibility, the Honeywell CC- is widely applied in various large-scale industrial process control scenarios requiring continuous and stable automatic control. The core application fields include petrochemical and natural gas industry, thermal power generation and new energy power stations, pharmaceutical fine chemical production, coal chemical industry, metallurgical and building materials manufacturing, industrial water treatment and environmental protection engineering, as well as large-scale intelligent factory automated production systems.
In actual industrial operation, this module serves as the core control brain of the Honeywell PKS C300 DCS system. It is mainly responsible for process parameter operation, logic judgment, automatic adjustment and system scheduling management, providing core computing and control support for industrial closed-loop production, safety interlock protection and intelligent process optimization. It is an indispensable key core component to ensure safe, stable, efficient and continuous operation of modern industrial automation control systems.
