Description
- Model: 05701-A-0550
- Brand: Honeywell
- Series: Honeywell System 57 Calibration Series
- Core Function: Provide accurate calibration for gas detection systems
- Type: Calibration Plug Module
- Key Specs: 24VDC power, 4-20mA signal, 500Ω max loop resistance
- Supply Status: In Stock
- Stock: Available
- Warranty: 12 months
- Ship From: China

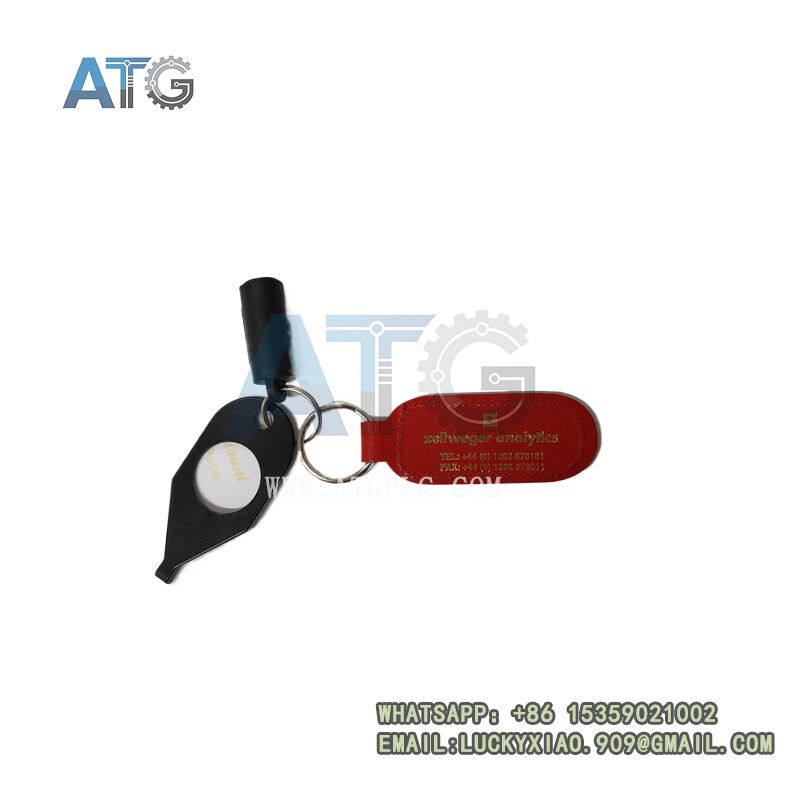

05701-A-0550
Product System Introduction
The 05701-A-0550 is a professional calibration plug module belonging to Honeywell System 57 gas detection system. As an essential auxiliary hardware for gas analysis and safety monitoring systems, it is specially designed for Honeywell fixed gas detectors and industrial analysis instruments. This modular calibration unit adopts isolated signal circuit design, perfectly compatible with various catalytic and electrochemical gas sensors. It cooperates with detection controllers to complete regular equipment calibration, ensuring the gas monitoring system maintains high detection accuracy in long-term industrial operation.
Product Functions
This calibration module mainly generates standard analog signals to simulate specific gas concentration values for system calibration. It can output stable 4-20mA current signals to verify the response sensitivity and measurement accuracy of gas detectors. During daily maintenance and periodic inspection, technicians use this plug to perform zero calibration and span calibration for detection equipment. It effectively eliminates signal drift and measurement errors caused by long-term sensor aging. Additionally, it assists in circuit fault diagnosis and loop resistance testing, simplifying system debugging and equipment verification procedures.

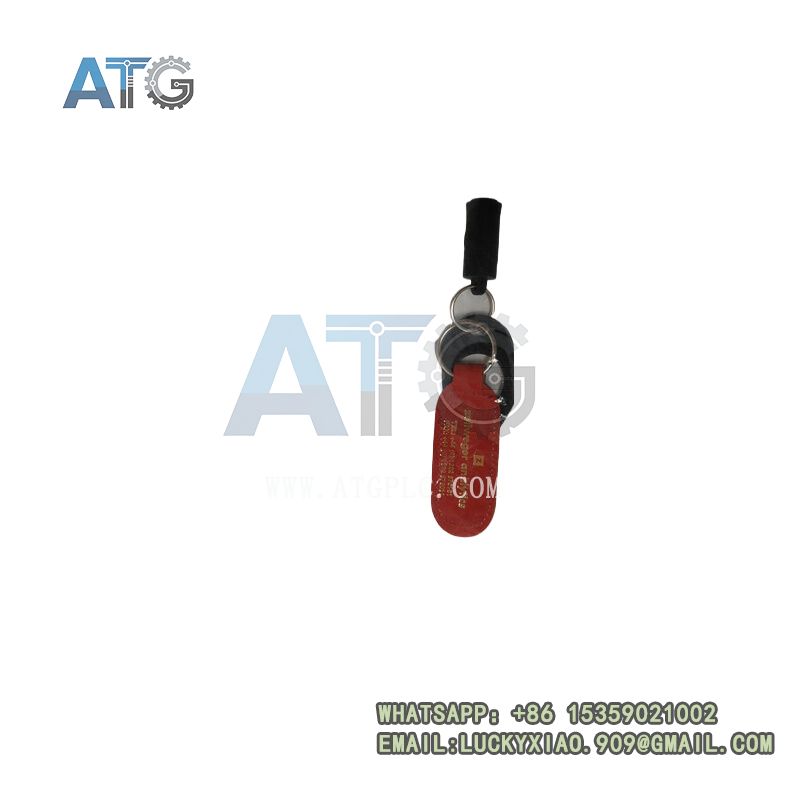

05701-A-0550
Product Features
Honeywell 05701-A-0550 boasts outstanding signal stability and industrial durability. It features highly linear signal output with low signal deviation, guaranteeing precise calibration results for gas monitoring instruments. Built with rugged industrial-grade housing, it achieves IP67 protection rating and operates stably within -40°C to +85°C temperature range, adapting to harsh chemical and petrochemical working environments. The plug-and-play design requires no complex wiring or extra software configuration, enabling rapid on-site calibration. With compact size and excellent anti-interference performance, it resists ambient electromagnetic noise and maintains consistent signal output in complicated industrial conditions.
Compatible & Recommended Products
To achieve complete gas detection and calibration workflow, we recommend matched Honeywell products: 05701-A-0100 gas detection control card, industrial toxic gas sensor and explosion-proof junction box. These supporting parts maintain perfect compatibility with 05701-A-0550, forming a fully functional gas monitoring and regular calibration solution for hazardous industrial areas.
