Description
- Model: VMIVME7459-112
- Brand: General Electric (GE)
- Series: GE VMEbus Industrial Embedded Control Series
- Core Function: Provides industrial storage and system bus control for VME racks
- Type: VMEbus Storage & System Controller Module
- Key Specs: Single-slot 6U form factor, IDE interface support, max 80GB storage capacity
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China

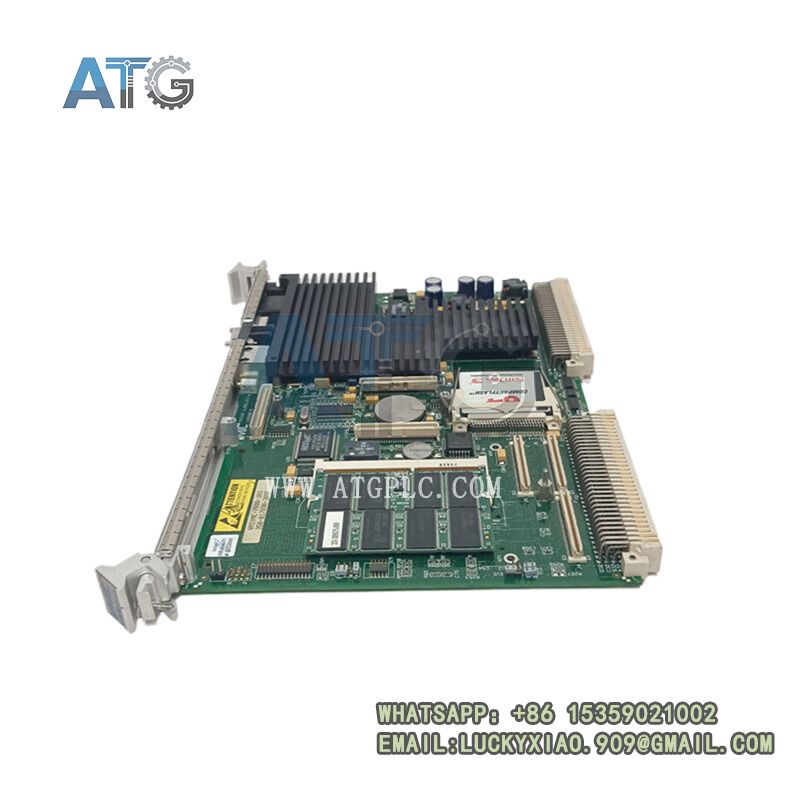

VMIVME7459-112
Product System Overview
The GE VMIVME7459-112 is a high-performance single-slot VMEbus storage and system controller module designed for industrial embedded control systems. As a multifunctional core component of the GE VME industrial control platform, it integrates IDE storage expansion and VME bus management functions in one compact 6U module. This unit works seamlessly with VME-series CPU boards, I/O modules and communication accessories to build stable, expandable industrial embedded control systems widely used in automated testing, industrial simulation and power generation control fields. It solves the storage expansion and bus scheduling limitations of traditional VME rack systems, supporting reliable local data storage and efficient bus resource allocation. Optimized for long-term continuous industrial operation, it serves as an ideal replacement and upgrade part for legacy VME system maintenance, hardware renewal and functional expansion projects.
Core Product Functions
This professional VMEbus module undertakes dual core tasks of industrial storage expansion and system bus management for embedded control racks. It supports flexible access of IDE storage devices, including CD-RW optical drives and high-capacity hard disks, providing stable local data reading, writing and storage services for industrial control systems. The module stores system configuration files, operation logs, program firmware and real-time operating data, ensuring data integrity during system operation and power cycling. Meanwhile, it acts as a VME bus system controller, delivering SYSCLK clock driving, IACK daisy-chain management and programmable bus timeout arbitration functions. It reasonably schedules internal bus resources, coordinates data interaction between various rack modules, avoids bus conflicts and transmission delays, and maintains orderly and efficient operation of the entire VME control system.
VMIVME7459-112
Product Features & Technical Advantages
The GE VMIVME7459-112 industrial storage controller module features highly integrated design, excellent compatibility and ultra-high operational stability, meeting rigorous long-term operation demands of industrial embedded systems. Adopting a single 6U standard single-slot structure, it saves valuable rack space while implementing dual functions of storage expansion and bus control, greatly improving system integration. It supports multiple storage formats and high-capacity storage up to 80GB, compatible with mainstream industrial optical disc and hard disk devices, with strong functional scalability. Equipped with programmable bus arbitration timeout parameters, it adapts to diverse industrial control scheduling requirements and effectively improves bus operation efficiency and fault tolerance. Built with industrial-grade components and rigorous circuit optimization, it delivers outstanding vibration resistance, wide temperature adaptability and electromagnetic interference resistance, ensuring stable performance in harsh industrial environments. The standardized plug-and-play design simplifies on-site installation, debugging and replacement, reducing system downtime and maintenance costs.
Industrial Application Scenarios
This high-reliability VMEbus storage and control module is widely deployed in industrial scenarios based on GE VME embedded control systems. It is mainly applicable to industrial automated test equipment, power generation turbine control systems, aerospace simulation platforms, industrial process control racks and legacy VME system renovation projects. It provides stable local data storage and efficient bus scheduling support for industrial embedded control units and automated operating systems. As an indispensable multifunctional component of the GE VME industrial control series, it effectively solves system storage expansion difficulties and bus scheduling instability problems, improves the overall operational efficiency and data security of embedded systems, and guarantees continuous and stable operation of industrial control equipment.
