Description
Product Overview
The GE PMC-0247RC-282000, with part number 350-93750247-282000F, is a high-precision power monitoring and control module from the GE PMC series. It works as a dedicated power measurement and data acquisition unit for industrial power distribution systems and power generation sites. This module integrates electrical signal sampling, power calculation, status monitoring and data output functions. It tracks real-time power quality parameters and sends processed data to upper control systems.
Industrial power networks often face unstable load conditions and harmonic interference. Distorted current and voltage signals lead to inaccurate energy statistics and hidden equipment risks. Many generic power monitoring modules cannot match the original communication registers and data resolution. They cause data deviation and fail seamless integration with existing GE control racks. To eliminate these monitoring risks, the GE PMC-0247RC-282000 350-93750247-282000F adopts high-speed ADC sampling architecture. Every unit passes accuracy calibration, communication verification and full-load aging screening before shipment. It serves as original spare hardware for power distribution cabinet retrofit and energy management upgrade, and fully supports global industrial e-commerce procurement.
Core Product Features & Competitive Advantages
Accurate power data directly supports energy management and equipment fault diagnosis. Basic power meters only read simple electrical values. They lack high-resolution waveform capture and harmonic analysis functions. In contrast, the GE PMC-0247RC-282000 350-93750247-282000F combines multi-parameter measurement, power quality analysis and stable data transmission. It delivers reliable power monitoring for industrial power distribution systems.
- Multi-Parameter Electrical Measurement: It measures voltage, current, active power, reactive power, power factor and frequency. It covers key parameters of three-phase power networks.
- High-Speed ADC Sampling Circuit: High-resolution analog sampling captures transient power changes. It keeps measurement error low under harmonic and surge interference.
- Built-In Harmonic Analysis Function: It detects harmonic distortion of current and voltage. Users can spot power quality degradation at an early stage.
- Stable Industrial Communication Interface: It supports mainstream power industry protocols. It connects smoothly with SCADA, EMS and industrial control platforms.
- Event Log & Data Storage: It records power fluctuation events and historical measurement data. The stored logs support post-event review and energy consumption audit.
- Continuous Hardware Self-Diagnosis: The module runs automatic self-check in real time. It triggers an alarm for internal circuit faults or signal loss.
- Strong EMC Anti-Interference Design: Optimized PCB layout and shielding structure suppress electromagnetic noise inside power cabinets. It prevents data jumping caused by field interference.
- Compact Rack-Mount Form Factor: Standard modular design fits into industrial control cabinets. It enables quick replacement during maintenance work.

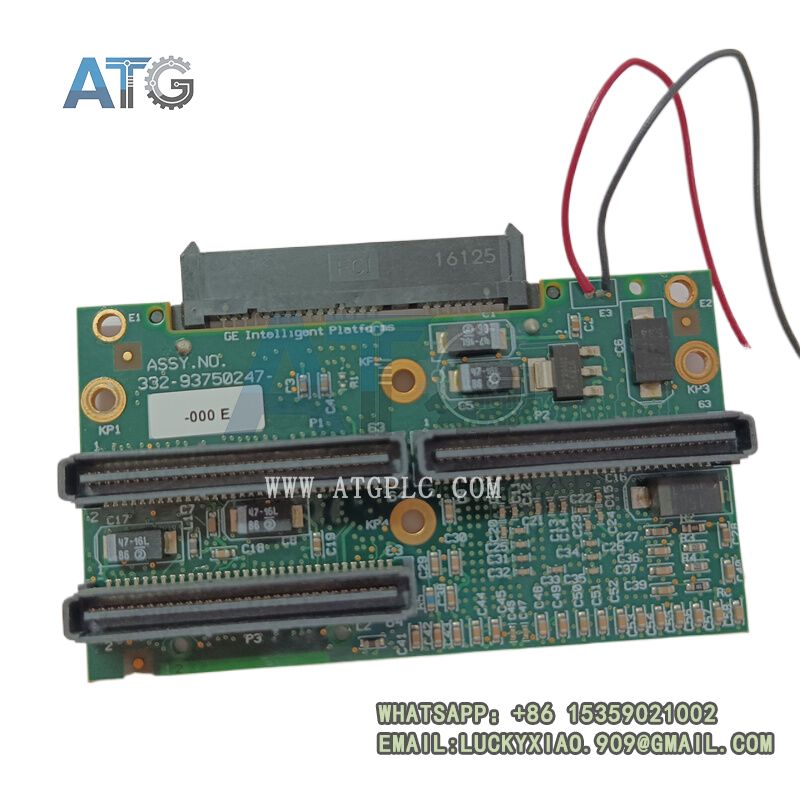

GE PMC-0247RC-282000 350-93750247-282000F
Detailed Segmented Technical Specifications
The GE PMC-0247RC-282000 350-93750247-282000F follows GE power monitoring product standards and IEC power quality requirements. Its sampling precision, electrical ratings and environmental indicators pass lab validation and long-term field operation. The grouped parameters below support model selection, scheme design and bulk procurement.
3.1 Basic Product & Application Parameters
This modular power monitoring unit is designed for three-phase industrial power distribution. It widely applies in power plants, substations and factory power rooms.
- Official Product Model: PMC-0247RC-282000, Part No. 350-93750247-282000F
- Product Category: Power Monitoring & Control Module
- Manufacturer: General Electric (GE)
- Core Product Positioning: Three-phase electrical parameter measurement, power quality monitoring, harmonic analysis, event recording and data uploading
- Fully Compatible Systems: GE power distribution control systems, industrial SCADA and energy management platforms
- Installation Method: Standard cabinet rack mounting
- Core Application Scenarios: Power cabinet renovation, energy consumption monitoring upgrade, old monitoring module replacement, spare part inventory preparation
- Implementation Standards: GE power monitoring specifications, IEC power quality standards, CE/UL industrial certification
3.2 Measurement & Sampling Parameters
The module uses high-precision sampling chips. It continuously collects three-phase voltage and current signals from CT and VT secondary loops.
- Measured Electrical Quantities: Three-phase voltage, three-phase current, active/reactive power, power factor, frequency, total harmonic distortion
- Sampling Mode: High-speed synchronous multi-channel sampling
- Measurement Accuracy: Class high precision for power metering and power quality monitoring
- Data Storage Function: Historical energy data and power disturbance event storage
- Self-Diagnosis Function: Real-time hardware detection and alarm output for signal abnormality
3.3 Communication Parameters
It provides standard communication ports for data exchange. It sends real-time and historical data to upper monitoring platforms.
- Supported Communication Protocols: Widely adopted industrial and power communication protocols
- Interface Type: Rear panel wired communication port
- Data Service: Real-time telemetry upload, event report transmission, remote parameter reading and writing
- Transmission Stability: Designed for long-term continuous data transmission in power cabinet environments
3.4 Electrical & Power Supply Parameters
This module accepts standard industrial auxiliary power. It can keep normal operation during short-term supply voltage fluctuation.
- Rated Working Power Supply: Standard industrial DC/AC auxiliary power for control cabinet
- Power Consumption: Low standby power consumption
- Input Signal Source: Secondary signals from current transformers and voltage transformers
- Signal Protection: Built-in surge suppression components to resist voltage spikes on signal lines
3.5 Mechanical & Structural Parameters
It adopts compact modular hardware structure. The standard rack-mounted size matches most industrial control cabinets.
- Structural Type: Rack-mounted industrial monitoring module
- Installation Method: Fixed mounting inside electrical control cabinet
- Front Panel: Status LED indicators for power and communication status
- Mechanical Resistance: Reinforced internal structure to resist cabinet vibration
3.6 Environmental Adaptability Parameters
The module passes strict temperature cycle and vibration tests. It supports uninterrupted operation inside power distribution cabinets.
- Full-Load Operating Temperature Range: -20°C to +70°C stable continuous operation
- Storage Temperature Range: -40°C to +85°C
- Working Humidity Range: 5%–95% RH non-condensing
- Environmental Resistance: Dust resistance and strong electromagnetic interference resistance
- Continuous Operation Capacity: Supports 7×24-hour uninterrupted operation
3.7 Factory Testing & Quality Certification
All GE PMC-0247RC-282000 350-93750247-282000F modules follow strict GE quality control workflows. Each unit completes accuracy calibration and aging screening before delivery.
- Core Factory Test Items: Measurement accuracy test, communication function test, surge immunity test, high-low temperature aging test, vibration test
- Quality Inspection Standard: 100% full function testing + parameter calibration + complete test record filing
- Authoritative Qualification Certification: CE, UL and IEC power monitoring compliance certification
- Field Operation Performance: Widely deployed in global industrial power distribution systems with stable measurement performance
GE PMC-0247RC-282000 350-93750247-282000F
E-commerce Sales Mode & Complete Procurement Advantages
As a core power monitoring component for industrial power systems, the GE 350-93750247-282000F uses standardized, transparent global industrial e-commerce sales. It mainly serves power distribution cabinet renovation, energy management system upgrade and strategic spare inventory for power enterprises. It delivers one-stop standardized procurement and full-cycle technical service for EPC contractors and industrial asset operators.
4.1 Standardized Transparent E-commerce System
Each product comes with complete factory test records. Production, calibration and warehousing steps are fully traceable. E-commerce platforms publish datasheets, test reports and certification documents openly. Buyers can verify product authenticity and measurement performance online. This transparent sales model helps customers avoid refurbished or incompatible modules. It protects reliable data acquisition of power monitoring loops.
4.2 Diversified Flexible Procurement Modes
Power cabinet maintenance and energy upgrade projects have different construction timelines and order volumes. We provide three procurement solutions for different industrial scenarios.
- Emergency Spot Procurement: Suitable for sudden module failure or power data loss. Available stock enables fast shipment. It helps restore power monitoring quickly and reduce asset operation risks.
- Small-Batch Spare Parts Stocking: Ideal for power plants and industrial sites to build PMC series spare inventory. Pre-stocking this module shortens emergency maintenance response time.
- Large-Batch Engineering Procurement: Offers preferential pricing and long-term framework agreements for large power distribution renovation projects. It lowers overall project equipment cost.
4.3 Full-Cycle After-Sales Service Guarantee
Power monitoring modules supply core data for energy statistics and equipment health assessment. Unstable measurement data may lead to wrong operation decisions. We provide complete after-sales protection to reduce procurement risks.
- 100% Original Genuine Guarantee: Products are genuine GE modules with complete factory documentation. It ensures consistent measurement precision and communication compatibility.
- Professional Industrial Packaging: Anti-static, shockproof and moisture-proof packaging protects precision electronic components during transit and storage.
- 24/7 Professional Technical Support: Pre-sales model verification, wiring guidance, commissioning advice and post-sales fault diagnosis available.
- Long-Term Warranty Service: Unified warranty coverage. Free repair or replacement applies to non-human-caused quality defects to cut maintenance expense.
Main Industrial Application Scenarios
With multi-parameter measurement, harmonic monitoring and strong anti-interference capability, this module is widely used in power monitoring and energy management projects.
- Industrial Power Distribution Monitoring: Collects three-phase electrical parameters for factory main power cabinets and auxiliary power systems.
- Damaged Module Direct Replacement: Replaces failed original power monitoring units. It keeps existing CT/VT wiring and host communication configuration with minor tuning.
- Energy Management System Upgrade: Used in plant energy-saving retrofit. It uploads real-time power data to energy management platforms for consumption analysis.
- Critical Spare Part Reserve: Stored as key spare hardware to handle unexpected monitoring module faults in power distribution systems.
Product Value & Market Competitiveness
The GE 350-93750247-282000F solves common drawbacks of ordinary power monitoring units. These limits include single measurement items, poor harmonic analysis and unstable data transmission. It realizes continuous tracking and evaluation of power quality for industrial power networks.
In the global industrial spare parts e-commerce market, this power monitoring and control module has clear competitive advantages. It integrates multi-parameter sampling, harmonic measurement and event recording. Combined with genuine product guarantee, complete technical documents and full-cycle technical support, it becomes the preferred original spare part for power distribution monitoring renovation and module replacement in power and heavy industries.
