Description
Product Overview

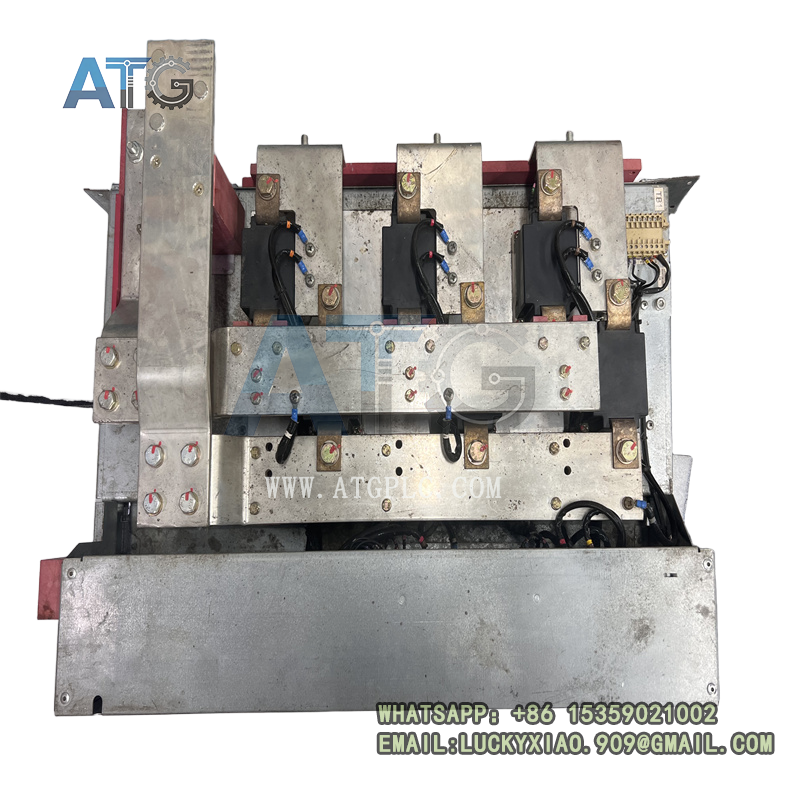

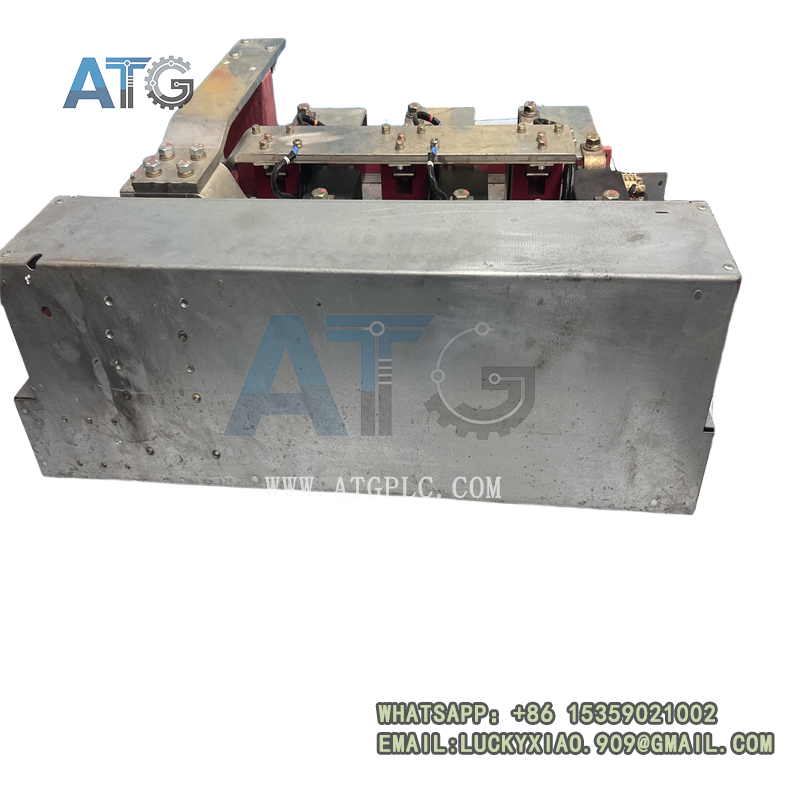

The GE MVR1600-4601 is an industrial-grade air-cooled delta rectifier module belonging to GE MV3000 DELTA drive system series. It acts as a core power conversion unit for medium and high-power industrial frequency conversion drive systems. This professional rectifier module converts AC mains power into stable DC power for rear-end inverter and transistor modules. It supports both six-pulse and 12-pulse rectifier operation modes to meet high-power power supply conversion demands.
High-power industrial drive systems require stable AC-DC power conversion and reliable overvoltage protection. Ordinary rectifier modules often face unstable current output, insufficient surge resistance and poor over-temperature protection. These defects easily cause drive system jitter, power supply fluctuation and equipment shutdown in long-term high-load operation. To solve these industrial pain points, the GE MVR1600-4601 adopts reinforced air-cooled heat dissipation structure and built-in pre-charge circuit design. It integrates surge absorption and multi-dimensional temperature monitoring functions. Every module passes strict full-load aging testing, power conversion efficiency calibration and extreme environment screening before delivery. It supports standard DELTA frame installation and rapid system debugging, fully adapting to standardized global industrial spare parts e-commerce procurement modes.
Core Product Features & Competitive Advantages
High-power industrial drive and power conversion scenarios put forward strict requirements for current stability, heat dissipation efficiency and operational safety. Ordinary universal rectifier modules cannot withstand long-term high-current full-load operation. In contrast, the GE MVR1600-4601 is professionally customized for GE medium and high-power drive systems. It integrates high-current rectification, intelligent pre-charging and multi-protection mechanisms. Its comprehensive stability and service life far exceed ordinary alternative modules.
- High-Current Stable Rectification Capacity: It supports 1600A continuous DC output current. It maintains efficient and stable AC-DC power conversion under long-term high-load conditions. It perfectly matches high-power industrial drive equipment.
- Built-In Intelligent Pre-Charge Circuit: Equipped with independent pre-charging function. It charges DC link capacitors of rear-end transistor modules through limiting resistors. It effectively avoids instantaneous current impact and protects rear-end precision components.
- Dual Rectification Mode Support: It adapts to six-pulse and 12-pulse network bridge operation. The 12-pulse mode realizes low-harmonic power conversion through phase-shift transformer matching. It improves power quality of the whole system.
- Built-In Surge Absorption Protection: Integrated metal oxide varistors absorb instantaneous mains surge energy. It resists grid voltage fluctuation and transient impact to ensure stable module operation.
- Multi-Dimensional Temperature Monitoring: Equipped with embedded thermostat and thermistor sensing devices. It monitors module temperature in real time and links with the main controller for over-temperature protection to avoid thermal burnout.
- Efficient Air-Cooled Heat Dissipation Design: Adopts professional air-cooled heat dissipation structure. It quickly exports operating heat under high-current load. It reduces heat accumulation and ensures long-term full-load operational stability.
- Standardized Frame Installation: It perfectly fits standard DELTA mounting frames. It features simple installation, firm fixation and convenient later maintenance and replacement.
- Complete Short-Circuit Protection: It supports external semiconductor fuse matching. It provides reliable DC link short-circuit protection to avoid equipment damage caused by circuit failure.
- Strong System Compatibility: Fully compatible with GE MV3000 DELTA drive systems. It supports direct replacement of old and faulty modules without modifying original system control logic.
- 7×24 Hours Full-Load Operation: Optimized power circuit and heat dissipation design reduce operating loss. It supports long-term uninterrupted high-current industrial operation.
Detailed Segmented Technical Specifications
The GE MVR1600-4601 strictly complies with GE high-power drive system hardware specifications and industrial power safety standards. All core indicators including current load, voltage adaptation, heat dissipation performance and protection functions pass professional laboratory verification and long-term field operation tests. The classified detailed parameters below support accurate model selection, faulty module replacement and large-scale engineering batch procurement.
3.1 Basic Product & Application Parameters
This high-current air-cooled rectifier module is a core power conversion component for GE MV3000 series high-power drive systems. It is widely used in industrial high-power frequency conversion equipment and power conversion engineering projects.
- Official Product Model: MVR1600-4601
- Product Category: Industrial High-Current Air-Cooled Delta Rectifier Module
- Manufacturer: General Electric (GE)
- Core Product Positioning: High-power AC-DC power conversion, DC link capacitor pre-charging, grid surge suppression, over-temperature protection, drive system power stabilization
- Fully Compatible System: GE MV3000 DELTA High-Power Drive System
- Installation Method: Standard DELTA frame embedded installation
- Core Application Scenarios: Faulty rectifier module replacement, high-power drive system renovation, industrial frequency conversion equipment upgrading, power conversion system optimization, enterprise strategic spare part stocking
- Implementation Standards: GE official drive system specifications, CE industrial safety certification, UL electrical certification, industrial EMC electromagnetic compatibility standard
3.2 Core Electrical Performance Parameters
The module adopts high-power rectifier circuit design with strong load capacity and wide voltage adaptation. It meets high-standard power conversion demands of industrial high-power equipment.
- Rated Input AC Voltage Range: 380–500V industrial wide voltage adaptation
- Continuous DC Output Current: 1600A high-current stable output
- Derated Operating Current: 1314A long-term stable derated operation
- Supported Rectification Modes: 6-pulse / 12-pulse switchable operation
- Pre-Charging Function: Built-in current-limiting pre-charge circuit for DC link capacitor protection
- Surge Protection Device: Integrated metal oxide varistor for mains surge absorption
- Short-Circuit Protection: Support external semiconductor fuse DC link short-circuit protection
- Operating Frequency: 50Hz / 60Hz industrial dual-frequency adaptive
3.3 Interface & Wiring Parameters
It adopts standardized high-current stud terminal design. It supports large-spec cable connection and meets high-power current transmission requirements.
- AC Power Terminals: M10 stud terminals (R1, S1, T1 / R2, S2, T2)
- DC Power Terminals: M10 stud terminals (RECT1+, RECT2+, RECT1/2-)
- Maximum Single-Phase Cable Specification: 150mm² high-temperature resistant cable
- Control Terminal Model: TB1 10-pin pluggable terminal block
- Control Wire Adaptation Range: 0.5mm²–2.5mm² (20–14 AWG) flexible cables
- Key Signal Interface: Pre-charge acknowledge signal interface for system interlock protection
3.4 Heat Dissipation & Structural Parameters
Adopts professional air-cooled heat dissipation structure and high-strength industrial shell. It features good thermal conductivity and strong structural stability.
- Heat Dissipation Mode: Industrial forced air cooling
- Temperature Monitoring Components: Built-in thermostat and thermistor dual monitoring
- Shell Material: High-strength industrial alloy anti-corrosion material
- Structural Feature: Standard DELTA frame matching, anti-loose and anti-vibration structure
- Installation Advantage: Integrated modular design for easy disassembly and maintenance
3.5 Environmental Adaptability Parameters
After strict extreme environment cycle tests, this module maintains stable power conversion performance in complex industrial high-load scenarios.
- Full-Load Operating Temperature Range: -20°C to +70°C stable continuous operation
- Storage Temperature Range: -40°C to +85°C ultra-wide temperature resistance
- Working Humidity Range: 5%–95% RH non-condensing environment
- Comprehensive Environmental Resistance: Anti-electromagnetic interference, anti-surge, dust-proof and anti-vibration
- Continuous Operation Capacity: Support 7×24 hours uninterrupted high-current full-load operation
3.6 Factory Testing & Quality Certification
All GE MVR1600-4601 modules are manufactured in strict accordance with GE industrial high-power equipment quality management system. Each product completes full-function performance testing and long-term high-load aging verification before factory delivery.
- Core Factory Test Items: High-current load stability test, rectification efficiency calibration, pre-charge function test, surge impact resistance test, over-temperature protection test, full-load aging test, EMC electromagnetic compatibility test
- Quality Inspection Standard: 100% full-function detection + precision parameter calibration + complete test record filing
- Authoritative Qualification Certification: CE industrial safety certification, UL electrical certification, EMC electromagnetic compatibility certification
- Field Operation Performance: Widely deployed in global GE high-power drive systems, with ultra-low failure rate and stable long-term high-load operation
E-commerce Sales Mode & Complete Procurement Advantages
As the original dedicated high-current rectifier core module for GE MV3000 series drive systems, the GE adopts standardized, transparent and efficient global industrial e-commerce sales mode. It mainly serves high-power frequency conversion equipment maintenance, drive system performance upgrading, industrial power conversion system renovation and enterprise key spare part inventory planning. It provides one-stop formal procurement services and full-cycle professional technical after-sales support for heavy industry and power enterprises.
4.1 Standardized Transparent E-commerce System
All products are 100% original genuine GE products with complete traceable production, testing and warehousing records. E-commerce platforms openly display official datasheets, factory high-load test reports and authoritative qualification certificates. Buyers can verify product authenticity and core electrical and structural parameters online at any time. This transparent sales mechanism effectively avoids refurbished, modified and incompatible substitute modules. It fully guarantees the power conversion stability and operational safety of high-power industrial drive systems.
4.2 Diversified Flexible Procurement Modes
High-power industrial equipment maintenance and system renovation projects have high requirements for delivery cycle and product authenticity. To cover all engineering application scenarios, we provide three flexible and customized procurement solutions.
- Emergency Spot Procurement: Suitable for sudden rectifier module failure, drive system power supply disorder and equipment shutdown emergencies. Sufficient spot inventory supports rapid delivery. It helps users quickly restore normal operation of high-power drive equipment and reduce heavy industrial production downtime losses.
- Small-Batch Spare Part Stocking: Ideal for heavy industry and power enterprises to build standardized GE high-power drive system spare part libraries. Pre-storing this core rectifier module shortens emergency maintenance response time and improves system operation redundancy and production safety.
- Large-Batch Engineering Procurement: We provide customized preferential pricing and long-term framework cooperation agreements for large-scale drive system renovation and batch equipment upgrading projects. It effectively reduces overall project procurement costs.
4.3 Full-Cycle After-Sales Service Guarantee
The high-current rectifier module undertakes the core power conversion task of high-power drive systems. Module failure or performance attenuation will directly cause system power supply abnormality and equipment shutdown. To eliminate customer procurement risks, we provide comprehensive and reliable full-cycle after-sales protection.
- 100% Original Genuine Guarantee: All modules are genuine GE original products with complete factory official documents. It ensures 100% system compatibility and consistent original high-current rectification performance and protection functions.
- Professional Industrial Anti-Collision Packaging: Adopt anti-static, shockproof and moisture-proof heavy-duty industrial packaging. It protects internal precision circuits and power components from damage during long-distance transportation and long-term warehouse storage.
- 24/7 Professional Technical Support: Provide full-process services including pre-sales model matching verification, system rectification mode configuration guidance, on-site installation wiring debugging and post-sales power fault diagnosis.
- Long-Term Warranty Service: Enjoy unified official warranty coverage. Free repair and replacement services are provided for non-human-caused quality defects to reduce enterprise high-power equipment operation and maintenance costs.
Main Industrial Application Scenarios
With high-current stable rectification, multi-protection mechanism and industrial-grade high-load resistance, this module is widely used in the construction, daily maintenance and performance upgrading of GE high-power drive systems.
- High-Power Drive System Construction: Serve as core power conversion hardware for newly built GE MV3000 DELTA drive systems to support stable AC-DC conversion of high-power equipment.
- Faulty Module Direct Replacement: Quickly replace aging, inefficient and faulty original rectifier modules. No system program modification is required to restore stable power supply operation of drive systems.
- Drive System Performance Upgrade: Upgrade old low-current rectifier units to improve system power conversion efficiency and high-load operation stability.
- Heavy Industrial Equipment Overhaul: Applied in regular maintenance of high-power frequency conversion equipment in metallurgy, chemical industry and electric power fields to eliminate hidden power supply risks.
- Enterprise Key Spare Part Reserve: Stored as core key spare parts for GE high-power drive systems. It copes with sudden hardware faults and ensures continuous and stable operation of heavy industrial production lines.
Product Value & Market Competitiveness
The GE effectively makes up for the common shortcomings of ordinary rectifier modules, such as insufficient current load capacity, single protection function and poor high-load heat dissipation. It integrates 1600A high-current rectification, intelligent pre-charging, dual-mode operation and multi-dimensional safety protection functions. It greatly improves the power conversion efficiency, stability and safety of high-power industrial drive systems.
In the global industrial spare parts e-commerce market, this high-current delta rectifier module has outstanding comprehensive competitive advantages. It features exclusive GE system adaptation, high-efficiency air cooling, complete safety protection and ultra-stable high-load operation. Supported by genuine product guarantee, complete technical documents and full-cycle professional after-sales services, it has become the preferred core spare part for global heavy industry and power enterprise high-power drive system maintenance, overhaul and upgrading projects.
