Description
1. Product Overview
The GE IS230TNRLH1B is a high-reliability industrial terminal base relay output module. It belongs to the GE Speedtronic Mark VIe distributed control system series. As a core safety-grade digital output component, it matches dedicated terminal relay cards to form a complete signal control solution. It mainly undertakes relay signal output, safety interlock execution and equipment switching control tasks for power generation and industrial process systems. It converts system control logic commands into stable relay switch signals. It drives on-site actuators to complete equipment start-stop, protection trip and interlock linkage actions.
Industrial safety control systems put forward extremely strict requirements on relay output modules. Ordinary generic relay boards have obvious application limitations. Most conventional modules lack professional safety certification and fault monitoring functions. They feature slow response speed and poor contact stability. Under long-term high-temperature, vibration and electromagnetic interference environments, they are prone to contact jitter, output failure and delayed action. These defects easily cause safety protection failure and system misoperation. In addition, non-original replacement modules cannot match Mark VIe system protocols and terminal definitions. They may trigger communication faults and hidden safety hazards. In contrast, the GE IS230TNRLH1B adopts safety-level industrial relay design. It integrates multi-channel stable output, real-time fault monitoring and high-isolation protection functions. Each module passes strict safety performance testing, environmental aging screening and precision calibration before delivery. It serves as a standard original spare part for industrial safety system maintenance and upgrading, and fully supports standardized global industrial e-commerce procurement.
2. Core Product Features & Competitive Advantages
Power plant and industrial safety control scenarios require relay modules with high stability, fast response and ultra-low failure rate. Traditional relay output modules suffer from single functions, poor anti-interference ability and insufficient safety redundancy. These problems affect the accuracy and reliability of system interlock and protection actions. To solve common industry pain points, the GE IS230TNRLH1B achieves comprehensive upgrades in safety performance, control efficiency and industrial environmental adaptability.
-
Multi-Channel Relay Output Design: Equipped with multiple standard relay output channels. It supports multi-point synchronous switching control. It meets the multi-channel interlock control demands of ESD and BMS safety systems.
-
SIL Safety Level Certification: Complies with IEC 61508 international safety standards. It supports SIL 2 and SIL 3 safety level applications. It fully adapts to high-standard industrial safety protection scenarios.
-
High-Speed Response Performance: Optimized internal control logic. The overall response time from Ethernet command to output action is about 6ms. It ensures rapid execution of safety trip and interlock commands.
-
Complete Fault Monitoring Function: Built-in relay coil monitoring and fuse status detection. It supports real-time fault feedback and Sequence of Events (SOE) recording. It facilitates quick fault location and system maintenance.
-
Wide Voltage Output Adaptation: Compatible with 24VDC, 120VAC and 240VAC multiple voltage grades. It adapts to diverse on-site load equipment without additional conversion modules.
-
Optical Isolation Anti-Interference Structure: Adopts industrial optical isolation design between internal circuits and external outputs. It effectively isolates on-site surge signals and electromagnetic interference. It avoids signal crosstalk and output misoperation.
-
100% Original System Compatibility: Perfectly matches GE Mark VIe distributed control system architecture. It supports plug-and-play installation and automatic system identification. No program modification or secondary debugging is required after replacement.
-
Industrial-Grade Durability: High-quality relay contacts and anti-aging components. It resists mechanical vibration and temperature cycle changes. It maintains stable contact performance after long-term frequent switching actions.
-
Standard DIN Rail Installation: Adopts universal DIN rail modular structure. It simplifies cabinet layout and on-site installation. It improves the standardization of system wiring.
-
Low Failure Rate & Long Service Life: Manufactured in accordance with strict industrial safety quality standards. It delivers stable long-term safety control performance and reduces enterprise operational and maintenance costs.

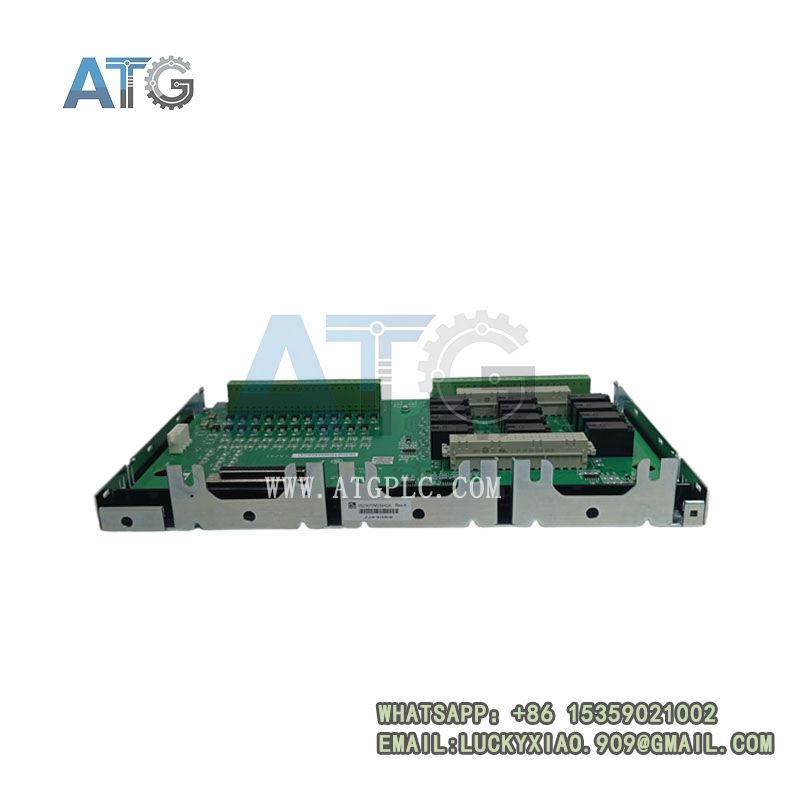

GE IS230TNRLH1B
3. Detailed Segmented Technical Specifications
The GE IS230TNRLH1B strictly complies with GE original Mark VIe system specifications and IEC industrial safety control standards. All output performance, electrical indicators, safety levels and environmental resistance have passed professional laboratory testing and long-term field verification. The classified detailed parameters below support accurate model selection, on-site safety system renovation and standardized batch procurement.
3.1 Basic Product & Application Parameters
This product is a dedicated safety-grade relay output terminal base module for GE Mark VIe DCS systems. It focuses on safety interlock signal output, equipment switching control and fault status monitoring.
-
Official Product Model: IS230TNRLH1B
-
Product Category: Safety-Grade Terminal Base Relay Output Module
-
Manufacturer: General Electric (GE)
-
Core Product Positioning: Industrial safety interlock output, equipment switching control, real-time fault monitoring and SOE event recording
-
Fully Compatible Systems: GE Speedtronic Mark VIe Distributed Control Systems
-
Installation Method: Standard DIN rail fixed installation
-
Core Application Scenarios: Power plant ESD emergency shutdown systems, BMS burner management systems, gas and fire detection systems, industrial safety interlock control and hazardous process control projects
-
Implementation Standards: IEC 61508 safety standard, GE original DCS specifications and CE/UL industrial safety certification standards
3.2 Core Relay Output & Control Parameters
The module adopts high-precision relay control design. It supports multi-voltage wide-range output and high-speed response to meet the rapid action requirements of industrial safety systems.
-
Relay Configuration: Multiple Form C changeover contact relays with complete channel independence
-
Output Voltage Grades: 24 VDC, 120 VAC, 240 VAC configurable according to on-site demands
-
Single Channel Rated Current: 2A to 5A stable load driving capacity
-
System Response Time: Approximately 6ms from Ethernet command input to relay output action
-
Monitoring Functions: Relay coil working status monitoring + multi-fuse fault status feedback
-
Event Recording: Supports independent channel SOE sequence of events recording for fault traceability
-
Isolation Mode: Full optical isolation between channels and between internal and external circuits
3.3 Electrical & Safety Protection Parameters
It features stable electrical performance and multi-dimensional safety protection mechanisms. It adapts to complex power supply and electromagnetic environments of industrial safety control rooms.
-
Rated Working Voltage: Standard 24 VDC industrial power supply
-
Working Voltage Range: 24VDC ±20% wide adaptive range, resisting on-site power supply fluctuation
-
Working Power Consumption: ≤5W low-power design with low heat generation during long-term full-load operation
-
Safety Certification Level: IEC 61508 compliant, supporting SIL 2 / SIL 3 safety application levels
-
Built-In Protection Functions: Overcurrent protection, overvoltage protection and surge isolation protection
-
Electromagnetic Compatibility: Industrial high-level EMC grade, resisting strong on-site electromagnetic radiation and signal crosstalk
3.4 Mechanical & Structural Parameters
The standard industrial modular structure is optimized for industrial control cabinet layout. It ensures firm installation and convenient daily inspection and maintenance.
-
Structural Type: DIN rail mounted safety relay terminal module
-
Installation Mode: Standard DIN rail snap-on fixed installation
-
Structural Features: Dust-proof, anti-vibration and anti-aging industrial design
-
Overall Dimension: 180mm × 180mm × 30mm compact standard size
-
Product Weight: 0.8kg lightweight modular design
-
Manufacturing Process: High-precision SMT process with stable circuit connection and durable relay contacts
3.5 Environmental Adaptability Parameters
After strict extreme environment simulation and long-term aging tests, the module maintains full safety control performance and stable operation in harsh industrial working conditions.
-
Full-Load Operating Temperature Range: -40°C to +70°C ultra-wide temperature stable operation
-
Storage Temperature Range: -40°C to +85°C high and low temperature resistance
-
Working Humidity Range: 5%–95% RH non-condensing humid environment adaptation
-
Environmental Resistance: Resists industrial dust, mechanical vibration and temperature cycle alternating interference
-
Continuous Operation Capacity: Supports 7×24-hour uninterrupted full-load safety control operation
3.6 Factory Testing & Quality Certification
All GE IS230TNRLH1B modules are manufactured under GE’s strict industrial safety quality control system. Each unit completes comprehensive safety performance testing and function calibration before delivery to meet high-standard industrial safety control requirements.
-
Core Factory Testing Items: Relay output stability test, high-speed response calibration, safety isolation performance test, temperature cycle test and long-term aging reliability test
-
Quality Inspection Standard: 100% full-function safety test + full performance calibration + complete test data filing
-
Authoritative Qualification Certification: CE, UL industrial safety certification and IEC 61508 SIL safety level certification
-
Field Operation Reliability: Widely deployed in global power and chemical industrial safety control systems with ultra-low field failure rate
GE IS230TNRLH1B
4. E-commerce Sales Mode & Complete Procurement Advantages
As an original safety-grade relay output module for GE Mark VIe DCS systems, the GE IS230TNRLH1B adopts standardized, transparent and efficient global industrial e-commerce sales mode. It mainly serves industrial safety system emergency maintenance, old relay module replacement and enterprise safety spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for engineering integrators and industrial production enterprises.
4.1 Standardized Transparent E-commerce System
All products adopt unified original factory production and full-process standardized safety performance testing. The whole production, precision calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, safety test reports and SIL certification documents. Customers can verify product authenticity, system compatibility and safety performance online. This transparent sales mechanism effectively avoids refurbished and inferior safety modules. It fully guarantees the stable and reliable operation of industrial safety control systems.
4.2 Diversified Flexible Procurement Modes
Industrial safety system emergency replacement, daily spare parts stocking and large-scale safety upgrading projects have different procurement cycles and quantity demands. To cover all industrial application scenarios, we provide three targeted and flexible procurement solutions.
-
Emergency Spot Procurement: Suitable for on-site relay module failure, safety interlock failure and protection system abnormal emergencies. Sufficient global spot inventory supports fast delivery. It helps enterprises quickly restore safety system functions and avoid production safety accidents and economic losses.
-
Small-Batch Spare Parts Stocking: Ideal for power plants and chemical enterprises to build dedicated Mark VIe system safety spare parts inventory. Pre-storing this original module improves on-site safety fault emergency response speed and reduces operational safety risks.
-
Large-Batch Engineering Procurement: Provides exclusive preferential pricing and long-term framework cooperation services for large-scale industrial safety system renovation and performance upgrading projects. It effectively reduces overall project procurement costs and shortens system commissioning cycles.
4.3 Full-Cycle After-Sales Service Guarantee
The safety relay output module is a key execution unit of industrial protection systems. Its response accuracy and operational stability directly affect enterprise production safety. We provide comprehensive full-cycle after-sales protection to eliminate all customer procurement risks.
-
100% Original Genuine Guarantee: All modules are brand-new original GE products with complete factory test reports and safety qualification documents, ensuring 100% system compatibility and safety execution performance.
-
Professional Industrial Packaging: Adopts multi-layer anti-static, shockproof, moisture-proof and dust-proof industrial packaging. It protects internal precision circuits and relay components from damage during long-distance transportation and storage.
-
24/7 Professional Technical Support: Provides pre-sales model matching consultation, in-sales installation and parameter configuration guidance, and after-sales fault diagnosis and system debugging services.
-
Long-Term Official Warranty Service: Enjoys unified official warranty coverage. Free maintenance and replacement services are provided for non-human-induced quality faults to reduce enterprise operation and maintenance costs.
5. Main Industrial Application Scenarios
Relying on SIL safety certification, high-speed response performance, multi-voltage adaptive output and strong industrial anti-interference ability, this module is widely used in core safety control links of GE Mark VIe system industrial automation projects.
-
Power Plant Safety Control System: Applied to gas turbine and steam turbine ESD emergency shutdown systems. It undertakes safety trip signal output and equipment interlock protection to ensure safe operation of power generation units.
-
Burner Management System (BMS): Executes ignition control, flame monitoring linkage and burner safety protection actions. It ensures stable and safe operation of industrial combustion equipment.
-
Flame & Gas Detection System: Matches on-site detection equipment to realize alarm linkage and safety isolation output. It quickly responds to flammable and dangerous gas abnormalities.
-
Industrial Safety System Upgrading & Maintenance: Replaces aging relay modules with slow response and unstable contact. It improves the overall safety level and fault response efficiency of the control system without large-scale equipment reconstruction.
6. Product Value & Market Competitiveness
The GE IS230TNRLH1B effectively solves common pain points of traditional industrial relay modules, such as uncertified safety level, slow response speed, single output voltage and lack of fault monitoring function. It integrates SIL 2/3 safety certification, high-speed 6ms response, multi-voltage adaptive output and full-channel fault diagnosis technology. It comprehensively improves the safety level, execution efficiency and operational reliability of GE Mark VIe industrial safety control systems.
In the global industrial control spare parts e-commerce market, this product has prominent differentiated competitive advantages. It features original factory safety calibration, professional SIL safety certification, zero system compatibility error and ultra-low field failure rate. Combined with standardized genuine procurement, complete qualification documents and full-cycle professional after-sales services, it is the preferred original replacement module for industrial safety system maintenance, safety level upgrading and enterprise strategic spare parts reserve.
