Description
- Model: IS220PAICH1A 336A4940CSP3
- Brand: General Electric (GE)
- Series: GE Mark VIe Turbine Control System Series
- Core Function: Collects and processes analog signals for turbine control systems
- Type: High-Density Analog Input I/O Module
- Key Specs: 16 isolated analog input channels, 4-20mA/0-10V signal support, 500Vrms isolation
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China

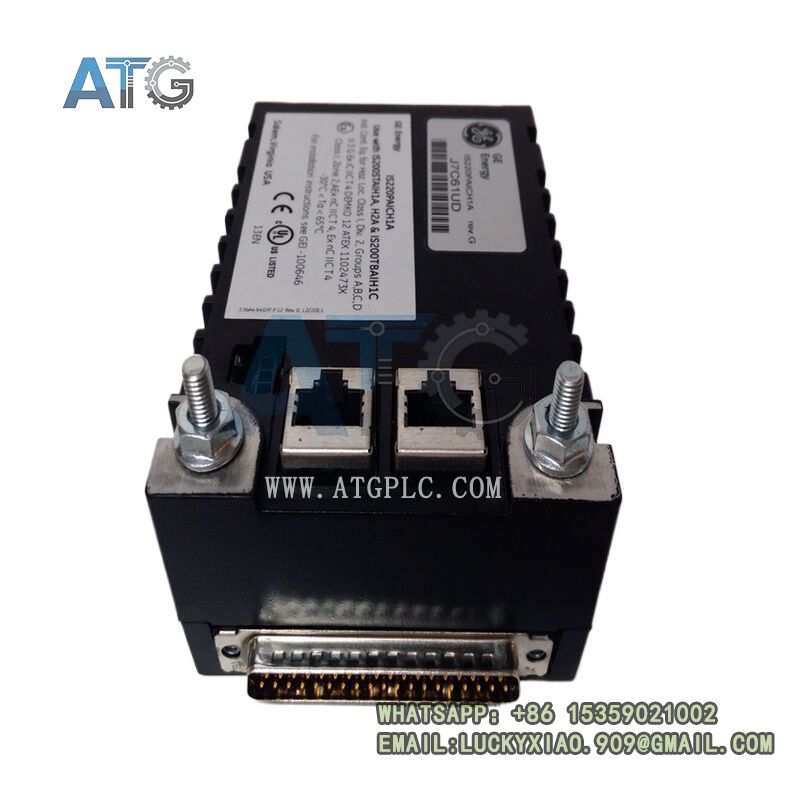

IS220PAICH1A 336A4940CSP3
Product System Overview
The GE IS220PAICH1A 336A4940CSP3 is a high-density industrial analog input module tailored for the GE Mark VIe turbine and plant control system. As a core field signal acquisition component, it serves as the critical data interface between on-site industrial sensors and the central control rack. This module integrates high-precision signal conditioning, electrical isolation and data conversion circuits, working collaboratively with Mark VIe main control boards, communication modules and power supply units to build a complete high-reliability industrial monitoring and control system. Certified for hazardous location operation, it adapts to flammable, high-temperature and high-vibration industrial environments unique to power plants. Widely applied in power generation and process industries, it is an ideal solution for system signal expansion, equipment upgrading and faulty analog module replacement projects.
Core Product Functions
This professional analog input I/O module undertakes full-range field signal acquisition, precision conditioning and digital data transmission for industrial turbine control systems. It features 16 fully isolated analog input channels, compatible with mainstream industrial 4-20mA current and 0-10V voltage signals, supporting access to temperature, pressure, flow, vibration and other sensor data. The module converts weak and noisy raw field signals into standardized digital signals that the main controller can recognize and analyze, ensuring accurate data transmission. Equipped with powerful signal filtering and error correction functions, it eliminates on-site clutter interference and signal drift. It supports real-time data upload and synchronous interaction with the Mark VIe control system, providing comprehensive and accurate data support for unit operating status monitoring, automatic regulation, fault early warning and operational data recording.

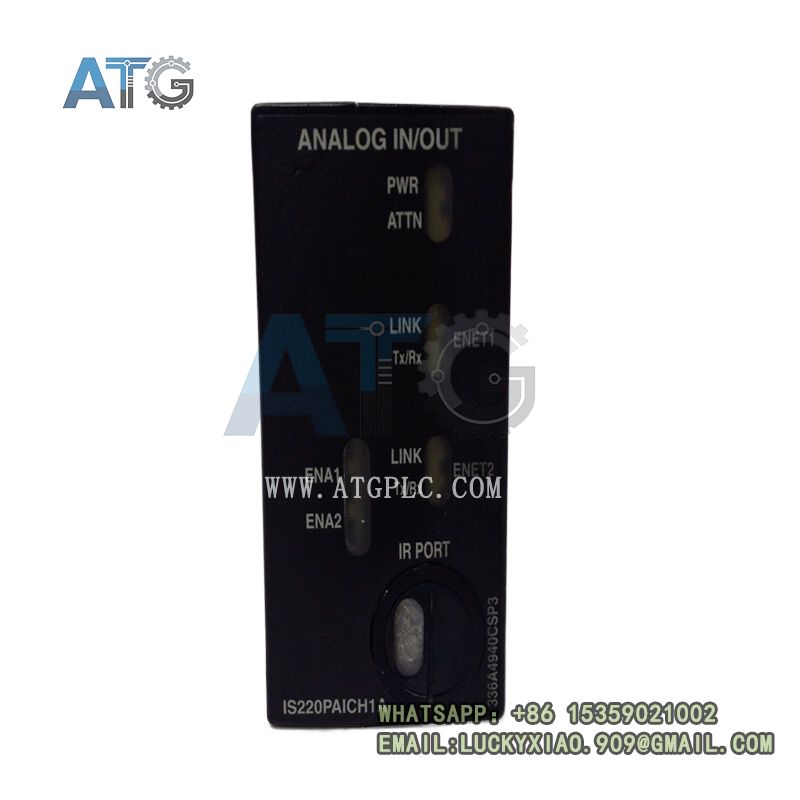

IS220PAICH1A 336A4940CSP3
Product Features & Technical Advantages
The GE IS220PAICH1A 336A4940CSP3 analog input module boasts high integration density, ultra-high measurement accuracy and superior industrial safety performance, meeting strict long-term operation requirements of power generation control systems. With 500Vrms full-channel electrical isolation design, it effectively eliminates ground loop interference and prevents static surge damage to the control rack, greatly improving system stability. The high-precision signal processing chip ensures low temperature drift and high linearity, maintaining consistent acquisition accuracy during long-term continuous operation. Certified for Class I Div 2 hazardous locations, it delivers outstanding environmental adaptability for complex industrial sites. Adopting industrial-grade wide-temperature hardware and anti-corrosion PCB coating, it resists harsh working conditions such as high temperature, dust and electromagnetic interference. The standardized single-slot rack-mounted design supports plug-and-play installation and quick replacement, simplifying on-site commissioning and maintenance and reducing system downtime.
Industrial Application Scenarios
This high-reliability analog input module is widely deployed in key industrial scenarios equipped with GE Mark VIe control systems, especially for hazardous and high-demand production environments. It is mainly applicable to combined cycle power stations, thermal power plants, industrial self-provided power stations and petrochemical process control projects. It provides stable and high-precision signal acquisition services for core equipment such as gas turbines, steam turbines, generator sets and plant auxiliary control systems. As an indispensable front-end data collection component of the Mark VIe control system, it enriches system monitoring dimensions, improves the refinement and accuracy of industrial equipment operation management, and ensures the safe, stable and efficient continuous operation of power generation and process control systems.
