Description
Product Overview

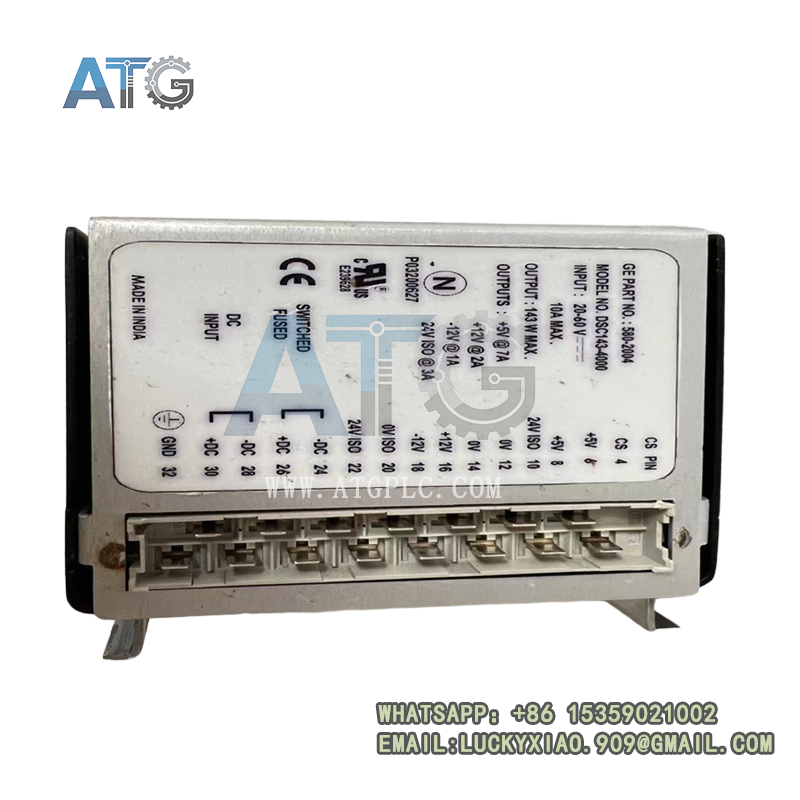

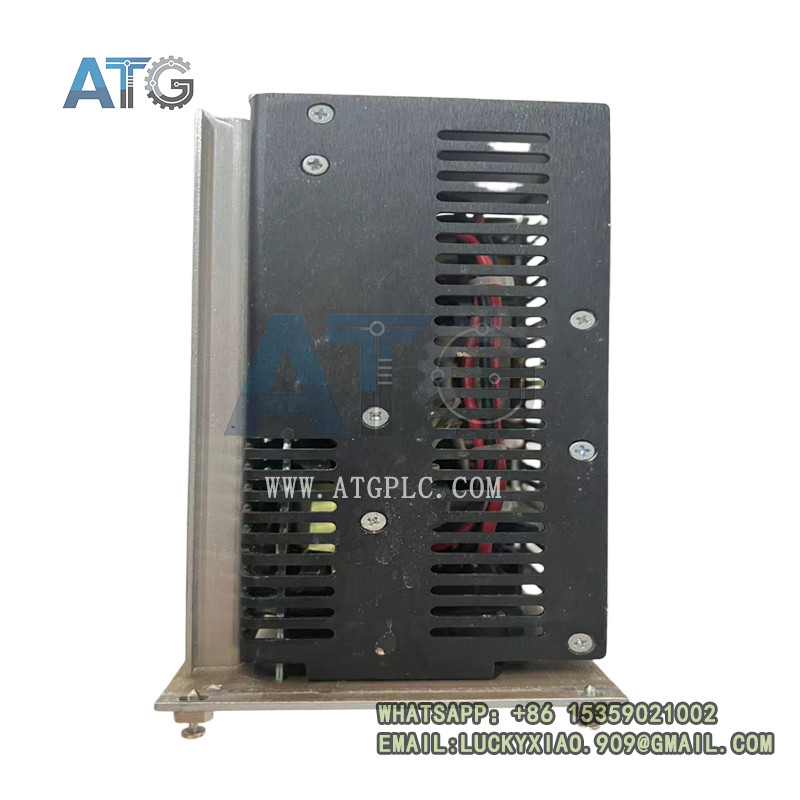

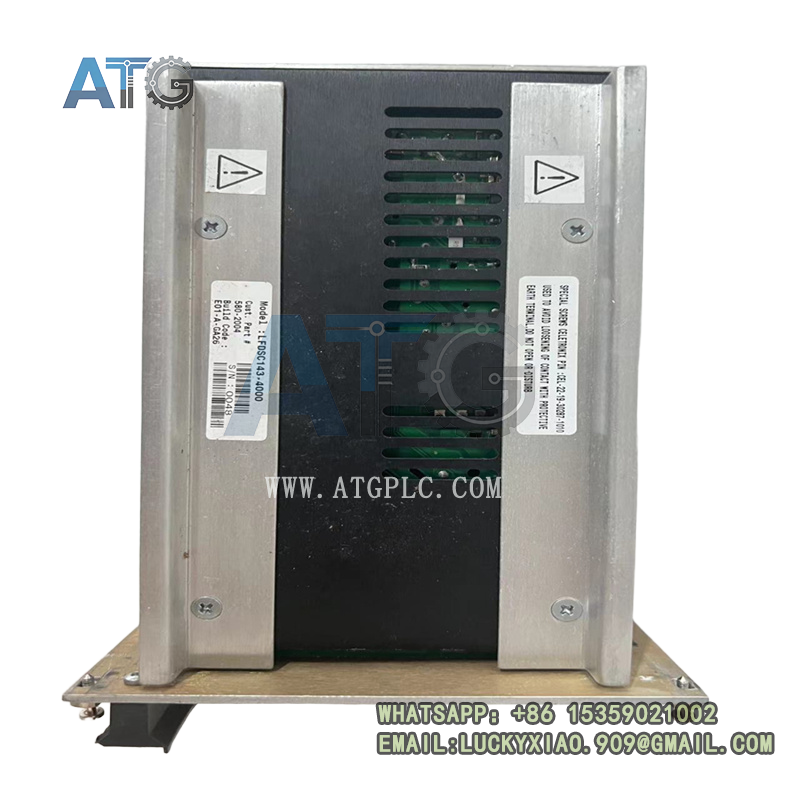

The GE D20-PS LFDSC143-4000 is a high-reliability rack-mounted power supply module. It belongs to the GE D20/D200 substation automation and RTU system series. It acts as the core power supply unit for the entire control rack.
This module provides stable and regulated multi-channel DC power. It supplies power for system CPU, communication boards and I/O modules. It supports continuous and stable operation of substation SCADA equipment. It adopts industrial-grade reinforced design. It adapts fluctuating power and harsh electromagnetic environments. It is widely used for new system deployment, old equipment replacement and industrial spare part backup.
Core Product Features
The GE D20-PS LFDSC143-4000 adopts dedicated power supply architecture for power automation systems. It solves unstable power supply and low efficiency of ordinary power modules. It ensures long-term safe operation of critical control systems.
- Wide Input Voltage Adaptation: It supports wide-range AC input. It adapts different industrial and power grid voltage fluctuations.
- Multi-Channel Stable Output: It provides multiple isolated DC voltage outputs. It meets power demands of various system modules.
- Complete Protection Mechanism: Built-in overload, overvoltage and short-circuit protection. It automatically cuts off faults to protect rear equipment.
- High Power Conversion Efficiency: Optimized circuit design improves energy utilization. It reduces heat loss during long-term operation.
- Strong Anti-Interference Performance: Professional electromagnetic shielding design. It resists strong interference in substation environments.
- Rugged Industrial Structure: Standard rack-mounted design. It supports quick installation and direct replacement.
- Low Failure Rate Operation: Premium industrial components ensure stable output. It supports long-term unattended power supply work.
- Excellent Temperature Resistance: It maintains stable performance under variable temperature conditions. It adapts all-day industrial operation.
Detailed Technical Specifications
All technical parameters comply with GE power automation standards. Each module passes strict power testing and aging screening before delivery.
- Official Model: D20-PS LFDSC143-4000
- Product Type: Industrial Rack-Mount Power Supply Module
- Applicable System: GE D20 / D200 RTU and Substation Automation System
- Core Function: System power conversion, multi-channel power distribution, fault protection
- Input Voltage Range: 85–264 VAC wide industrial voltage
- Input Frequency: 47Hz–63Hz universal power frequency
- Main Output Voltage: Standard 5VDC, 15VDC and 24VDC isolated outputs
- Rated Power: High power load capacity for full rack module operation
- Conversion Efficiency: Over 85% high energy efficiency
- Protection Function: Overload, overvoltage, short-circuit and surge protection
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH, non-condensing environment
- Installation Method: Standard cabinet rack-mounted installation
- Continuous Operation: Support 7×24 hours full-load uninterrupted power supply
- Industrial Certification: CE, UL and EMC electromagnetic compatibility certification
Main Application Fields
This dedicated power supply module focuses on power automation scenarios. It provides reliable and continuous power guarantee for core control equipment.
- Substation Automation System: It supplies stable power for substation RTU and monitoring cabinets. It ensures normal data collection and transmission.
- Power Grid SCADA System: It supports long-term operation of grid monitoring equipment. It avoids system downtime caused by power fluctuation.
- Industrial Power Monitoring: It applies to factory power distribution control systems. It guarantees stable operation of automation monitoring modules.
- Old System Renovation & Upgrade: It replaces aging power supply modules. It improves system power supply stability and safety.
- Power System Spare Backup: It serves as core spare power module. It realizes fast replacement and reduces maintenance downtime.
Related Model Recommendations
The following GE D20 series compatible models match LFDSC143-4000 perfectly. They meet system matching, replacement and function expansion needs.
- WES5162-9101: Substation master station controller. It works with D20 power modules to build complete monitoring systems.
- D20ME: D20 series main control CPU module. It relies on D20-PS module for stable power operation.
- IS420ESWBH2A: Industrial Ethernet switch board. It provides network transmission for power automation systems.
- IC660HHM501: Handheld debugging terminal. It supports on-site maintenance and testing for D20 system equipment.
