Description
Bently Nevada 3500/44M (176449-03) Aeroderivative GT Vibration Monitor
Product Overview
The Bently Nevada 3500/44M with part number 176449-03 is a high-performance dedicated vibration monitoring module specially optimized for aeroderivative gas turbine units, serving as a core functional card of the Bently Nevada 3500 machinery protection system. Designed for the unique vibration characteristics and high-speed operating conditions of aeroderivative gas turbines, this four-channel professional monitor delivers targeted high-precision vibration tracking, band-pass frequency analysis and keyphasor speed synchronization monitoring. It supports dual independent keyphasor signal input, enabling flexible independent tracking filter configuration for each channel pair to adapt to complex frequency vibration signals of high-speed gas turbines. Adopting industrial reinforced circuit design and professional turbine vibration algorithm, the module stably captures tiny vibration fluctuations, rotor unbalance and structural resonance faults of aeroderivative units. With excellent electromagnetic shielding and extreme environmental adaptability, it ensures long-term continuous and accurate monitoring for gas turbine power generation and industrial drive units, widely applied in energy generation, petrochemical power drive and offshore gas turbine equipment monitoring scenarios.

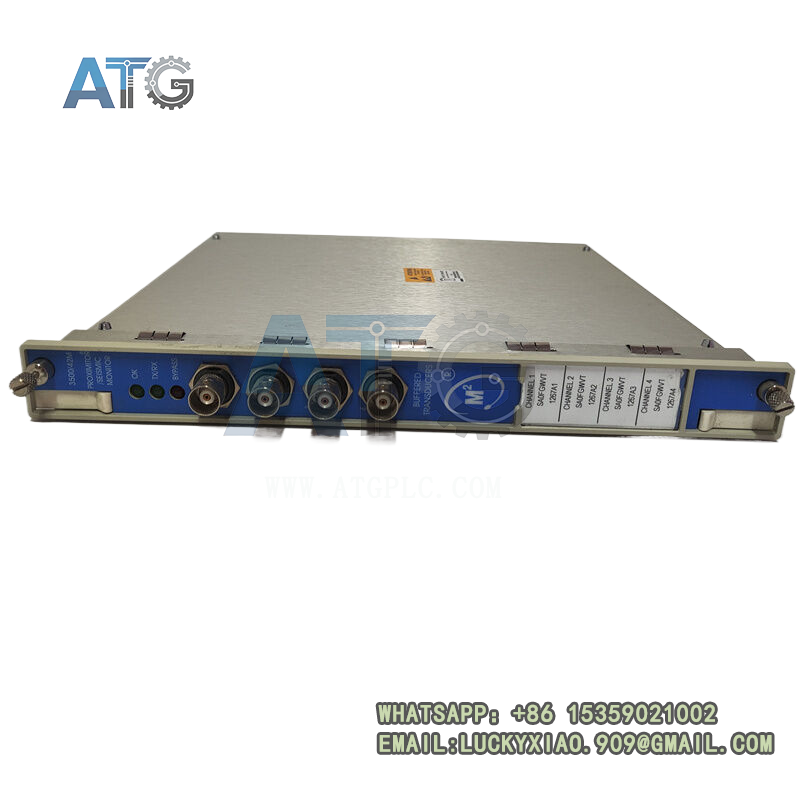

Bently Nevada 3500/44M 176449-03
Core Product Features
2.1 Professional Aeroderivative Gas Turbine Customized Monitoring
Different from universal vibration monitoring modules, the 3500/44M 176449-03 is tailored for aeroderivative gas turbine operating characteristics. It supports 1X vibration tracking and precise band-pass frequency analysis, effectively identifying typical faults such as turbine rotor unbalance, blade vibration and structural resonance that are prone to occur in high-speed lightweight gas turbine units. The dedicated vibration algorithm eliminates interference from high-frequency harmonic signals of gas turbine combustion and rotation, ensuring accurate extraction of effective fault vibration data.
2.2 Dual Keyphasor Input & Independent Channel Tracking
The module is equipped with two independent keyphasor signal interfaces, allowing each group of channel pairs to configure independent tracking filter parameters. This flexible configuration mode adapts to multi-frequency and multi-state vibration characteristics of aeroderivative gas turbines under variable load and variable speed operating conditions, realizing synchronous and differentiated high-precision monitoring of different vibration frequency components of the unit.
2.3 Multi-Sensor Compatible High-Fidelity Signal Acquisition
It perfectly matches mainstream industrial sensors including Velomitor velocity sensors and piezoelectric accelerometers, supporting multi-type field vibration signal access. Built with multi-stage professional filtering circuits and high-resolution sampling chips, the module achieves ultra-low distortion signal conversion, effectively filtering industrial high-frequency clutter and combustion vibration interference, maintaining high-fidelity output of turbine vibration original data.
2.4 Industrial Isolation & Strong Anti-Interference Capability
Adopting complete electrical isolation design between field signal end and system backplane bus, the module isolates common-mode interference, power surge and strong electromagnetic radiation generated during gas turbine high-power operation. The integrated metal shielding shell and EMC optimized structure resist complex electromagnetic environment interference in turbine rooms, ensuring stable measurement accuracy during long-term high-load operation of aeroderivative units.
2.5 Standard Hot-Swap Rack & High Reliability Design
Fully compliant with the unified mechanical specifications of the Bently Nevada 3500 rack system, the card-type structure supports hot-swappable installation and maintenance. Module replacement and fault debugging can be completed without shutting down the monitoring system, ensuring uninterrupted safety monitoring of key gas turbine units. Industrial-grade components and strict aging screening design support 24-hour uninterrupted continuous operation, adapting to long-cycle industrial production working modes.
Bently Nevada 3500/44M 176449-03
Detailed Technical Specifications
3.1 Core Monitoring & Performance Parameters
| Parameter Item | Technical Data |
|---|---|
| Product Model | 3500/44M (176449-03) Aeroderivative GT Vibration Monitor |
| Product Type | Four-Channel Dedicated Gas Turbine Vibration Monitoring Module |
| Channel Configuration | 4 Independent Monitoring Channels |
| Keyphasor Interface | 2 Independent Keyphasor Signal Inputs |
| Core Monitoring Functions | 1X Vibration Tracking, Band-Pass Frequency Analysis, Speed Synchronous Monitoring |
| Compatible Sensors | Velomitor Velocity Sensors, Piezoelectric Accelerometers |
| Alarm Configuration | User Programmable Setpoints & Relay Alarm Output |
| Signal Processing | Dedicated GT Vibration Filtering & Frequency Tracking Algorithm |
| System Compatibility | Fully Compatible with Bently Nevada 3500 Rack System |
3.2 Power Supply Parameters
| Power Parameter | Specification |
|---|---|
| Power Supply Mode | 3500 Rack Backplane Bus Power Supply |
| Rated Power Consumption | ≤ 7.0 W (Typical Operating Power) |
| Power Protection | Overcurrent, Overvoltage, Reverse Connection & Surge Protection |
3.3 Environmental & Mechanical Parameters
| Item | Technical Specification |
|---|---|
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -55°C ~ +100°C |
| Ambient Humidity | 0% – 95% (Non-condensing) |
| Ingress Protection Rating | IP20 (Industrial Cabinet Indoor Protection Level) |
| Vibration Resistance | Compliant with ISO 10816 Machinery Vibration Standard |
| Installation Method | 3500 Standard Rack Card Slot Mounting |
| Weight | Approx. 0.91 kg (2.01 lbs) |
| Dimensions (L × W × H) | 241.3 mm × 24.4 mm × 241.8 mm |
Certification Compliance
The Bently Nevada 3500/44M 176449-03 module complies with global industrial electrical safety and electromagnetic compatibility standards. It has obtained CE EMC electromagnetic compatibility certification, UL industrial safety certification and CSA electrical certification. The product strictly adheres to API petroleum industry specifications and ISO 10816 mechanical vibration monitoring standards applicable to gas turbine units. Each module undergoes rigorous temperature cycling aging, mechanical vibration impact testing and professional signal accuracy calibration before factory delivery, ensuring stable and reliable monitoring performance in long-term continuous operation of high-speed aeroderivative gas turbine equipment.
Bently Nevada 3500/44M 176449-03
Application Scenarios
- Aeroderivative Gas Turbine Power Generation: Dedicated for vibration condition monitoring of various aeroderivative gas turbine generator sets, realizing real-time tracking of rotor vibration and structural vibration to ensure safe and stable operation of power generation units.
- Petrochemical Industrial Drive Units: Applied in gas turbine drive equipment for refineries and chemical plants, monitoring unit vibration status under variable load conditions to prevent equipment resonance and fatigue failure.
- Offshore Oil & Gas Platforms: Deployed in offshore platform gas turbine power units, adapting to humid, salt-fog and high-vibration industrial environments to provide long-term reliable safety monitoring.
- Emergency & Peak Shaving Power Stations: Suitable for frequent start-stop and variable-speed aeroderivative gas turbine units, accurately capturing vibration changes during unit switching and load adjustment.
- Industrial Predictive Maintenance System: Provides professional frequency-domain vibration data and 1X tracking analysis data for gas turbine equipment, supporting fault early warning, trend analysis and intelligent operation and maintenance management.
Product Advantages & After-sales Support
As a dedicated monitoring module for aeroderivative gas turbines in the 3500 series, the 176449-03 has irreplaceable professional advantages compared with universal vibration modules. The dual keyphasor independent tracking design perfectly adapts to the variable-speed and variable-load operating characteristics of gas turbines, solving the problem of inaccurate monitoring of traditional modules for complex frequency vibration of high-speed turbine units. The professional band-pass filtering and 1X vibration tracking algorithm effectively identifies early hidden faults such as blade abrasion and rotor unbalance. With wide temperature adaptability and strong anti-interference performance, it can operate stably in high-temperature and high-electromagnetic-interference turbine room environments. The hot-swap maintenance design reduces system downtime risk and improves the overall operating reliability of gas turbine monitoring systems.
Bently Nevada provides a 1-year original manufacturer warranty for the 3500/44M 176449-03 module. Complete official datasheets, user operation manuals and professional wiring and configuration guidelines are provided. Global professional technical support covers rack compatibility debugging, sensor parameter matching, turbine vibration parameter calibration and signal fault troubleshooting, ensuring long-term stable operation of aeroderivative gas turbine machinery protection and monitoring systems.
Conclusion
The Bently Nevada 3500/44M (176449-03) is a high-reliability professional vibration monitoring module customized for aeroderivative gas turbine units. Integrating dedicated gas turbine vibration tracking algorithm, dual keyphasor synchronous monitoring, multi-channel high-precision signal acquisition and industrial rugged structure, it provides targeted and accurate full-cycle condition monitoring for high-speed gas turbine equipment. Featuring professional monitoring functions, excellent environmental adaptability and convenient hot-swap maintenance, this module is the exclusive core monitoring component for aeroderivative gas turbine safety protection in the Bently Nevada 3500 system. It is widely recognized and applied in power generation, petrochemical and offshore energy industries, serving as the optimal solution for high-precision safety monitoring of aeroderivative gas turbine units.
