Description
- Model: 3500/20 125744-02
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 High-Precision Machinery Protection System Series
- Core Function: Acts as rack interface for system config and data communication
- Type: Rack Interface Communication Module (RIM)
- Key Specs: Proprietary rack protocol support, RS232/Ethernet interfaces, dedicated slot installation
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China

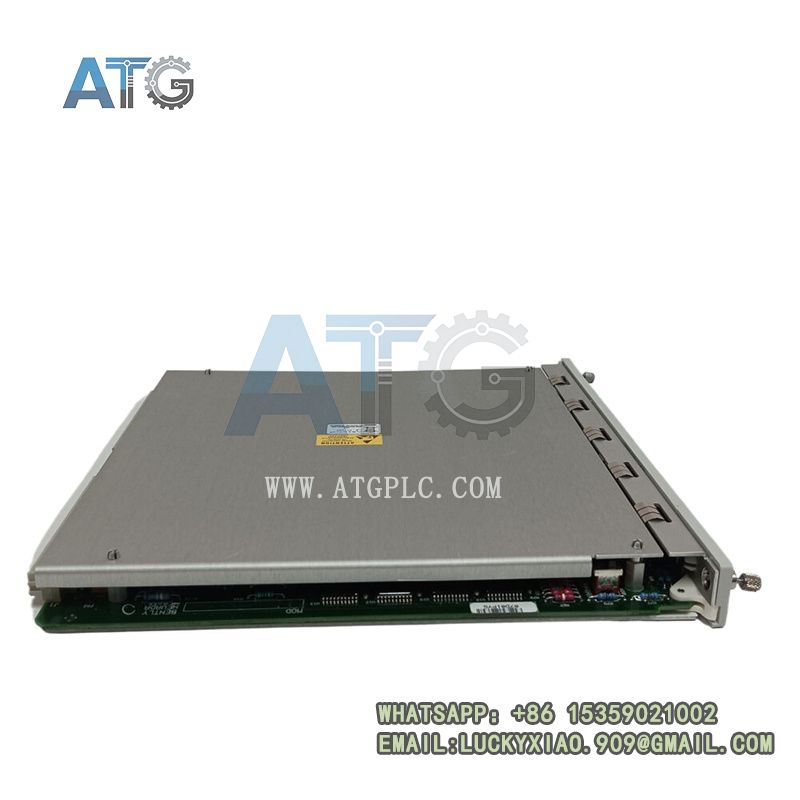

Bently Nevada 3500/20 125744-02
Product System Overview
The Bently Nevada 3500/20 125744-02 is an essential Rack Interface Module (RIM) designed exclusively for the Baker Hughes 3500 machinery protection system. As the primary communication and configuration gateway of the entire 3500 rack, it occupies the dedicated No.1 slot adjacent to the power supply unit, serving as the core bridge between the rack hardware and external management systems. This module works in coordination with all monitoring cards, power modules and signal acquisition units to form a complete API 670-compliant industrial machinery safety monitoring system. It supports exclusive proprietary rack protocols and is compatible with mainstream external communication processors including TDIX and DDIX, enabling seamless data linkage with System 1 diagnostic software, DCS and SCADA platforms. Widely validated in global heavy industrial sites, it is a mandatory standard component for complete system operation, routine maintenance and faulty interface module replacement.
Core Product Functions
This professional rack interface module undertakes overall system configuration, centralized data collection and external communication interaction for the 3500 machinery protection rack. It supports online system parameter configuration, program debugging and functional parameter calibration, allowing engineers to uniformly set and optimize the operating logic of all internal modules. The module automatically summarizes real-time operating data, equipment status information and fault alarm logs from the entire rack, and transmits standardized data to upper industrial control systems for unified monitoring and analysis. It provides stable interface support for external dynamic data processing equipment, realizing real-time output of vibration, displacement, speed and other mechanical operation data. In addition, it feeds back rack operating status and communication anomalies in real time, assisting personnel in rapid fault diagnosis, system troubleshooting and daily operational maintenance management.

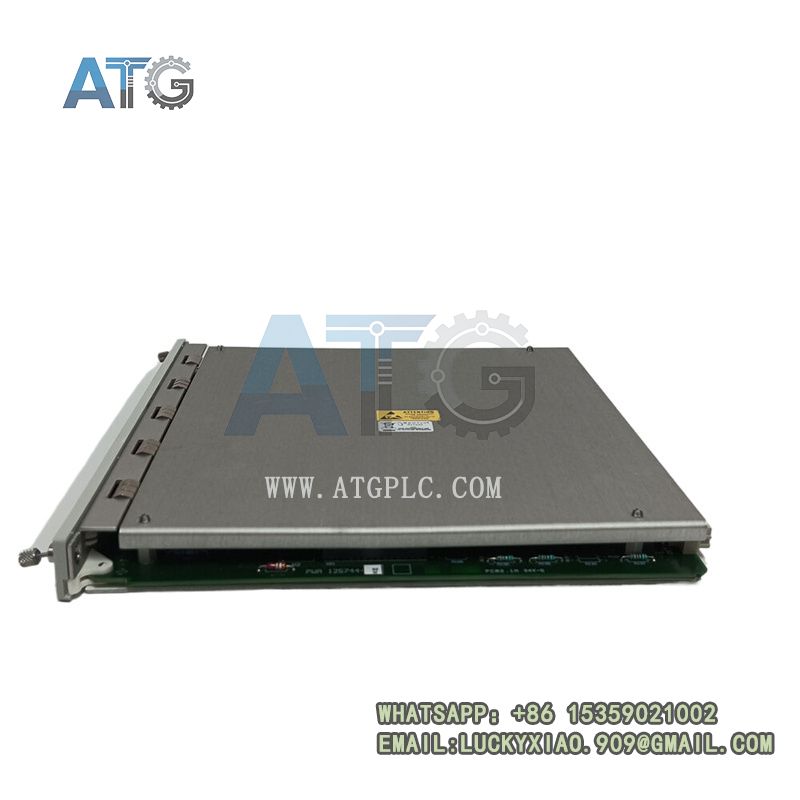

Bently Nevada 3500/20 125744-02
Product Features & Technical Advantages
The 3500/20 125744-02 rack interface module features exclusive system compatibility, stable data transmission performance and high industrial reliability, meeting rigorous long-term operation standards of industrial monitoring systems. As a dedicated core interface unit for the 3500 rack, it perfectly matches the system’s proprietary communication protocol with zero adaptation errors, ensuring efficient and accurate data interaction. Equipped with multiple standard communication interfaces, it offers flexible docking options for various external debugging and monitoring devices, greatly improving system expandability. Adopting industrial-grade circuit design and electromagnetic shielding technology, it resists on-site strong electromagnetic interference and mechanical vibration, maintaining stable communication performance in harsh factory environments. The module features intelligent self-diagnosis function to automatically identify communication failures and operational anomalies. Its standardized dedicated slot installation simplifies assembly and replacement, effectively reducing system debugging cycle and maintenance downtime.
Industrial Application Scenarios
This high-reliability rack interface module is widely deployed in key industrial scenarios equipped with Bently Nevada 3500 machinery protection systems. It is mainly applied to thermal power plants, combined cycle power stations, petrochemical refining bases, oil and gas compression stations and large metallurgical enterprises. It serves as the core communication and configuration hub for monitoring racks supporting steam turbines, gas turbines, centrifugal compressors and other high-value rotating equipment. As an indispensable foundational component of the 3500 TSI system, it ensures efficient data transmission and normal configurable operation of the entire monitoring system, comprehensively improving the intelligence and stability of industrial mechanical equipment health management.

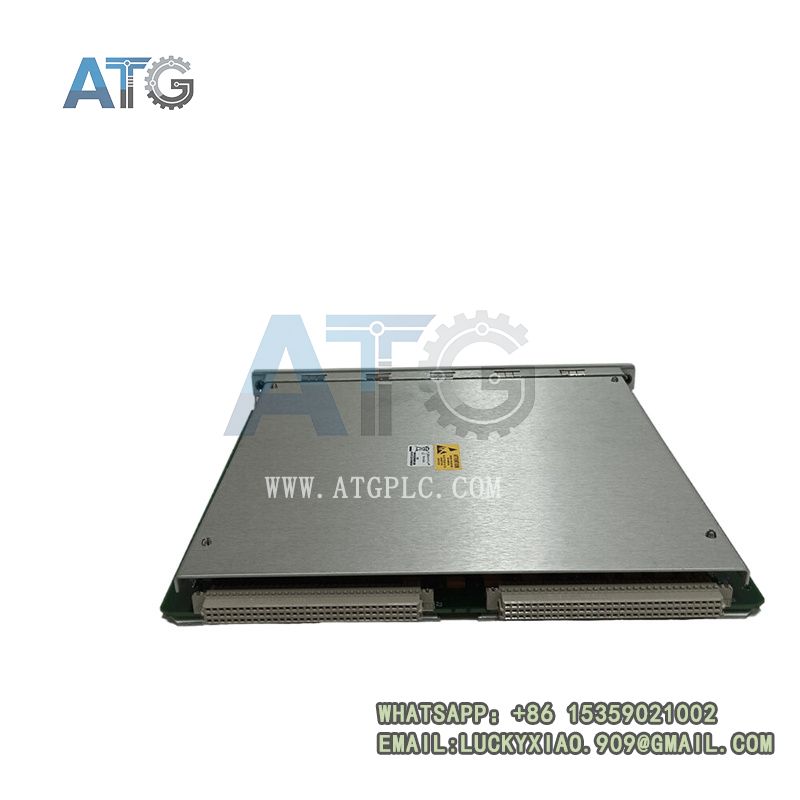

Bently Nevada 3500/20 125744-02
