Description
Model: PFEA112-65 3BSE030369R0065
Brand: ABB
Series: ABB PFEA Web Tension Measurement & Control Series
Core Function: Precisely measures and controls web tension in industrial processing
Type: Industrial Web Tension Control Module
Key Specs: 24VDC power supply, RS485 Modbus RTU, dual tension signal acquisition
Supply Status: In stock
Stock: Available
Warranty: 1 year
Ship From: China
PFEA112-65 3BSE030369R0065
Product System Integration Overview
The ABB PFEA112-65 3BSE030369R0065 is a professional high-precision tension control module engineered for continuous web processing industrial systems. As a core front-end measurement and control unit in winding, unwinding and slitting production lines, it works collaboratively with tension sensors and upper automation controllers to build a closed-loop tension regulation system. This module features excellent compatibility with ABB full-series tension detection equipment and mainstream PLC control systems, supporting seamless hardware docking and protocol data interaction. Adopting industrial anti-interference circuit design, it adapts to long-term continuous operation in high-speed rotating and vibrating production environments. It is widely applied in new flexible material production line construction, old tension control system upgrading and faulty module replacement maintenance projects.
Detailed Product Functionalities
This dedicated tension control module integrates high-precision signal acquisition, intelligent data calculation and stable communication transmission to achieve accurate web tension management. It supports dual-channel tension sensor signal collection, independently acquiring and calculating real-time tension values of processed materials, and realizing SUM signal superposition and independent A/B signal display. Built-in 330Hz stable excitation signal output provides reliable driving signals for tension sensors, ensuring consistent and accurate detection data. It supports flexible parameter calibration and tension threshold setting, automatically adjusting output signals to stabilize material tension and effectively avoid material deviation, stretching or breaking during high-speed operation. Equipped with complete self-diagnosis function, it can monitor sensor anomalies and signal faults in real time and feed back alarm information to ensure stable system operation.

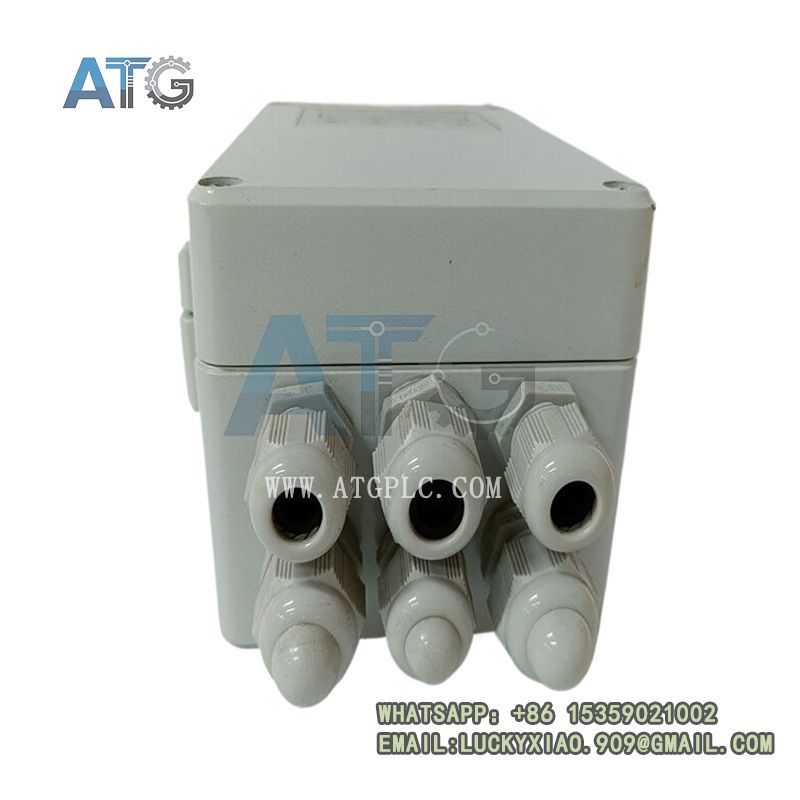

PFEA112-65 3BSE030369R0065
Product Features & Technical Strengths
The ABB PFEA112-65 tension control module stands out with ultra-high measurement accuracy, flexible configurability and strong industrial environmental adaptability, meeting high-standard flexible material processing requirements. Its optimized signal filtering algorithm effectively eliminates tension data jitter caused by mechanical vibration and equipment operation, ensuring stable and reliable detection results. The standard RS485 Modbus RTU communication interface enables fast data transmission and remote parameter debugging, greatly improving on-site equipment management efficiency. The compact modular structure supports standard guide rail installation, saving cabinet space and simplifying wiring and deployment procedures. With industrial-grade electromagnetic compatibility and dust-proof design, it resists complex on-site interference and supports 24/7 long-term uninterrupted stable operation with low failure rate and excellent durability.
Industrial Application Scenarios
This high-precision tension control module is widely deployed in various flexible material rolling and processing industrial scenarios. It is mainly applicable to paper-making winding and unwinding production lines, textile fabric processing equipment, plastic film rolling systems, metal foil slitting production lines and printing industry web transmission equipment. As a key core component of the ABB PFEA tension control series, it provides precise and stable tension regulation support for industrial flexible material processing, effectively improving product forming quality, reducing material waste and enhancing the overall automation level of production lines.
