ABB SPASI23 16 channel analog input module

Description

Product Overview

The ABB SPASI23 is a high-precision 16-channel universal analog input module designed exclusively for ABB Symphony Plus HR distributed control systems (DCS). As a core field signal acquisition and conversion unit in process automation, this industrial-grade module performs high-resolution sampling, isolation conditioning and digital conversion of multiple types of field analog signals, including voltage, current, resistance temperature detector (RTD) and thermocouple (TC) signals. It converts continuous analog process variables into high-stability digital data for upper DCS controllers, enabling real-time monitoring, closed-loop regulation and data recording of temperature, pressure, flow and liquid level in industrial process systems.

Featuring an independent converter-per-channel architecture with 24-bit front-end sigma-delta ADC and 16-bit effective resolution, the SPASI23 eliminates signal crosstalk and sampling delay caused by traditional multiplexed acquisition modes, achieving ultra-fast and consistent multi-channel synchronous sampling. Equipped with 1500V high-strength galvanic isolation per channel and multi-level EMC anti-interference design, the module maintains ultra-high signal accuracy and operational stability in high-noise, high-humidity and vibration-prone industrial environments. Supporting universal multi-signal adaptive input and automatic signal type recognition, it covers almost all conventional process analog signal types. All units undergo strict ABB factory full-load aging testing, precision calibration and standardized batch quality inspection, fully adapting to standardized, traceable and high-efficiency procurement demands of the global industrial e-commerce market. It is widely deployed in new Symphony Plus DCS construction, automation system upgrading, old analog module replacement and industrial intelligent transformation projects across process industries worldwide.

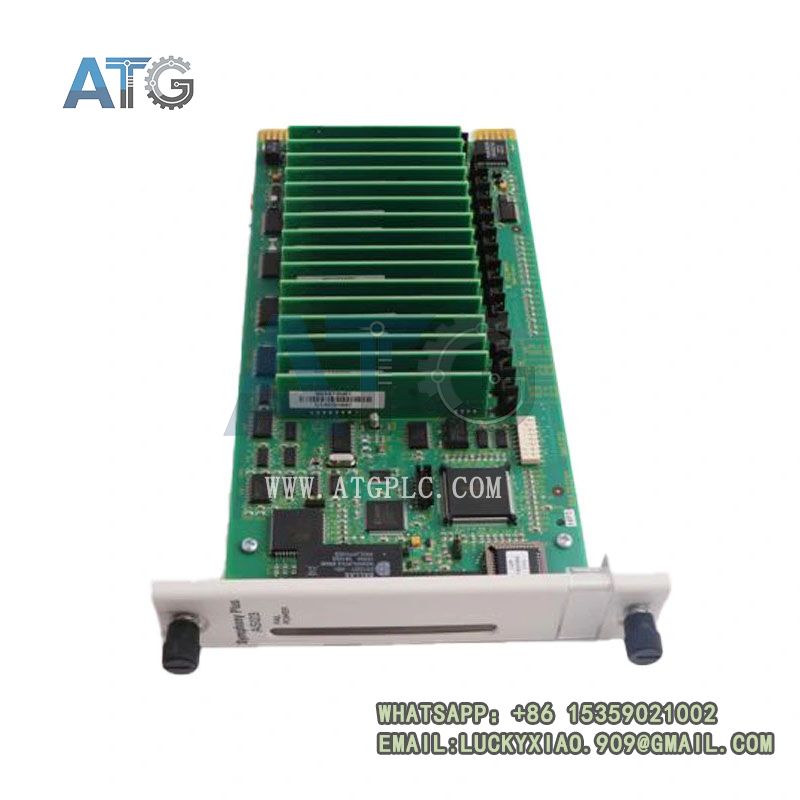

ABB SPASI23

Core Product Features & Competitive Advantages

Different from ordinary multiplexed analog input modules, the ABB SPASI23 high-performance universal analog input module has prominent comprehensive advantages in sampling precision, signal compatibility, anti-interference capability and system operational stability. It solves common industry pain points such as low multi-channel sampling consistency, single signal adaptation, poor isolation protection, slow response speed and complicated parameter debugging, providing high-precision and high-reliability field signal acquisition solutions for large-scale process DCS systems. The core competitive advantages are summarized as follows:

• 16-Channel Independent High-Density Acquisition Architecture: Adopting exclusive one-channel-one-converter independent design, all 16 analog input channels support synchronous high-speed sampling without time-sharing multiplexing delay. It completely avoids inter-channel signal crosstalk and phase deviation, ensuring uniform and consistent sampling accuracy for all field process signals.
• Ultra-High 16-Bit Effective Sampling Precision: Equipped with 24-bit sigma-delta front-end conversion chip and 16-bit effective ADC resolution, achieving typical full-scale accuracy up to ±0.1%. It supports ultra-precise collection of weak field signals, fully meeting high-precision closed-loop control and process parameter accurate monitoring requirements of fine chemical, thermal power and pharmaceutical industries.
• Full Universal Multi-Signal Adaptive Compatibility: Native support for multiple mainstream industrial analog signal types, including thermocouple (TC), RTD resistance temperature signal, millivolt signal, standard voltage signal and standard current signal. It realizes one-module multi-purpose adaptive acquisition, eliminating the need for multiple special modules and greatly simplifying system configuration.
• 1500V Per-Channel Galvanic Isolation Protection: Each independent channel is equipped with high-strength electrical isolation design, realizing 1500V isolation strength between field equipment and internal DCS control circuit. It effectively isolates industrial surge voltage, static interference and ground loop potential difference, protecting upper core controller equipment from damage.
• Ultra-Fast Multi-Channel Synchronous Response: Supporting 250μs single-channel conversion speed and 50ms full-channel synchronous data refresh rate, realizing near real-time acquisition and upload of dynamic process signals. It adapts to high-speed fluctuating process working conditions and ensures rapid response of system closed-loop regulation.
• Perfect Symphony Plus DCS System Matching: Developed exclusively for ABB Symphony Plus HR series distributed control systems, supporting seamless backplane bus docking and plug-and-play deployment. No complex driver configuration or protocol adaptation is required, with extremely high system compatibility and operational stability.
• Intelligent Automatic Signal Recognition & Calibration: Built-in intelligent signal identification algorithm, supporting automatic recognition of access signal types and adaptive parameter matching. It supports on-site remote zero calibration and full-scale calibration, greatly reducing engineering debugging difficulty and maintenance workload.
• Industrial-Grade Harsh Environment Resistance: Adopting wide-temperature industrial components and enhanced anti-vibration and moisture-proof structure design, supporting stable long-term operation in extreme industrial environments. It resists electromagnetic interference, dust, high humidity and temperature fluctuation, adapting to 7×24-hour uninterrupted operation of process industrial systems.
• Low Power Consumption & Low Thermal Attenuation: Optimized low-power circuit design with fixed 5VDC low-voltage power supply, low heat generation during long-term full-load operation. It avoids signal accuracy drift caused by high-temperature aging and ensures long-term consistency of module acquisition performance.
• Complete Self-Diagnosis & Status Early Warning: Integrated real-time full-module self-diagnosis function, with on-board LED status indicators. It automatically identifies channel open circuit, signal overload, communication abnormality and power supply fault, realizing rapid fault location and predictive maintenance to reduce system downtime risks.

Detailed Technical Specifications (Key Highlight Parameters)

All technical parameters of the ABB SPASI23 strictly comply with ABB official Symphony Plus DCS system design specifications and IEC international industrial process control equipment standards. Featuring independent multi-channel synchronous sampling, ultra-high precision conversion, full-channel isolation protection and universal signal adaptation, it fully meets the technical requirements of large-scale DCS system construction, process signal acquisition system upgrading, old module replacement and batch standardized industrial procurement. The classified detailed parameters are as follows:

3.1 Basic Product Identification & Classification

• Official Model: SPASI23
• Product Type: 16-Channel Universal Isolated Analog Input Module
• Applicable System: ABB Symphony Plus HR Series Distributed Control System
• Core Function: Synchronous high-precision acquisition, isolation conditioning and digital conversion of industrial temperature, voltage, current and millivolt analog signals
• Applicable Scenarios: Thermal power generation, petrochemical processing, pharmaceutical manufacturing, papermaking industry, environmental protection monitoring, metallurgical process automation and other large-scale process industrial DCS systems
• Executive Standards: IEC 61131-2 industrial control standard, IEC 61000-6-2 EMC electromagnetic compatibility standard, ABB Symphony Plus official system specification

3.2 Core Channel & Sampling Precision Parameters

• Total Analog Input Channels: 16 fully independent single-ended input channels
• ADC Architecture: 24-bit sigma-delta front-end conversion, 16-bit effective resolution
• Full-Scale Acquisition Accuracy: ±0.1% typical precision, ±0.15% maximum error
• Single-Channel Conversion Time: 250μs ultra-fast signal conversion
• Full-Channel Refresh Cycle: 50ms synchronous data update for all 16 channels
• Sampling Mode: Full-channel simultaneous sampling, no time-sharing multiplexing delay
• Long-Term Stability: Zero drift and gain drift compensation, long-term accuracy retention

3.3 Universal Supported Signal Types

• Current Signal: 4–20mA, 0–20mA, ±20mA standard industrial current signals
• Voltage Signal: 0–10V, ±10V, 1–5V, ±2.5V standard industrial voltage signals
• Millivolt Signal: 0–100mV, -100mV～+100mV weak millivolt signal acquisition
• Temperature Signal: Multi-type thermocouple (TC) signal, multi-specification RTD resistance temperature signal
• Input Impedance: ≥250Ω for current input; ≥100kΩ for voltage input

3.4 Power Supply & Electrical Isolation Parameters

• Rated Power Supply: +5VDC (±5% wide voltage adaptive range)
• Typical Operating Current: 500mA low power consumption design
• Channel Isolation Strength: 1500V AC/DC per-channel independent galvanic isolation
• Isolation Mode: Complete electrical isolation between field side and DCS control side
• Circuit Protection: Built-in overvoltage, overcurrent and surge transient suppression protection
• Anti-Interference Level: Meet industrial high-level EMC anti-interference standard, resisting common-mode and differential-mode interference

3.5 Communication & System Docking Parameters

• Bus Interface: Dedicated Symphony Plus HR backplane high-speed bus
• Transmission Mode: Bidirectional real-time data transmission, signal data upload and parameter configuration download
• System Configuration: Support remote signal type configuration, calibration parameter setting and channel enable/disable control
• Data Processing: Built-in digital filtering algorithm, supporting adjustable filtering coefficient to adapt to different interference environments
• Network Expansion: Support multi-module parallel expansion to meet large-scale multi-point analog signal acquisition demands

3.6 Environmental & Mechanical Parameters

• Standard Operating Temperature: 0℃ ~ +70℃ wide industrial operating temperature range
• Storage Temperature Range: -40℃ ~ +85℃ high and low temperature resistant storage
• Working Humidity Range: 5% ~ 95% RH non-condensing full humidity adaptation
• Protection Grade: IP30 industrial dust-proof and anti-splash protection grade
• Installation Method: Standard 35mm DIN rail mounting + Symphony Plus cabinet rack installation
• Structural Feature: Reinforced aluminum shell, anti-vibration and anti-aging industrial design
• Vibration Resistance: Comply with IEC 60068-2 industrial vibration resistance standard

3.7 Diagnosis & Reliability Parameters

• Status Indication: On-board multi-color LED indicators for power operation, bus communication and channel fault alarm
• Self-Diagnosis Function: Real-time detection of channel open circuit, signal overload, power abnormality and communication failure
• Fault Processing: Automatic fault locking, abnormal channel shielding and fault data recording
• Calibration Function: Support remote automatic calibration and on-site manual precision correction
• Continuous Operation: Support 7×24 hours long-term full-load stable operation

3.8 Certification & Quality Compliance

• Industrial Certifications: CE safety certification, RoHS environmental certification, EAC certification
• EMC Compliance: Fully compliant with IEC 61000 series industrial electromagnetic compatibility standards
• Industrial Standard: IEC 61131-2 international programmable controller equipment standard
• Factory Testing: Strict full-channel precision test, communication compatibility test, high-low temperature alternating test and 72-hour full-load aging test
• Batch Consistency: Uniform sampling accuracy, stable isolation performance and consistent operational quality in batch production
• Field Reliability: Verified by massive global Symphony Plus DCS projects with ultra-low field failure rate

E-commerce Sales Mode & Procurement Advantages

As a standardized core high-precision analog input module for ABB Symphony Plus HR DCS systems, the ABB SPASI23 adopts a mature, transparent and standardized global industrial e-commerce sales system. It supports global online inquiry, spot retail procurement, batch wholesale and engineering customized supporting services, providing one-stop reliable procurement solutions for DCS system integrators, thermal power and petrochemical operation and maintenance departments, industrial automation engineering companies and industrial spare parts suppliers. All products are 100% original factory genuine with unified official technical parameters, complete quality traceability, transparent pricing mechanism and full-cycle after-sales guarantee, effectively reducing enterprise procurement risks and comprehensive DCS system operation and maintenance costs.

4.1 Standardized Transparent Online Sales System

This product implements unified global official technical specifications and standardized industrial precision module packaging, with consistent global warranty policies and quality inspection standards. E-commerce platforms provide complete open technical resources including official datasheets, Symphony Plus system matching manuals, multi-signal configuration tutorials, on-site calibration guidelines and full qualification certification documents. The unified official model supports factory authenticity verification and full lifecycle traceability. It completely avoids refurbished, disassembled and counterfeit modules, ensuring 100% system matching and long-term high-precision signal acquisition performance for industrial core DCS control systems.

4.2 Diversified Flexible Procurement Modes

• Single & Small-Batch Spot Retail: Support single-piece and small-quantity spot ordering, applicable to daily DCS system operation and maintenance, faulty analog input module replacement, on-site process signal loop debugging and old DCS system precision optimization projects. Sufficient spot inventory ensures short delivery cycle, quickly restores system high-precision signal acquisition function and minimizes industrial production downtime losses.
• Bulk Wholesale & Framework Cooperation: Provide hierarchical preferential pricing and customized batch supply schemes for large-scale DCS new construction projects, energy and process industrial enterprises and professional automation integration companies. Support long-term framework agreement cooperation and fixed-point stocking, significantly reducing long-term spare parts procurement costs for enterprise Symphony Plus DCS systems.
• Engineering Customized Supporting Service: Provide professional model matching verification, DCS analog signal acquisition system scheme design and on-site installation & calibration debugging guidance according to customers’ new DCS system construction, automation upgrading and legacy process control system transformation projects, realizing one-stop supporting procurement of modules and ABB Symphony Plus series auxiliary accessories.

4.3 Full-Cycle E-commerce Value-Added Services

• 100% Original Genuine Quality Guarantee: All supplied products are original ABB factory genuine analog input modules with complete factory precision test reports and calibration certificates. Official model traceability ensures zero system matching error and zero signal acquisition failure risk for industrial core process control systems.
• Professional Industrial Anti-Damage Logistics: Adopt dedicated anti-vibration, shockproof, moisture-proof and anti-static industrial precision module packaging, protecting internal high-precision conversion chips and circuit structures during long-distance transportation. Support global multi-warehouse delivery to ensure intact product arrival and undamaged precision performance.
• 24/7 Full-Process Professional Technical Support: Provide pre-purchase system channel capacity and signal type matching consultation, mid-purchase on-site installation guidance and multi-parameter configuration tutorials, and post-purchase signal precision calibration, fault diagnosis and system debugging full-process technical services.
• Complete Official After-Sales Warranty: Enjoy unified global ABB official warranty service, support online after-sales application, quality problem replacement and professional operation and maintenance guidance, reducing enterprise DCS system operation risks and precision equipment maintenance costs.

ABB SPASI23

Main Industrial Application Scenarios

Benefiting from its 16-channel high-density synchronous acquisition, 16-bit ultra-high precision, full-channel isolation protection and universal multi-signal adaptation capability, the ABB module is widely applied in high-precision process signal monitoring and DCS system expansion links of various large-scale process industrial automation systems, covering key fields as follows:

• Thermal Power Plant DCS System: Used for high-precision acquisition of boiler temperature, pressure, flue gas parameters and turbine auxiliary process signals. It supports stable and accurate monitoring of power plant core process parameters, providing reliable data basis for unit automatic regulation and safety interlock protection.
• Petrochemical & Chemical Process Automation: Applied in real-time sampling of reaction kettle temperature, pipeline pressure, material flow and liquid level signals in chemical production processes. Its high-precision acquisition and strong anti-interference performance ensure precise closed-loop control of chemical continuous production parameters and improve product qualification rate.
• Pharmaceutical & Fine Chemical Industry: Serving high-precision process monitoring of pharmaceutical purification workshops and fine chemical reaction processes. The ±0.1% high-precision sampling meets strict process parameter control requirements in high-standard production environments, ensuring production process standardization and product quality stability.
• Environmental Protection & Water Treatment Engineering: Used for signal acquisition of sewage treatment temperature, water quality parameters, flue gas desulfurization and denitrification process data. It realizes long-term stable monitoring of environmental protection process parameters and supports intelligent operation of environmental protection equipment.
• Legacy DCS System Upgrading & Renovation: Ideal for precision upgrading and channel expansion of old Symphony Plus DCS systems. The universal multi-signal design replaces multiple traditional single-function modules, simplifies system architecture, improves signal acquisition precision and system intelligent level, and reduces long-term operation and maintenance costs.

Product Value & Market Competitiveness

The ABB high-precision universal analog input module solves the core pain points of traditional industrial analog acquisition equipment such as low sampling precision, poor multi-channel consistency, single signal adaptation, weak anti-interference ability and complex on-site debugging. Its independent per-channel conversion architecture realizes synchronous delay-free sampling of 16 channels, while 16-bit high precision and full-channel isolation protection fundamentally improve the accuracy and stability of industrial process signal acquisition.

In the global industrial e-commerce market, this original ABB Symphony Plus dedicated module features exclusive DCS system compatibility, universal multi-signal adaptive capability, ultra-wide environmental adaptability and industrial-grade long-term stability advantages. Its verified excellent performance in global large-scale process industrial projects, ultra-low failure rate and flexible engineering scalability make it irreplaceable in new DCS system construction, process precision upgrading and old module replacement projects. With standardized transparent procurement mechanism, 100% genuine quality assurance and full-cycle professional after-sales service, it has outstanding comprehensive competitiveness in the high-end industrial DCS spare parts market.
