ABB REF542PLUS 1VCR007346 Intelligent Electronic Devices (IED)

Description

Product Overview

The ABB REF542PLUS with exclusive part number 1VCR007346 is a high-performance multifunctional protection, measurement and control intelligent electronic device (IED) belonging to ABB’s renowned ProtectIT REF series. Designed specifically for medium-voltage switchgear, substation automation and industrial power distribution systems, this integrated unit combines comprehensive relay protection, precise electrical parameter measurement, intelligent switchbay control, real-time data monitoring and equipment self-diagnosis functions in a single compact chassis. It serves as the core intelligent control unit for medium-voltage feeders, power transformers and industrial motor equipment, providing reliable safety protection and automatic operation management for power distribution networks.

The 1VCR007346 model is equipped with a dedicated high-definition local HMI operation panel, graphic LCD display and multi-channel LED status indication system, supporting on-site parameter viewing, device debugging and fault inquiry. Adopting industrial-grade embedded hardware architecture, modular functional design and professional power system protection algorithm, the device supports multiple standard industrial communication protocols and meets SIL 3 functional safety certification standards. With ultra-wide environmental adaptability, strong electromagnetic interference resistance and long-term operational stability, it is widely applicable in power grid substations, petrochemical, metallurgical, manufacturing and other industrial medium-voltage power distribution scenarios. Undergoing strict ABB factory full-load aging testing, precision calibration and standardized batch quality inspection, the product fully adapts to standardized, traceable and high-efficiency procurement demands of the global industrial e-commerce market, and is widely used in new power system construction, old substation equipment upgrading and faulty protection device replacement projects.

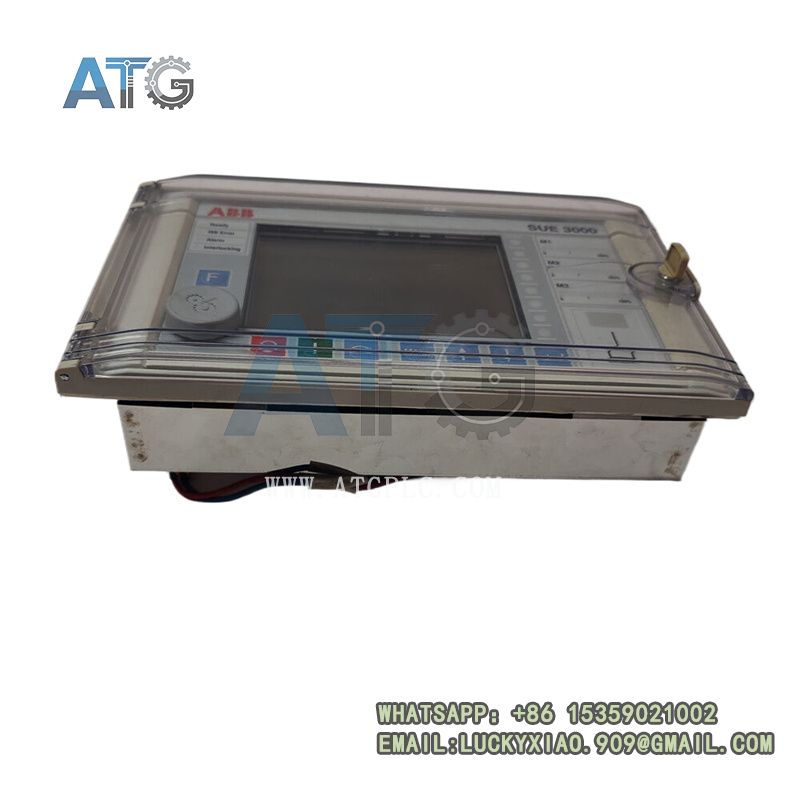

ABB REF542PLUS 1VCR007346

Core Product Features & Competitive Advantages

Different from ordinary single-function relay protection devices, the ABB REF542PLUS 1VCR007346 integrated power protection and control IED has outstanding comprehensive advantages in functional integration, safety performance, intelligent monitoring and environmental adaptability. It solves common industry pain points such as scattered traditional power equipment functions, complex system docking, single protection logic and difficult on-site operation and maintenance, providing all-round intelligent safety guarantee for medium-voltage power distribution systems. The core competitive advantages are summarized as follows:

• Highly Integrated Multifunctional Design: Integrates complete relay protection, high-precision electrical measurement, switchbay logic control, event recording and fault wave recording functions in one device. It replaces multiple traditional independent protection meters, measurement instruments and control modules, greatly simplifying power cabinet layout, reducing equipment investment and lowering system failure points.
• Comprehensive Professional Power Protection Logic: Built-in rich industry-standard protection algorithms, supporting feeder overcurrent protection, earth fault protection, transformer differential protection, motor thermal overload protection, locked rotor protection and start-up overcurrent protection. It covers full protection demands of medium-voltage feeders, transformers and industrial motors, realizing comprehensive safety monitoring of power equipment.
• SIL 3 High-Level Functional Safety Certification: Compliant with IEC 61508 SIL 3 international functional safety standard and ISO 13849 PL e safety specification. It features ultra-high protection action accuracy and safety reliability, effectively avoiding power system misoperation and refusal operation, and ensuring safe and stable operation of industrial power grids.
• Intelligent Local HMI Operation System: Equipped with dedicated 1VCR007346 supporting graphic LCD display and physical key operation panel, with multi-group LED status indicators. It supports real-time viewing of electrical parameters, protection setting inquiry, on-site parameter modification, fault record query and equipment status monitoring, realizing convenient and efficient on-site debugging and operation.
• Diversified Standard Communication Protocols: Natively supports Modbus RTU, RS485 duplex communication and optical fiber communication modes, with a maximum communication distance of 2000 meters via optical fiber. It realizes seamless data interconnection with upper SCADA, DCS and substation automation systems, supporting remote monitoring, remote parameter configuration and remote fault diagnosis.
• Powerful Self-Diagnosis & Fault Recording Function: Real-time full-device hardware self-diagnosis, automatically detecting channel abnormality, circuit failure and communication faults. It supports high-precision fault wave recording, event sequence recording and protection action logging, providing accurate data basis for post-fault analysis and system maintenance.
• Industrial-Grade Harsh Environment Adaptability: Adopting wide-temperature resistant industrial components and reinforced environmental design, supporting stable operation in -25℃ ~ +55℃ ultra-wide temperature range. It resists strong electromagnetic interference, vibration, dust and humidity in substation and industrial workshop environments, adapting to 7×24 hours uninterrupted operation of power systems.
• High Protection Grade & Durable Structure: The front panel reaches IP54 dust-proof and waterproof protection grade, with high-strength anti-corrosion and anti-aging shell. It is suitable for indoor and semi-outdoor power distribution cabinet installation, with strong environmental adaptability and long service life.
• Flexible Parameter Configuration & Strong Expandability: Supports flexible customization of protection fixed values, action logic and control parameters according to on-site working conditions. The modular functional architecture reserves extended interfaces, facilitating later system function upgrading and secondary development, with excellent equipment compatibility and scalability.
• Low Power Consumption & High Operational Stability: Optimized low-power embedded circuit design, with low heat generation during long-term full-load operation. Verified by massive global power and industrial projects, the device features ultra-low field failure rate and excellent long-term stable operation performance.

Detailed Technical Specifications (Key Highlight Parameters)

All technical parameters of the ABB REF542PLUS 1VCR007346 strictly comply with international power system protection equipment standards and ABB official factory specifications. Featuring integrated protection measurement and control, high safety level, intelligent communication and harsh environment resistance, it fully meets the technical requirements of medium-voltage power distribution system construction, substation automation upgrading, old protection equipment replacement and batch standardized procurement. The classified detailed parameters are as follows:

3.1 Basic Product Identification & Classification

• Official Model: REF542PLUS
• Exclusive Part Number: 1VCR007346
• Product Type: Multifunctional Medium-Voltage Protection, Measurement and Control IED
• Core Configuration: Host device + dedicated local HMI display and operation panel
• Applicable Equipment: Medium-voltage feeders, distribution transformers, industrial high-voltage motors
• Core Function: Full power protection, electrical parameter measurement, switchbay automatic control, data communication transmission, fault recording and equipment self-diagnosis
• Applicable Scenarios: Power grid industrial substations, petrochemical medium-voltage power distribution, metallurgical power system, manufacturing factory power supply, municipal power distribution engineering
• Executive Standards: IEC 61508 SIL3 functional safety standard, ISO 13849 PL e safety standard, IEC EMC electromagnetic compatibility standard, international power system protection equipment specification

3.2 Protection & Control Functional Parameters

• Main Protection Functions: Overcurrent protection, earth fault protection, transformer differential protection, motor thermal overload protection, rotor locked protection, start-up overcurrent protection, low voltage/overvoltage protection
• Protection Time Range: Adjustable protection action delay 0.04s ~ 1000s, multi-stage time limit matching
• Motor Start Parameter Setting: Supports 1~10 times cold/hot start threshold setting, start-up time 1.02s ~ 7200s adjustable
• Control Function: Automatic switchbay logic control, remote/local switching operation, interlock protection control
• Recording Function: High-precision fault wave recording, event sequence recording, protection action log storage and query

3.3 Electrical Rated Parameters

• Rated Current (In): Optional 0.2A / 1.0A / 5.0A industrial standard grades
• Rated Voltage (Un): 100~125V AC power frequency voltage
• Rated Frequency (Fn): 50Hz / 60Hz dual-frequency adaptive
• Auxiliary Power Supply: Wide voltage adaptation 48~220V DC, supporting 110VDC / 220VDC fixed voltage modes
• Signal Acquisition: High-precision sampling of current, voltage, power, frequency and other electrical parameters

3.4 Communication & Transmission Parameters

• Communication Protocols: Standard Modbus RTU, industrial dedicated fieldbus protocol
• Wired Communication Mode: RS485 two-wire half-duplex communication, maximum transmission distance 130m
• Optical Fiber Communication Mode: Full-duplex optical fiber transmission, standard ST interface, maximum distance 2000m
• Network Capacity: Supports up to 32 devices connected on the same communication bus
• Data Function: Real-time data upload, remote parameter configuration, remote fault diagnosis and program upgrading

3.5 HMI Human-Machine Interaction Parameters

• Display Module: High-definition monochrome graphic LCD screen
• Operation Mode: Physical key manual operation + automatic status display
• Status Indication: Multi-group LED indicator lights for power, operation, fault and alarm status
• On-Site Function: Real-time parameter viewing, protection value query, fault record browsing, local parameter modification

3.6 Environmental & Mechanical Parameters

• Operating Temperature Range: -25℃ ~ +55℃ industrial wide temperature stable operation
• Storage Temperature Range: -40℃ ~ +85℃ low and high temperature resistant storage
• Working Humidity: 5% ~ 95% non-condensing humidity environment adaptation
• Protection Grade: Front panel IP54 dust-proof and waterproof, overall IP20 equipment protection
• Installation Method: Standard cabinet embedded installation, matching standard switchgear cut-out size
• Overall Dimensions: Standard version 185 × 244.8 × 261.5mm; Wide version 229 × 244.8 × 261.5mm
• Vibration Resistance: Industrial anti-vibration design, adapting to substation and workshop vibration environment

3.7 Certification & Quality Reliability Parameters

• Industrial Certifications: CE safety certification, RoHS environmental certification, UL certification, EAC certification, IEC 61508 SIL3 functional safety certification
• Safety Level: ISO 13849 PL e highest industrial safety grade
• EMC Performance: Fully compliant with IEC series industrial electromagnetic compatibility standards, resisting strong power system electromagnetic interference
• Factory Testing: Strict full-function protection test, communication compatibility test, high and low temperature alternating test and 72-hour full-load aging test before delivery
• Batch Consistency: Uniform protection action accuracy, stable measurement performance and consistent communication quality in batch production
• Field Operational Reliability: Verified by decades of global power and industrial power system projects, ultra-low field failure rate
• Continuous Operation: Support 7×24 hours long-term uninterrupted full-load stable operation

E-commerce Sales Mode & Procurement Advantages

As a standardized core multifunctional protection and control IED of ABB ProtectIT REF series, the ABB REF542PLUS 1VCR007346 adopts a mature, transparent and standardized global industrial e-commerce sales system. It supports global online inquiry, spot retail procurement, batch wholesale and engineering customized supporting services, providing one-stop reliable procurement solutions for power grid operation and maintenance departments, industrial power engineering companies, substation automation system integrators and power equipment spare parts suppliers. All products are 100% original factory genuine with unified official technical parameters, complete quality traceability, transparent pricing mechanism and full-cycle after-sales guarantee, effectively reducing enterprise procurement risks and comprehensive power system operation and maintenance costs.

4.1 Standardized Transparent Online Sales System

This product implements unified global official technical specifications, standard industrial anti-static, shockproof and moisture-proof precision power equipment packaging, and consistent global warranty policies. E-commerce platforms provide complete open technical resources including official datasheets, REF542PLUS series system matching manuals, protection parameter configuration tutorials, communication debugging guides and full qualification certification documents. The exclusive 1VCR007346 part number supports official factory authenticity verification and full lifecycle traceability. It completely avoids refurbished, disassembled and counterfeit devices, ensuring 100% system matching and long-term stable protection and control performance for industrial medium-voltage power distribution systems.

4.2 Diversified Flexible Procurement Modes

• Single & Small-Batch Spot Retail: Support single-piece and small-quantity spot ordering, applicable to daily power system operation and maintenance, faulty protection device replacement, on-site power system fault debugging and old substation equipment performance optimization projects. Sufficient spot inventory ensures short delivery cycle, quickly restores power system protection and control functions and minimizes power outage and production downtime losses.
• Bulk Wholesale & Framework Cooperation: Provide hierarchical preferential pricing and customized supply schemes for bulk orders from power grid companies, large industrial enterprises and professional power engineering integration companies. Support long-term framework agreement cooperation and fixed-point stocking, significantly reducing long-term batch procurement costs for enterprise power protection equipment spare parts.
• Engineering Customized Supporting Service: Provide professional model matching verification, power system protection scheme design and on-site installation & debugging guidance according to customers’ new substation construction, medium-voltage power distribution system upgrading and legacy power equipment transformation projects, realizing one-stop supporting procurement of 1VCR007346 devices and ABB power system auxiliary accessories.

4.3 Full-Cycle E-commerce Value-Added Services

• 100% Original Genuine Guarantee: All supplied products are original ABB factory genuine multifunctional protection and control IEDs with complete factory performance test reports and safety calibration certificates. Exclusive part number traceability ensures zero system matching error and zero power protection failure risk for industrial core power distribution systems.
• Professional Industrial Logistics Protection: Adopt dedicated anti-vibration, shockproof, moisture-proof and anti-static industrial precision power equipment packaging, support global multi-warehouse delivery, effectively preventing internal precision component damage, parameter deviation and performance attenuation during long-distance transportation and handling.
• 24/7 Professional Online Technical Support: Provide pre-purchase power system scheme matching and protection logic consultation, mid-purchase on-site installation guidance and parameter configuration tutorials, and post-purchase equipment fault diagnosis, protection performance optimization and system debugging full-process technical services.
• Complete Official After-Sales Warranty: Enjoy unified global ABB official warranty service, support online after-sales application, quality problem replacement and professional operation and maintenance guidance, reducing enterprise power system operation risks and power equipment maintenance costs.

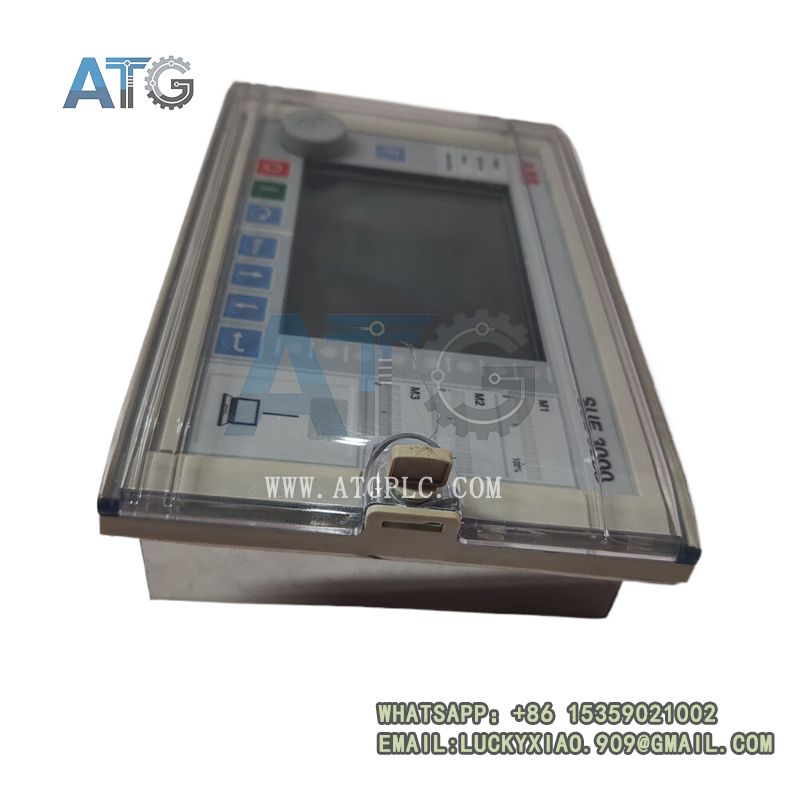

ABB REF542PLUS 1VCR007346

Main Industrial Application Scenarios

Benefiting from its highly integrated protection measurement and control functions, SIL3 high safety performance, strong anti-interference capability and intelligent communication interaction, the ABB 1VCR007346 device is widely applied in core protection and automatic control links of various medium-voltage power distribution systems, covering key fields as follows:

• Power Grid Substation Automation: Used for protection, measurement and bay control of 10kV~35kV medium-voltage feeders in urban and industrial substations. It realizes automatic monitoring and fault isolation of power distribution lines, ensuring safe and stable operation of regional power grids.
• Petrochemical & Chemical Power System: Serving medium-voltage power distribution cabinets, transformers and large industrial motors in chemical plants. It adapts to flammable, explosive and high-interference harsh working conditions, providing reliable power safety protection for continuous chemical production.
• Metallurgical & Heavy Industry Power Distribution: Applied in power system protection and automatic control of steelmaking, rolling and forging workshops. It resists strong electromagnetic interference and frequent load fluctuation in heavy industrial environments, ensuring stable power supply for heavy equipment.
• Manufacturing & Industrial Park Power Supply: Used for medium-voltage power distribution protection and energy monitoring in large manufacturing factories, industrial parks and logistics parks. It realizes intelligent management of factory power consumption and improves power supply reliability and energy utilization efficiency.
• Municipal & Public Facility Power System: Applied in power protection of municipal water supply, sewage treatment, building power distribution and public transportation facilities, ensuring safe and continuous operation of public infrastructure power systems.
• Legacy Power System Upgrading & Renovation: Intelligent upgrading and replacement of old single-function protection relays and measurement instruments in traditional substations and industrial power distribution systems. It integrates multiple functions into one unit, improves the intelligent level of power system operation and maintenance, and realizes low-cost transformation of traditional power equipment.

Product Value & Market Competitiveness

The ABB 1VCR007346 multifunctional protection and control IED solves the core pain points of traditional power system equipment such as scattered functional modules, low safety level, single communication mode and cumbersome operation and maintenance. Its highly integrated design greatly simplifies the construction and maintenance of medium-voltage power distribution systems, while SIL3 high safety level and professional power protection algorithms fundamentally improve the safety and reliability of industrial power supply.

In the global industrial e-commerce market, this ABB original power core device features decades of industrial project verification, ultra-wide environmental adaptability, diversified communication modes and intelligent human-computer interaction functions. Its all-in-one machine design, low failure rate and flexible parameter customization capability make it irreplaceable in new substation construction, industrial power system upgrading and old power equipment replacement projects. With strict genuine guarantee, standardized procurement system and comprehensive full-cycle technical after-sales service, it has become the preferred core intelligent protection and control device for global medium-voltage power distribution system construction and intelligent upgrading.
