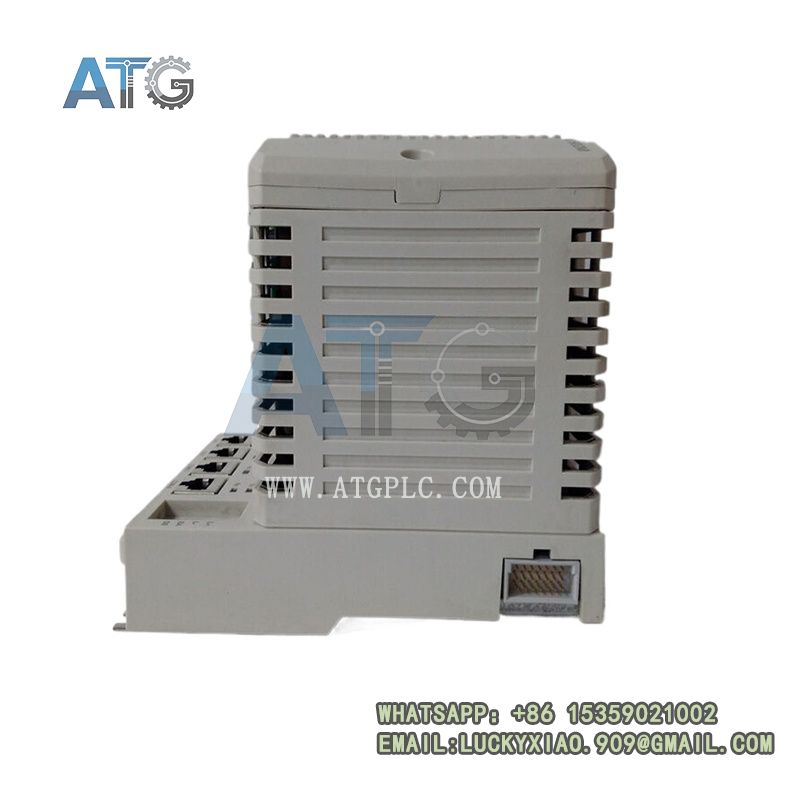

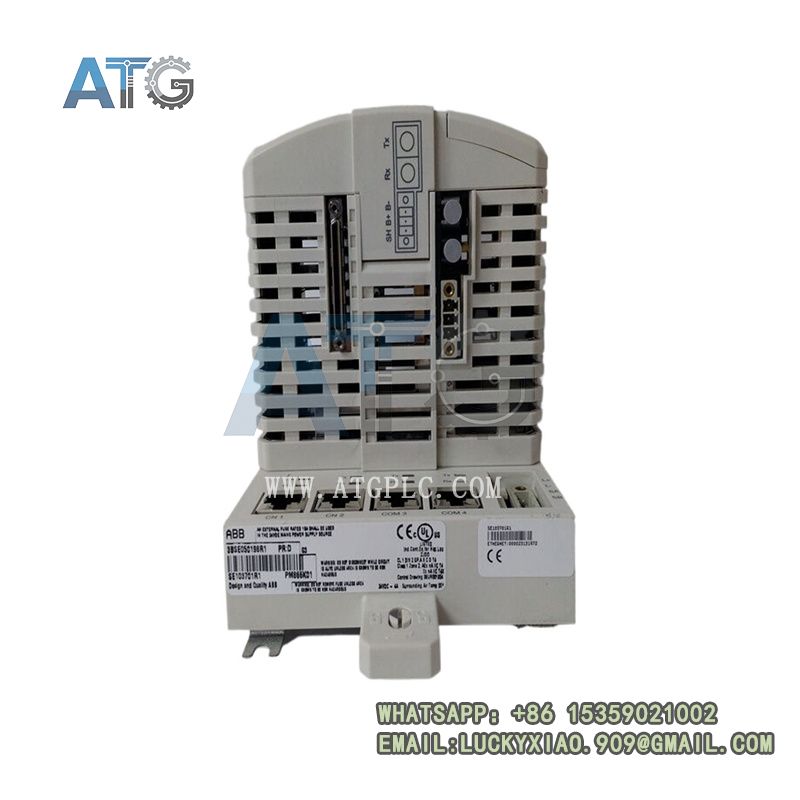

ABB PM866K01 3BSE050198R1 redundant controller

Description

The ABB PM866K01 3BSE050198R1 is a high-performance redundant controller belonging to ABB’s AC 800M controller series, which combines powerful processing capabilities, comprehensive redundancy design, and wide compatibility. It serves as the core control unit of the DCS system, responsible for running complex control programs, exchanging data with on-site I/O modules and upper-level monitoring systems, and ensuring the stable and efficient operation of industrial processes. This controller supports 1:1 hot redundancy configuration and hot-swap function, enabling millisecond-level seamless switching in case of faults to avoid production interruptions. Its modular design allows easy integration with ABB standard I/O modules and communication modules, simplifying system deployment, debugging, and later maintenance.

Product Highlights

• Superior Computing Performance: Equipped with a high-performance dual-core processor and 2GB RAM (with ECC error correction) plus 16GB industrial-grade flash memory, it delivers exceptional computing power for complex process control. It supports Boolean operations at 0.01μs per time and floating-point operations at 0.1μs per time, capable of parallel processing massive I/O data and complex control algorithms seamlessly.
• High-Reliability Redundancy Design: Supports 1:1 controller hot redundancy configuration, with a fault switching time ≤100ms, ensuring uninterrupted control processes even if a single controller fails. It also features dual independent power input interfaces, effectively avoiding system shutdown caused by a single power failure, which is crucial for continuous production enterprises.
• Comprehensive Communication Capabilities: Equipped with dual Gigabit Ethernet ports (supporting PRP/HSR redundancy) and RS-485 serial ports, supporting industrial protocols such as Profinet, Modbus TCP, EtherNet/IP, and ABB proprietary S908 protocol. It enables seamless data exchange with on-site instruments, frequency converters, operator stations, and upper-level MES/ERP systems without additional protocol converters.
• Flexible Expandability & Compatibility: Adopts a modular structure, compatible with ABB AC 800M system’s CI854/CI857 racks and S800 I/O modules, with a maximum expandable capacity of 65536 digital I/O points and 8192 analog I/O points. It supports step-by-step expansion according to production needs, reducing initial investment costs.
• Easy Installation & Maintenance: Supports hot-swap function, allowing online replacement of the controller without shutting down the system, greatly reducing maintenance downtime. The front panel is equipped with clear LED status indicators, enabling real-time monitoring of operation, redundancy, communication, and alarm status, facilitating on-site inspection and quick fault location.
• Strong Environmental Adaptability: Made of high-quality industrial-grade components, with dustproof and moisture-proof performance and strong anti-electromagnetic interference capabilities. It can operate stably in an operating temperature range of -40℃ to +85℃ and a relative humidity of 5% to 95% (non-condensing), adapting to harsh industrial on-site environments.
• Comprehensive Protection & Safety Performance: Built-in overcurrent, overvoltage, over-temperature, and undervoltage protection mechanisms, which can automatically trigger protection measures when the module is in abnormal working conditions, effectively protecting the controller itself and connected equipment, reducing safety risks. It complies with CE and ABB industrial standards, meeting the safety requirements of various industrial scenarios.

PM866K01 3BSE050198R1

Technical Specifications

Application Scenarios

The ABB PM866K01 3BSE050198R1 high-performance redundant controller is widely used in large-scale industrial automation scenarios that require high reliability, high availability, and high-precision control, especially suitable for continuous production industries:

• Power Industry: Applied in thermal power plants, hydropower plants, and gas turbine power plants, serving as the core of the DCS system to control boiler combustion, steam turbine regulation, generator protection, and auxiliary equipment monitoring. Its redundancy design ensures the safe and stable operation of power units even in case of single-point faults.
• Petrochemical Industry: Suitable for oil refineries, ethylene plants, and chemical reactors, executing complex interlock logic, batch control programs, and advanced process control (APC) strategies, directly affecting production safety, product quality, and economic benefits.
• Metallurgical Industry: Used in steel mills and non-ferrous metal smelting plants, controlling the automation systems of blast furnaces, converters, and continuous casting machines, adapting to harsh industrial environments with strong electromagnetic interference and high temperature.
• Water Treatment Industry: Applied in large-scale water supply plants and sewage treatment plants, controlling complex processes such as dosing, filtration, disinfection, and pumping, ensuring that the effluent quality meets standards and the system operates efficiently and energy-savingly.
• Other Key Fields: Also widely used in nuclear power plant auxiliary systems, offshore platforms, long-distance pipeline monitoring systems, and high-end manufacturing production lines, providing reliable core control support for various critical industrial scenarios.

PM866K01 3BSE050198R1

Why Choose ABB 3BSE050198R1?

As a world-leading provider of industrial automation and power solutions, ABB has decades of experience in the research and development of industrial control equipment. The 3BSE050198R1 inherits ABB’s strict quality control standards and advanced technology, with the advantages of strong computing performance, high reliability, and flexible expandability. Compared with ordinary controllers, it supports hot redundancy and hot-swap functions, ensuring uninterrupted production processes and reducing economic losses caused by equipment downtime. It is perfectly compatible with ABB AC 800M system and third-party industrial equipment, with a long product lifecycle and professional after-sales support. Complying with global industrial standards, it provides a reliable guarantee for the stable operation of your industrial automation system, becoming the preferred choice for large-scale process control projects.

Packaging & Shipping

• Package Included: 1 × ABB High-Performance Redundant Controller (3BSE050198R1), 1 × User Manual, 1 × Calibration Certificate (Software license not included, available for separate purchase).
• Packaging: Industrial-grade shockproof and moisture-proof packaging, with independent foam cushioning to avoid damage during transportation, ensuring the product arrives in perfect condition.
• Shipping: Global delivery, with tracking number provided after shipment; professional logistics team ensures safe and fast delivery, complying with international transportation standards for industrial electronic components.

Note: For detailed installation guidelines, debugging methods, parameter configuration, or customization needs, please contact our technical support team. We provide professional after-sales service and technical guidance to ensure the stable operation of your equipment. The product comes with a 12-month warranty for quality assurance. When installing, please follow ABB standard installation specifications to ensure reliable grounding and good ventilation; when configuring redundancy, ensure that the hardware model and firmware version of the main and standby controllers are consistent.
