Description
- Model: PM862 3BSE076357R1
- Brand: ABB
- Series: ABB AC800M DCS Controller Series
- Core Function: Execute logic control and process data operation for DCS
- Type: DCS Processor Unit / CPU Module
- Key Specs: 24VDC power, 32MB RAM, redundant Ethernet interface
- Supply Status: In Stock
- Stock: Available
- Warranty: 12 months
- Ship From: China
ABB PM862 3BSE076357R1
Product System Introduction
The ABB PM862 3BSE076357R1 is a high-performance core processor unit designed exclusively for the ABB AC800M distributed control system, serving as the central computing and control core of the entire DCS platform. As a key mainstream CPU module in the AC800M product line, it perfectly adapts to modular industrial control architecture and can be freely combined with various I/O modules, communication cards, power supplies and baseplates in the AC800M series to build customized industrial automatic control systems. This controller complies with international industrial automation standards, supports redundant configuration to achieve fault-tolerant operation, and is widely deployed in petrochemical, electric power, metallurgy, pharmaceutical and other process industries. It undertakes core tasks of system logic operation, data processing and equipment scheduling, providing stable and reliable core computing support for large-scale continuous industrial production processes.
Product Functions
This advanced CPU module integrates powerful industrial computing and system scheduling functions, covering all core control demands of automated production lines. Equipped with 32MB high-speed RAM and professional industrial processor, it efficiently executes user-programmed control logic, including sequence control, loop regulation, interlock protection and mathematical operation of process parameters. It stably collects and analyzes real-time data transmitted by field I/O modules, processes analog and digital signal data in real time, and issues accurate control commands to adjust the operating state of on-site actuators. Supporting dual redundant Ethernet communication, it realizes high-speed data interaction with upper monitoring systems, HMI touch screens and third-party equipment, ensuring real-time synchronization of field data and remote control instructions. In addition, it integrates complete system diagnosis and program management functions, supporting program online modification, downloading and debugging, and automatically recording system operation logs and fault information to facilitate daily operation maintenance and equipment troubleshooting.

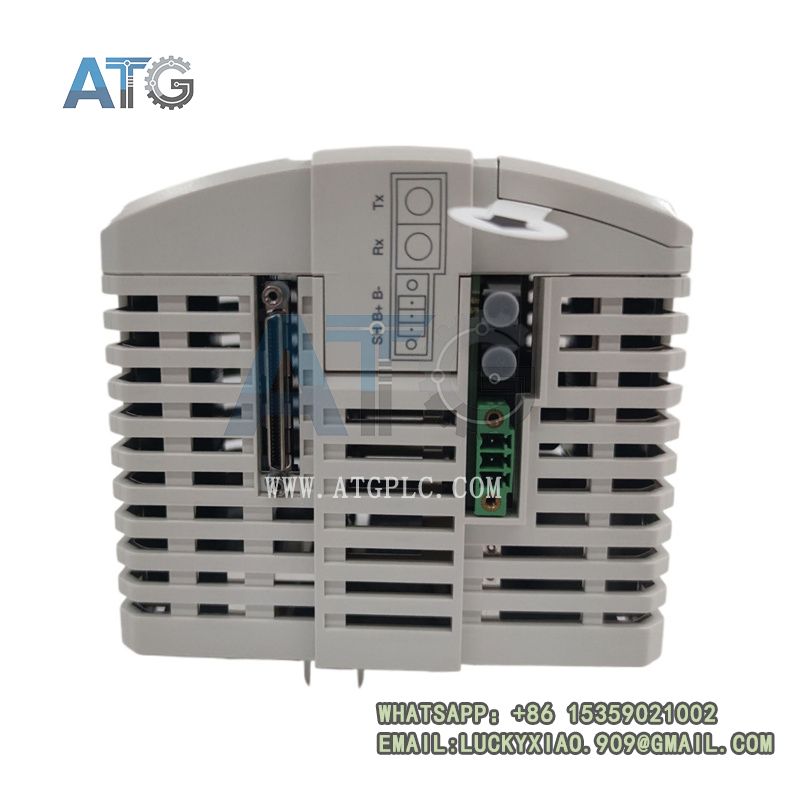

ABB PM862 3BSE076357R1
Product Features
ABB PM862 3BSE076357R1 boasts excellent computing performance, ultra-high operational stability and outstanding industrial environmental adaptability, fully meeting the stringent requirements of long-term continuous industrial operation. It adopts industrial-grade processor chip with stable operating frequency and efficient data processing capability, which can handle complex multi-task control operations without delay or crash. The module supports 19.2-30VDC wide-range DC power supply, with strong resistance to industrial power fluctuation and voltage instability. Built-in redundant Ethernet design effectively avoids single-point network failure, greatly improving the continuity and reliability of system communication and control. Featuring low power consumption and heat dissipation design, it maintains stable operation for a long time in confined industrial cabinets. The standard DIN rail mounting structure enables quick installation and disassembly, and supports hot swapping and redundant backup configuration, minimizing system downtime during maintenance. Moreover, it has strong system compatibility and scalability, supporting flexible expansion of I/O points and communication protocols, which can adapt to new system construction and old factory equipment renovation and upgrade projects.
Compatible & Recommended Products
To build a complete and high-stability AC800M DCS control system, we recommend matched ABB supporting products: ABB CI867K01 communication module, ABB SD821 power supply module and ABB TP830 controller baseplate. These supporting accessories are highly compatible with PM862 3BSE076357R1, realizing seamless hardware docking and efficient data coordination, effectively improving the overall operating stability and expansion performance of the industrial distributed control system.
