Name: ABB PFTL101B 10KN 3BSE004197R1 tension sensor - ATGPLC
Brand: ABB
SKU: PFTL101B 10KN 3BSE004197R1
Price: 6630.00 CNY
Availability: InStock

Description

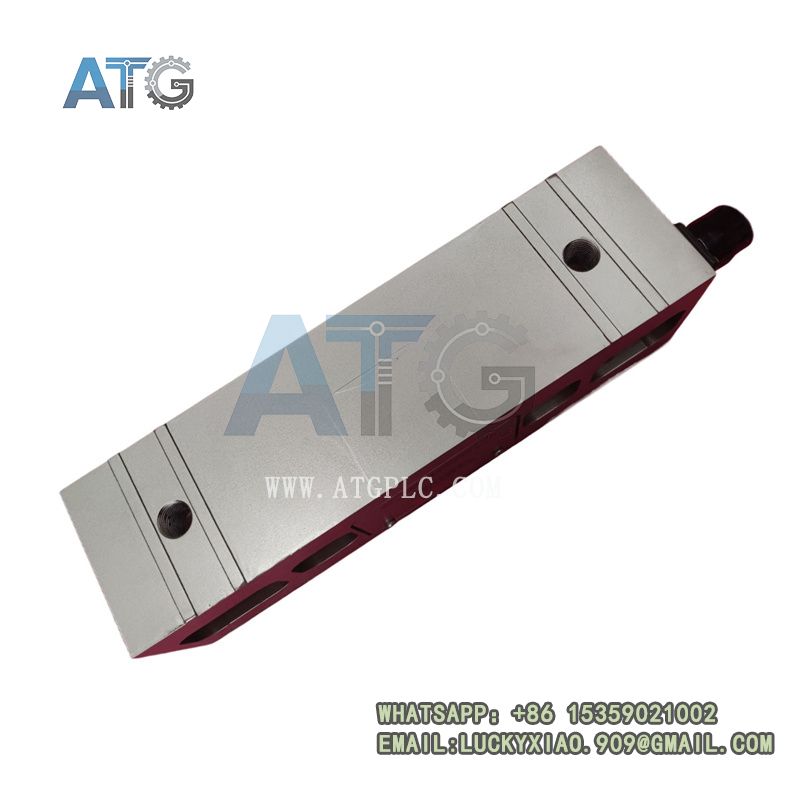

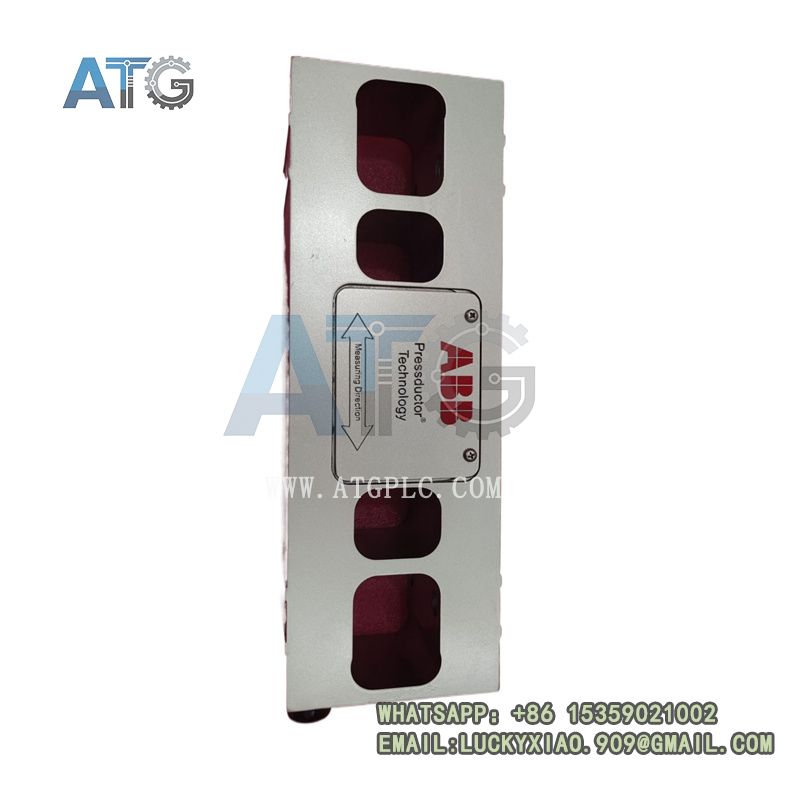

ABB PFTL101B 10KN 3BSE004197R1 is a high-performance pillow block load cell (also known as a tension sensor) developed by ABB, belonging to the Pressductor series dedicated to industrial force and weight measurement. To put it plainly, it’s built to accurately convert weight or force into transmittable electrical signals—something that’s non-negotiable for precise process control, material metering, and safety monitoring in industrial sites. If you work in industries like paper manufacturing, metallurgy, or chemical processing, you know how critical a reliable load cell is, right? This model isn’t just a basic sensing device; it’s engineered to handle harsh on-site conditions while delivering consistent, high-precision data.

Core Features & Practical Advantages

Let me walk you through its key features, because honestly, its combination of accuracy and durability is what makes it stand out from the crowd. It’s designed for horizontal force measurement, which is a game-changer for applications with low tension levels and heavy rolls—think paper mills or converting plants. Unlike some load cells that only focus on one strength, this one balances precision, robustness, and ease of use perfectly.

High-Precision Measurement: Built on high-precision strain gauge technology, it boasts a comprehensive error (nonlinearity, hysteresis, repeatability) of just 0.1% FS, ensuring stable and accurate data within its 10KN (10,000N) measurement range. It also has an internal temperature compensation mechanism to reduce drift, so even in fluctuating temperatures, your readings stay reliable.
Robust & Durable Construction: The housing is made of high-strength alloy (some variants use stainless steel) for excellent impact and fatigue resistance. With an IP67 protection rating (some can be upgraded to IP68), it fends off dust, moisture, and oil—perfect for dirty, humid industrial environments.
Easy Integration & Installation: It comes with a plug-in connector for hassle-free installation and maintenance, plus standardized mounting interfaces that fit most industrial setups. It supports standard analog outputs (4-20mA or 0-10V) and seamlessly connects to ABB AC 800M controllers or third-party data acquisition systems, no extra signal converters needed.
Safe & Long-Lasting: It can handle 150% FS safe overload and 300% FS ultimate overload, so accidental overloads won’t damage it. The advanced sealing process isolates internal electronics from the outside, extending its service life far beyond ordinary load cells.

PFTL101B 10KN 3BSE004197R1

Technical Specifications (Key Details You Need)

Q: What are the most important specs that actually affect your daily use? A: Great question—no fancy jargon here, just the details that matter for installation, operation, and compatibility.

Parameter	Details
Model	ABB PFTL101B 10KN 3BSE004197R1
Measurement Range	10KN (10,000N / 2250 lbs)
Operating Voltage	24V DC (standard industrial power supply)
Operating Temperature	-20°C to +60°C (adapts to most industrial environments)
Output Signal	4-20mA current signal or 0-10V voltage signal
Protection Rating	IP67 (upgradeable to IP68 for specific models)
Overload Capacity	150% FS (safe), 300% FS (ultimate)
Warranty	1-year standard warranty (varies by supplier)

Application Scenarios & Real-World Use

This load cell isn’t just a piece of hardware—it’s built for real industrial challenges. Let me give you a few examples to make it tangible. In a paper mill, it’s used to measure web tension during production, excluding the tare weight of heavy rolls to ensure precise tension control—critical for avoiding paper breaks at high operating speeds.

One thing to note: it’s especially ideal for low-tension, high-speed applications, but its versatility doesn’t stop there. It’s widely used in:

Metallurgy : For raw material weighing and process control in harsh, dusty environments.
Chemical industry: For material metering in reaction kettles, ensuring accurate ingredient ratios and safe operation.
Port logistics and material handling: For load monitoring in cranes and conveyors, preventing overloading.
Renewable energy: For force measurement in wind turbine components or solar panel manufacturing.

PFTL101B 10KN 3BSE004197R1

Why Choose This Model? (A Quick Comparison)

Let’s be real—there are plenty of load cells on the market. But what makes this ABB model worth your investment? It’s all about balance. Unlike cheap, low-precision models that drift constantly and need frequent replacement, this one delivers consistent accuracy that saves you time and money on recalibration.

And unlike overly complex, overpriced options that require specialized training to install and maintain, this one is user-friendly—even your on-site maintenance team can handle calibration with standard weights or ABB’s dedicated tools. It’s built to integrate seamlessly with your existing ABB systems, too—no need to overhaul your entire setup just to add a reliable load cell…

Final Notes for Users

If you’re looking for a load cell that’s accurate, durable, and easy to work with, this model is a no-brainer. It’s designed for long-term use in tough industrial settings, so you won’t have to worry about frequent breakdowns or costly replacements. Plus, ABB’s after-sales support is there if you need help with installation or troubleshooting—something that’s often overlooked but makes a huge difference.

At the end of the day, this isn’t just a sensor—it’s a tool that helps you keep your production processes precise, safe, and efficient. Isn’t that exactly what you need for your industrial setup?
