Description
- Model: CP800
- Brand: ABB
- Series: ABB HPC800 Plant Network Communication Series
- Core Function: Handle plant network communication for HPC800 control systems
- Type: Communication Processor Module
- Key Specs: 24VDC power supply, Ethernet/Modbus TCP, 256MHz 32-bit CPU
- Supply Status: In Stock
- Stock: Available
- Warranty: 12 months
- Ship From: China

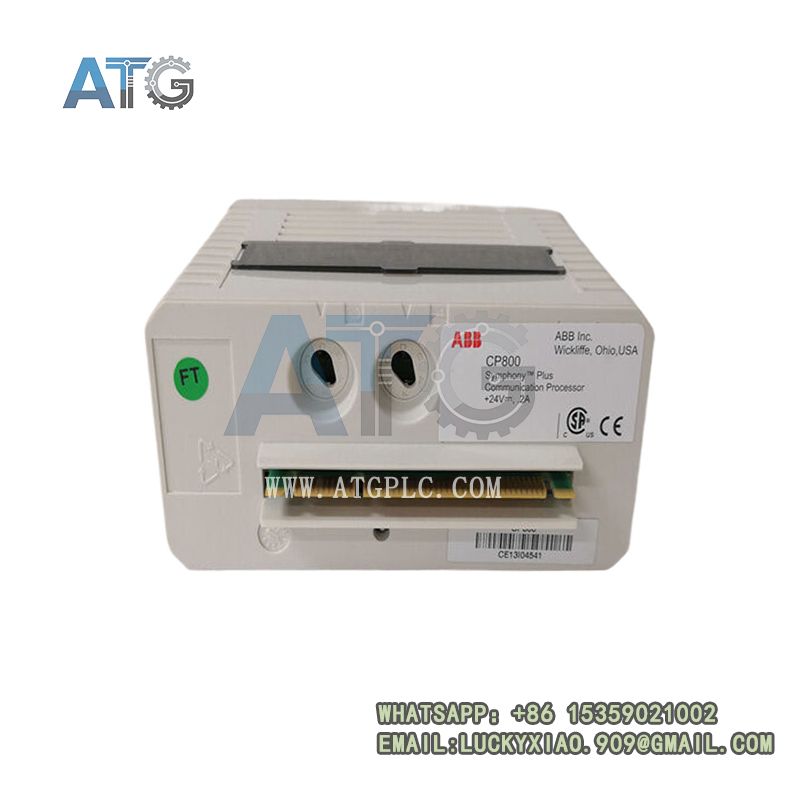

ABB CP800
Product System Introduction
The ABB CP800 is a high-performance dedicated communication processor module tailored for the ABB HPC800 distributed control system, serving as the core network scheduling and data exchange hub of the entire plant-level automation architecture. Designed to complement HPC800 series main controllers, this module undertakes all plant network communication processing tasks, effectively releasing the main CPU’s computing resources and improving the overall system operation efficiency. It adopts industrial embedded architecture and supports PN800 plant network standard, enabling seamless integration with HPC800 control units, field I/O modules, upper monitoring platforms and third-party automation devices. With standardized modular cabinet installation design and strict industrial certification standards, it is widely applied in power generation, chemical processing, metallurgy and intelligent manufacturing industries. It stably supports large-scale data transmission and network topology expansion, ensuring efficient linkage and unified management of distributed industrial control systems.
Product Functions
This professional communication processor integrates powerful network protocol processing, data forwarding and system communication scheduling functions, focusing on reliable plant network data interaction for industrial control systems. Equipped with a 256MHz 32-bit high-speed processor, it efficiently processes mainstream industrial communication protocols including Modbus TCP and industrial Ethernet, realizing real-time transmission, sorting and packaging of massive field data such as equipment operating parameters, process analog signals and equipment status feedback. It independently undertakes network connection management, data transceiving and link maintenance tasks, effectively reducing the communication load of the main controller and avoiding system operation delay caused by excessive data traffic. The module supports bidirectional data interaction between field control layers and upper monitoring layers, accurately forwarding remote control commands and uploading real-time production data. In addition, it integrates intelligent network diagnosis and fault monitoring functions, automatically identifying network disconnection, signal attenuation and data transmission exceptions, recording operation logs and fault information, and supporting rapid on-site troubleshooting to guarantee continuous and stable network communication of industrial systems.

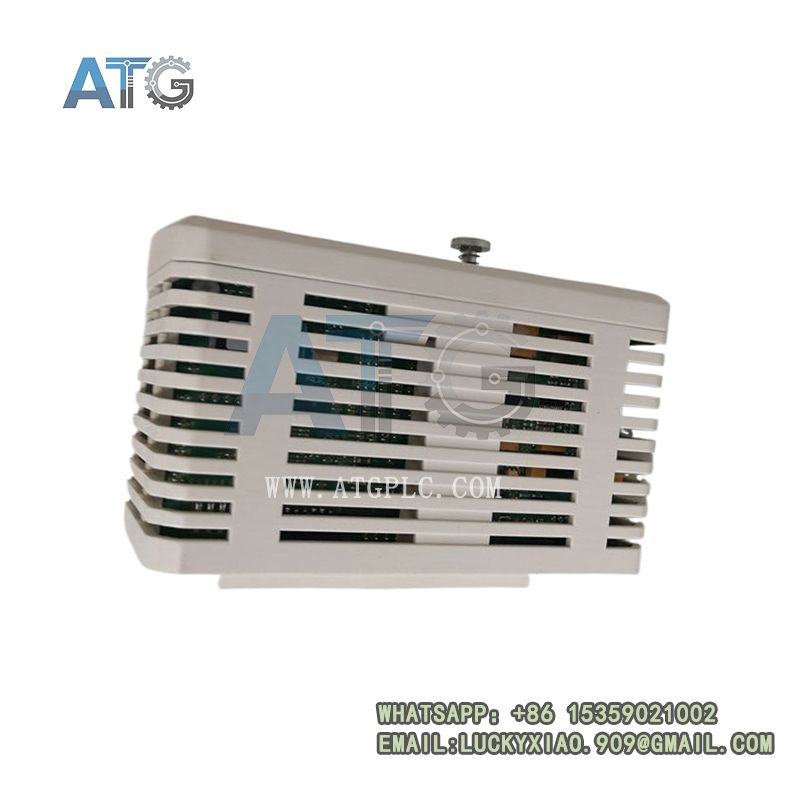

ABB CP800
Product Features
ABB CP800 communication processor boasts outstanding network processing performance, ultra-high operational stability and excellent industrial environmental adaptability, fully meeting the long-term continuous operation demands of complex industrial scenarios. The dedicated communication chip and optimized protocol algorithm ensure low-latency and high-reliability data transmission, effectively improving the real-time and accuracy of industrial network communication. It supports a wide-range 18–32VDC industrial power input, with strong resistance to on-site power fluctuation and transient voltage interference. Featuring an industrial-grade temperature adaptation range of -20°C to +60°C, it can stably operate in harsh environments such as high temperature, humidity and electromagnetic interference in industrial workshops. The compact modular structure supports quick DIN rail installation and hot-swap replacement, greatly reducing system maintenance downtime and on-site debugging costs. It supports redundant network configuration to avoid single-point network failure, significantly enhancing system fault tolerance and operation continuity. Moreover, it has excellent system compatibility and scalability, perfectly matching all HPC800 series equipment, suitable for new automation system construction and old industrial control network renovation and upgrade projects.
Compatible & Recommended Products
To build a complete and high-stability plant network control system, we recommend matched ABB supporting products: ABB HC800 main controller module, series analog and digital I/O modules, and industrial Ethernet shielded cables. These compatible accessories achieve seamless hardware docking and efficient data synchronization with CP800, optimizing overall network transmission efficiency, enhancing system communication stability, and ensuring long-term reliable operation of industrial distributed control systems.
