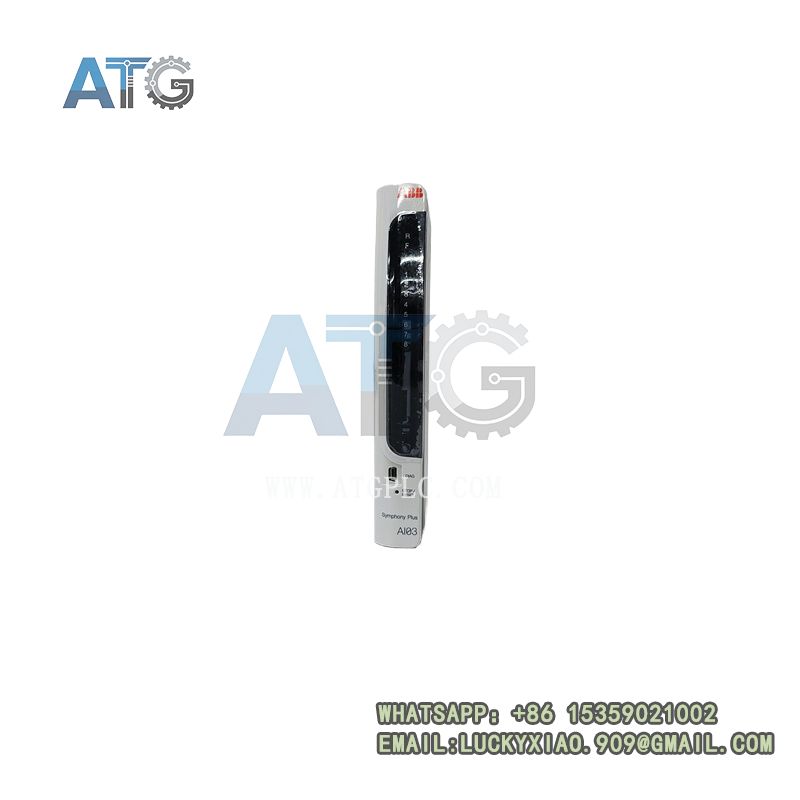

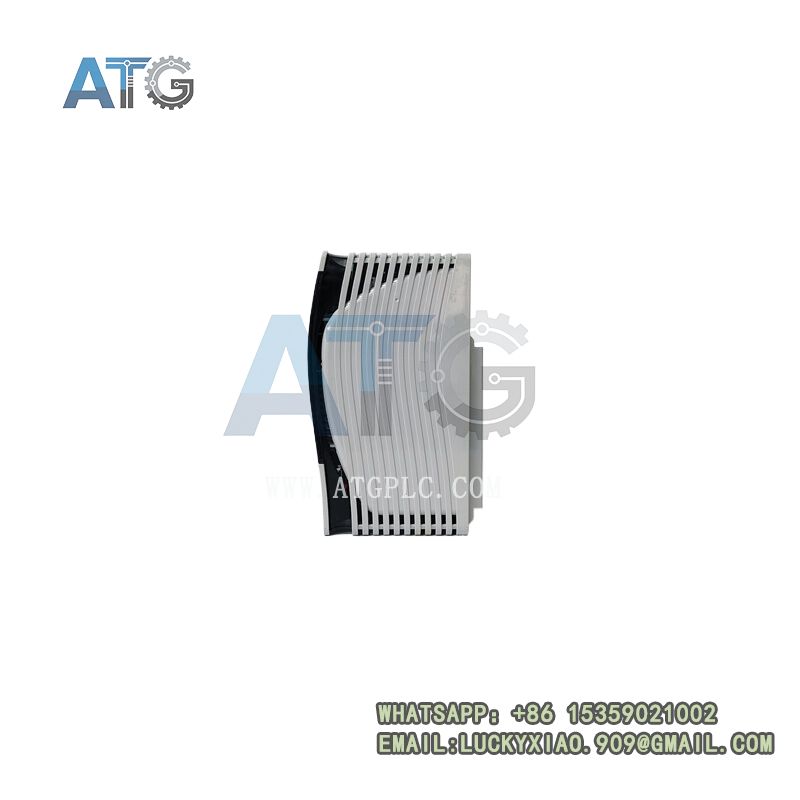

ABB AI03 8-channel analog input module

Description

Product Overview

The ABB AI03 is a high-performance 8-channel universal analog input module developed for ABB Freelance and S800 remote I/O distributed control systems. As a core field signal acquisition unit in process industrial automation, this module is designed for multi-type industrial analog signal collection, precise analog-to-digital conversion and stable data transmission. It supports universal acquisition of standard voltage, current and multiple RTD temperature signals, converting continuous field analog process variables into high-precision digital data for upper DCS controllers, realizing real-time monitoring, data logging and closed-loop control of industrial temperature, pressure, flow and liquid level parameters.

Adopting an advanced decentralized A/D conversion architecture with 4 independent converters serving 8 channels in groups of two, the AI03 achieves balanced sampling efficiency and operational stability, completing a full 8-channel data refresh within 450ms. Equipped with 16-bit high-resolution conversion capability and factory automatic calibration function, the module eliminates manual calibration workload while maintaining long-term high-precision measurement performance. Featuring industrial-grade G3 harsh environment adaptability, built-in EMC electromagnetic compatibility design and complete signal isolation protection, it supports 7×24-hour continuous stable operation in high-temperature, high-humidity and strong-interference industrial scenarios. All units undergo strict ABB factory full-performance testing, high-low temperature aging verification and batch quality inspection, fully complying with standardized traceability and bulk procurement requirements of the global industrial e-commerce market. It is widely deployed in new DCS project construction, automation system upgrading, old analog module replacement and intelligent transformation of process industries worldwide.

Core Product Features & Competitive Advantages

Compared with conventional ordinary analog input modules, the ABB AI03 universal analog input module has prominent comprehensive advantages in signal compatibility, sampling precision, operational stability and engineering convenience. It solves common industry pain points such as single signal adaptation, complicated manual debugging, low sampling consistency and poor environmental adaptability, providing high-efficiency and high-reliability universal signal acquisition solutions for industrial distributed control systems. The core competitive advantages are summarized as follows:

• 8-Channel High-Density Universal Signal Acquisition: Integrates 8 fully configurable analog input channels in a compact modular size, supporting one-module acquisition of voltage, current and RTD temperature signals. It replaces multiple single-function analog modules, effectively reducing cabinet space occupation, simplifying system layout and lowering overall engineering investment costs.
• 16-Bit High-Resolution Precision Conversion: Equipped with 16-bit high-precision A/D conversion chip with polarity detection function, achieving typical measurement accuracy up to ±0.1% FSR and ultra-low temperature drift of ±0.003%/°C. It ensures ultra-fine and stable collection of weak industrial process signals, fully meeting high-precision closed-loop control and accurate parameter monitoring requirements.
• Unique Automatic Factory Calibration Technology: Pre-calibrated in ABB factory with built-in automatic calibration algorithm, requiring no regular manual calibration during on-site operation. It greatly reduces later system maintenance workload, avoids measurement error caused by manual calibration deviation and maintains long-term consistent acquisition precision.
• Optimized Grouped A/D Conversion Architecture: Adopts 4 independent A/D converters for 8 channels (2 channels per converter), realizing balanced and efficient synchronous scanning of all channels. The full 8-channel refresh cycle is stably controlled within 450ms, ensuring uniform data update speed and no channel delay deviation.
• Full Multi-Signal Adaptive Compatibility: Native support for mainstream industrial analog signal types, including standard current, voltage and multiple platinum/nickel/copper RTD temperature signals. It realizes true universal signal access, adapting to diverse field signal demands without hardware replacement.
• Industrial G3 Harsh Environment Adaptability: Compliant with industrial G3 severe environment grade standard, with reinforced dust-proof, moisture-proof, anti-corrosion and anti-aging design. It stably operates in high-pollution, high-temperature and high-humidity industrial workshops, suitable for extreme working conditions of chemical, metallurgical and energy industries.
• Excellent EMC Anti-Interference Performance: Built-in multi-level electromagnetic suppression and signal isolation circuit, fully complying with IEC 61000 EMC industrial electromagnetic compatibility standards. It effectively resists on-site electromagnetic interference, ground loop crosstalk and surge fluctuation, ensuring stable and error-free signal acquisition in high-noise industrial environments.
• Perfect Freelance & S800 I/O System Compatibility: Exclusively developed for ABB Freelance DCS and S800 remote I/O systems, supporting seamless backplane bus docking and plug-and-play deployment. No complex driver configuration or protocol adaptation is required, with extremely high system matching and integration efficiency.
• Low Power Consumption & Long Service Life: Optimized low-power circuit design with low heat generation during long-term full-load operation, avoiding precision drift caused by high-temperature aging. Industrial-grade component selection ensures ultra-long service life and ultra-low field failure rate.
• Complete Self-Diagnosis & Easy Maintenance: Integrated real-time module self-diagnosis function, supporting automatic identification of channel open circuit, signal overload, communication abnormality and power failure. It realizes rapid fault location, reduces system downtime and facilitates daily operation and maintenance management.

ABB AI03

Detailed Technical Specifications (Key Highlight Parameters)

All technical parameters of the ABB AI03 strictly comply with ABB official Freelance DCS and S800 I/O system design specifications and IEC international industrial control equipment standards. Featuring universal multi-signal adaptation, 16-bit high-precision conversion, automatic calibration and G3 harsh environment resistance, it fully meets the technical requirements of large-scale DCS system construction, analog signal acquisition system upgrading, old module replacement and batch standardized industrial procurement. The classified detailed parameters are as follows:

3.1 Basic Product Identification & Classification

• Official Model: AI03
• Product Type: 8-Channel Universal Analog Input Module
• Applicable System: ABB Freelance Distributed Control System, S800 Remote I/O System
• Core Function: High-precision acquisition and digital conversion of industrial voltage, current and RTD temperature analog signals
• Applicable Scenarios: Thermal power generation, petrochemical processing, metallurgical industry, pharmaceutical manufacturing, environmental protection engineering, papermaking and water treatment process automation
• Executive Standards: IEC 61131-2 industrial control standard, IEC 61000 EMC electromagnetic compatibility standard, Industrial G3 harsh environment grade specification

3.2 Core Channel & Sampling Precision Parameters

• Total Input Channels: 8 fully independent configurable universal analog input channels
• A/D Conversion Architecture: 4 dedicated A/D converters, 2 channels per converter for grouped synchronous sampling
• Conversion Resolution: 16-bit high-resolution conversion with polarity detection
• Full-Scale Measurement Accuracy: ±0.1% FSR (full-scale range) typical precision
• Temperature Drift Index: Maximum ±0.003% per °C ultra-low drift, ensuring long-term precision stability
• Full-Channel Refresh Cycle: 450ms synchronous data update for all 8 channels
• Calibration Mode: Factory pre-calibrated, full-automatic operation, no on-site manual calibration required

3.3 Universal Supported Signal Types

• Standard Current Signals: 0–20mA, 4–20mA industrial universal current signals
• Standard Voltage Signals: 0–10V, ±10V, 0–5V, ±5V, 1–5V industrial voltage signals
• RTD Temperature Signals: Pt100, Pt1000, Ni120, Ni1000, Cu50 and other mainstream thermal resistance signals
• Input Impedance: >10MΩ high input impedance for voltage channels; adaptive matching for current channels
• Temperature Measurement Precision: Up to ±0.1°C high-precision temperature acquisition for RTD signals

3.4 Power Supply & Electrical Performance Parameters

• Power Supply Mode: Bus-powered via backplane base, no independent external power supply required
• Adaptive Voltage Range: 10–30VDC wide industrial voltage adaptation
• Power Consumption: Ultra-low power consumption design, low heat generation for long-term full-load operation
• Signal Isolation: Channel-to-bus electrical isolation, anti-ground loop interference
• Circuit Protection: Built-in overvoltage, overcurrent and surge transient suppression protection
• Anti-Interference Level: Meet industrial high-grade EMC anti-interference standards, resisting common-mode and differential-mode interference

3.5 Communication & System Docking Parameters

• Bus Interface: Dedicated high-speed backplane bus for Freelance / S800 I/O systems
• Data Transmission Mode: Real-time two-way data interaction, analog data upload and parameter configuration download
• Remote Configuration: Support remote signal type setting, range calibration and channel enable/disable via upper computer
• Data Filtering: Built-in digital filtering algorithm, adjustable filtering intensity to adapt to different interference environments
• System Expansion: Support multi-module parallel expansion to meet large-scale multi-point analog signal acquisition demands

3.6 Environmental & Mechanical Parameters

• Standard Operating Temperature: -20℃ ~ +70℃ stable industrial operating range
• Extended Operating Temperature: -20℃ ~ +85℃ wide temperature extreme adaptation
• Storage Temperature Range: -40℃ ~ +85℃ high and low temperature resistant storage
• Working Humidity Range: 5% ~ 95% RH non-condensing full humidity adaptation
• Environmental Grade: Industrial G3 severe environment adaptability grade
• Protection Grade: IP40 industrial dust-proof and anti-splash protection grade
• Installation Method: Standard DIN rail mounting and cabinet backplane rack installation
• Structural Feature: Compact modular design, reinforced anti-vibration and anti-aging shell

3.7 Diagnosis & Operational Reliability Parameters

• Status Indication: On-board LED indicators for power operation, bus communication and channel fault status
• Self-Diagnosis Function: Real-time detection of channel open circuit, signal overload, power abnormality and communication failure
• Fault Processing Mechanism: Automatic fault locking, abnormal channel shielding and fault data recording
• Calibration Stability: Long-term zero drift and gain drift compensation, permanent precision retention after factory calibration
• Continuous Operation: Support 7×24 hours long-term full-load stable industrial operation

3.8 Certification & Quality Compliance

• Industrial Certifications: CE safety certification, RoHS environmental certification, EAC certification
• EMC Compliance: Fully compliant with IEC 61000 series industrial electromagnetic compatibility standards
• Industrial Standard: IEC 61131-2 international programmable controller equipment standard
• Factory Testing: Strict full-channel precision test, communication compatibility test, high-low temperature alternating test and 72-hour full-load aging test
• Batch Consistency: Uniform sampling accuracy, stable conversion performance and consistent quality in batch production
• Field Reliability: Verified by massive global Freelance DCS project applications with ultra-low field failure rate

ABB AI03

E-commerce Sales Mode & Procurement Advantages

As a standardized core universal analog input module for ABB Freelance DCS and remote I/O systems, the ABB AI03 adopts a mature, transparent and standardized global industrial e-commerce sales system. It supports global online inquiry, spot retail procurement, batch wholesale and engineering customized supporting services, providing one-stop reliable procurement solutions for DCS system integrators, process industrial operation and maintenance departments, automation engineering companies and industrial spare parts suppliers. All products are 100% original factory genuine with unified official technical parameters, complete quality traceability, transparent pricing mechanism and full-cycle after-sales guarantee, effectively reducing enterprise procurement risks and comprehensive DCS system operation and maintenance costs.

4.1 Standardized Transparent Online Sales System

This product implements unified global official technical specifications and standardized industrial module packaging, with consistent global warranty policies and quality inspection standards. E-commerce platforms provide complete open technical resources including official datasheets, Freelance/ I/O system matching manuals, multi-signal configuration tutorials, precision calibration guidelines and full qualification certification documents. The unified official model supports factory authenticity verification and full lifecycle traceability. It completely avoids refurbished, disassembled and counterfeit modules, ensuring 100% system matching and long-term high-precision signal acquisition performance for industrial core DCS control systems.

4.2 Diversified Flexible Procurement Modes

• Single & Small-Batch Spot Retail: Support single-piece and small-quantity spot ordering, applicable to daily DCS system operation and maintenance, faulty analog module replacement, on-site process signal loop debugging and old DCS system precision optimization projects. Sufficient spot inventory ensures short delivery cycle, quickly restores system high-precision analog signal acquisition function and minimizes industrial production downtime losses.
• Bulk Wholesale & Framework Cooperation: Provide hierarchical preferential pricing and customized batch supply schemes for large-scale DCS new construction projects, process industrial enterprises and professional automation integration companies. Support long-term framework agreement cooperation and fixed-point stocking, significantly reducing long-term spare parts procurement costs for enterprise Freelance and I/O DCS systems.
• Engineering Customized Supporting Service: Provide professional model matching verification, DCS analog signal acquisition system scheme design and on-site installation & configuration debugging guidance according to customers’ new DCS system construction, automation upgrading and legacy process control system transformation projects, realizing one-stop supporting procurement of modules and ABB I/O series auxiliary accessories.

4.3 Full-Cycle E-commerce Value-Added Services

• 100% Original Genuine Quality Guarantee: All supplied products are original ABB factory genuine analog input modules with complete factory precision test reports and calibration qualification certificates. Official model traceability ensures zero system matching error and zero signal acquisition failure risk for industrial core process control systems.
• Professional Industrial Anti-Damage Logistics: Adopt dedicated anti-vibration, shockproof, moisture-proof and anti-static industrial precision module packaging, protecting internal high-precision A/D conversion chips and circuit structures during long-distance transportation. Support global multi-warehouse delivery to ensure intact product arrival and undamaged precision performance.
• 24/7 Full-Process Professional Technical Support: Provide pre-purchase system channel capacity and signal type matching consultation, mid-purchase on-site installation guidance and multi-parameter configuration tutorials, and post-purchase signal precision debugging, fault diagnosis and system optimization full-process technical services.
• Complete Official After-Sales Warranty: Enjoy unified global ABB official warranty service, support online after-sales application, quality problem replacement and professional operation and maintenance guidance, reducing enterprise DCS system operation risks and precision equipment maintenance costs.

ABB AI03

Main Industrial Application Scenarios

Benefiting from its 8-channel high-density universal acquisition, 16-bit ultra-high precision, automatic calibration and G3 harsh environment resistance, the ABB module is widely applied in high-precision process signal monitoring and DCS system expansion links of various large-scale process industrial automation systems, covering key fields as follows:

• Thermal Power Generation DCS System: Used for high-precision acquisition of boiler temperature, flue gas parameters, pipeline pressure and turbine auxiliary process signals. It adapts to high-temperature and high-dust power plant environments, providing stable and accurate data support for unit automatic regulation and safety interlock protection.
• Petrochemical & Chemical Process Automation: Applied in real-time sampling of chemical reactor temperature, pipeline pressure, material flow and liquid level signals. Its universal multi-signal adaptation and strong anti-interference performance meet the continuous production monitoring demands of flammable, explosive and high-noise chemical workshops.
• Pharmaceutical & Fine Chemical Industry: Serving high-precision process monitoring of pharmaceutical purification workshops and fine chemical reaction processes. The ±0.1% high-precision acquisition and long-term stability meet strict process parameter control requirements in high-standard production environments.
• Metallurgical & Heavy Industry: Deployed in metallurgical smelting and rolling workshop automation systems, collecting high-temperature furnace body and equipment operating parameters. Its G3 harsh environment resistance adapts to high-pollution and high-vibration heavy industrial working conditions.
• Environmental Protection & Water Treatment Engineering: Used for signal acquisition of sewage treatment process parameters, flue gas desulfurization and denitrification system data. It supports long-term stable unattended monitoring of environmental protection equipment.
• Legacy DCS System Upgrading & Renovation: Ideal for precision upgrading and channel expansion of old ABB Freelance and I/O systems. The universal multi-signal design replaces multiple single-function modules, simplifies system architecture and reduces long-term operation and maintenance costs.

Product Value & Market Competitiveness

The ABB universal analog input module solves the core pain points of traditional industrial analog acquisition equipment such as single signal type, need for frequent manual calibration, low long-term precision stability and poor harsh environment adaptability. Its grouped high-efficiency A/D conversion architecture, 16-bit high-precision measurement and factory automatic calibration technology greatly improve the efficiency and accuracy of industrial process signal acquisition.

In the global industrial e-commerce market, this original ABB /Freelance dedicated module features universal multi-signal compatibility, industrial G3 extreme environmental adaptability, zero daily calibration maintenance and ultra-stable long-term performance. Its reliable operating performance verified by global massive process industrial projects and ultra-low field failure rate make it the preferred universal analog acquisition unit for DCS new construction, system precision upgrading and old module replacement projects. With standardized transparent procurement mechanism, 100% genuine quality assurance and full-cycle professional after-sales service, it has outstanding comprehensive competitiveness in the global high-end industrial DCS spare parts market.
