Description

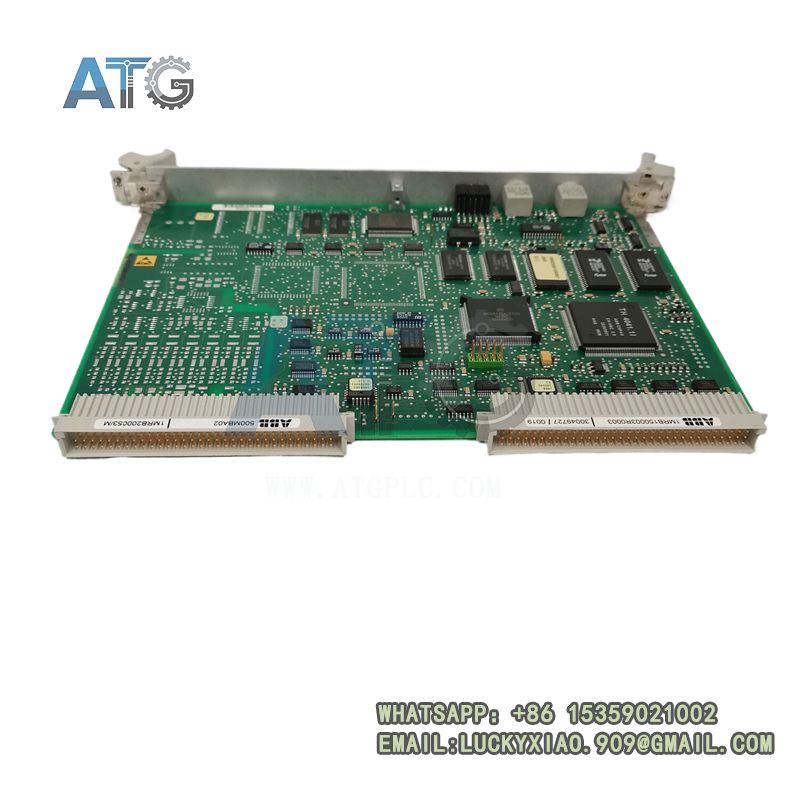

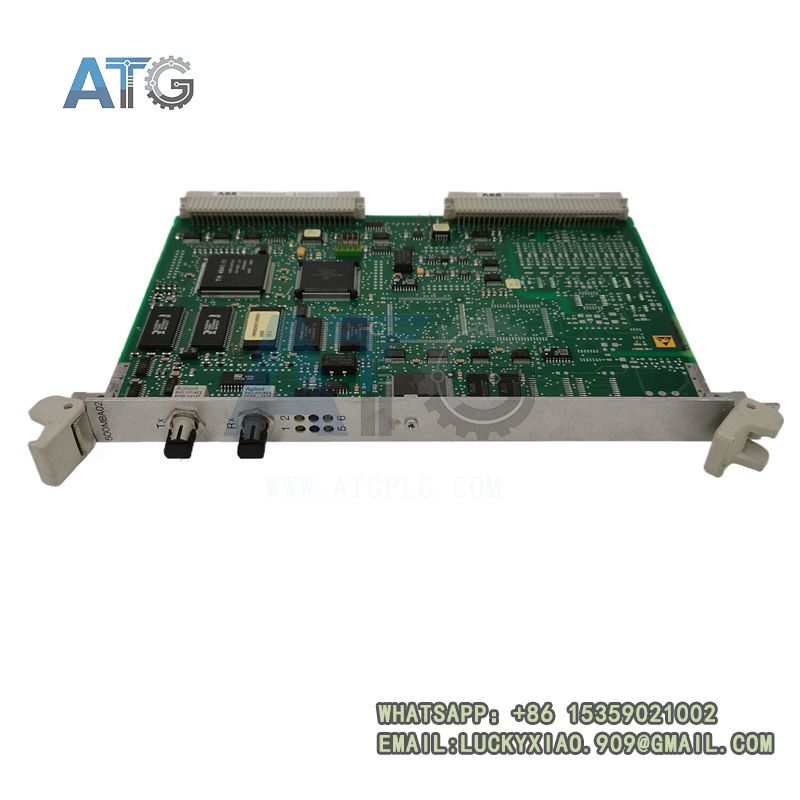

Model: 500MBA02 1MRB150003R0003
Brand: ABB
Series: ABB S500 Main Base Control Module Series
Core Function: Serves as base carrier and bus interface for S500 system modules
Type: Main Base Module & System Backplane Unit
Key Specs: 24VDC system power supply, integrated bus interface, multi-module expansion support
Supply Status: In stock
Stock: Available
Warranty: 1 year
Ship From: China
ABB 500MBA02 1MRB150003R0003
Product System Integration Overview
The ABB 500MBA02 1MRB150003R0003 is a dedicated main base module designed exclusively for the ABB S500 distributed control system, acting as the foundational hardware carrier for the entire rack assembly. Unlike functional I/O or communication modules, this base unit undertakes system bus integration, power distribution and module mechanical fixing tasks, forming the core framework of S500 control racks. It supports seamless docking and cascading of various S500 series functional modules, including signal acquisition units and communication couplers, realizing unified power supply and bus data interaction for the whole rack. With standardized industrial structural design, it adapts to standard cabinet installation specifications, effectively simplifying system wiring and rack layout. It is widely used in industrial automation transformation projects and new control system construction, serving as an essential basic component to ensure standardized and orderly operation of S500 system hardware.
Detailed Product Functionalities
This professional main base module integrates three core functions of mechanical fixation, bus signal transmission and centralized power distribution for industrial control racks. It provides stable mounting bases for all pluggable functional modules, ensuring firm installation and effective vibration resistance of on-site equipment. The built-in high-speed backplane bus realizes barrier-free data interaction between different modules in the rack, unifying signal transmission standards and avoiding data delay and dislocation caused by external wiring. Meanwhile, it distributes 24VDC industrial power to each expansion module stably, realizing centralized power management of the entire rack system. In addition, it reserves standardized expansion interfaces, supporting flexible increase and replacement of follow-up functional modules, and provides reliable basic hardware support for system function expansion and equipment upgrading.
ABB 500MBA02 1MRB150003R0003
Product Features & Technical Strengths
The ABB 500MBA02 base module features high structural stability, excellent system compatibility and ultra-high integration, solving the problems of scattered wiring and poor stability of traditional discrete rack structures. Adopting integrated backplane bus design, it greatly reduces external signal and power wiring quantity, lowers wiring errors and equipment failure risks, and improves system operational safety. The industrial-grade reinforced base structure has strong mechanical toughness and vibration resistance, adapting to long-term operation in complex workshop vibration environments. The precise bus interface technology ensures stable and high-speed data transmission between modules without signal loss or distortion. The unified power distribution design optimizes power supply uniformity of the whole rack, effectively avoiding local voltage instability. Its modular assembly design also facilitates rapid equipment maintenance and module replacement, greatly shortening system downtime.
Industrial Application Scenarios
This high-stability system base module is widely applicable to various industrial automation scenarios based on the ABB control platform. It is mainly deployed in factory automated production control cabinets, industrial water treatment monitoring systems, petrochemical process control equipment, power plant auxiliary control racks and intelligent building automation systems. It provides foundational structural support, bus transmission and power guarantee for all series functional modules. As an indispensable underlying core component of the control system, it standardizes system hardware architecture, improves the overall stability and scalability of industrial control racks, and ensures long-term stable and efficient operation of industrial automation control systems.
ABB 500MBA02 1MRB150003R0003
