Description
- Model: 3BHE009017R0102 XVC724BE102
- Brand: ABB
- Series: ABB XV Series VLSCD Drive Control Board
- Core Function: Detect voltage level short circuits for medium voltage drives
- Type: VLSCD Detection & Control Board
- Key Specs: 220VAC operating voltage, 30kHz signal processing, wide temp adaptation
- Supply Status: In Stock
- Stock: Available
- Warranty: 12 months
- Ship From: China

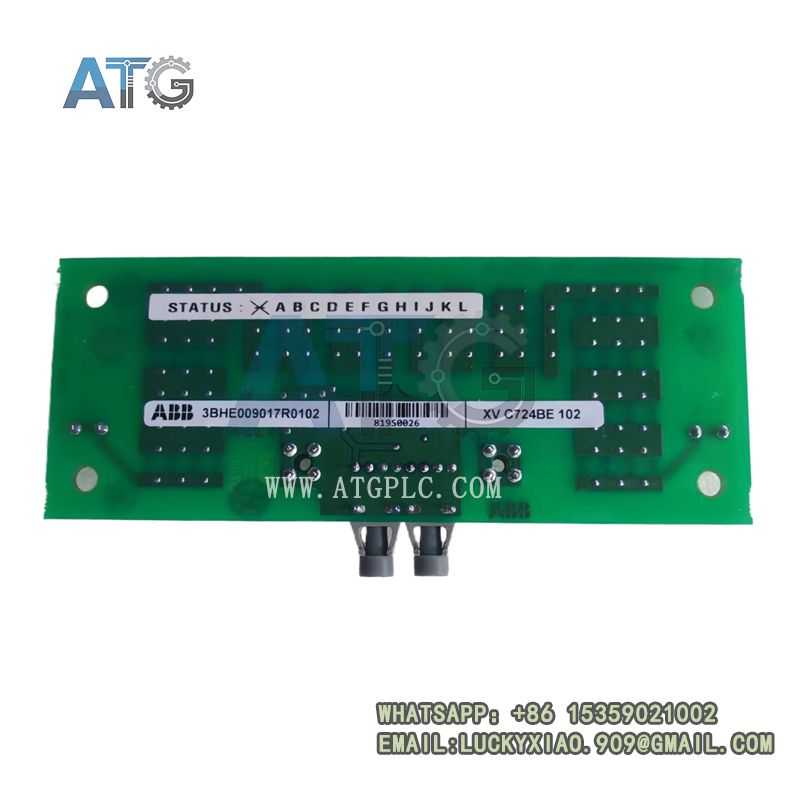

ABB 3BHE009017R0102 XVC724BE102
Product System Introduction
The ABB 3BHE009017R0102 XVC724BE102 is a professional industrial VLSCD (Voltage Level Short Circuit Detection) control board developed exclusively for ABB medium-voltage drive systems. As a core safety protection and signal processing component of high-power frequency conversion equipment, it is specially optimized for ACS2000 series medium voltage inverters and matched power electronic control systems. This module adopts industrial-grade high-speed processing chip and reinforced circuit design, complying with ABB’s strict power equipment manufacturing standards and international industrial safety certifications. It can be seamlessly embedded into the medium voltage drive control cabinet, cooperating with drive main control boards, power unit modules and signal acquisition units to form a complete closed-loop fault detection and safety protection system. Widely applied in heavy industrial scenarios such as mining, metallurgy, cement manufacturing and large-scale industrial power regulation, it provides key short-circuit monitoring and fault protection guarantees for stable operation of high-power drive equipment, and is also a core replacement spare part for daily maintenance and renovation of old ABB medium voltage drive systems.
Product Functions
This high-performance detection and control board integrates high-speed signal processing, real-time short-circuit monitoring and intelligent fault protection functions, focusing on safety monitoring of medium voltage drive power loops. It supports up to 30kHz high-frequency signal sampling and analysis, which can accurately capture subtle voltage changes and abnormal current fluctuations in the drive power circuit in real time. Relying on professional VLSCD detection technology, it efficiently identifies various potential short-circuit faults in the voltage level loop, including instantaneous short circuit, hidden micro-short circuit and circuit leakage abnormalities that are difficult for conventional detection equipment to capture. Once a fault is detected, the module will immediately output locking protection signals to quickly cut off the drive operating loop, effectively preventing power unit burnout, equipment breakdown and system tripping accidents caused by short-circuit faults. In addition, it supports real-time upload of fault data and operation status to the upper drive control system, records detailed fault logs and operation parameters, provides accurate data support for on-site troubleshooting and equipment maintenance, and realizes intelligent safety monitoring of medium voltage drive equipment.

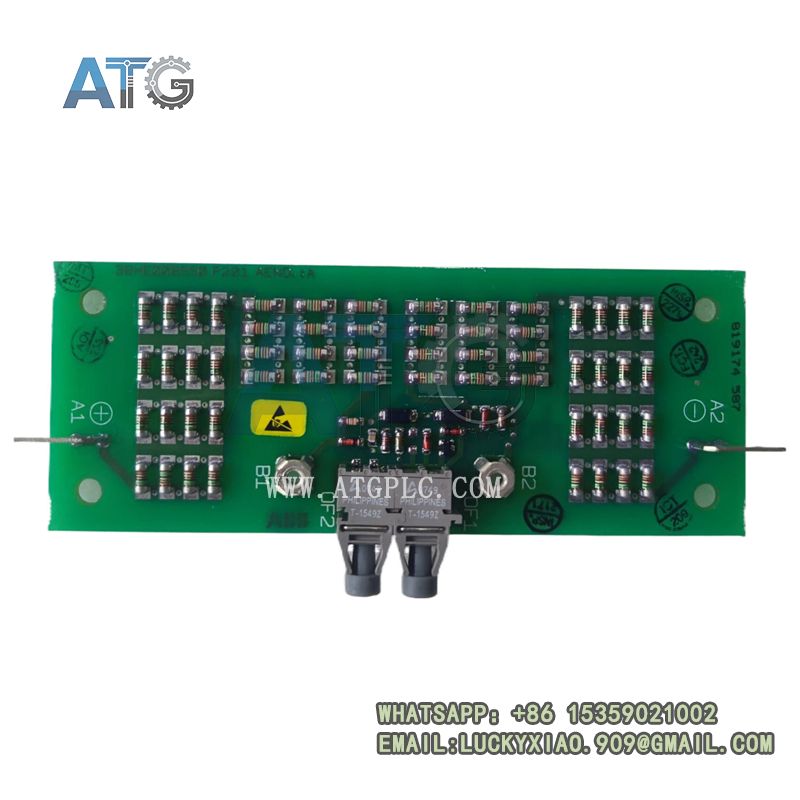

ABB 3BHE009017R0102 XVC724BE102
Product Features
ABB 3BHE009017R0102 XVC724BE102 boasts outstanding detection accuracy, extreme industrial durability and ultra-high operational reliability, fully adapting to harsh high-power industrial operating environments. Equipped with high-speed independent processing architecture, it realizes millisecond-level fault response, ensuring timely and effective protection actions for sudden circuit faults. It supports stable operation under 220VAC industrial power supply, with strong resistance to power fluctuation and transient voltage impact. The module features an ultra-wide temperature adaptation range of -20°C to +85°C, maintaining stable detection performance in high-temperature, low-temperature, humid and dusty industrial cabinet environments. Built-in professional electromagnetic shielding and anti-interference structure effectively resists strong electromagnetic interference generated by high-power drive operation, avoiding detection signal distortion and false alarms. Adopting integrated modular circuit design, it features compact structure, low power consumption and long service life, supporting long-term uninterrupted continuous operation. With perfect compatibility, it is fully matched with ABB ACS2000 medium voltage drive series, suitable for new equipment assembly and old system maintenance replacement, with extremely low failure rate and stable and reliable field application effect.
Compatible & Recommended Products
To build a complete and safe medium voltage drive control system, we recommend matched ABB supporting products: ABB ACS2000 series medium voltage inverter main control board, drive power unit module and industrial signal isolation board. These supporting accessories achieve seamless circuit docking and functional coordination with 3BHE009017R0102 XVC724BE102, effectively improving the overall fault detection sensitivity and safety protection level of the medium voltage drive system, and ensuring long-term stable and safe operation of high-power industrial frequency conversion equipment.
