Woodward 8440-2052 Digital turbine controller
The WOODWARD 8440-2052 is a professional microprocessor-based digital turbine controller belonging to the renowned 505/505E control series. Manufactured in the USA, this industrial-grade control module is specially optimized for single-valve steam turbines, single extraction/admission systems, and split-range actuator configurations. It integrates on-site human-computer interaction, precise turbine regulation, and multi-functional system protection, serving as a core control unit for steam turbine power generation, industrial compressor drive, and process industry automated control systems. With compact structural design, complete interface configurations, and stable operational performance, it is widely adopted in medium and small power generation equipment and industrial turbine control scenarios.

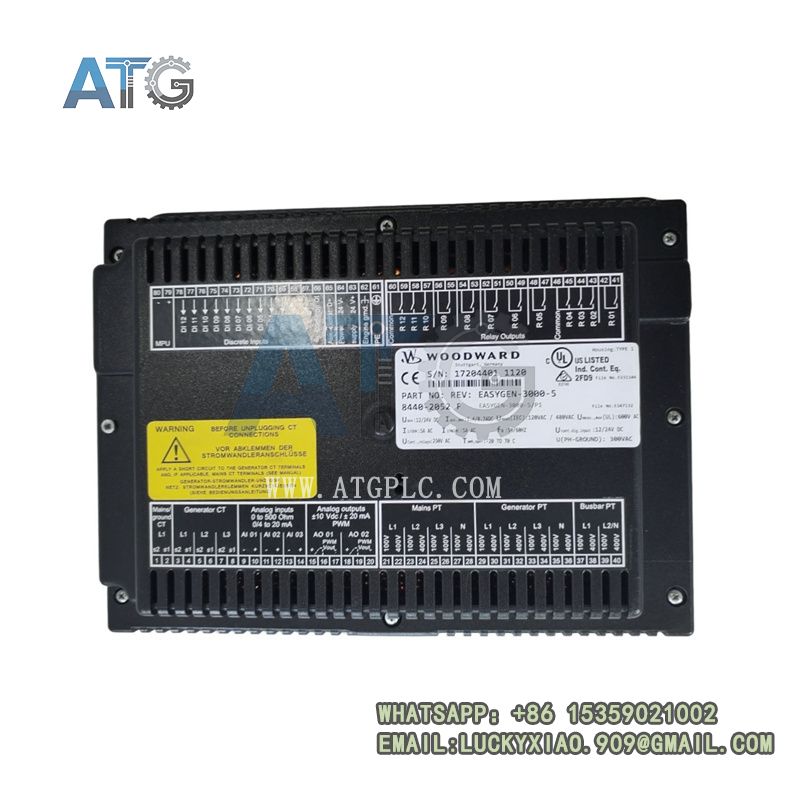

Woodward 8440-2052
Physical Specifications (Dimensions & Weight)
Adopting a standardized integrated cabinet installation structure, the WOODWARD 8440-2052 features a compact and durable industrial casing, perfectly fitting standard industrial control cabinet layouts and embedded installation requirements. The product boasts precise dimensional parameters of 35.6 × 27.9 × 10.2 cm (14 × 11 × 4 inches) and a net weight of 4.13 kg (9.11 lbs). Compared with conventional turbine controllers, its lightweight and miniaturized design effectively saves cabinet installation space, reduces overall equipment load, and maintains excellent structural stability against long-term industrial vibration and temperature changes, ensuring no displacement or functional failure during continuous operation.
Core Hardware & Power Technical Parameters
Built with high-performance industrial microprocessor chips, the 8440-2052 delivers stable and efficient operational performance for complex turbine control logic and data calculation. It supports professional dedicated configuration software including 505View and OpView™, enabling one-stop operations such as on-site parameter debugging, program upgrade, real-time data collection, and operating logic modification for convenient daily maintenance and system optimization.
In terms of power supply performance, the module features a stable 24 VDC power input with a rated operating current of approximately 1 A, supporting continuous and low-power-consumption operation. It is equipped with rich and complete built-in I/O interfaces, including 8 discrete outputs, 6 analog outputs, and 2 independent actuator outputs, which can directly match various industrial actuators, sensors, and peripheral equipment without additional auxiliary modules, greatly improving system integration and reducing application costs.

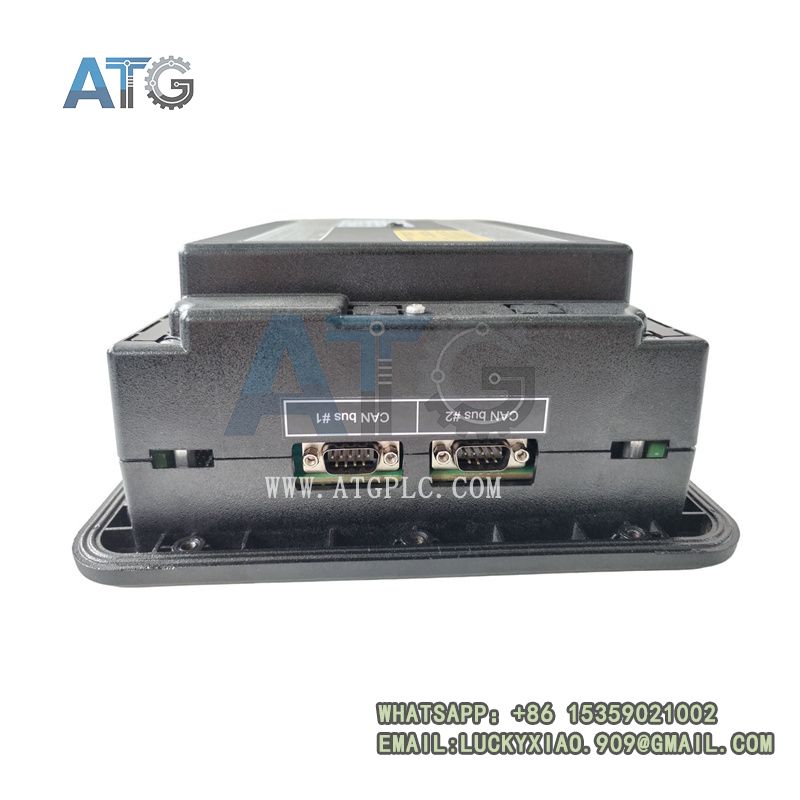

Woodward 8440-2052
Human-Computer Interaction & Control Performance
The controller is fitted with a professional front-panel Operator Control Panel (OCP), equipped with a two-line 24-character LCD display and a full-featured multi-function keypad. The intuitive human-computer interaction design supports real-time viewing of turbine operating data, manual parameter adjustment, fault query, and system status monitoring, allowing operators to complete on-site configuration and daily monitoring efficiently without relying on external terminals.
Focused on turbine precision control, this module achieves highly accurate speed regulation, load adjustment, and extraction/admission control. It supports multiple control modes for steam turbine startup, steady-state operation, and variable load switching, with built-in multi-dimensional safety protection logic including overspeed protection, critical speed avoidance, actuator travel limit protection, and operational event logging. It effectively eliminates operating risks and maintains stable and safe operation of turbine equipment under variable working conditions.
Communication & Environmental Adaptability Parameters
For industrial system interconnection, the WOODWARD 8440-2052 is equipped with standard RS-232 and RS-422 serial communication interfaces and supports Modbus RTU standard communication protocol. It can seamlessly connect with upper industrial control systems, PLC hosts, remote monitoring platforms, and data acquisition equipment, realizing stable two-way data transmission, remote monitoring, and centralized system management to meet modern industrial intelligent control requirements.
With superior industrial environmental adaptability, the module features a wide temperature tolerance range. Its long-term stable operating temperature ranges from -20°C to +60°C, while the storage temperature covers -40°C to +85°C. It can withstand up to 95% non-condensing relative humidity (tested for 48 hours at 20–55°C) without performance damage. The rugged industrial casing provides excellent dust and moisture resistance, adapting to harsh industrial environments such as power plants, chemical plants, and refineries to ensure 24/7 uninterrupted stable operation.
Woodward 8440-2052
Product Advantages & Application Scenarios
Featuring miniaturized compact structure, rich integrated interfaces, high control precision, simple operation, and strong environmental adaptability, the WOODWARD 8440-2052 is a cost-effective core control device for industrial steam turbines. Its integrated design eliminates the need for redundant auxiliary equipment, simplifying installation, wiring, and daily maintenance procedures. The built-in comprehensive protection functions greatly improve the safety and reliability of turbine operation, effectively reducing equipment failure rates and operational maintenance costs.
This controller is widely applicable to multiple industrial scenarios, including single-valve steam turbine control in power generation systems, turbine-driven compressor and pump drive control in chemical and petrochemical industries, and precise load and speed regulation of industrial power equipment. All products undergo strict factory performance and aging tests, and come with a 12-month official warranty, providing reliable and long-lasting quality assurance for industrial production and power control systems.
