Description
Product Overview
The TRICONEX 8312 is a high-reliability redundant power supply module specially designed for Triconex TMR Safety Instrumented Systems (SIS). As a core power guarantee component of the entire safety control platform, it provides stable and isolated DC power for Triconex controllers, I/O modules and communication modules. It supports continuous and reliable power supply operation for industrial safety systems under complex working conditions.
Ordinary industrial power modules have obvious defects in safety system applications. Most of them adopt single power input design without redundant backup mechanism. They lack comprehensive fault diagnosis and over-protection functions. Once power fluctuation, overload or circuit failure occurs, the entire safety system may shut down abnormally. This will cause safety monitoring failure and bring major production risks. In addition, common power modules cannot meet the strict SIL3 safety integrity requirements of high-risk process industries. The TRICONEX 8312 completely solves these industry pain points. It adopts professional redundant power input design and three-channel isolated power output architecture. It integrates multiple protection mechanisms, full-state fault diagnosis and industrial-grade anti-interference performance. Every module undergoes strict factory aging testing, power calibration and safety performance screening. It fully adapts to global industrial e-commerce procurement, safety system power configuration upgrading and long-term 7×24-hour uninterrupted safety operation.
Core Product Features & Competitive Advantages
Most conventional power supply modules only complete basic power conversion and output functions. They have single protection logic and no redundant backup capability. Power supply interruption or abnormal output will directly lead to the collapse of safety control loops. In contrast, the TRICONEX 8312 integrates redundant power backup, isolated power output and full intelligent diagnosis technology. It greatly improves the power supply stability, safety and continuous operation capability of Triconex SIS systems.
- Dual Redundant Power Input Design: Supports dual independent power source access. It realizes automatic switching during single power supply failure. This design eliminates single-point power failure risks and ensures uninterrupted power supply for safety systems.
- Three-Channel Isolated TMR Power Output: Provides three independent 24VDC isolated power outputs corresponding to TMR triple modular redundant circuits. It ensures power supply independence of each redundant channel and avoids cross-interference between loops.
- IEC 61508 SIL3 High Safety Certification: Passes TÜV authoritative safety certification. It fully complies with international top-level process safety standards and meets the power supply safety requirements of ESD emergency shutdown systems and fire and gas protection systems.
- Ultra-Wide Input Voltage Adaptation: Supports wide-range AC and DC power input. It adapts to complex industrial power supply environments and avoids output abnormality caused by grid voltage fluctuation.
- Comprehensive Multi-Dimensional Protection Mechanism: Built-in overload protection, overvoltage protection, overcurrent protection and short-circuit protection. It automatically cuts off faulty output to protect backend controllers and I/O modules from damage.
- Full-State Real-Time Fault Diagnosis: Equipped with multiple status indicator lights for PASS, FAULT, ALARM and TEMP. It real-timely monitors power input status, output load, temperature abnormality and circuit faults for rapid troubleshooting.
- Online Hot-Swap Maintenance Support: Allows online module replacement without shutting down the entire SIS system. It supports faulty module replacement and system power capacity expansion, minimizing industrial production downtime losses.
- Strong Industrial Anti-Interference Performance: Adopts professional electromagnetic isolation and filtering design. It resists on-site electromagnetic interference, surge voltage and power harmonic disturbance to ensure stable power output quality.
- Ultra-Wide Environmental Adaptability: Maintains full-load stable power output in extreme temperature and humidity environments. It adapts to harsh scenarios such as chemical plants, power stations, oil and gas fields and offshore platforms.
- Perfect Triconex System Compatibility: Seamlessly matches all Tricon series TMR safety chassis and controllers. It supports plug-and-play installation without program modification or secondary debugging.

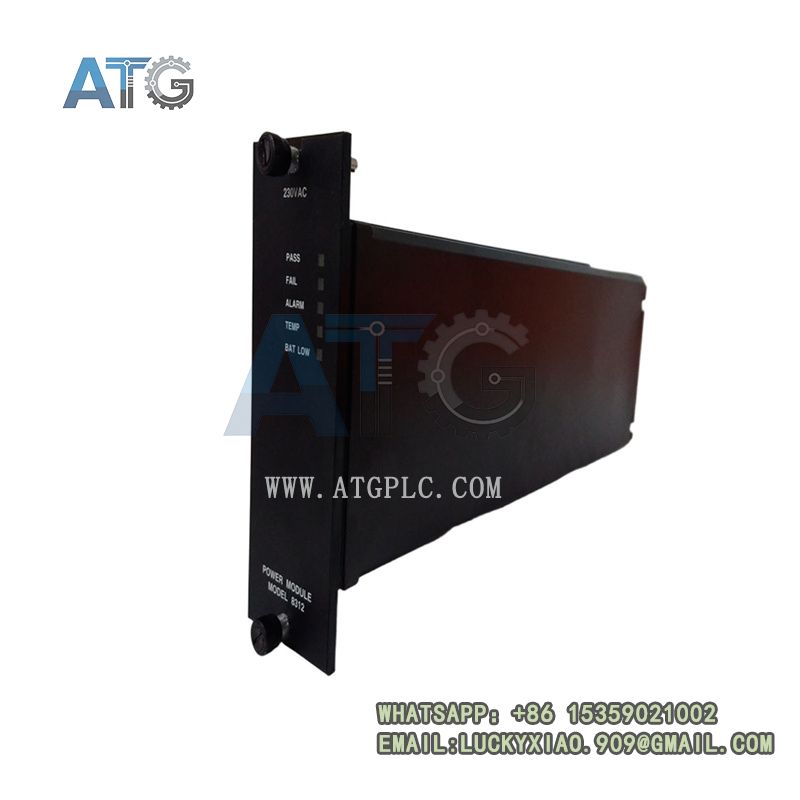

TRICONEX 8312
Detailed Technical Specifications (Key Highlight Parameters)
The TRICONEX 8312 strictly follows Triconex original safety power supply specifications and international IEC process safety standards. All power conversion performance, protection indicators and environmental resistance parameters pass authoritative factory testing and field verification. Its core advantages focus on redundant backup, three-channel isolation output and full safety protection. The sorted detailed parameters below support accurate engineering power configuration, safety scheme design and standardized batch procurement.
3.1 Basic Product Identification & System Matching
- Official Full Model: 8312
- Manufacturer: TRICONEX (Schneider Electric / Invensys)
- Product Series: Tricon TMR Safety System Power Supply Module Series
- Product Type: SIL3-Grade Redundant Isolated Power Supply Module
- Core Functions: Industrial power conversion, dual redundant power backup, three-channel isolated DC output, full-state fault monitoring and over-protection
- Compatible Systems: Triconex TMR SIS Safety Instrumented System, ESD Emergency Shutdown System, Fire and Gas Detection & Linkage System
- Applicable Scenarios: Petrochemical, chemical, electric power, oil and gas, offshore platform safety system power configuration, old power module upgrading and safety spare parts strategic reserve
- Executive Standards: IEC 61508 SIL3 safety standard, IEC 61511 process safety specification, industrial EMC electromagnetic compatibility standard
3.2 Core Electrical & Power Performance Parameters
This module adopts dual redundant input and three-channel isolated output topology. It features stable power conversion, complete protection logic and strong load capacity. It fully meets the high-reliability power supply requirements of industrial safety systems.
- Input Voltage Range: 185–264 VAC (47–63Hz); 110–370 VDC wide-range adaptive input
- Output Specification: Three independent isolated 24VDC output rails (±1% precision stabilization)
- Rated Load Current: 10A per single channel at 50°C ambient temperature
- Peak Current Capacity: 15A peak current support for 60 seconds to adapt to instantaneous load surge
- Fuse Specification: 2.5A time-delay fuse for over-current safety protection
- Output Hold Time: Minimum 20ms power hold time to avoid instantaneous power failure impact
- Isolation Performance: 2500Vrms high isolation between channels and between channel and backplane
- Diagnostic Coverage: 99% full-coverage fault diagnosis, including power mismatch, overload, over-temperature and circuit abnormality
- Safety Level: IEC 61508 SIL3 certified with TÜV official safety qualification
- Maintenance Mode: Support online hot-swap replacement without system shutdown
3.3 Structural & Installation Parameters
The product adopts standardized modular card-type structure with dedicated chassis installation. It features compact layout, stable wiring and simple daily maintenance, which is suitable for intensive power configuration of industrial safety cabinets.
- Installation Method: Dedicated Triconex standard chassis integrated card installation
- Structural Feature: Integrated power supply design, saving safety cabinet internal layout space
- Wiring Interface: Standard dedicated power terminal block with stable and reliable connection
- Operation Mode: Plug-and-play system docking, no complex debugging required
- Shell Material: High-strength flame-retardant industrial shell with anti-aging and anti-corrosion performance
- Module Weight: Approximately 2.3kg, lightweight for flexible cabinet layout
- Overall Dimension: 112mm × 315mm × 262mm standard industrial module size
3.4 Environmental & Mechanical Resistance Parameters
The TRICONEX 8312 passes strict industrial extreme environment simulation tests. It maintains stable power conversion efficiency and complete protection performance in harsh temperature, humidity and vibration scenarios.
- Operating Temperature Range: 0°C ~ +60°C full-load stable power operation
- Storage Temperature Range: -40°C ~ +85°C high and low temperature resistant storage
- Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
- Environmental Adaptability: Dust-proof, moisture-proof, vibration-resistant and strong electromagnetic interference resistance
- Continuous Operation: Support 7×24-hour uninterrupted long-term safety system power supply
3.5 Factory Testing & Quality Certification Standards
All modules are manufactured in accordance with Triconex original industrial safety quality system. Each product completes comprehensive power performance testing and safety verification before delivery to meet international process safety requirements.
- Core Certifications: IEC 61508 SIL3 safety certification, TÜV safety approval, CE EMC certification, UL and CSA industrial safety certification
- Factory Testing Items: Redundant power switching test, full-load aging test, precision output calibration, over-protection function test, temperature cycle durability test
- Field Reliability: Widely deployed in global high-risk industrial safety systems, with long-term stable operation verification and ultra-low failure rate

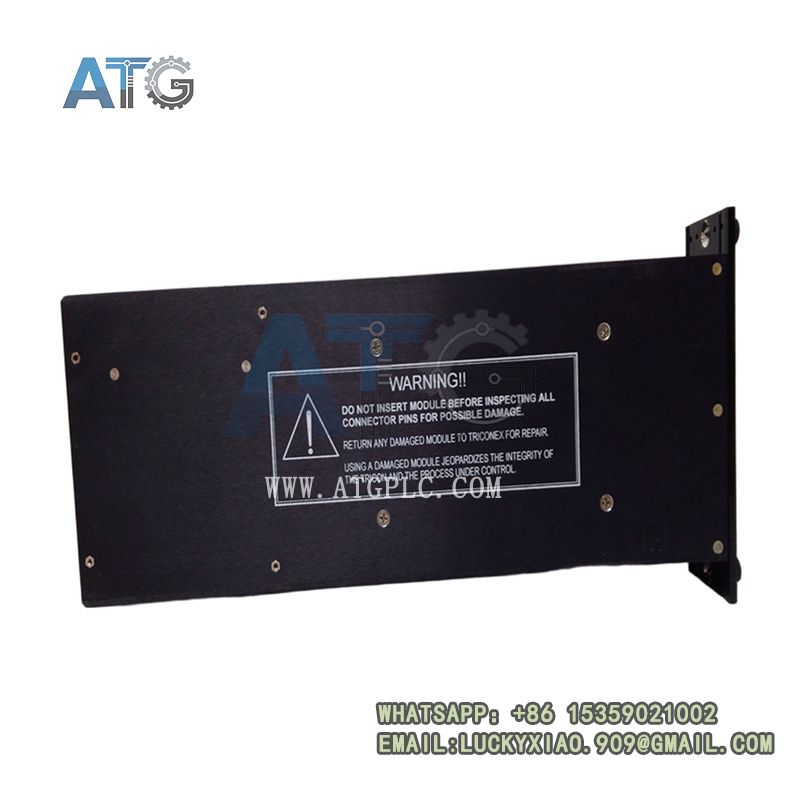

TRICONEX 8312
E-commerce Sales Mode & Complete Procurement Advantages
As the core power guarantee spare part for Triconex SIS safety systems, the TRICONEX 8312 adopts standardized and transparent global industrial e-commerce sales mode. It focuses on safety system power configuration matching, old power module upgrading and enterprise safety spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for large industrial enterprises and engineering integrators.
4.1 Standardized Transparent E-commerce Sales System
All TRICONEX 8312 products implement unified original factory production and power performance testing standards. The whole production, calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, SIL safety certification documents and factory test reports. Customers can verify product authenticity and system matching accuracy online. This transparent mechanism effectively avoids refurbished, recalibrated and incompatible power modules. It ensures long-term stable power supply and safe operation of industrial safety instrumented systems.
4.2 Diversified Flexible Procurement Modes
Industrial safety system power configuration and maintenance have differentiated demands for procurement quantity and delivery cycle. We provide flexible and targeted procurement solutions to meet emergency maintenance, daily spare parts reserve and large-scale engineering construction needs.
- Single Unit Emergency Spot Procurement: Support single spot orders for sudden power module failure or power supply abnormality. Sufficient global spot inventory supports fast delivery. It enables rapid module replacement, quickly restores redundant power supply function and avoids safety system shutdown risks caused by single power failure.
- Small-Batch Spare Parts Stocking: Support small-batch customized procurement for industrial enterprises. Pre-storing 8312 modules improves daily power system maintenance response speed and ensures continuous and stable power supply for safety control loops.
- Large-Batch Engineering Procurement: Provide hierarchical preferential pricing and long-term framework cooperation services for new safety system construction, old factory safety power system upgrading and full-system power configuration optimization. It effectively reduces overall project procurement costs and shortens system commissioning cycle.
4.3 Full-Cycle Value-Added Services & After-Sales Guarantee
Power supply modules are the core energy foundation of safety systems. Their stability and safety directly determine the continuous operation capability of the entire safety protection platform. We provide full-cycle technical support and quality assurance to eliminate all procurement risks for industrial customers.
- 100% Original Genuine Quality Guarantee: All products are original TRICONEX genuine new modules with official power calibration data. Complete factory test reports and SIL certification files are provided to ensure perfect matching with original Triconex TMR safety systems.
- Professional Industrial-Grade Logistics Protection: Adopt multi-layer shockproof, moisture-proof and dust-proof professional packaging. It protects internal precision circuits and power components to avoid performance deviation or damage during long-distance transportation and warehousing.
- 24/7 Professional Technical Support: Provide pre-sales power configuration matching consultation, in-sales installation and wiring guidance, and after-sales fault diagnosis and system debugging services.
- Official Long-Term Warranty Service: Enjoy unified official after-sales warranty. Free replacement and maintenance services are available for non-human-induced quality and performance faults to reduce enterprise safety operation risks.
Main Industrial Application Scenarios
Benefiting from dual redundant backup, three-channel isolated output, high safety integrity and complete protection mechanism, the TRICONEX 8312 is widely used as core power supply equipment for various high-risk industrial safety systems.
- Industrial SIS Safety Instrumented System: Serve as the core power supply unit for Triconex SIS systems. It provides stable redundant power for controllers, I/O modules and communication components to ensure continuous operation of safety monitoring loops.
- ESD Emergency Shutdown System: Provide reliable power guarantee for ESD emergency shutdown logic and execution components. It avoid system failure caused by power abnormality and ensures effective execution of emergency protection actions.
- Fire & Gas Wide-Area Monitoring System: Support long-term stable power supply for fire and gas detection equipment and linkage control modules. It guarantees normal operation of safety alarm and linkage protection functions.
- Thermal Power & New Energy Safety System: Apply to power plant boiler safety control and unit protection systems. It meets high-reliability power supply requirements of energy industry key safety equipment.
- Offshore Oil & Gas Platform Safety Control: Adapt to offshore high-humidity, high-corrosion and strong-interference environments. It provides stable redundant power support for offshore safety instrumented systems.
- Old Safety System Power Renovation: Replace aging single-power modules of old safety systems. It upgrades system power redundancy and safety level without overall system reconstruction, reducing renovation investment costs.

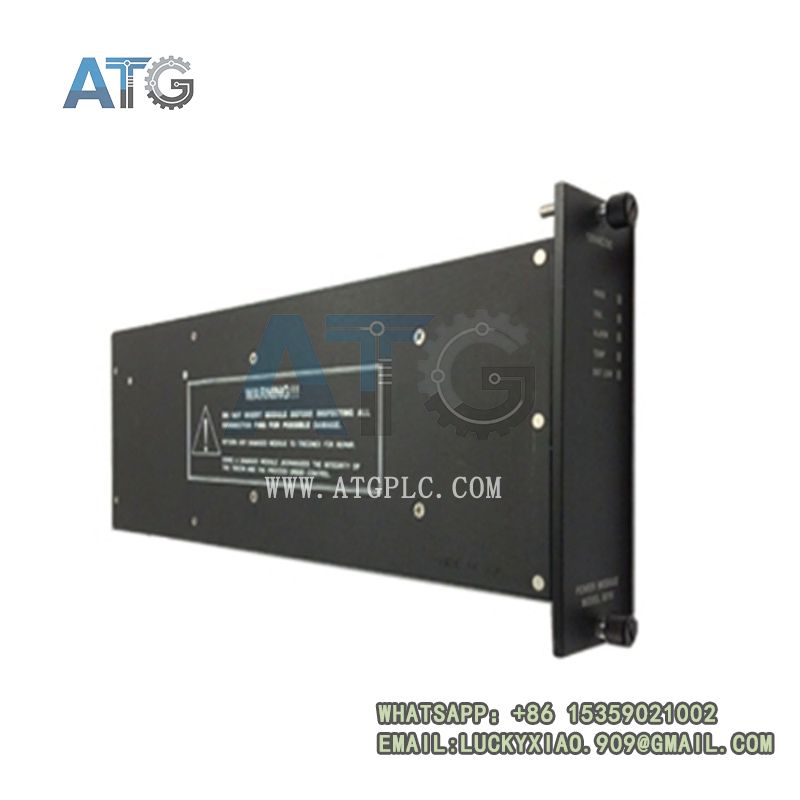

TRICONEX 8312
Product Value & Market Competitiveness
The TRICONEX 8312 fills the market gap of high-reliability -grade redundant isolated power supply modules for Triconex SIS systems. Compared with ordinary industrial power modules, it integrates dual redundant power backup, three-channel TMR isolated output and full intelligent protection diagnosis. It solves core industry pain points such as single power failure risk, poor output stability and incomplete protection functions of traditional safety power modules.
In the global industrial safety spare parts e-commerce market, the TRICONEX 8312 has prominent differentiated competitive advantages. It features zero single-point power failure risk, high-precision isolated output, 99% full fault diagnosis coverage and convenient hot-swap maintenance. Combined with standardized genuine procurement, complete safety certification documents and full-cycle professional technical services, it is the preferred core power supply module for modern high-safety industrial safety system construction and upgrading projects.
