Description
Product Overview
The TRICONEX 2381 is a high-precision industrial Pulse Input (PI) baseplate designed exclusively for Triconex TMR safety and control systems. It serves as a dedicated signal carrier and supporting base for pulse input modules. It provides stable field power distribution, signal shielding and loop fault detection for on-site pulse signal acquisition. This module mainly collects frequency, speed and pulse count signals from industrial field equipment. It supports accurate monitoring of rotating machinery flow meters and pulse-type transmitters.
Ordinary signal baseplates have obvious limitations in industrial safety monitoring scenarios. Most lack professional shielding design and loop monitoring functions. They cannot filter on-site electromagnetic interference effectively. Long-term operation easily causes pulse signal distortion, count deviation and data loss. In addition, common baseplates do not match Triconex TMR redundant architecture. They cannot support high-precision and high-reliability safety monitoring requirements. The TRICONEX 2381 completely solves these industry pain points. It adopts industrial-grade galvanic isolation and EMI shielding structure. It integrates multi-channel signal matching, blown fuse indication and loop comparator monitoring functions. Every baseplate undergoes strict factory precision testing, aging verification and environmental screening. It fully adapts to global industrial e-commerce procurement, safety system signal loop upgrading and long-term 7×24-hour stable industrial monitoring.
Core Product Features & Competitive Advantages
Traditional common baseplates only provide simple wiring and fixing functions. They have no signal optimization and fault diagnosis capabilities. Field power abnormalities or line faults cannot be detected in real time. These hidden risks affect the accuracy of pulse data and endanger equipment operation safety. In contrast, the TRICONEX 2381 integrates professional pulse signal adaptation, full-loop status monitoring and strong anti-interference performance. It greatly improves the stability and precision of industrial pulse signal acquisition loops.
- Professional Pulse Input Baseplate Positioning: Specially designed for Triconex pulse input signal acquisition. It supports high-precision collection of equipment speed, pulse frequency and flow cumulative signals. It matches various industrial pulse-type field sensors perfectly.
- Dual Field Power Distribution Design: Equipped with dual independent field power supply loops (PS1/PS2). It provides stable power output for field detection equipment. It avoids signal instability caused by single power loop failure.
- Built-In Loop Comparator Monitoring Function: Integrated dedicated signal comparator and spare comparator circuit. It realizes real-time comparison and verification of pulse signals. It effectively judges signal deviation and ensures data authenticity.
- Blown Fuse Fault Indication Mechanism: Supports real-time fuse state monitoring and fault indication. It quickly locates power loop fuse failure problems. It helps maintenance personnel troubleshoot efficiently and restore loop operation rapidly.
- 250V Galvanic Isolation Protection: Adopts professional electrical isolation design. It isolates field loop current interference and common-ground signal crosstalk. It protects backend modules and ensures long-term stable signal transmission.
- Ultra-Low Signal Transmission Latency: Optimized internal pulse signal transmission path. It achieves sub-2ms end-to-end rapid response. It meets high real-time requirements of industrial high-speed pulse signal monitoring.
- Strong EMI/RFI Anti-Interference Capability: Built-in electromagnetic shielding structure. It effectively suppresses on-site surge interference, radio frequency noise and power harmonic disturbance. It guarantees pure and undistorted pulse signal acquisition.
- Industrial-Grade Harsh Environment Adaptability: Features dust-proof, vibration-resistant and corrosion-resistant structure. It adapts to high-temperature, humid and strong-interference industrial scenes such as chemical plants, oil and gas fields and power stations.
- Perfect Triconex System Compatibility: Seamlessly matches Triconex TMR pulse input modules and standard chassis. It supports plug-and-play installation without complex program debugging or secondary configuration.
- Support Long-Term Uninterrupted Operation: Adopts high-strength industrial circuit design and strict component screening. It supports 7×24-hour continuous stable operation for industrial safety monitoring loops.

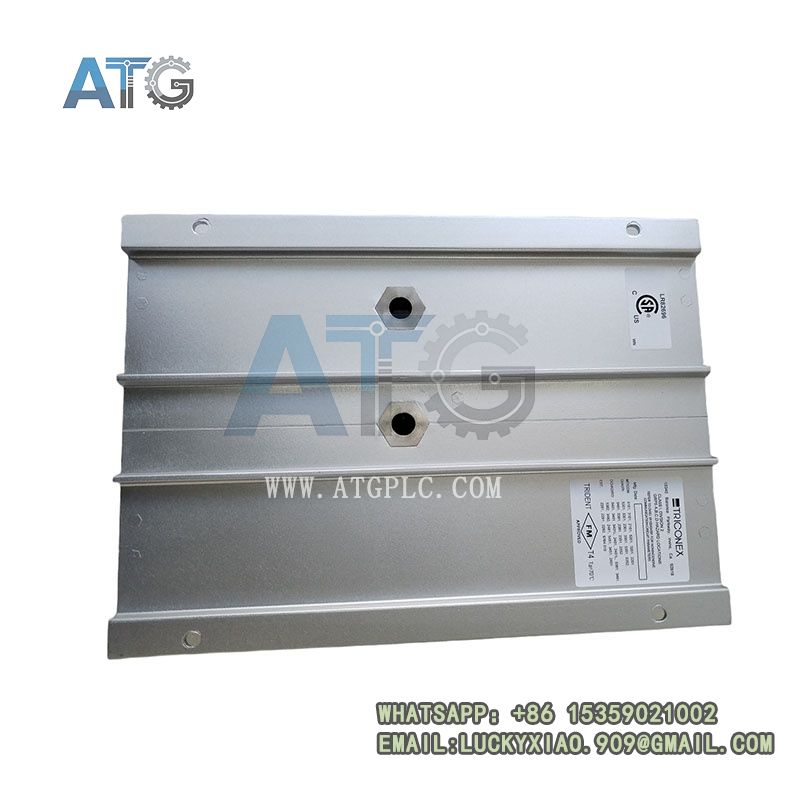

TRICONEX 2381
Detailed Technical Specifications (Key Highlight Parameters)
The TRICONEX 2381 strictly follows Triconex original industrial control specifications and international electromagnetic compatibility standards. All signal transmission, isolation protection and environmental resistance parameters pass authoritative factory testing and field verification. Its core advantages lie in professional pulse signal optimization, full-loop fault monitoring and ultra-low latency transmission. The sorted detailed parameters below support accurate engineering loop design, equipment matching and standardized batch procurement.
3.1 Basic Product Identification & System Matching
- Official Full Model: 2381
- Manufacturer: TRICONEX (Schneider Electric / Invensys)
- Product Series: Tricon TMR Safety System Signal Baseplate Series
- Product Type: Industrial High-Precision Pulse Input Signal Baseplate
- Core Functions: Field power distribution, pulse signal transmission optimization, loop comparator detection, fuse fault indication, electromagnetic interference shielding
- Compatible Equipment: Triconex series pulse input modules, standard system chassis and safety controllers
- Applicable Scenarios: Petrochemical, oil and gas, electric power and other process industries. It is widely used for rotating equipment speed monitoring, flow meter pulse acquisition and pulse signal safety loop construction.
- Executive Standards: Industrial EMC electromagnetic compatibility standard, IEC industrial control equipment safety standard, Triconex original system matching specification
3.2 Core Electrical & Signal Performance Parameters
This baseplate adopts dual power loop design and professional pulse signal processing circuit. It features low latency, strong isolation and full-loop monitoring. It fully meets high-precision and high-reliability signal transmission requirements of industrial pulse monitoring systems.
- Signal Type Adaptation: Industrial standard pulse frequency and pulse count signal
- Transmission Latency: Sub-2ms ultra-fast end-to-end signal response
- Isolation Voltage: 250V standard galvanic isolation protection
- Power Supply Loop: Dual independent PS1/PS2 field power distribution loops
- Fault Monitoring Mode: Built-in signal comparator + fuse state dual monitoring
- Fault Current Parameter: Typical 130mA fault current detection, maximum 200mA threshold
- Anti-Interference Performance: Professional EMI/RFI shielding, suppresses on-site electromagnetic and radio frequency interference
- Signal Stability: Effectively eliminates pulse signal jitter, count deviation and transmission loss
3.3 Structural & Installation Parameters
The product adopts standardized modular baseplate structure. It features compact layout, neat wiring and simple installation and maintenance. It is suitable for intensive cabinet layout of industrial safety control systems.
- Installation Method: Dedicated matching installation for Triconex standard chassis and pulse modules
- Structural Feature: Integrated signal optimization and power distribution design, saving cabinet internal space
- Wiring Interface: Standard industrial terminal interface with stable and reliable connection
- Operation Mode: Plug-and-play system matching, no complex configuration required
- Structural Material: High-strength flame-retardant industrial material with anti-aging and anti-corrosion performance
3.4 Environmental & Mechanical Resistance Parameters
The TRICONEX 2381 passes strict industrial extreme environment simulation tests. It maintains stable signal transmission performance and structural reliability under harsh temperature, humidity and vibration conditions.
- Operating Temperature Range: -40°C ~ +70°C full-range stable operation
- Storage Temperature Range: -40°C ~ +85°C high and low temperature resistant storage
- Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
- Environmental Adaptability: Dust-proof, moisture-proof, vibration-resistant and strong electromagnetic interference resistance
- Continuous Operation: Support 7×24-hour uninterrupted long-term industrial signal monitoring
3.5 Factory Testing & Quality Certification Standards
All baseplates are manufactured in accordance with Triconex original industrial quality control system. Each product completes full-function signal testing, isolation performance verification and aging durability testing before delivery.
- Core Certifications: CE electromagnetic compatibility certification, UL industrial safety certification, ATEX industrial explosion-proof matching certification
- Factory Testing Items: Pulse signal transmission accuracy test, isolation voltage resistance test, dual power loop switching test, fault diagnosis function test, temperature cycle durability test
- Field Reliability: Widely deployed in global industrial pulse monitoring systems, with long-term stable operation verification and ultra-low failure rate
TRICONEX 2381
E-commerce Sales Mode & Complete Procurement Advantages
As a core supporting baseplate for Triconex pulse signal monitoring systems, the TRICONEX 2381 adopts standardized and transparent global industrial e-commerce sales mode. It focuses on industrial pulse signal loop maintenance, old monitoring system upgrading and enterprise industrial control spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for industrial enterprises and engineering integrators.
4.1 Standardized Transparent E-commerce Sales System
All TRICONEX 2381 products implement unified original factory production and testing standards. The whole production, calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, certification documents and factory test reports. Customers can verify product authenticity and system matching accuracy online. This transparent mechanism effectively avoids refurbished and incompatible baseplates. It ensures long-term stable and accurate operation of industrial pulse signal monitoring loops.
4.2 Diversified Flexible Procurement Modes
Industrial control system maintenance and renovation have differentiated demands for procurement quantity and delivery efficiency. We provide flexible and targeted procurement solutions to meet emergency maintenance, daily spare parts reserve and large-scale engineering construction needs.
- Single Unit Emergency Spot Procurement: Support single spot orders for sudden baseplate aging failure, signal deviation or loop fault. Sufficient global spot inventory supports fast delivery. It enables rapid replacement and quickly restores the accuracy and stability of pulse signal monitoring loops.
- Small-Batch Spare Parts Stocking: Suitable for industrial enterprises to reserve daily maintenance spare parts. Pre-storing 2381 baseplates improves on-site fault response speed and ensures continuous stable operation of key monitoring loops.
- Large-Batch Engineering Procurement: Provide hierarchical preferential pricing and long-term framework cooperation services for new industrial monitoring system construction, old pulse signal loop upgrading and full-system signal optimization renovation. It effectively reduces overall project procurement costs and shortens system debugging cycle.
4.3 Full-Cycle Value-Added Services & After-Sales Guarantee
The baseplate is the key carrier of field pulse signal transmission. Its stability and anti-interference performance directly determine the data accuracy of the entire monitoring system. We deliver full-cycle technical support and quality assurance to eliminate all procurement risks for industrial customers.
- 100% Original Genuine Quality Guarantee: All products are brand-new original TRICONEX baseplates with complete factory test reports and certification files. It ensures perfect matching and consistent signal transmission performance with Triconex pulse input modules.
- Professional Industrial-Grade Logistics Protection: Adopt multi-layer shockproof, moisture-proof and dust-proof packaging. It protects internal precision circuits and shielding structures from damage during long-distance transportation and storage.
- 24/7 Professional Technical Support: Provide pre-sales system matching consultation, in-sales installation and wiring guidance, and after-sales signal debugging and fault diagnosis services.
- Official Long-Term Warranty Service: Enjoy unified official after-sales warranty. Free replacement and maintenance services are available for non-human-induced quality faults to reduce enterprise operation risks.
Main Industrial Application Scenarios
Benefiting from ultra-low latency transmission, full-loop fault monitoring, strong anti-interference performance and dual power backup design, the TRICONEX 2381 is widely used in high-precision pulse signal acquisition and monitoring links of various process industries.
- Rotating Equipment Speed Monitoring System: Accurately collect pulse speed signals of fans, pumps, compressors and turbines. It supports real-time speed monitoring, overspeed alarm and safety interlock protection.
- Industrial Flow Cumulative Monitoring: Match pulse-type flow meters to collect flow pulse signals. It realizes high-precision cumulative flow statistics and stable process data recording.
- Petrochemical Process Monitoring: Adapt to complex petrochemical industrial environments. It provides stable signal transmission guarantee for key process pulse monitoring loops.
- Power Plant Equipment Safety Monitoring: Used for pulse signal acquisition of power generation equipment and auxiliary rotating machinery. It ensures real-time and accurate equipment operation status data.
- Oil & Gas Field Monitoring System: Resists field harsh environment interference. It supports long-term stable operation of oil and gas transmission pulse monitoring loops.
- Old Monitoring System Renovation & Upgrading: Replace aging ordinary baseplates. It adds fault monitoring and anti-interference optimization functions. It improves overall monitoring accuracy and system stability without large-scale reconstruction.
Product Value & Market Competitiveness
The TRICONEX 2381 fills the market gap of high-precision fault-monitoring pulse input baseplates for Triconex industrial control systems. Compared with ordinary wiring baseplates, it integrates dual power distribution, comparator signal verification, fuse fault indication and professional electromagnetic shielding. It solves core industry pain points such as easy signal distortion, undetectable loop faults and poor anti-interference ability of traditional pulse signal baseplates.
In the global industrial control spare parts e-commerce market, the TRICONEX 2381 has prominent differentiated competitive advantages. It features sub-2ms ultra-low latency transmission, full-loop real-time monitoring, dual power redundant support and industrial-grade anti-interference performance. Combined with standardized genuine procurement, complete certification documents and full-cycle professional technical services, it is the preferred supporting baseplate for high-precision pulse signal monitoring system construction and upgrading projects.
