TRICONEX 2301 digital input module (SIS)

Description

Product Overview

The TRICONEX 2301 is a high-reliability TMR (Triple Modular Redundancy) digital input module tailored for Triconex Trident Safety Instrumented Systems (SIS). As a core discrete signal acquisition unit, it supports 24-channel high-density digital signal collection. It accurately captures on-site switch status, equipment feedback, emergency stop signals and contact state data. It converts field discrete signals into standardized digital data for safety controllers, supporting real-time status monitoring, safety logic judgment and interlock execution for industrial critical loops.

Traditional ordinary digital input modules face obvious limitations in high-risk industrial safety scenarios. Most adopt non-redundant single-circuit design with incomplete fault diagnosis functions. They cannot adapt to positive and negative voltage signal input flexibly. Field electromagnetic interference, line aging and voltage fluctuation easily cause signal misjudgment and data loss. These defects may trigger false alarms or safety loop failure, bringing hidden dangers to production operation. In addition, conventional modules fail to meet strict IEC 61508 SIL3 safety integrity requirements for process industries. The TRICONEX 2301 thoroughly solves these industry pain points. It adopts standard TMR triple redundant sampling architecture, wide-range voltage adaptation and full-channel intelligent diagnosis. Every module undergoes strict factory precision calibration, full-load aging testing and extreme environment screening. It fully adapts to global industrial e-commerce procurement, safety system signal loop upgrading and long-term 7×24-hour uninterrupted safety monitoring operation.

Core Product Features & Competitive Advantages

Common digital input modules only complete basic signal reading functions. They lack comprehensive fault monitoring and anti-interference capabilities. Minor line faults or on-site noise interference can easily affect signal accuracy and threaten safety loop stability. In contrast, the TRICONEX 2301 integrates TMR hardware fault tolerance, wide voltage adaptive acquisition and industrial-grade isolation technology. It comprehensively improves the reliability, accuracy and maintainability of industrial safety discrete monitoring loops.

• Standard TMR Triple Modular Redundancy Architecture: Equipped with three independent synchronous sampling circuits and hardware median voting logic. Single-channel circuit failure or component abnormality will not affect normal signal acquisition. It completely eliminates system single-point failure risks and ensures ultra-high availability of safety monitoring loops.
• 24-Channel High-Density Signal Acquisition: Supports 24 independent discrete input channels in a single module. It greatly improves cabinet space utilization and signal acquisition density. It reduces overall system module quantity and simplifies on-site wiring layout compared with low-density modules.
• Wide Positive and Negative Voltage Adaptation: Covers -30VDC to +30VDC wide input range. It supports both high-level and low-level signal access. It flexibly matches various industrial switch contacts and discrete signal equipment without additional conversion accessories.
• IEC 61508 SIL3 Authoritative Safety Certification: Passes professional TÜV safety verification. It complies with top international process safety specifications. It is fully applicable to ESD emergency shutdown systems, fire and gas protection systems and other critical safety facilities.
• 99% Ultra-High Diagnostic Coverage: Features industry-leading full-channel fault diagnosis capability with 99% diagnostic coverage. It continuously monitors line open circuit, short circuit and signal abnormality. It quickly locates hidden loop faults and reduces safety monitoring risks.
• Independent Channel Isolation Protection: Adopts channel-to-channel isolation design with 1500VDC high isolation performance. It effectively isolates on-site surge voltage and signal crosstalk. It avoids cross-channel interference and ensures independent and stable operation of each signal loop.
• Stable Fast Response Performance: Features 50ms standard single-channel response speed. It ensures timely acquisition and feedback of field safety switch signals. It supports rapid response of safety interlock and protection actions.
• Strong Industrial Anti-Interference Ability: Built-in multi-level EMI/RFI filtering and electromagnetic shielding structure. It resists on-site power harmonics, radio frequency noise and surge interference. It guarantees stable and undistorted discrete signal transmission in complex industrial environments.
• Online Hot-Swap Maintenance Support: Allows online module replacement without shutting down the entire SIS system. It supports emergency fault replacement and system loop expansion. It effectively avoids production shutdown losses caused by maintenance operations.
• Harsh Environment Adaptive Design: Undergoes strict industrial component screening and structural reinforcement. It stably operates in high and low temperature, humid and vibrating scenarios. It adapts to chemical, power, oil and gas and offshore platform industrial environments.
• Seamless Trident System Compatibility: Perfectly matches Triconex Trident series standard chassis and TMR safety controllers. It supports plug-and-play installation without program modification or secondary system debugging.

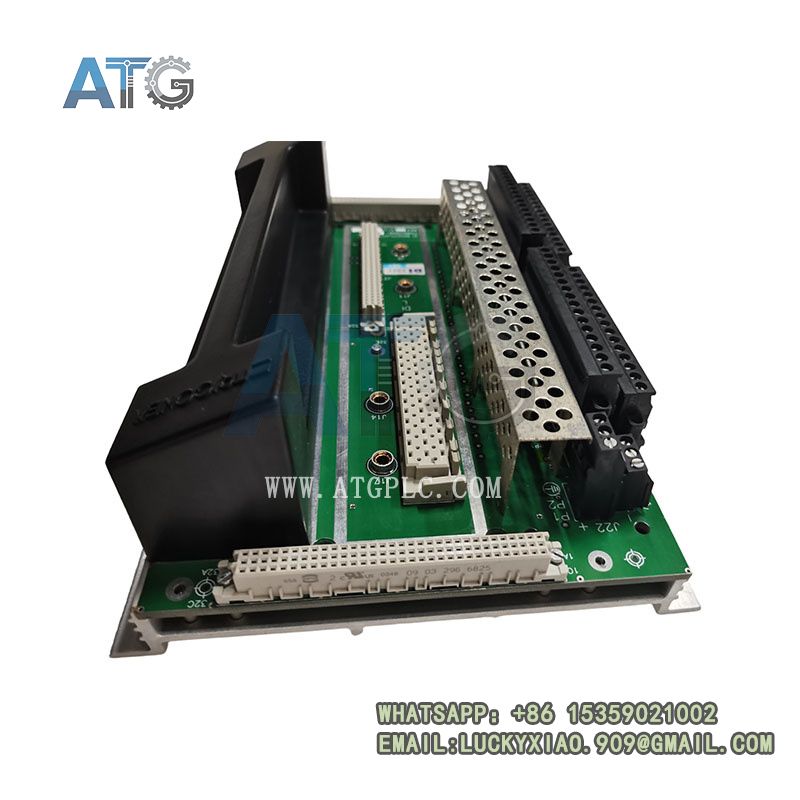

TRICONEX 2301

Detailed Technical Specifications (Key Highlight Parameters)

The TRICONEX 2301 strictly follows original Triconex Trident safety design specifications and international IEC process safety standards. All signal acquisition, electrical performance, diagnosis capability and environmental resistance parameters pass authoritative factory testing and field verification. Its core advantages lie in high channel density, wide voltage adaptation, ultra-high diagnostic coverage and TMR fault tolerance. The sorted detailed parameters below support accurate engineering selection, safety loop design and standardized batch procurement.

3.1 Basic Product Identification & System Matching

• Official Full Model: 2301
• Manufacturer: TRICONEX (Schneider Electric / Invensys)
• Product Series: Tricon Trident TMR Safety System Digital I/O Module Series
• Product Type: SIL3-Grade TMR Fault-Tolerant Wide-Range Digital Input Module
• Core Functions: Field discrete signal acquisition, multi-voltage signal adaptation, full-loop fault diagnosis, anti-interference filtering and safety data transmission
• Compatible Systems: Tricon Trident TMR SIS Safety Instrumented System, ESD Emergency Shutdown System, Fire and Gas Detection & Linkage System
• Applicable Scenarios: Petrochemical, chemical, electric power, oil and gas, offshore platform safety system construction, old discrete signal loop upgrading and safety spare parts strategic reserve
• Executive Standards: IEC 61508 SIL3 safety standard, IEC 61511 process safety specification, industrial EMC electromagnetic compatibility standard

3.2 Core Electrical & Signal Performance Parameters

This module adopts triple redundant independent sampling circuit and wide-voltage signal processing technology. It features multi-signal adaptation, high diagnostic coverage and strong stability. It fully meets high-reliability discrete signal monitoring requirements of industrial safety systems.

• Input Channel Configuration: 24 independent isolated digital input channels
• Input Voltage Range: -30 VDC to +30 VDC wide adaptive voltage
• Maximum Input Current: 6mA single-channel maximum input current
• Single Channel Response Time: 50ms standard fast response speed
• Isolation Voltage: 1500VDC channel-to-channel and backplane isolation
• Diagnostic Coverage: 99% ultra-high full-channel fault diagnosis coverage
• Sampling Method: Triple Modular Redundancy synchronous sampling + hardware median voting
• Safety Level: IEC 61508 SIL3 certified with official TÜV safety qualification
• Diagnostic Function: Real-time monitoring of open circuit, short circuit and signal abnormality
• Anti-Interference Design: Multi-level EMI/RFI filtering and electromagnetic shielding structure
• Data Processing: Built-in signal jitter filtering algorithm to ensure stable data output
• Maintenance Mode: Support online hot-swap replacement without system shutdown

3.3 Structural & Installation Parameters

The product adopts compact high-density card-type modular structure. It supports dedicated Triconex Trident chassis integrated installation. It features neat wiring, small footprint and simple daily maintenance, suitable for intensive layout of industrial safety cabinets.

• Installation Method: Dedicated Triconex Trident standard chassis card mounting
• Structural Feature: 24-channel high-density single-slot design, saving cabinet layout space effectively
• Wiring Interface: Standard dedicated safety terminal block with stable and anti-loose connection
• Operation Mode: Plug-and-play system docking, no complex program debugging required
• Shell Material: High-strength flame-retardant industrial shell with anti-aging and anti-corrosion performance
• Bus Communication: Trident dedicated TMR bus, 100Mbps transmission rate, ≤1μs low latency

3.4 Environmental & Mechanical Resistance Parameters

The TRICONEX 2301 passes strict industrial extreme environment simulation tests. It maintains stable signal acquisition performance and complete diagnosis functions under harsh temperature, humidity and vibration conditions.

• Operating Temperature Range: -40°C ~ +70°C full-load stable continuous operation
• Storage Temperature Range: -40°C ~ +85°C high and low temperature resistant storage
• Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
• Environmental Adaptability: Dust-proof, moisture-proof, vibration-resistant and strong electromagnetic interference resistance
• Continuous Operation: Support 7×24-hour uninterrupted long-term safety signal monitoring

3.5 Factory Testing & Quality Certification Standards

All modules are manufactured in accordance with Triconex original industrial safety quality control system. Each product completes full-function performance testing and safety verification before delivery to meet global process safety requirements.

• Core Certifications: IEC 61508 SIL3 safety certification, TÜV safety approval, CE EMC electromagnetic compatibility certification
• Factory Testing Items: TMR voting function test, wide voltage signal adaptation test, full-load aging test, isolation voltage resistance test, temperature cycle durability test and full fault diagnosis test
• Field Reliability: Widely deployed in global high-risk industrial Trident safety systems, with long-term stable operation verification and ultra-low field failure rate

TRICONEX 2301

E-commerce Sales Mode & Complete Procurement Advantages

As a core high-density digital input spare part for Triconex Trident SIS safety systems, the TRICONEX 2301 adopts standardized and transparent global industrial e-commerce sales mode. It focuses on safety discrete signal loop maintenance, old module upgrading and enterprise safety spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for industrial enterprises and engineering integrators.

4.1 Standardized Transparent E-commerce Sales System

All TRICONEX 2301 products implement unified original factory production and testing standards. The whole production, calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, SIL safety certification documents and factory test reports. Customers can verify product authenticity and system matching accuracy online. This transparent mechanism effectively avoids refurbished, modified and incompatible modules. It ensures long-term stable and accurate operation of industrial safety instrumented systems.

4.2 Diversified Flexible Procurement Modes

Industrial safety system maintenance and engineering construction have differentiated demands for delivery speed and procurement quantity. We provide flexible and targeted procurement solutions to cover emergency maintenance, daily spare stock and large-scale project deployment.

• Single Unit Emergency Spot Procurement: Support single spot orders for sudden module failure, signal recognition abnormality or discrete loop fault. Sufficient global spot inventory supports fast delivery. It enables rapid module replacement and quickly restores full-channel safety signal monitoring function to avoid monitoring blind spots.
• Small-Batch Spare Parts Stocking: Suitable for industrial enterprises to build daily maintenance spare parts inventory. Pre-storing 2301 modules improves on-site fault response efficiency and ensures continuous stable operation of key safety discrete monitoring loops.
• Large-Batch Engineering Procurement: Provide hierarchical preferential pricing and long-term framework cooperation services for new Trident safety system construction, discrete signal loop expansion and old system performance upgrading. It effectively reduces overall project procurement costs and shortens system commissioning cycle.

4.3 Full-Cycle Value-Added Services & After-Sales Guarantee

Digital input modules are the core signal source of safety system logic judgment. Their signal adaptability, stability and diagnosis accuracy directly determine the reliability of safety interlock and protection actions. We deliver full-cycle technical support and quality assurance to eliminate all procurement risks for industrial customers.

• 100% Original Genuine Quality Guarantee: All products are brand-new original TRICONEX modules with complete factory test reports and certification files. It ensures perfect matching and consistent safety performance with original Trident TMR safety systems.
• Professional Industrial-Grade Logistics Protection: Adopt multi-layer shockproof, moisture-proof and dust-proof professional packaging. It protects internal precision circuits and isolation components from extrusion and moisture damage during long-distance transportation and storage.
• 24/7 Professional Technical Support: Provide pre-sales system matching consultation, in-sales installation and wiring guidance, and after-sales signal debugging and fault diagnosis services.
• Official Long-Term Warranty Service: Enjoy unified official after-sales warranty. Free replacement and maintenance services are available for non-human-induced quality faults to reduce enterprise safety operation risks.

Main Industrial Application Scenarios

Benefiting from TMR fault tolerance, high safety level, wide voltage adaptation and 99% high diagnostic coverage, the TRICONEX 2301 is widely used in safety-critical discrete signal monitoring links of various high-risk process industries.

• Industrial SIS Safety Instrumented System: Serve as high-density discrete signal acquisition unit for Trident SIS systems. It centrally collects equipment switch status, safety contact signals and on-site equipment feedback data to support real-time safety logic judgment.
• ESD Emergency Shutdown System: Continuously monitors emergency stop signals, valve feedback status and equipment fault contacts. It provides accurate data basis for emergency shutdown linkage actions to prevent major process safety accidents.
• Fire & Gas Protection Linkage System: Collects fire alarm switch, gas detector status and linkage equipment discrete signals. It supports accurate risk judgment and automatic safety linkage protection of fire and gas systems.
• Petrochemical Process Safety Monitoring: Adapt to complex petrochemical production environments. It provides stable multi-voltage signal acquisition support for long-term monitoring of core safety loops.
• Power Plant Safety Interlock System: Applied to power plant boiler protection and auxiliary equipment status monitoring. It meets high-density and high-reliability discrete signal acquisition requirements of power industry safety loops.
• Offshore Oil & Gas Platform Safety Control: Adapt to offshore high-corrosion, high-humidity and strong-interference working conditions. It provides stable safety signal monitoring guarantee for offshore Trident safety systems.
• Old Safety System Renovation & Upgrading: Replace aging low-density and low-diagnosis input modules. It improves system signal adaptation range, fault tolerance and diagnosis level without overall system reconstruction, lowering renovation costs.

Product Value & Market Competitiveness

The TRICONEX 2301 fills the market gap of high-density wide-voltage -grade TMR digital input modules for Triconex Trident safety systems. Compared with ordinary industrial digital input modules, it integrates 24-channel high-density acquisition, -30VDC~+30VDC wide voltage adaptation, 99% ultra-high diagnostic coverage and TMR hardware fault tolerance. It solves core industry pain points such as single signal adaptation range, low diagnosis efficiency and single-point failure risk of traditional safety discrete modules.

In the global industrial safety spare parts e-commerce market, the TRICONEX 2301 has prominent differentiated competitive advantages. It features multi-voltage signal compatibility, full-channel high-efficiency fault diagnosis, zero single-point failure risk and convenient hot-swap maintenance. Combined with standardized genuine procurement, complete safety certification documents and full-cycle professional technical services, it is the preferred high-efficiency signal acquisition module for Trident safety system construction and upgrading projects.
