Description
Product Overview
The ROLLS ROYCE RRDIO15 is a professional marine remote digital I/O module designed exclusively for Rolls-Royce marine automation and control systems. It acts as a critical signal acquisition and output terminal for vessel dynamic positioning systems, propulsion control cabinets and offshore platform automation equipment. This module realizes remote collection of on-site digital signals and synchronous output of control instructions, serving as the bridge between core controllers and field marine equipment.
Ordinary industrial I/O modules lack marine environmental resistance and professional bus protocol compatibility. They cannot adapt to harsh offshore working conditions with salt fog, vibration and humidity. Meanwhile, they fail to match the dedicated communication logic of Rolls-Royce marine control systems. The RRDIO15 perfectly solves these industry pain points with marine-grade design and customized protocol adaptation. Every module undergoes strict salt fog aging, vibration resistance and signal stability testing. It fully supports global marine e-commerce procurement, vessel system renovation and long-term 7×24-hour stable operation on marine and offshore facilities.
Core Product Features & Competitive Advantages
Most universal digital I/O modules are developed for factory automation scenarios. They have poor resistance to marine extreme environments and cannot be seamlessly connected with Rolls-Royce CCS and Damatic Strategy systems. In addition, they are prone to signal delay, data loss and interface failure during long-term offshore operation. In contrast, the ROLLS ROYCE RRDIO15 adopts dedicated marine I/O architecture and optimized bus transmission design. It balances signal accuracy, environmental adaptability and system compatibility, effectively improving the overall stability of marine automation signal transmission systems.
- 15-Channel Configurable Digital I/O Design: Equipped with 15 independent configurable digital input and output channels. It supports flexible signal acquisition and control output of multiple field devices. It meets the multi-point signal interaction demands of marine propulsion and auxiliary systems.
- Dedicated Marine CAN-Bus Communication: Compatible with Rolls-Royce exclusive system CAN-bus protocol. It realizes low-delay, high-stability data interaction with main control modules such as H1111.0103. It avoids communication mismatch and signal disconnection caused by generic modules.
- Marine-Grade Wide Voltage Adaptation: Supports 18VDC to 32VDC wide-range power input with 24VDC rated voltage. It adapts to unstable power supply fluctuations on ships and offshore platforms, ensuring continuous module operation.
- High-Side Switching Output Performance: Adopts high-side switching output circuit design. It features strong load driving capacity and stable on-off response. It accurately controls marine relays, valves and auxiliary electrical equipment.
- Excellent Marine Environmental Resistance: Professionally optimized for salt fog corrosion, high humidity and mechanical vibration. It maintains stable signal transmission performance in harsh engine room and offshore working environments.
- Standard DIN-Rail Quick Installation: Adopts 35mm standard industrial DIN-rail mounting structure. It is lightweight and compact, saving cabinet space. It supports rapid on-site assembly and faulty module replacement.
- Removable Terminal Block Design: Equipped with detachable screw or spring terminal blocks. It simplifies on-site wiring, maintenance and circuit debugging. It greatly improves marine equipment maintenance efficiency.
- Low Power Consumption & High Stability: Optimized internal circuit reduces invalid power consumption and heat generation. It supports long-term full-load operation without signal drift or module overheating failure.
- Perfect System Compatibility: Fully matched with Rolls-Royce marine automation platforms. It supports seamless docking of dynamic positioning systems, thruster control systems and ship power management systems without program modification.
- Built-In Signal Protection Mechanism: Integrated overvoltage, overcurrent and surge protection functions. It effectively isolates on-site electrical interference and protects internal circuits and rear-end control equipment.

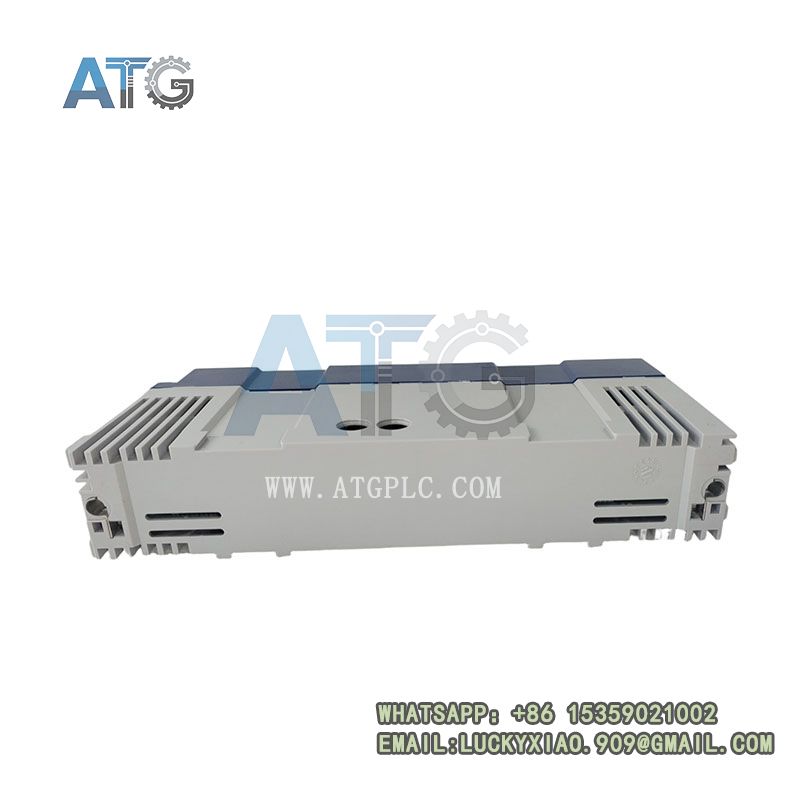

Rolls-Royce RRDIO15
Detailed Technical Specifications (Key Highlight Parameters)
The ROLLS ROYCE RRDIO15 strictly complies with Rolls-Royce original marine automation system specifications and international marine environmental standards. All electrical parameters, communication indicators and environmental resistance performance pass professional factory testing and marine field verification. Its core advantages focus on multi-channel signal processing, dedicated bus compatibility and extreme marine environment adaptability. The sorted detailed parameters below support accurate equipment selection, system scheme design and standardized batch procurement for shipyards and marine engineering teams.
3.1 Basic Product Identification & System Matching
- Official Full Model: RRDIO15
- Manufacturer: ROLLS ROYCE Solutions
- Product Series: Rolls-Royce Marine Remote I/O Module Series
- Product Type: Marine Remote Digital Input/Output Signal Module
- Core Functions: Field digital signal acquisition, remote control output, CAN-bus data transmission and marine equipment signal interaction
- Compatible Systems: Rolls-Royce CCS, Damatic Strategy marine automation systems, dynamic positioning (DP) systems and marine thruster control systems
- Applicable Scenarios: New ship automation construction, offshore platform system upgrading, old marine I/O module replacement and marine spare parts reserve
- Executive Standards: Original Rolls-Royce marine specification, IEC marine environmental standard, marine EMC electromagnetic compatibility standard
3.2 Core Electrical & Signal Performance Parameters
This marine I/O module adopts high-stability digital circuit and dedicated bus transmission technology. It features accurate signal collection, fast response and strong anti-interference ability. It fully meets high-reliability signal interaction requirements of marine automation systems.
- Signal Channel Configuration: 15 configurable digital input and output channels
- Output Mode: High-side switching digital output
- Power Input Range: 18VDC–32VDC wide-range input, 24VDC nominal voltage
- Communication Interface: Dedicated marine CAN-bus system bus, stable and low-delay transmission
- Signal Accuracy: High-precision digital signal identification, no signal distortion or loss
- Response Speed: Fast signal on-off response, adapting to real-time control of marine equipment
- Protection Mechanism: Overvoltage, overcurrent, surge and short-circuit multi-dimensional protection
- Operating Power Consumption: Low power consumption design, low heat generation for long-term operation
3.3 Structural & Installation Parameters
The module adopts compact lightweight marine structural design. It uses standardized installation and wiring methods to adapt to the compact layout of marine control cabinets.
- Installation Method: Standard 35mm DIN-rail mounting
- Overall Dimension: 120mm × 100mm × 75mm compact size
- Net Weight: 0.5kg lightweight marine module
- Wiring Mode: Removable screw or spring terminal blocks, convenient for disassembly and wiring
- Shell Material: High-strength flame-retardant industrial shell with anti-corrosion and anti-salt-fog coating
- Protection Grade: Professional indoor marine cabinet protection grade, dust-proof and moisture-proof
3.4 Environmental & Mechanical Resistance Parameters
The RRDIO15 passes strict marine extreme environment simulation tests. It maintains stable signal processing performance in complex offshore and shipboard working conditions.
- Operating Temperature Range: -20°C ~ +70°C full-performance stable operation
- Storage Temperature Range: -40°C ~ +85°C high and low temperature resistant storage
- Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
- Environmental Adaptability: Salt fog corrosion resistance, mechanical vibration resistance, dust and moisture resistance
- Continuous Operation: Support 7×24-hour uninterrupted long-term marine operation
3.5 Factory Testing & Quality Standards
All modules are manufactured in accordance with Rolls-Royce original marine quality management system. Each product completes comprehensive factory testing to ensure stable matching with marine automation systems.
- Factory Testing Items: Channel signal accuracy test, CAN-bus communication stability test, full-load aging test, temperature cycle test and vibration resistance test
- Quality Standards: Comply with original Rolls-Royce marine equipment manufacturing specifications
- Field Reliability: Widely deployed in global DP vessels and offshore platforms, with long-term stable operation verification

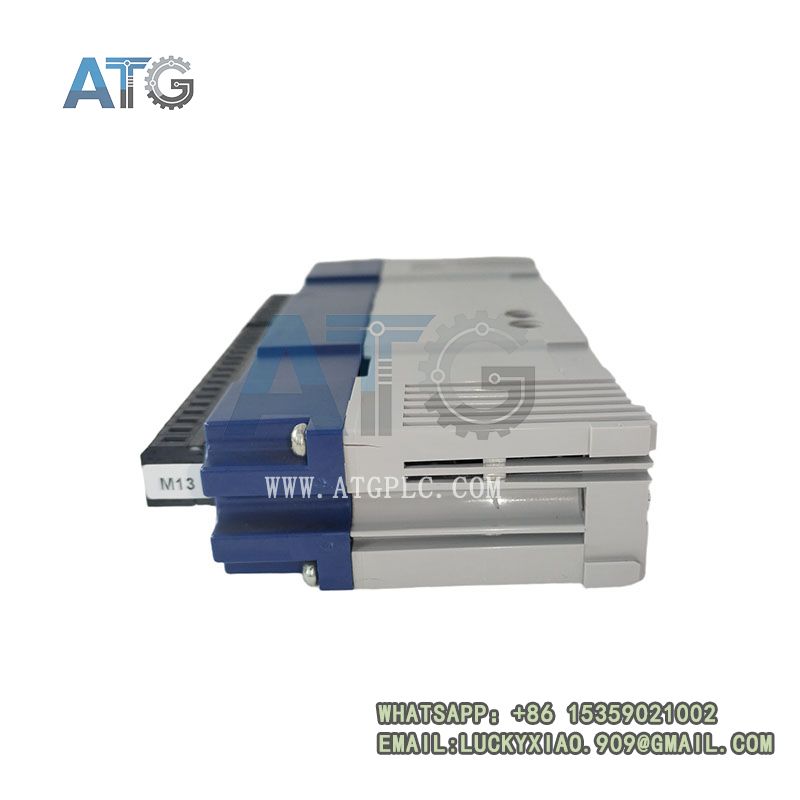

Rolls-Royce RRDIO15
E-commerce Sales Mode & Complete Procurement Advantages
As a core supporting spare part for Rolls-Royce marine automation systems, the ROLLS ROYCE adopts standardized and transparent global marine industrial e-commerce operation mode. It focuses on ship emergency maintenance, offshore system upgrading and marine enterprise spare parts stocking. It provides one-stop standardized procurement and full-cycle professional marine technical services for shipyards, vessel operators and marine engineering maintenance teams.
4.1 Standardized Transparent E-commerce Sales System
All products implement unified original factory production and testing standards. The whole production, testing and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, technical parameter manuals and factory test reports. Customers can independently verify product authenticity and system matching accuracy online. This transparent sales mechanism effectively avoids incompatible generic modules and refurbished parts. It ensures the safety and stability of marine automation system signal transmission.
4.2 Diversified Flexible Procurement Modes
Marine engineering and equipment maintenance have diverse procurement cycle demands. We provide flexible and targeted procurement solutions to meet emergency repair, spare parts reserve and large-scale project construction needs.
- Single Unit Emergency Spot Procurement: Support single spot orders for sudden on-site module failure. Sufficient global spot inventory supports fast delivery. It quickly restores normal operation of marine signal systems and reduces vessel downtime losses.
- Small-Batch Spare Parts Stocking: Support small-batch customized procurement for shipping companies and offshore operators. Pre-storing modules improves the response speed of daily equipment maintenance.
- Large-Batch Project Procurement: Provide hierarchical preferential pricing and long-term framework cooperation services for new ship construction, fleet-wide automation upgrading and offshore platform system renovation projects. It effectively reduces overall project procurement costs.
4.3 Full-Cycle Value-Added Services & After-Sales Guarantee
Marine signal I/O modules are key links to ensure the normal operation of ship control systems. We provide full-cycle technical support and quality assurance to eliminate all procurement risks for marine customers.
- 100% Original Genuine Quality Guarantee: All products are original ROLLS ROYCE genuine modules. Complete factory test reports are provided to ensure perfect compatibility with original marine automation systems.
- Professional Marine-Grade Logistics Protection: Adopt multi-layer shockproof, moisture-proof and anti-salt-fog packaging. It prevents precision modules from being damaged during long-distance ocean transportation and warehousing.
- 24/7 Professional Marine Technical Support: Provide pre-sales system matching consultation, in-sales installation and wiring guidance, and after-sales remote fault diagnosis and debugging services.
- Official Long-Term Warranty Service: Enjoy unified official after-sales warranty. Free replacement and maintenance services are available for non-human-induced quality problems to reduce enterprise operational risks.
Main Marine Application Scenarios
Benefiting from dedicated marine protocol adaptation, multi-channel signal processing and strong environmental resistance, the is widely used in various core scenarios of marine and offshore automation control systems.
- Dynamic Positioning (DP) System Signal Acquisition: Collect real-time digital signals of DP vessel thrusters and positioning sensors. It transmits valid data to the main controller to support precise vessel positioning.
- Marine Propulsion & Auxiliary Control: Responsible for signal interaction of ship main propulsion systems and auxiliary electrical equipment. It realizes remote monitoring and switch control of marine equipment.
- Offshore Platform Automation System: Serve as remote signal terminals for offshore oil and gas platforms. It supports real-time monitoring and automatic control of platform equipment.
- Ship Power Management System Matching: Collect switching signals of ship power distribution equipment. It assists the system in realizing load regulation and fault protection functions.
- Old Vessel System Renovation & Upgrading: Replace aging and failed old I/O modules. It upgrades signal transmission efficiency and stability of old marine automation systems.
- New Ship Automation Cabinet Integration: Support standardized cabinet integration for new marine engineering projects. It realizes modular and standardized layout of ship signal systems.

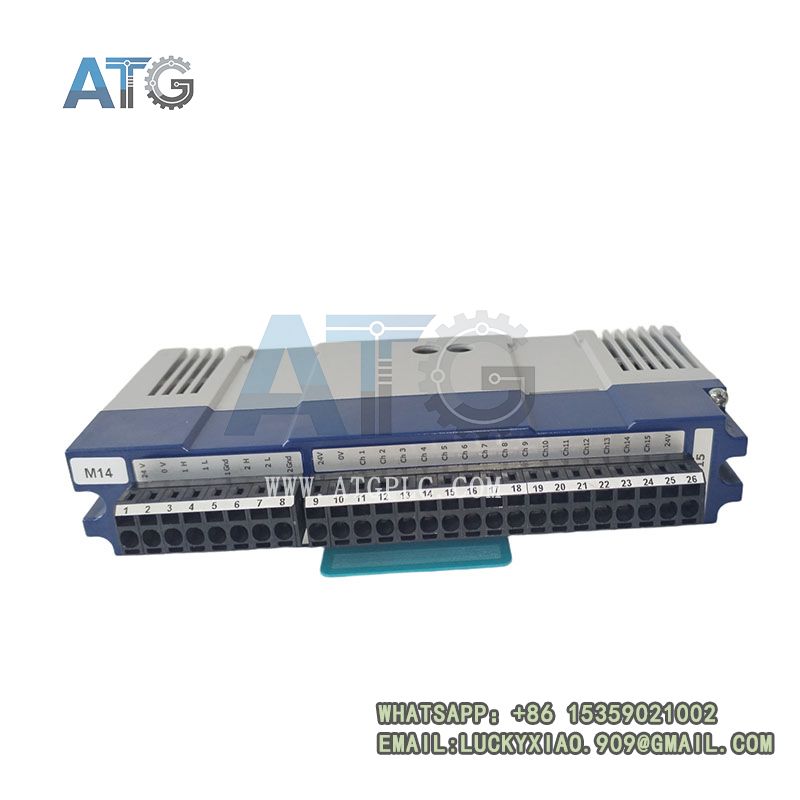

Rolls-Royce RRDIO15
Product Value & Market Competitiveness
The ROLLS ROYCE fills the market gap of dedicated marine I/O modules for Rolls-Royce automation platforms. Compared with universal industrial I/O modules, it has exclusive CAN-bus protocol compatibility, professional marine anti-corrosion and anti-vibration design and multi-channel configurable signal functions. It solves common pain points such as poor system matching, unstable signal transmission and insufficient environmental resistance of generic modules in marine projects.
In the global marine spare parts e-commerce market, the has obvious differentiated competitive advantages. It features high signal accuracy, strong system adaptability and low failure rate. Combined with transparent genuine procurement mechanism, complete technical supporting documents and full-cycle marine professional services, it is the most reliable supporting solution for Rolls-Royce marine automation system maintenance, renovation and new construction projects.
